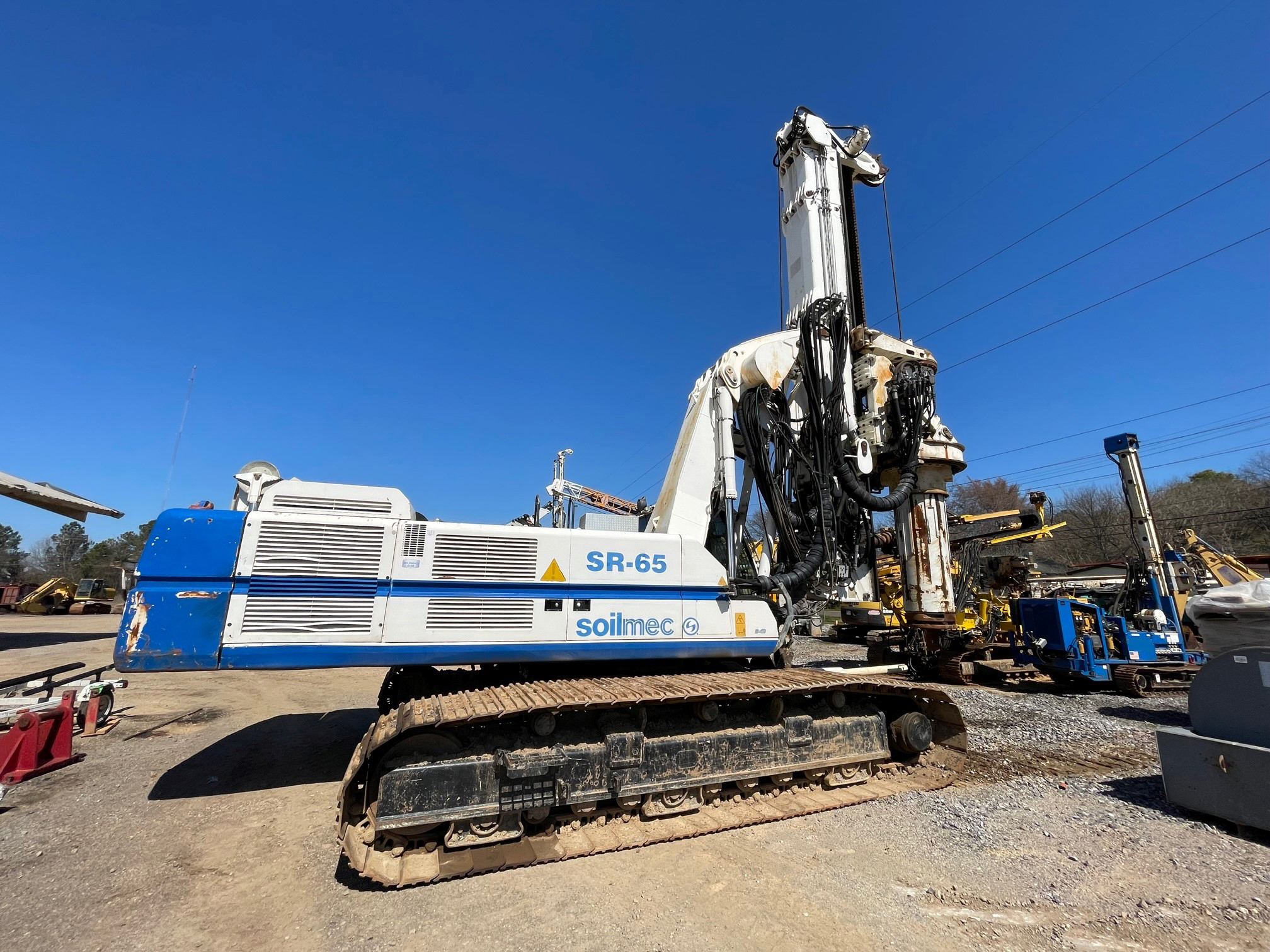

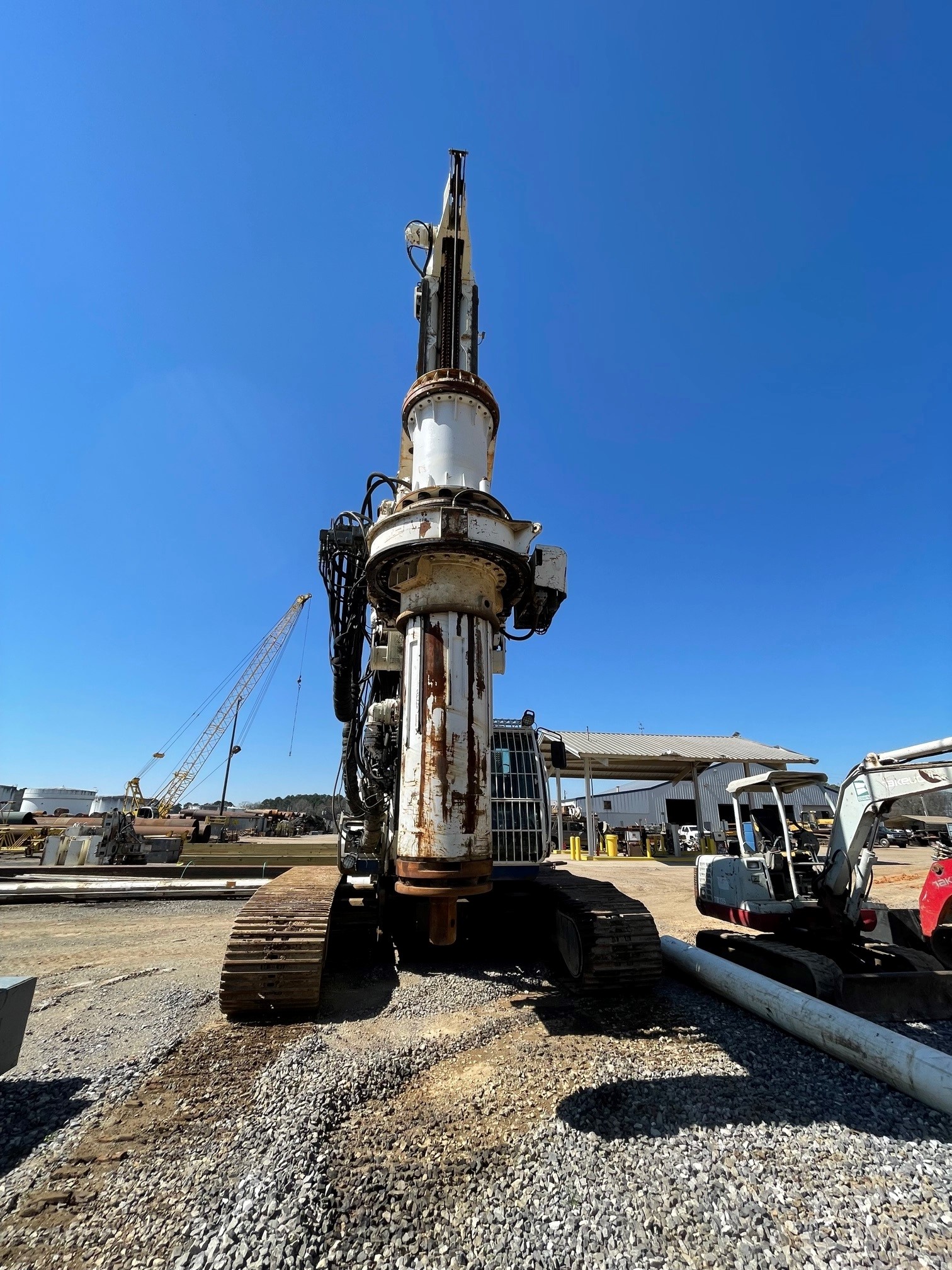

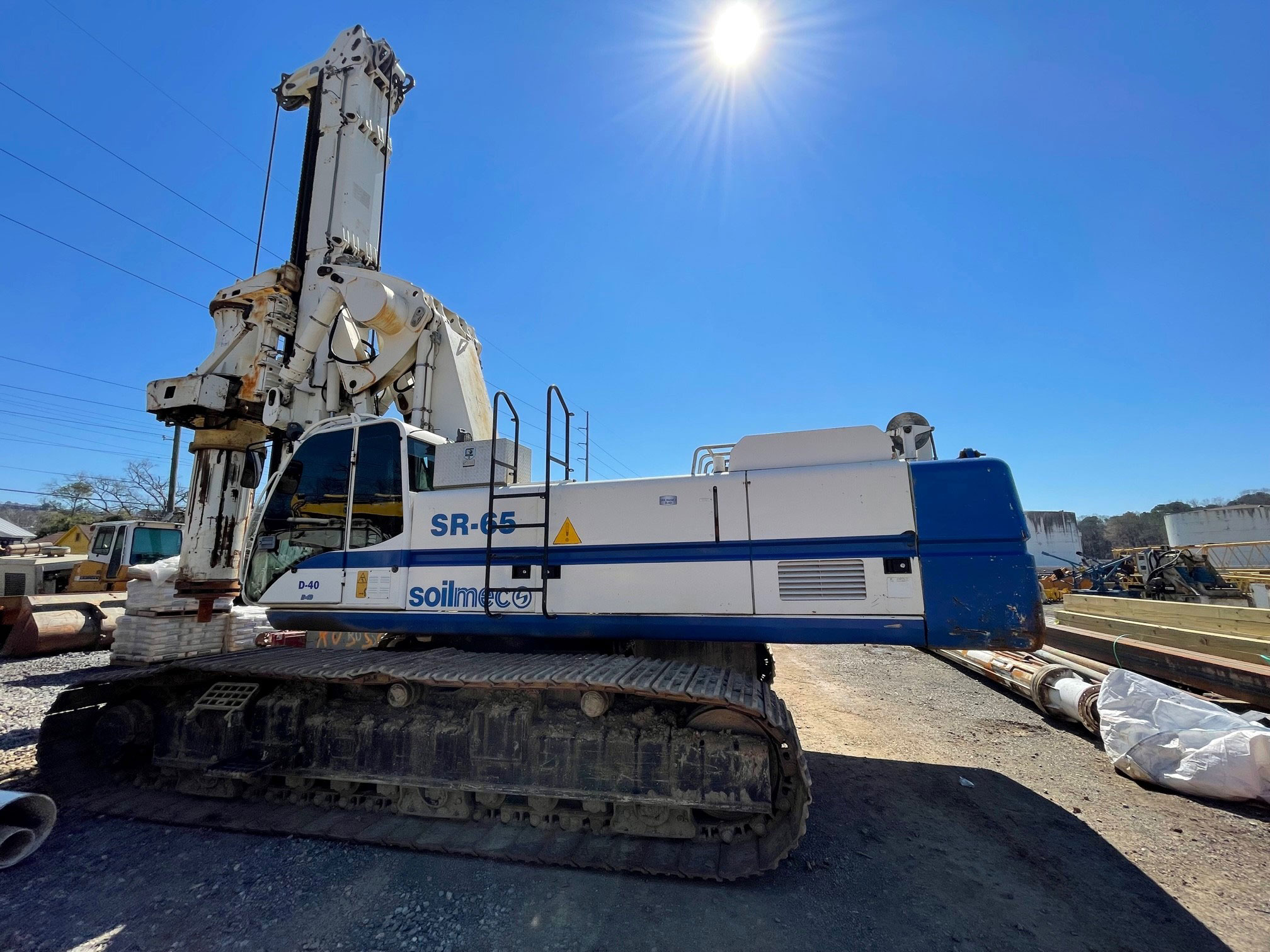

Soilmec SR-65 Rotary Piling Rig

Description

Used Soilmec SR-65 Rotary Piling Rig for sale.

2400 Hours

4x9m kelly bar-36m

Winch crowd system version

Blue tech line

CFA Prearrangement- No cfa kit included

Undercarriage:

Overall width retracted / extended crawlers 2980 / 4500 mm

Width of triple grouser track shoes 700 mm

Overall length of crawlers 5686 m

Traction force 395 kN

Travelling speed 1,8 km/h

Engine:

Cummins L 9

Power rating 3 272 kW @ 2100 rpm

Engine conforms to Exhaust emission Standard EU Stage V / US EPA Tier 4

Main winch:

Line pull (1st layer) 220 kN

Rope diameter 26 mm

Line speed (max.) 84 m/min

Aux winch:

Line pull (1st layer) 83 kN

Rope diameter 19 mm

Line speed (max.) 76 m/min

Winch crowd system:

Stroke 16200 mm

Crowd force pull (down/up) 330 / 330 kN

Speed up (slow/fast) 15,5 / 34 m/min

Speed down (slow/fast) 15,5 / 34 m/min
