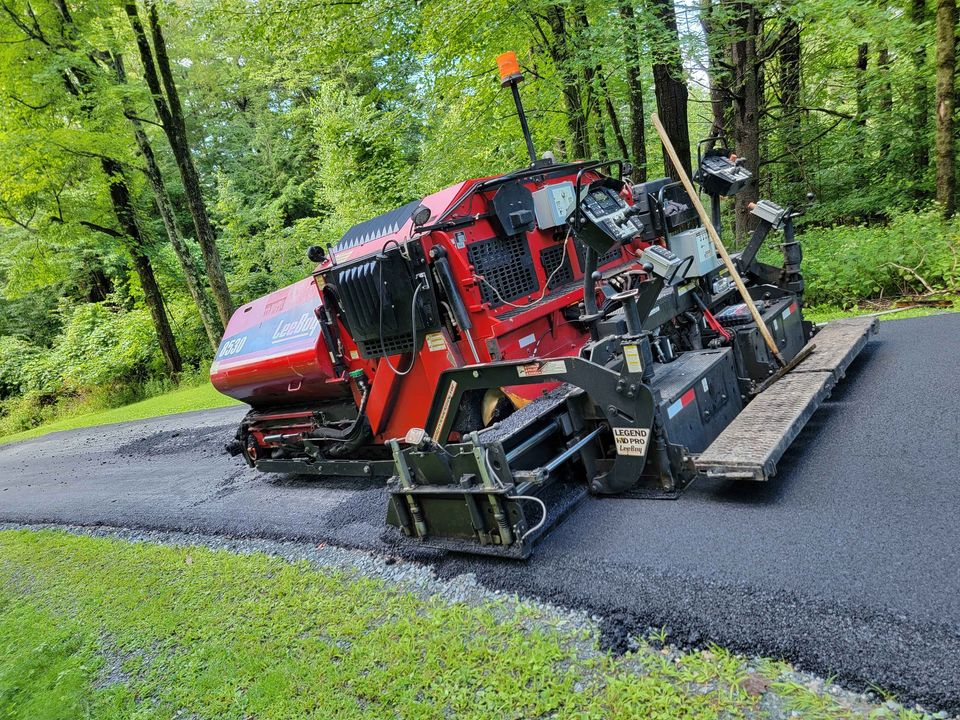

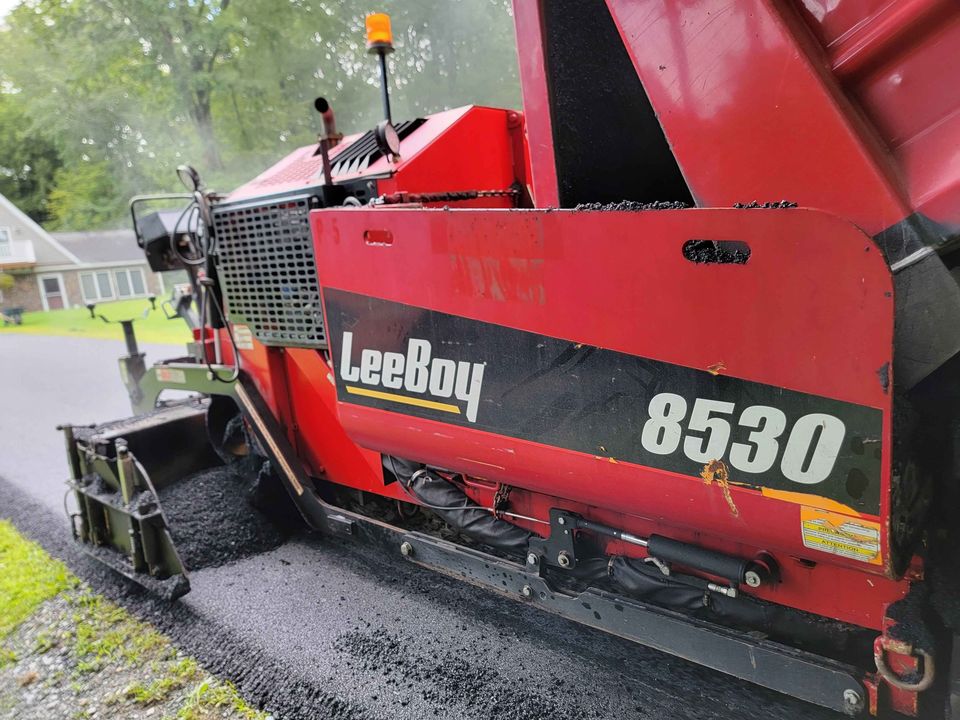

Leeboy 8530 Paver

Description

Used Leeboy 8530 Paver for sale.

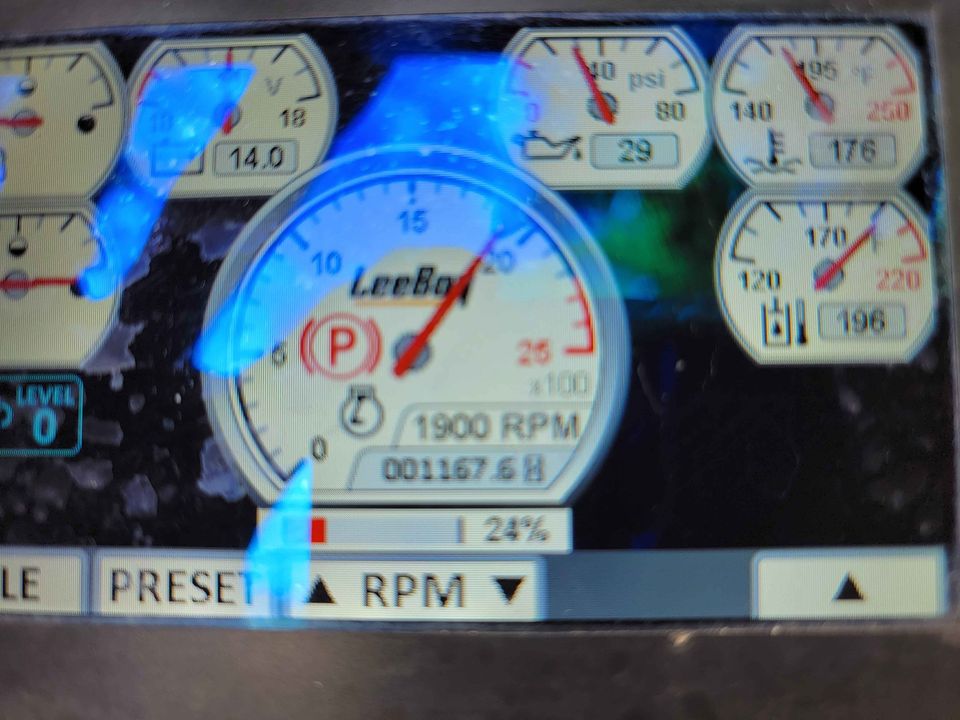

1,100 Hours

Dimensions:

– Length: 15’ (4.57 m)

– Width: 8’ 6” (2.59 m) transport 10’ (3.05 m) hopper wings down

– Height: Low Deck: 6’ 8” l High Deck: 7’ 9”

– Total Weight: 22,520 lbs. (10,215 kg)

Engine:

– Kubota turbocharged diesel, Tier 4 Final – 125 hp (93.2 kw

Capacities:

– Fuel: 32 gallons (121 l)

– Hydraulic reservoir: 25 gallons (94.6 l)

– Washdown tank: 7 gallons (26.5 l)

– DEF tank: 5 gallons (18.9 l)

Hopper:

– Hopper size: 9 ton (8,164 kg)

Paving Widths

– Variable up to 15’ 6” (4.72 m)

Paving Depths

– Manual flight screws positioned on the screed to control material thickness, depth: 0” to 8”

Screed:

– Legend HD PRO Screed, free floating

– Weight: 4,150 lbs

– Consisting of a main screed and two hydraulically operated screed extensions

– Spring-loaded end gates standard

– Sloping screed extensions standard

– Equipped with two electric vibrators, 4100 RPM

– Legend electric screed heat, 14.4 kw generator
