Klemm KR 702-2R Micro Piling Rig

Description

Used Klemm KR 702-2R Micro Piling Rig for sale.

937 Machine Hours

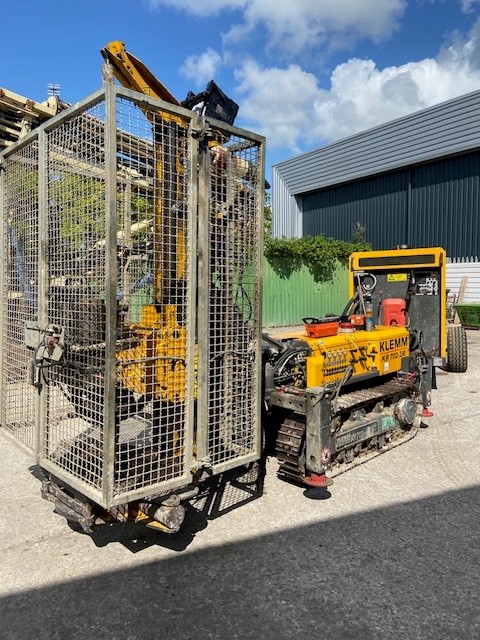

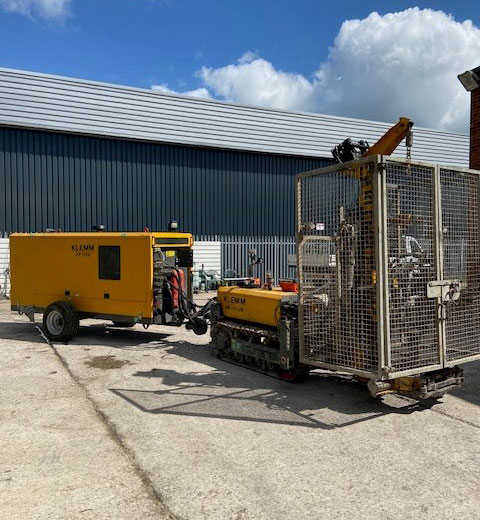

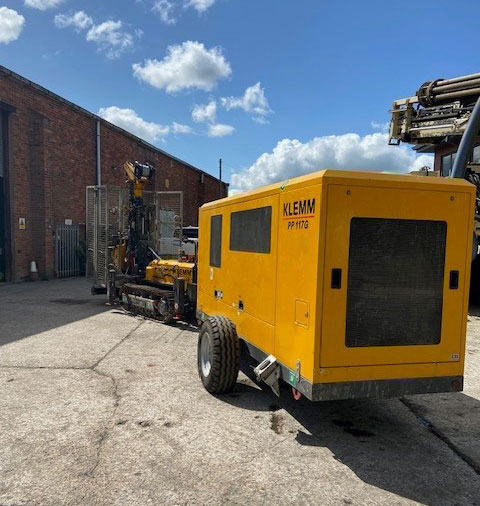

Klemm KR 702-2R compact piling rig with separate pp117/129g power pack

• Undercarriage
Chain width: 200 mm
Length track unit: 1935 mm
Ground pressure: 7,14 N/cm²
Ground clear: 210 mm
Tramming force: 20 kN max.
Fully covered hydraulic valve banks and hose port on the back of the rig. Main hydraulic lines with quick coupling fittings. Central greasing ports for all maintenance greasing points. Changeable counter weights at the back of the rig
Hydraulic retracting track undercarriage type B00. Retracting range 750 – 1250 [mm]
2 front and two rear hydraulic jacks (±200 mm)

• Hydraulic kinematic range*
Mast erecting: 0°- 95° (from horizontal to vertical)
Mast tilt: ± 45° (left and right*)
Lateral mast lift: ± 250 mm up/down from track level
Spread track: 750 – 1250 mm
Telescopic mast: 2500 – 3500 mm (w/o cat head)
(* not all achievable positions are appropriate for drilling operations)

• Transport dimensions Rig
Total length: 3300 mm
Total width: 750 mm (without safety guard, clamp & retracted tracks)
Total height: 2250 mm
Operational weight: 5.2 ton

• Telescopic drill mast type L164 (2450)
Type L164 (lg. 2450 – 3450 mm) with cylinder feed and flyer feed chain
Total open length: 3450 mm
Closed length: 2450 mm
Mast stroke: 1500-2500mm
Total feed way max: 2500 mm
Feed force: 38 kN
Retracting force: 60 kN
Complete with feed sequence control and squared and toothed mast support foot
Pre equipped for HSE safety guard fitting with electric and mechanical interfaces and door cable connection

• Winch
1.0 tonne rope winch on cathead
Winch type EGO 110
Total mast height plus 445 mm
Steel rope: Ø8 mm
Rope capacity: 32 m

• Klemm rotary head type KH25
With two units of H35T two speed motors
Max torque: 24.4 kNm
Max speed: 89 rpm
Hose protection bar
M20 drive flange connection
Flat hosing and valve arrangement
Rope protection bar
Slide with hydraulic side shift function
4” grouting swivel with swan neck

• Klemm type I clamp
Clamping force : 196 kN
Clamping range : Ø 298 – 508 mm
Total width : 1436 mm
With chuck holders and chuck inserts for range 410-508mm
Complete with hoses, fittings, safety valves and rectifier valve and centralizer with centralizing inserts

• Radio Remote Control
HBC Spectrum 3 radio remote control for rig tramming and drilling operations. With two battery packs, mains plug charger and on board charging station 24V. Cable plug for emergency situation. One waist belt and one shoulder harness. Slewable control arm for HBC remote box.
L/W/H: 360/183/180mm
Weight: 3kg

• Pressure gauge box
With 4 units of pressure gauges for best operators view and with lockable vandalism protection cover mounted on height adjustable pole on the back of drilling unit

• Acoustic safety signal and 360 degree LED amber beacon for function driving, drilling unit and power pack.
