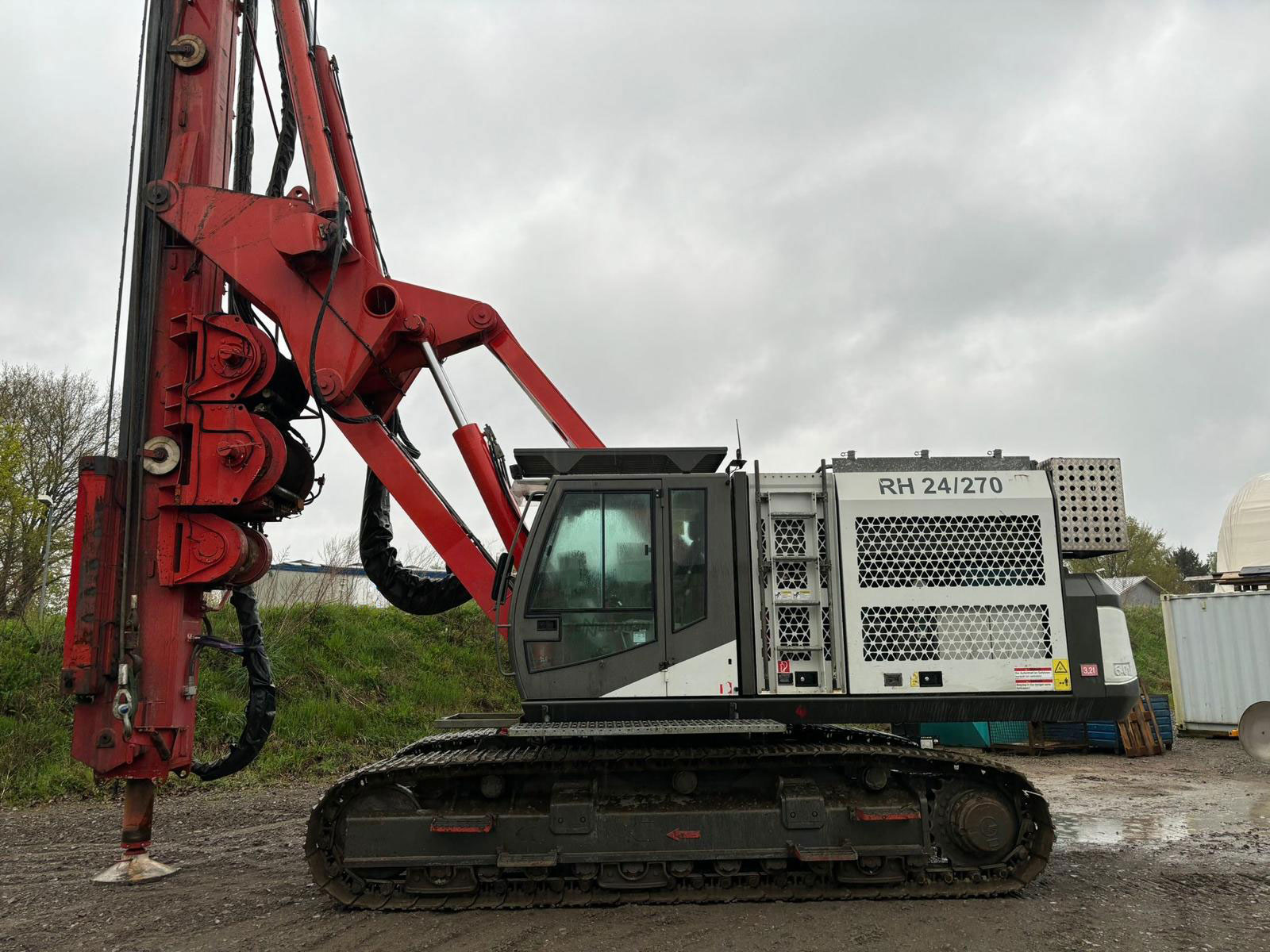

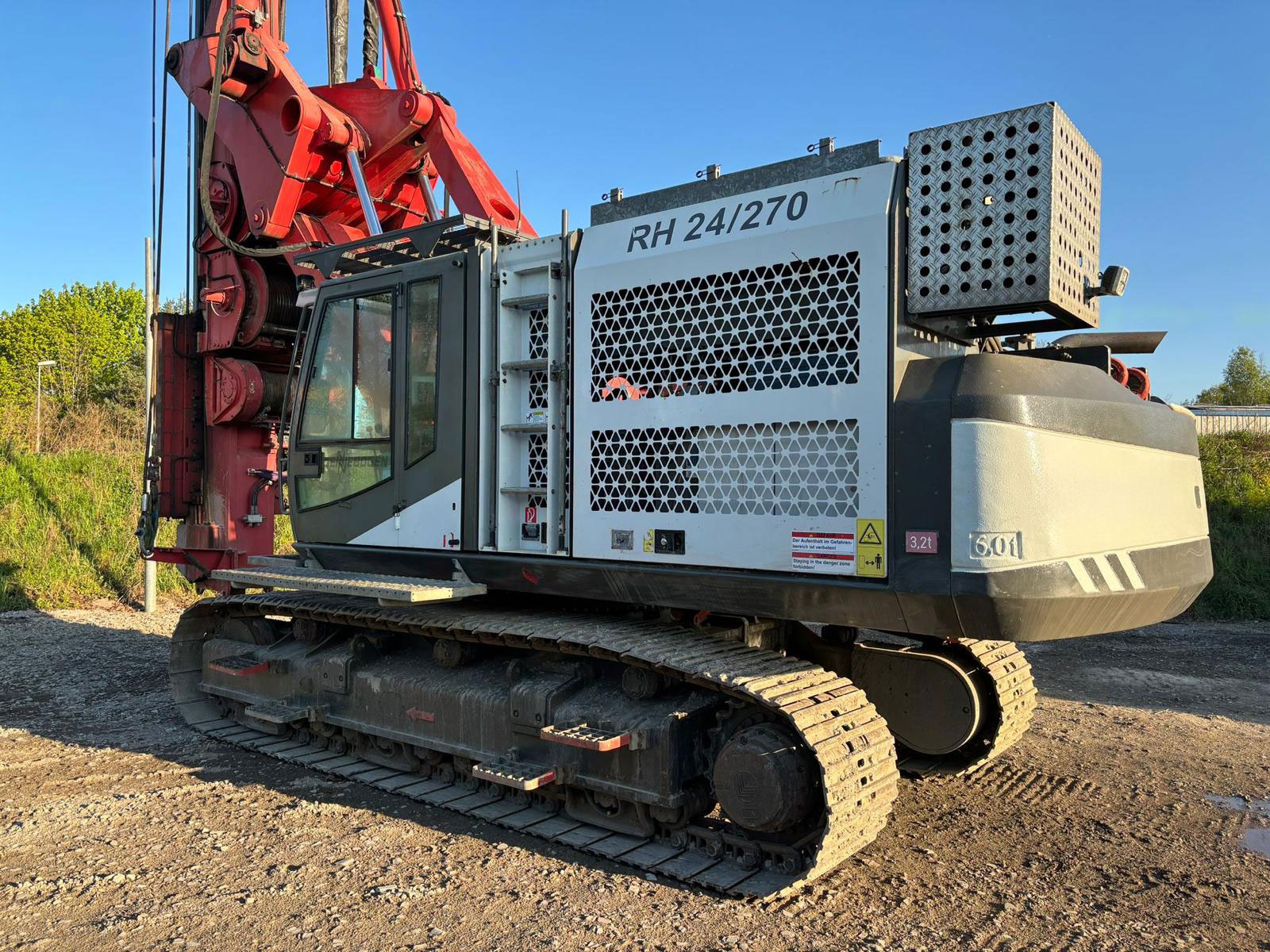

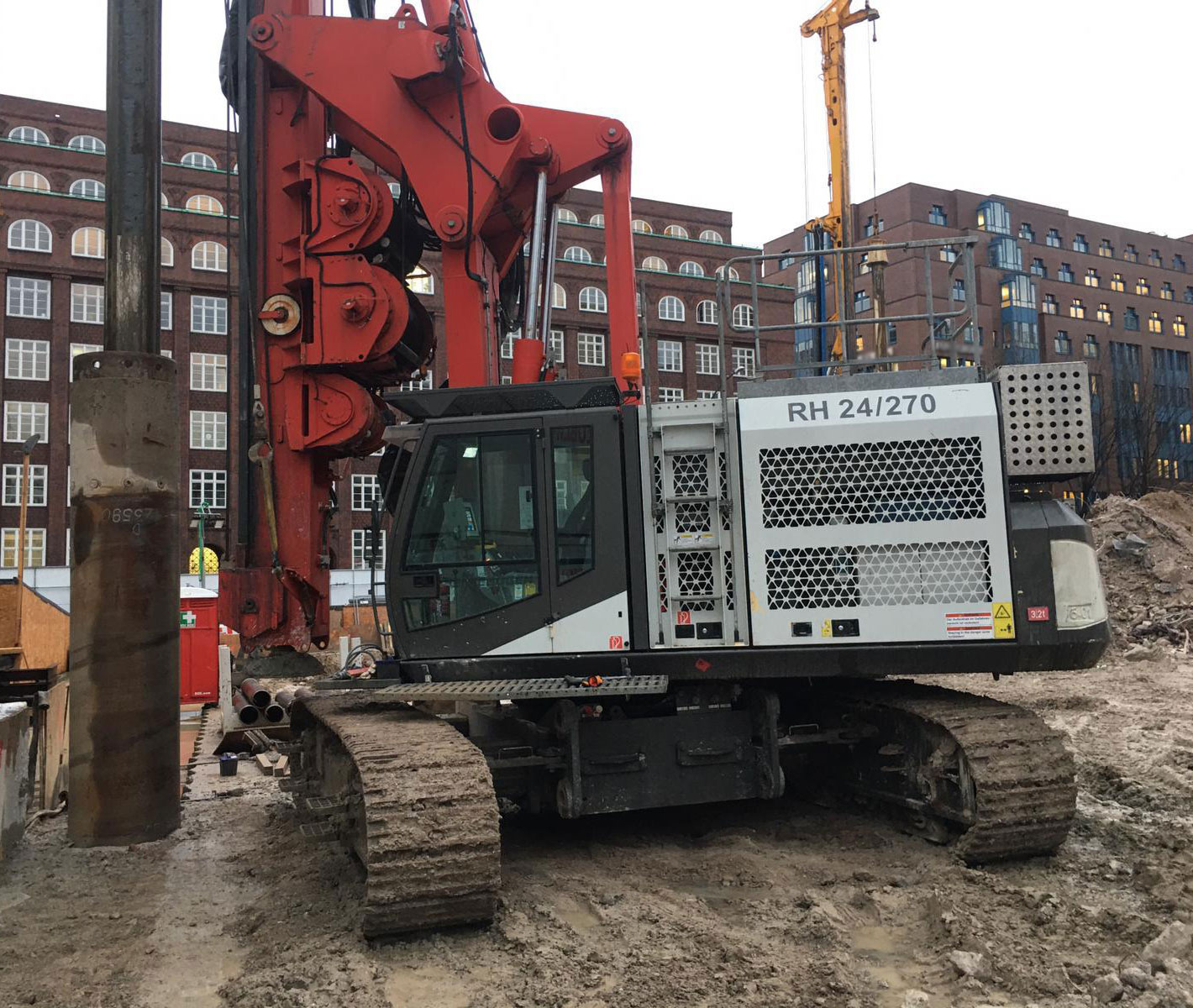

Delmag RH 24/270 Rotary Piling Rig

Description

Used Delmag RH 24/270 Rotary Piling Rig for sale.

8,238 Hours

CAT Engine-276KWH

BT270 Rotary head

Kelly bar included-KS 419/3-27m (low noise)

Technical details:

Total height 23,950mm

Inclination:

Left/right 9/9

Forward/back 4/14

Stroke rotary head 17,500mm

Crowd winch:

Crowd force up-down effective 340/230kn

Crowd force up-down nominal 430/290Kn

Rapid gear up/down 25/25 m/min

Working gear up/down 7/7 m/min

Kelly winch:

Line pull effective/nominal 210/265kn

Speed constant motor 57 m/min

Line diameter 28mm

79,000kg Weight
