Description

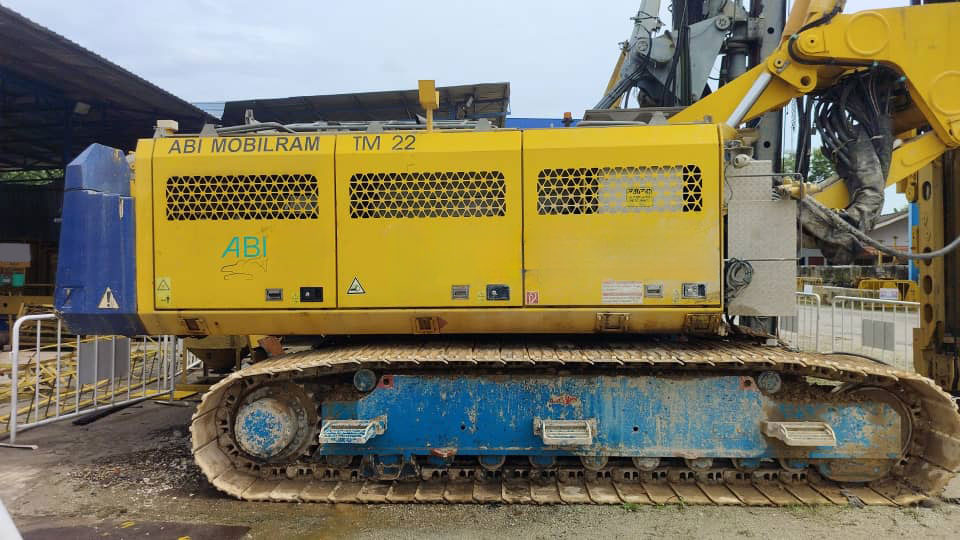

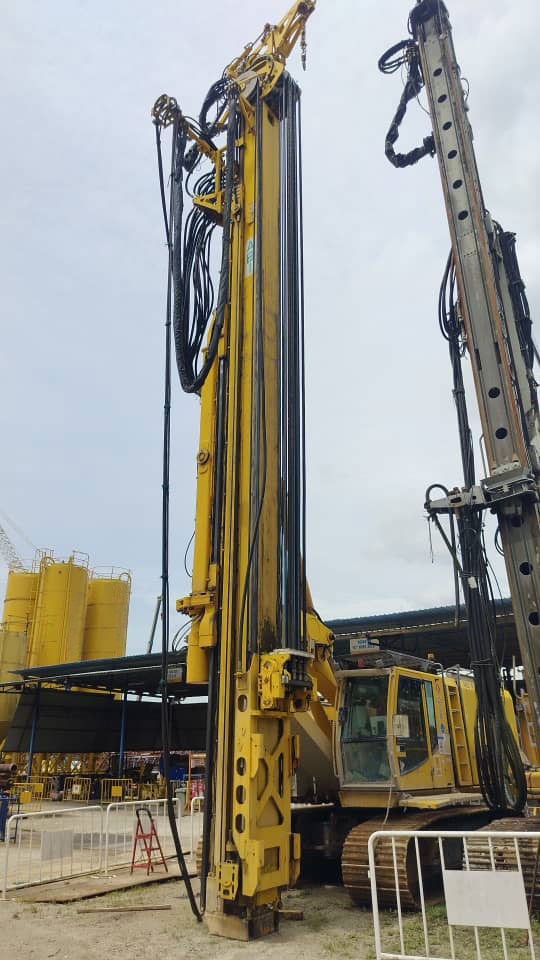

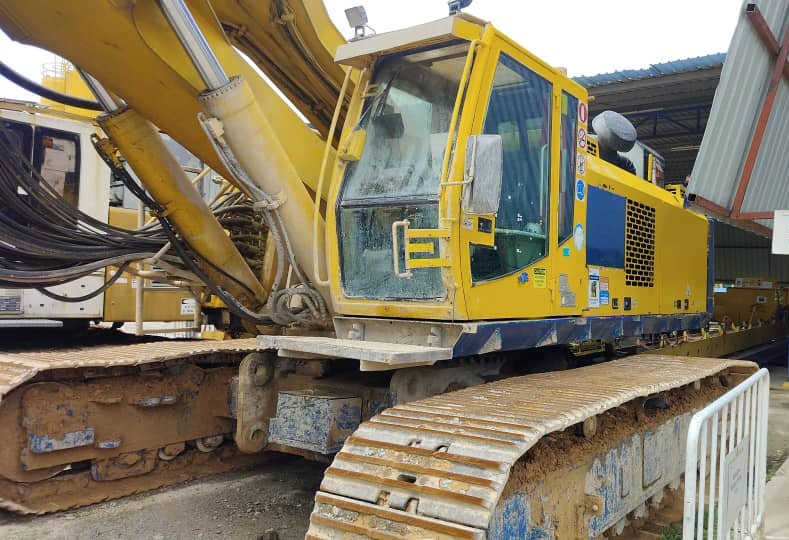

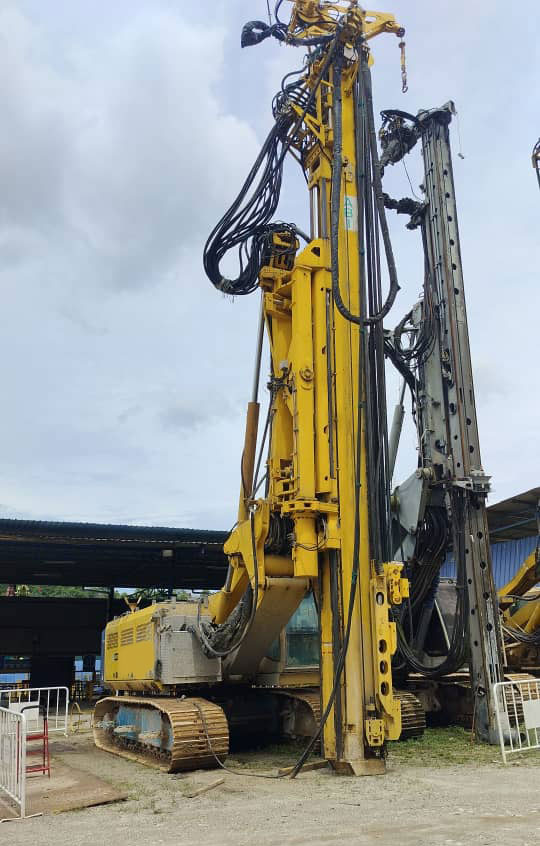

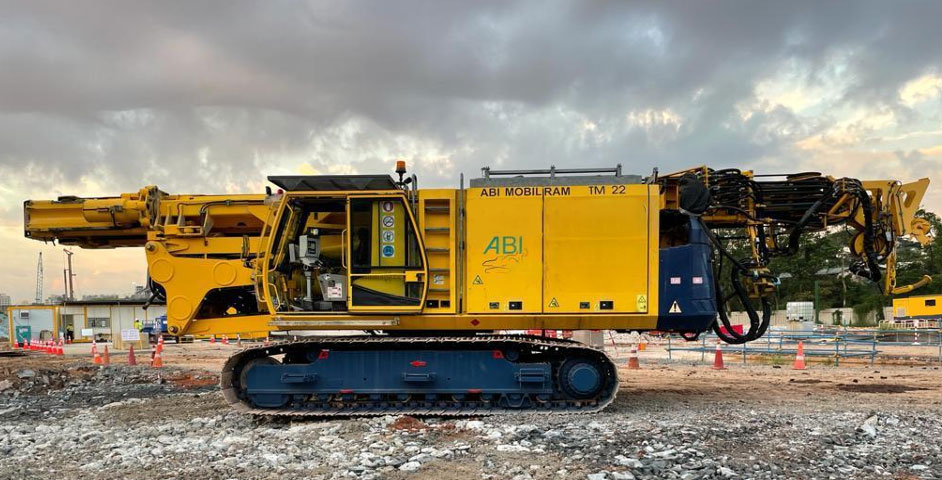

Used ABI TM 22 Vibratory Piling Rig for sale.

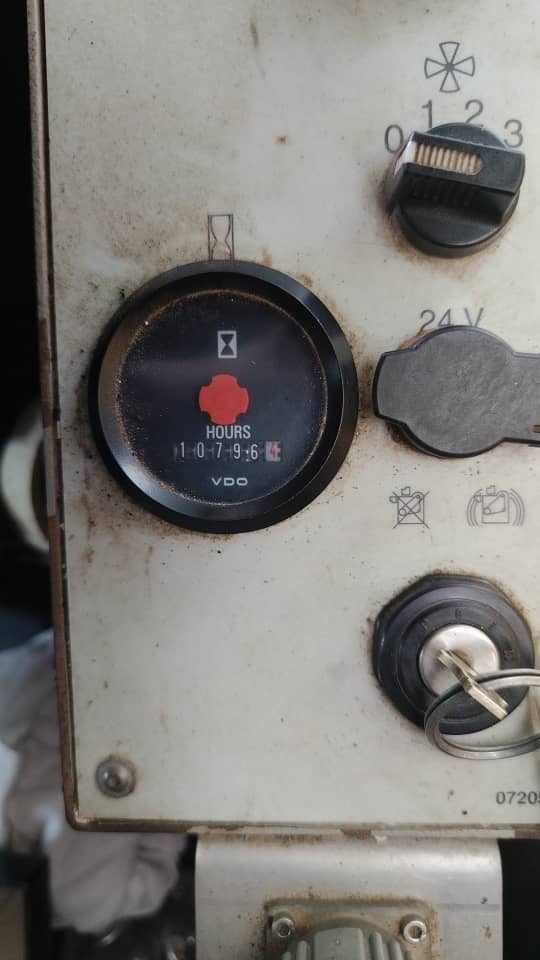

Motor Hours: 13,835 mth
MRZV 30VV Vibratory Hammer with SKZ 1800 Clamping Jaws
Centrifugal Force at Nominal RPM with Standard Clamping Jaws (SKZ.1800) – 1500 kN
Max. Static Pulling Force/Pre-Tension Force – 300 kN
Max. Piling Element Weight – 3200 kg
Clamping Force – 1800 kN
Unit weight without working equipment – 75,900 kg
Transport weight without counterweight – 60,500 kg
Assembly weight including basic arm and auxiliary winch – 21,500 kg
Max. torque take-up – 200 kNm
Max. useful load capacity at minimum reach – 15,000 kg
Dimensions:
Max./Min. height – 13,893-27,080 mm
Max. height to quick-change device lock – 24,600 mm
Mast offset below ground level – 2,540 mm
Transport width – 3,400 mm
Transport length – 14,474 mm
Transport height – 3,650 mm
Pre-tensioning and pulling forces:
Pre-tensioning force – mast cylinders – 150 kN
Pulling force – mast cylinders – 300 kN
Maximum mast tilt:
Forward – +4 deg
Backward – -5 deg
Sideways – +/-4 deg
Mast slewing range +/-95 deg
PRICE: POA
View all ABI Machines
Manufacturer | ABI |
---|---|
Model | TM 22 |
Operating hours | 13835 |
Year of Registration | 2012 |
