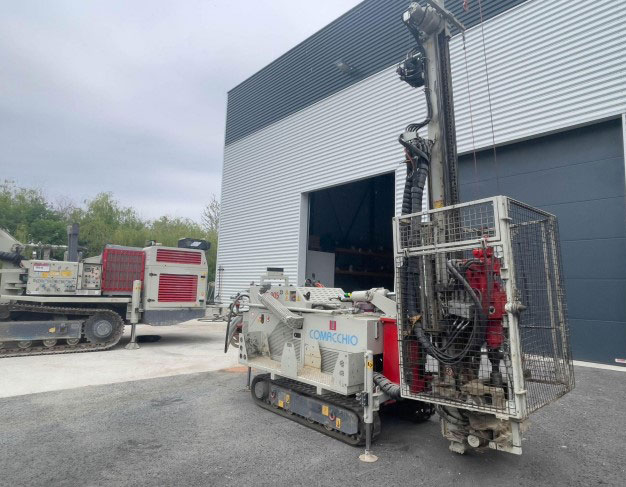

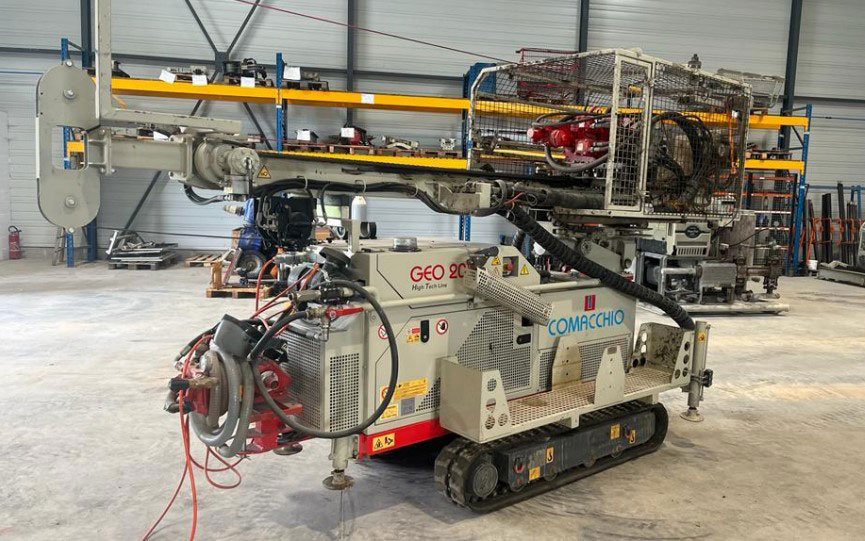

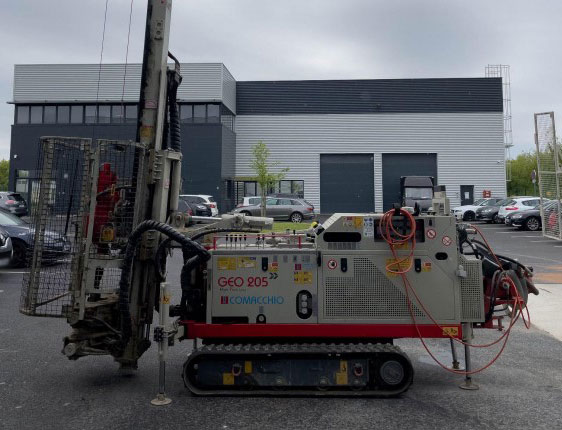

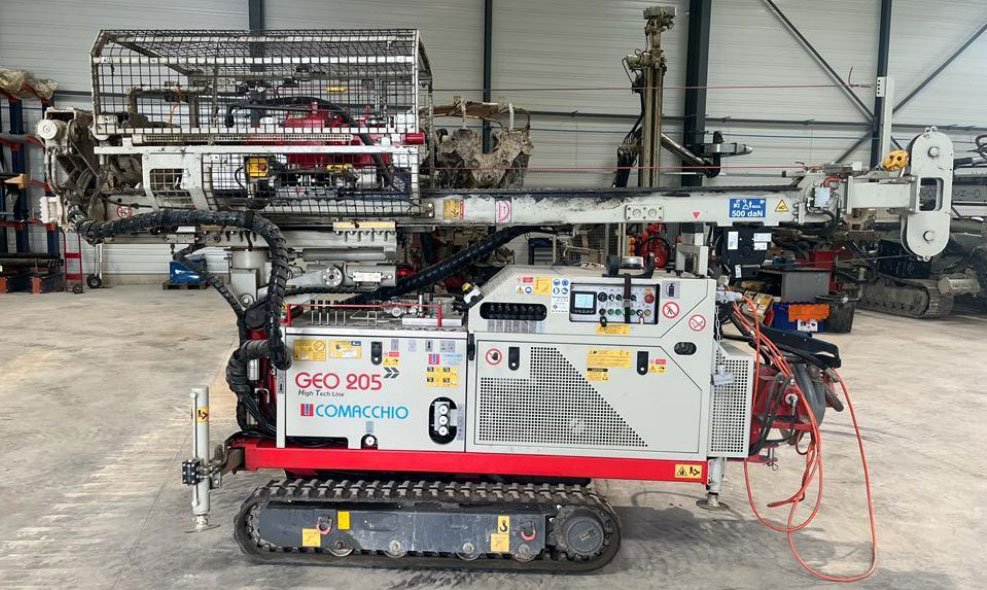

Comacchio GEO 205 Geotechnical Drill Rig

Description

Used Comacchio GEO 205 Geotechnical Drill Rig for sale.

1,155 Hours

Engine-KUBOTA V 1505T Diesel – 31 kW at 3 000 rpm

R400.3 Rotary head

Torque: 480 / 140 / 155 / 45 daNm

Speed: 40 / 135 / 125 / 450 rpm

Blow energy: 180 Nm

Frequency: 2 700 blows/min

Thread type: H55 PIN Right – R32 BOX

2430mm feed stroke

Double clamped 45-220mm

Clamping force: 13 800 daN / Breakout torque: 1 500 daNm

Remote control

500kg winch

Triplex pump Gamma 80 90 L/min / Max. pressure: 40 bar

Operating weight: 2,400kg
