Casagrande B470XP-2 CFA Piling Rig

Ref: 9359

Make an Enquiry
Year: 2020

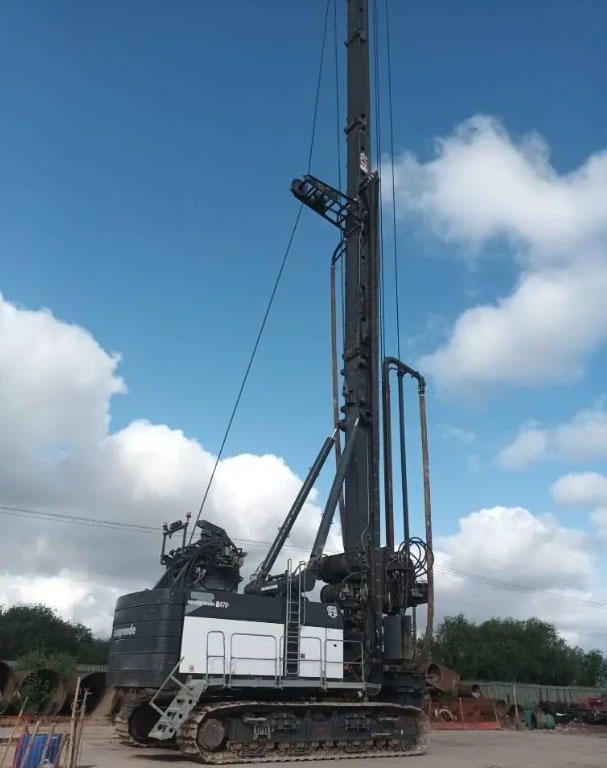

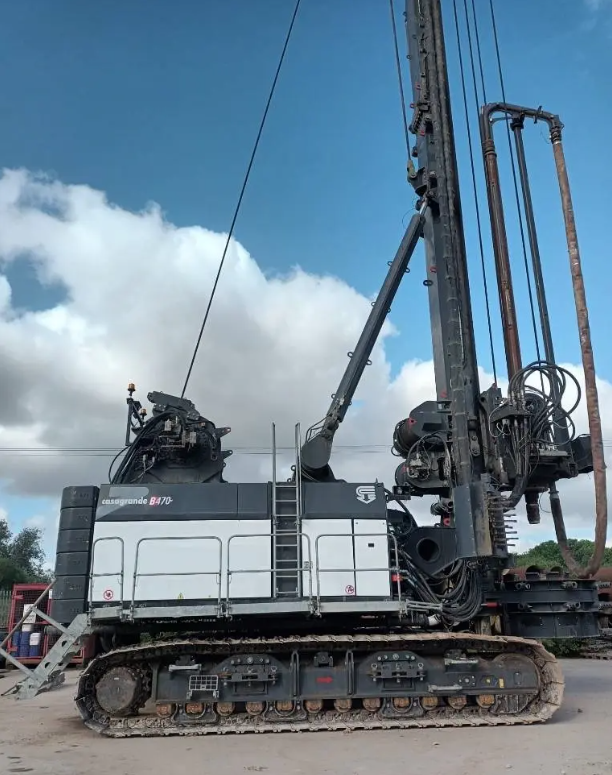

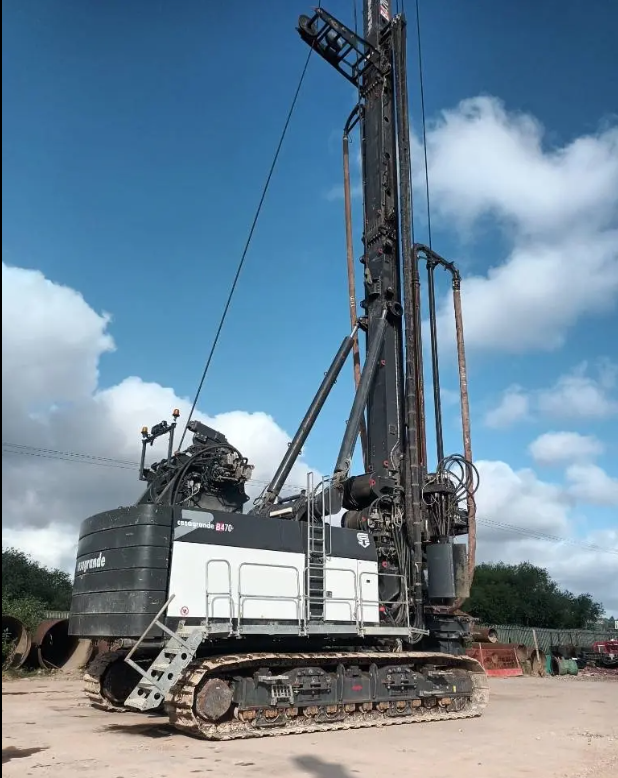

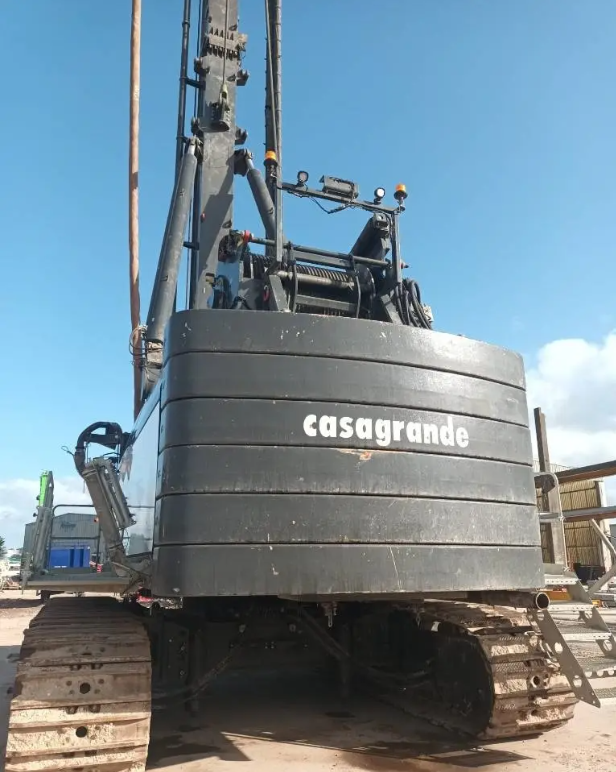

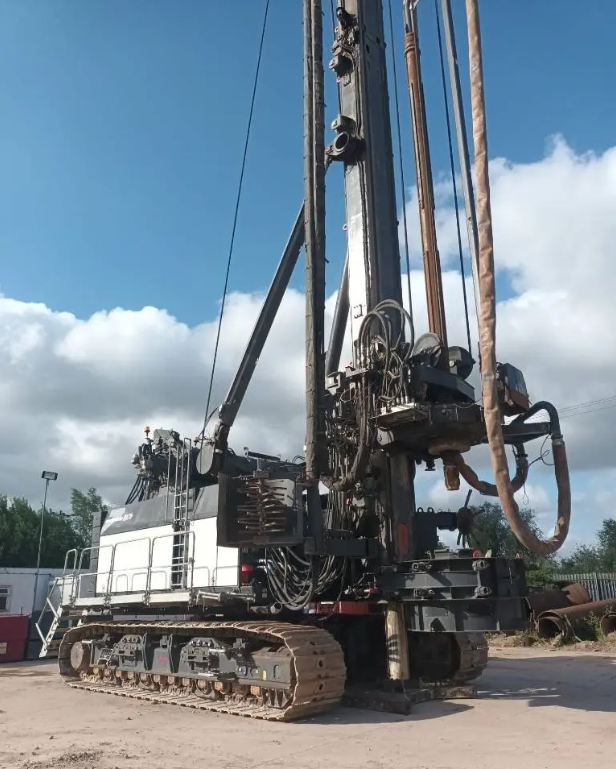

Casagrande B470XP-2 CFA Piling Rig
Casagrande B470XP-2 CFA Piling RigCasagrande B470XP-2 CFA Piling RigCasagrande B470XP-2 CFA Piling RigCasagrande B470XP-2 CFA Piling RigCasagrande B470XP-2 CFA Piling RigCasagrande B470XP-2 CFA Piling Rig

Description

Used Casagrande B470XP-2 CFA Piling Rig for sale.

1,300 Hours

Max depth 41m(CFA)

Max diameter 1500mm(CFA)

Set up for CFA and CSP

Base carrier:

Cummins X15 engine

1800rpm-472kw

Main winch:

Line pull on 1st layer nominal / effective 435/350kn

Max. line speed 79m/min

Rope diameter 36mm

Hydraulic system:

Hydraulic power 405kw

Hydraulic pressure 350bar

Main pumps flow rate 405 + 405 + 309 + 309 + 134 l/min

Hydraulic oil tank capacity 1560 l

Undercarriage:

Undercarriage width 5200 mm

Width of triple grouser track shoes 1000 mm

Overall tracks length 7200mm

Weight of basic machine without attachment 100,000kg

PRICE: POA


View all Casagrande Machines
Manufacturer

Casagrande
Model

B470XP-2
Operating hours

1300
Year of Registration

2020
Category

,

Worldwide Shipping Available

Worldwide Shipping
Available

Shipping Updates

Regular Shipping
Updates

All Customs Paperwork Included

Customs Paperwork
Included
