Casagrande B175 XP CFA Piling Rig

Ref: 8930

£175,000 GBP

Make an Enquiry
Year: 2016

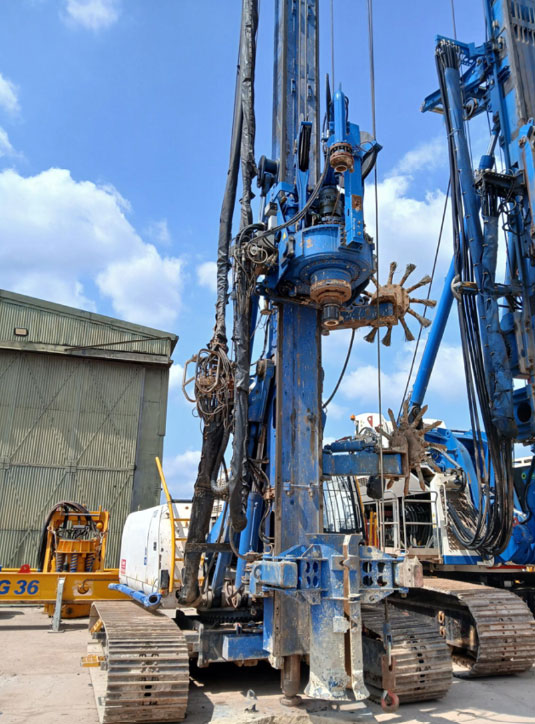

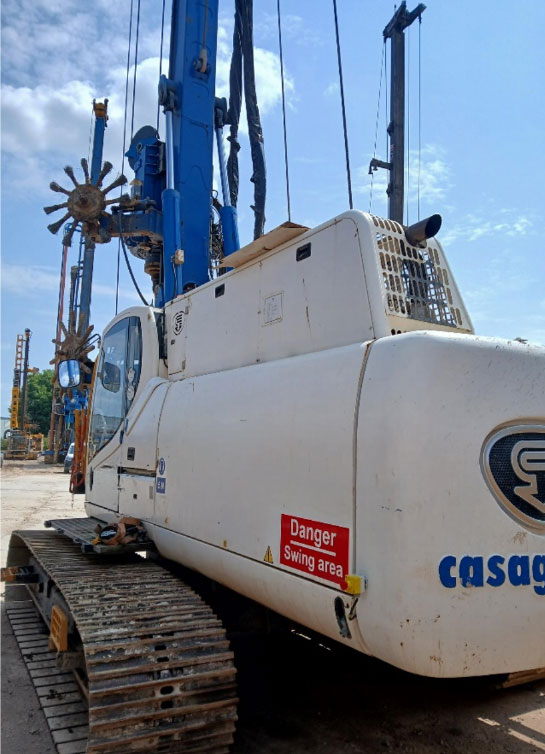

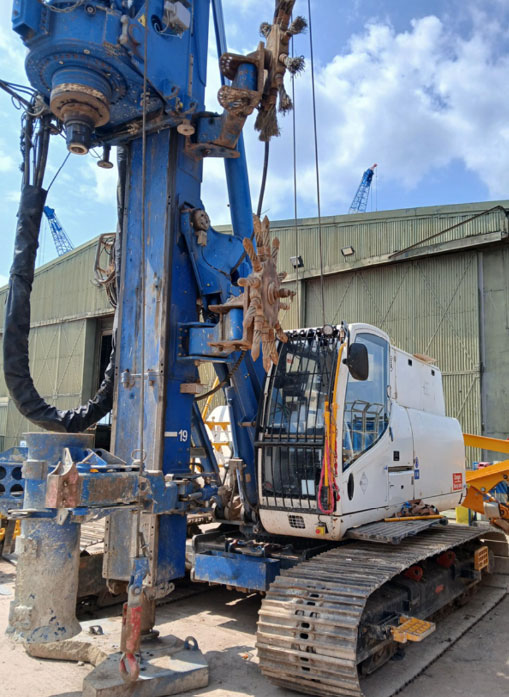

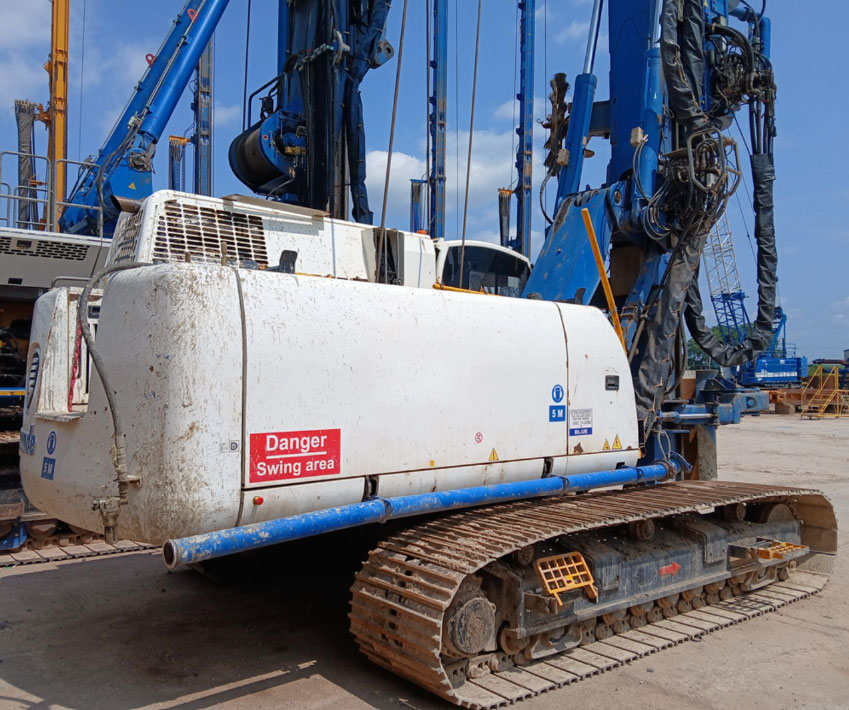

Casagrande B175 XP CFA Piling Rig
Casagrande B175 XP CFA Piling RigCasagrande B175 XP CFA Piling RigCasagrande B175 XP CFA Piling RigCasagrande B175 XP CFA Piling RigCasagrande B175 XP CFA Piling RigCasagrande B175 XP CFA Piling Rig

Description

Used Casagrande B175 XP CFA Piling Rig for sale.

5,290 Hours

New Mast was fitted 2023

Cummins QSB 6.7 6.7-4f 194kw (2200 rpm)

Slew ring needs to be replaced

Overallheight 28790mm

Overall weight 42,000kg

Mast inclination (backward/forward) 10/6 deg

Mast inclination 3 deg

Rotary head max torque 175knm

Max drilling diameter 900mm

Depth with 6m extension 24.5m

Rotary stroke 20,200mm

Extraction force 450kn

Main winch effective 450km

Aux winch effective 60kn


View all Casagrande Machines
Manufacturer

Casagrande
Model

B175 XP
Operating hours

5290
Year of Registration

2016
