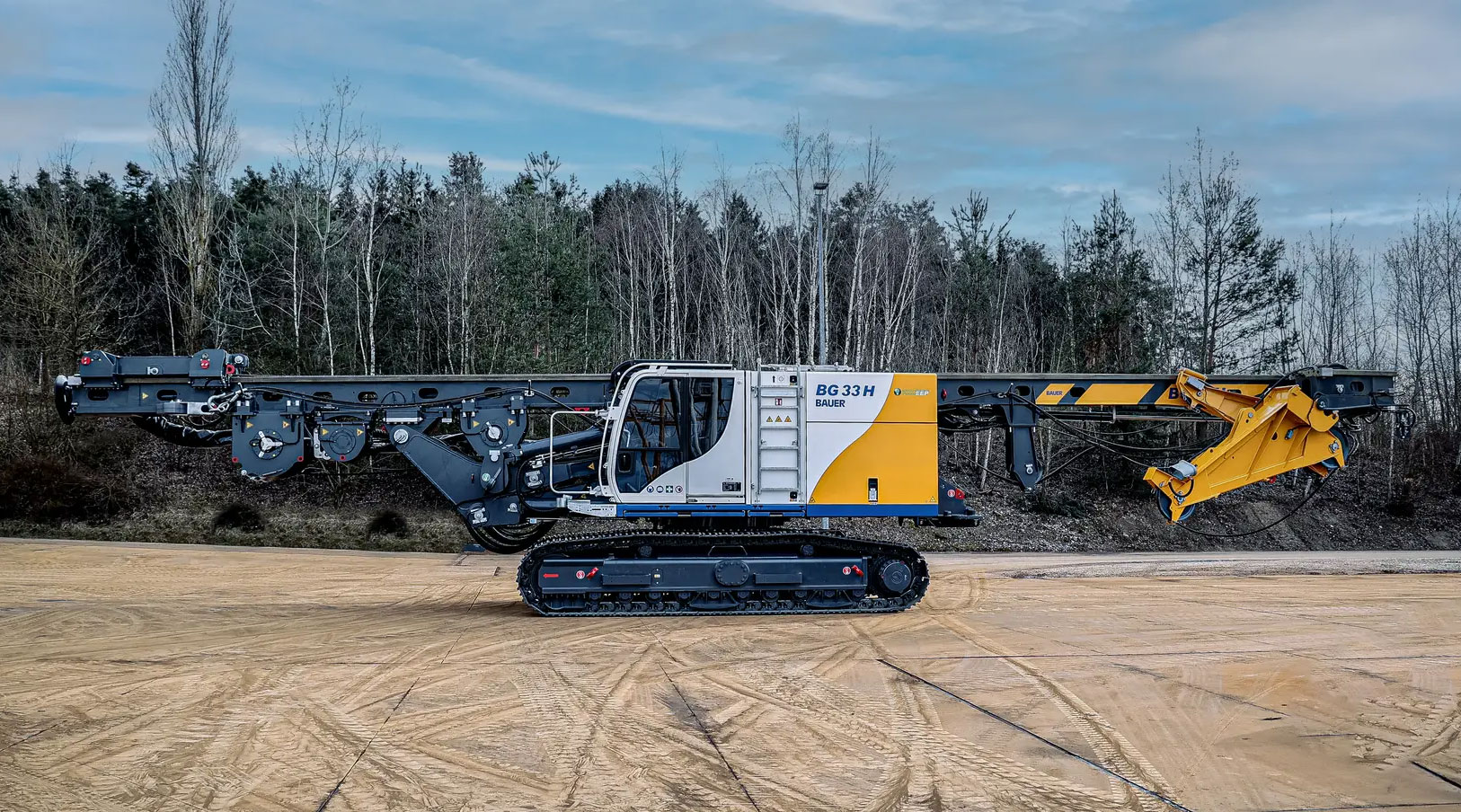

Bauer BG 33H Rotary Piling Rig

Description

Used Bauer BG 33H Rotary Piling Rig for sale.

2,000 Hours

BT75 Base carrier

Counterweight Package: 14.7 t

Drilling Technology:

Automatic drilling and pulling (single-pass method)

B-Tronic Version 4.4 with B-Drive tablet

FDP software module, Kelly software module, SOB energy software module

Remote control (Multi), fielddata.io applications

Mast & Feed System:

One-piece mast with 2 m hydraulic extension (foldable & lockable)

Feed Plus carriage, feed winch pulling force: 330 kN

Feed ropes included, mast head for 1,100 mm drilling axis

Swivel angle warning device

Winches:

Main winch: 215 kN

Auxiliary winch: 80 kN

Rotary & Kelly Equipment:

Rotary gear KDK 300 S

Kelly bar BK 300/419/3/33-S

Kelly equipment KA 500 / 419 with blue springs and round cardan joint

Kelly visualisation module

Measurement & Control:

Concrete volume measurement

Central lubrication system

Camera system for rear monitoring

Additional Features:

Hydraulic preparation for auger cleaner / pipe guide

Tubing machine connection

DTR module

Concrete pipe and upper carriage

Compressed air system (hydraulically driven)

Particle filter, heating, lighting system

100,000kg Weight
