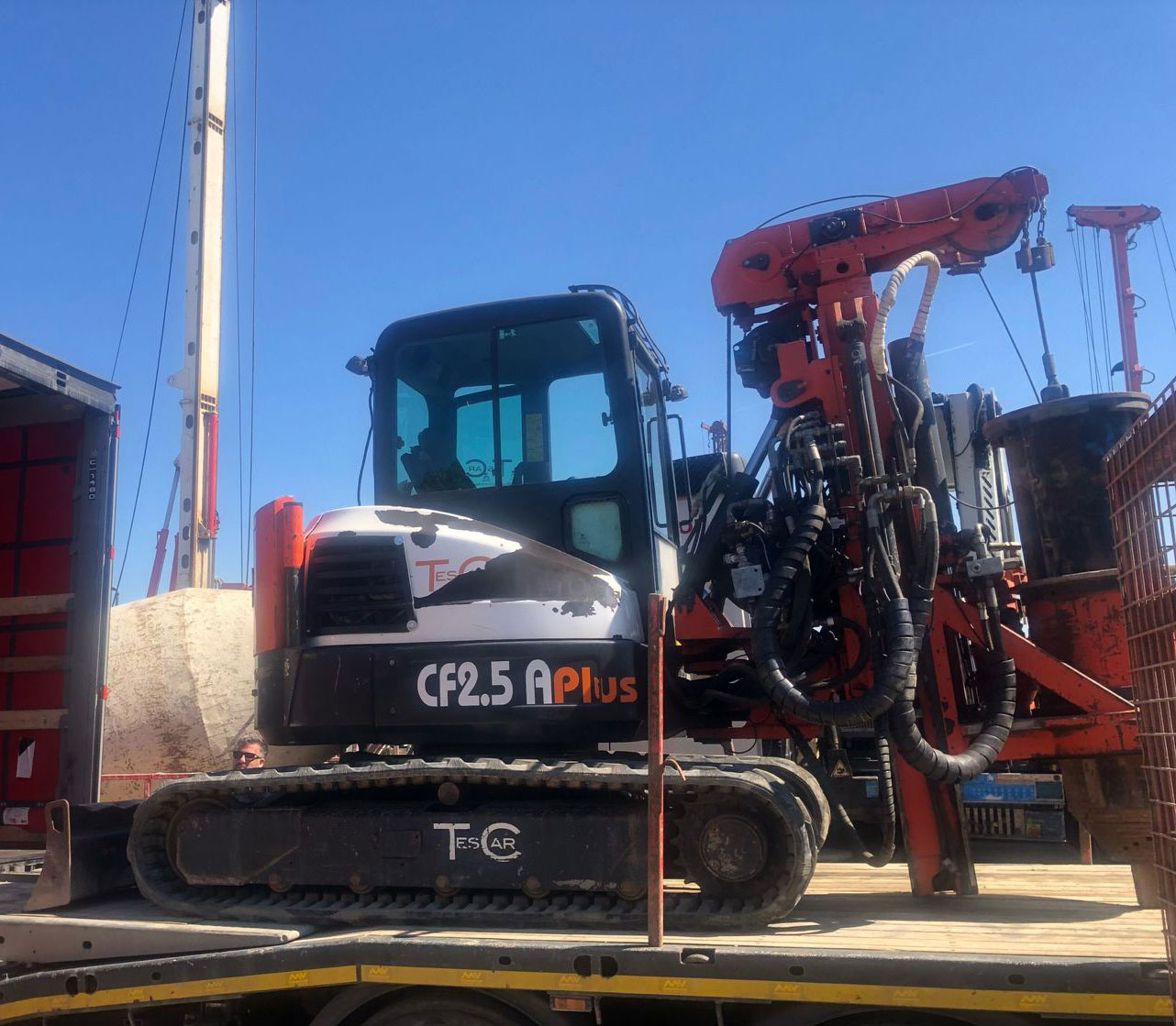

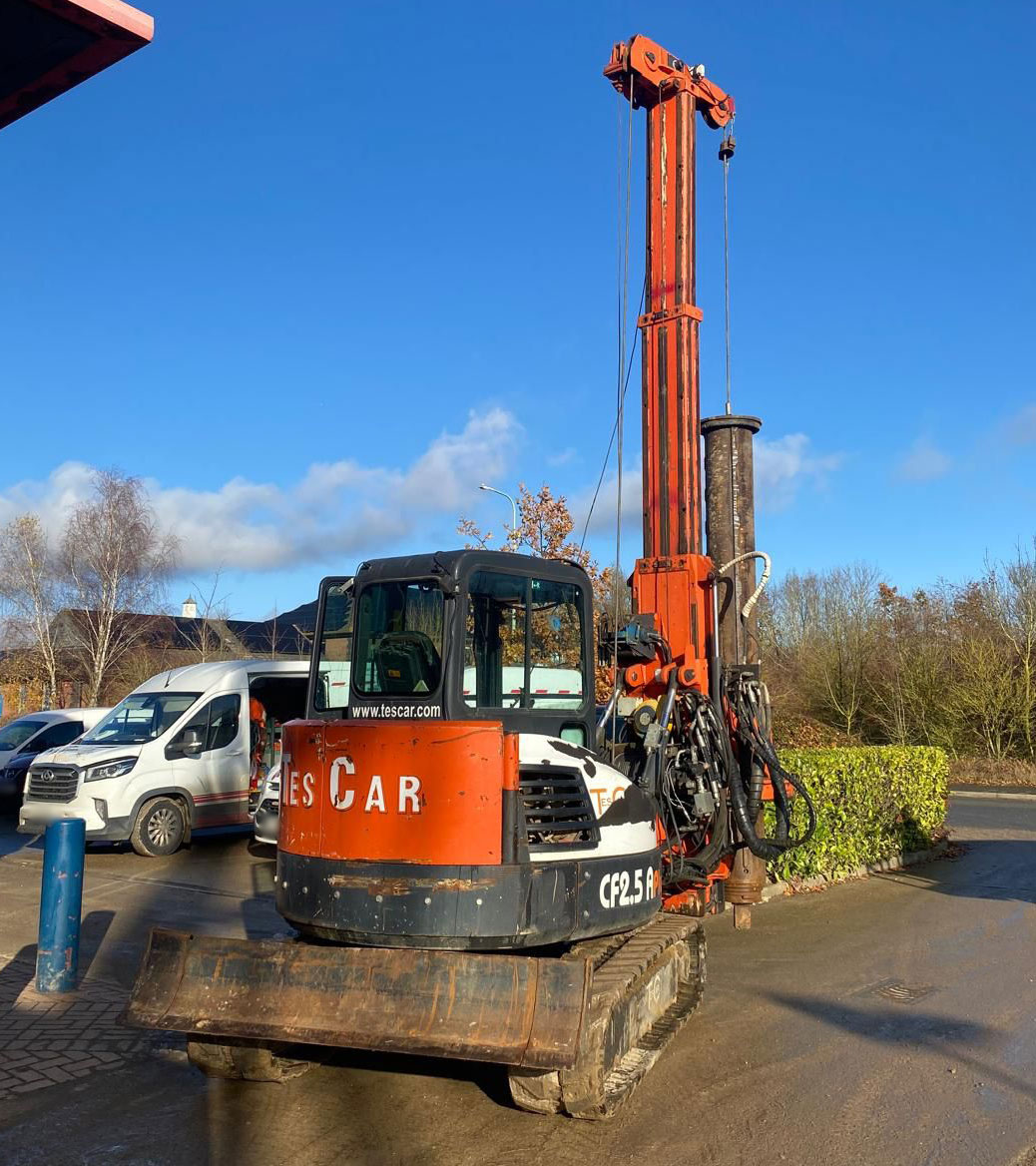

Tescar CF2.5 Plus Rotary Piling Rig

Description

Used Tescar CF2.5 Plus Rotary Piling Rig for sale.

2,960 Hours

2 Kelly bars included

Bobcat E50 base

Diesel engine Kubota v2403

Expanding undercarriage:

Width with tracks retracted 1,850mm

Width with tracks extended 2,250mm

Swing speed 9rpm

Hydrualic rotary head

Spindle bore 419mm

Torque 2500 daNm

Rotation speed 7-15rpm

Spin of speed 70 rpm

Rotary speed stroke 700rpm

Max extraction force 6,400 daN

Max crowd force 9,500 daN

Drilling dimensions:

Max diameter 800mm

Max depth 18m

8,500kg Weight with 15m Kelly
