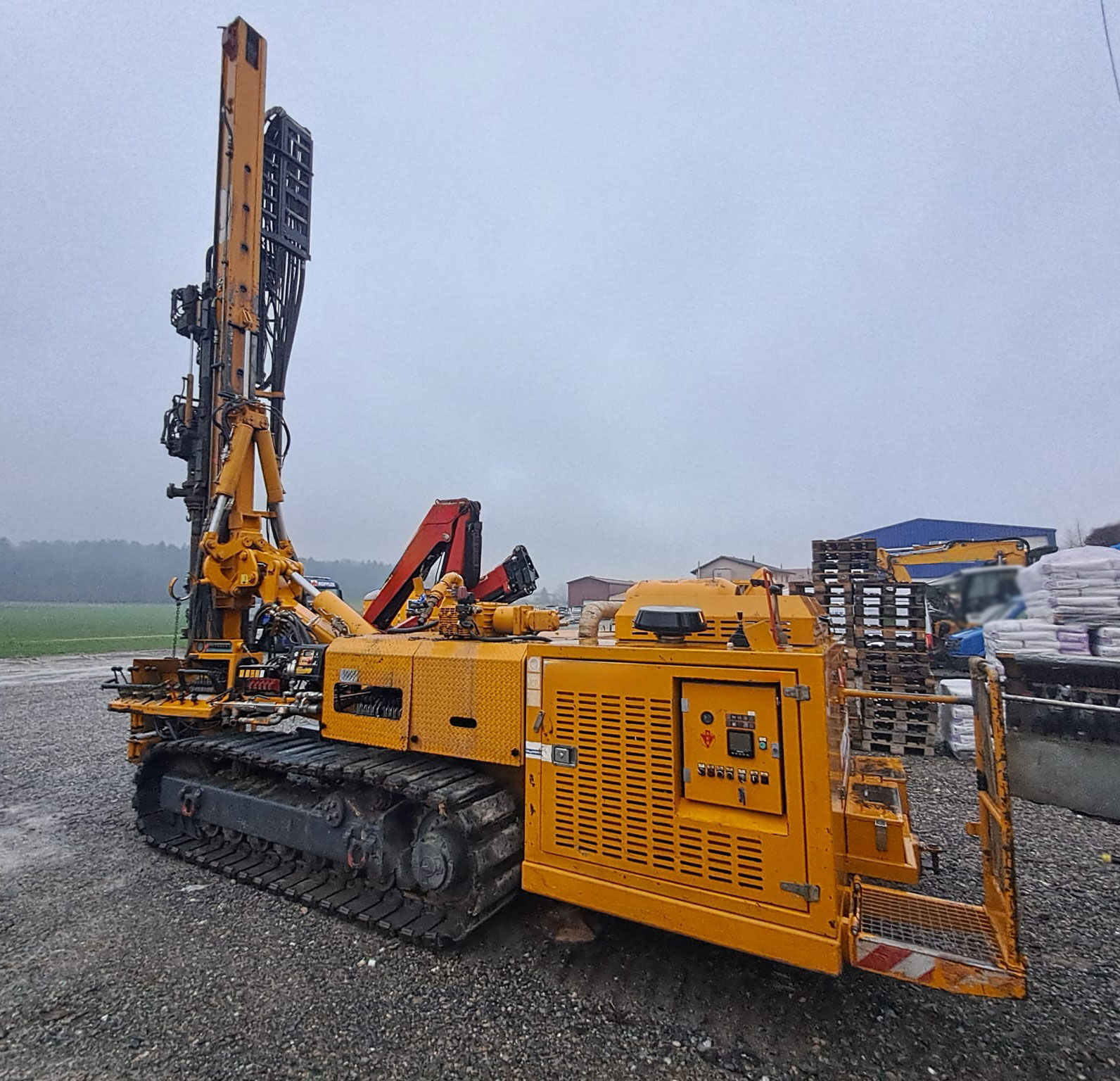

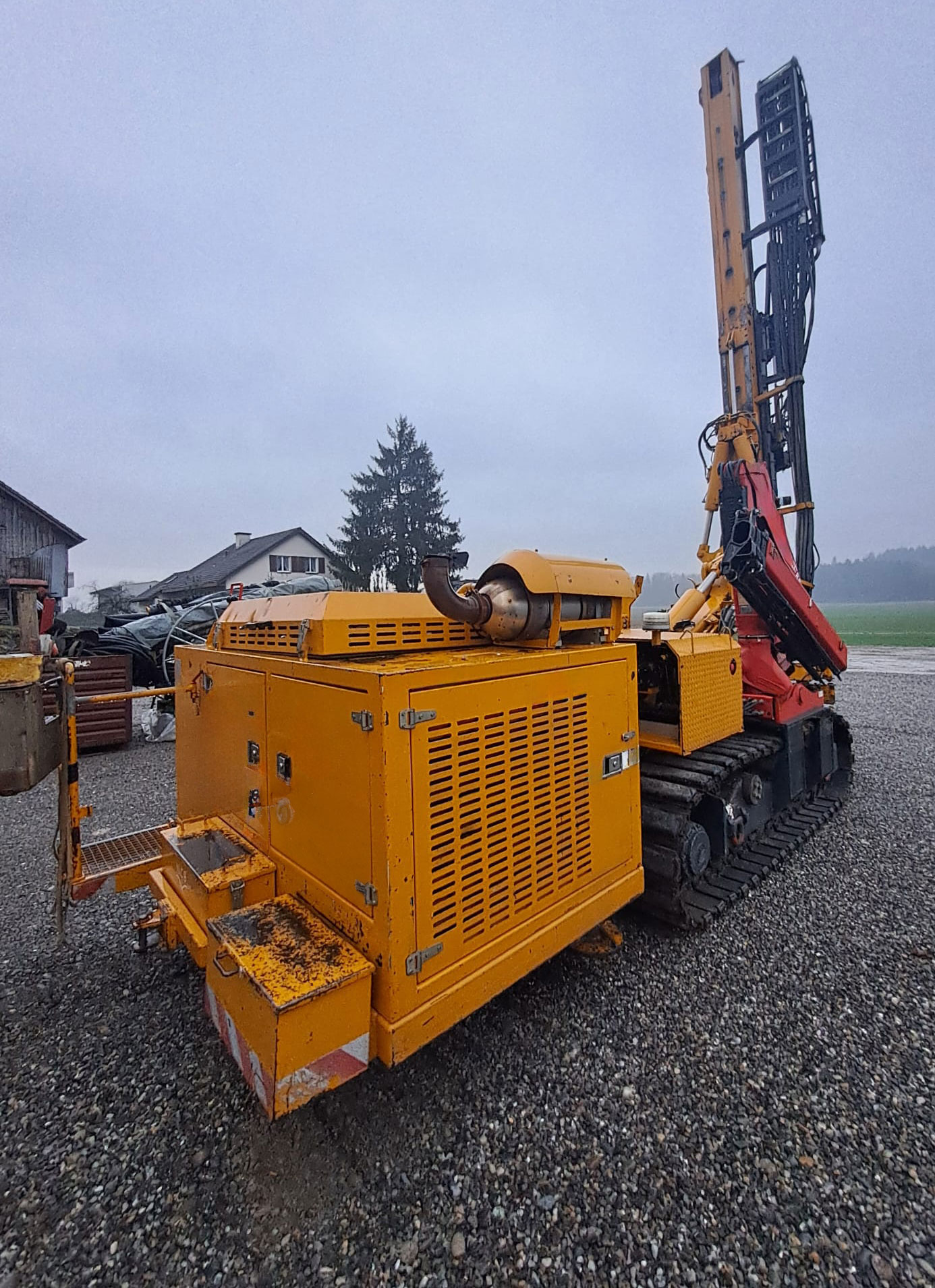

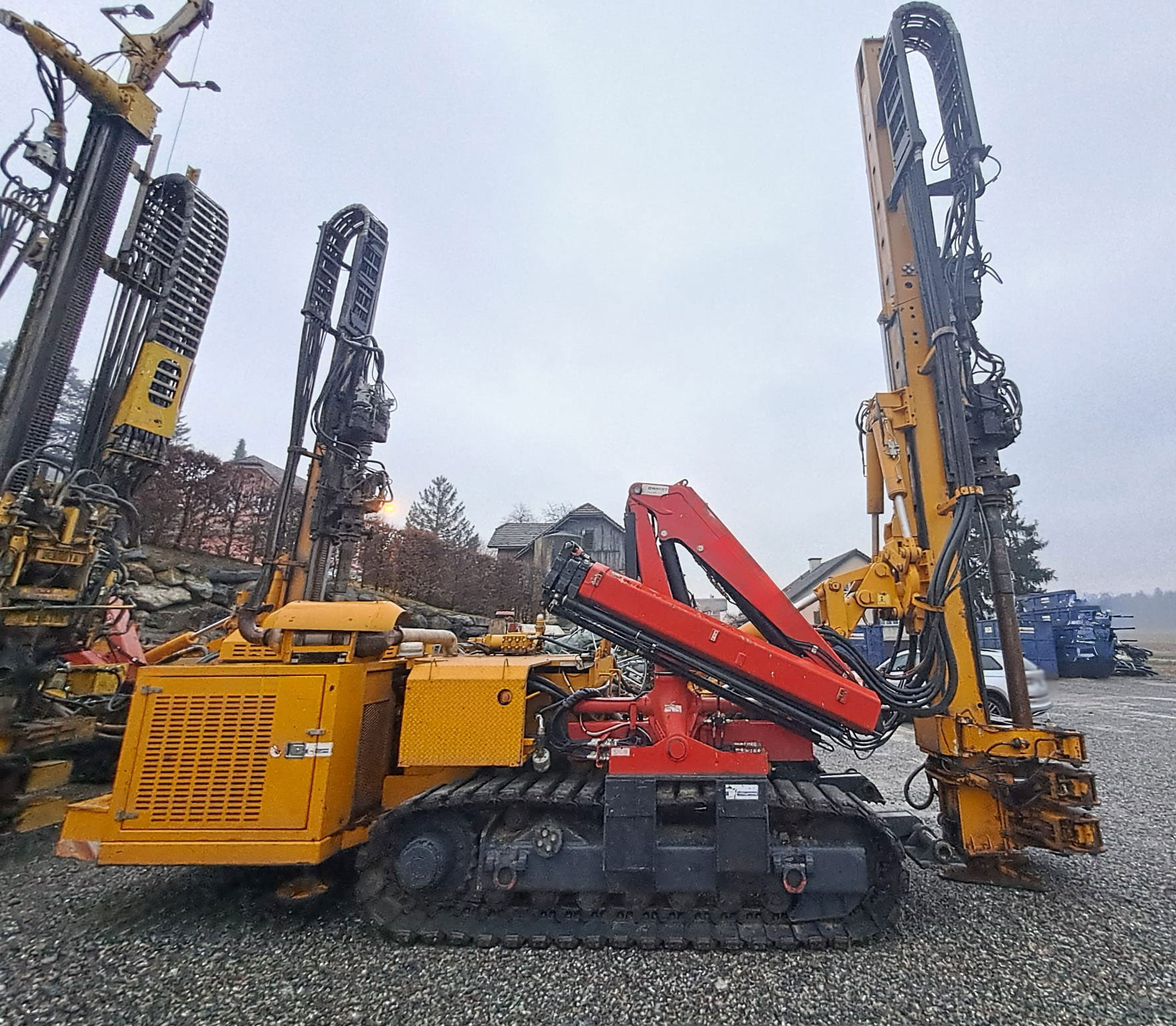

NCB FD1800 Geotechnical Drill Rig

Ref: 8699

€125,000 EUR

Make an Enquiry
Year: 2016
NCB FD1800 Geotechnical Drill Rig
NCB FD1800 Geotechnical Drill RigNCB FD1800 Geotechnical Drill RigNCB FD1800 Geotechnical Drill RigNCB FD1800 Geotechnical Drill RigNCB FD1800 Geotechnical Drill RigNCB FD1800 Geotechnical Drill Rig

Description

Used NCB FD1800 Geotechnical Drill Rig for sale.

11,500 hours

Undercarriage:

-Overall length: 3,210mm

-Track width: 2,350mm

-Shoes width: 500mm

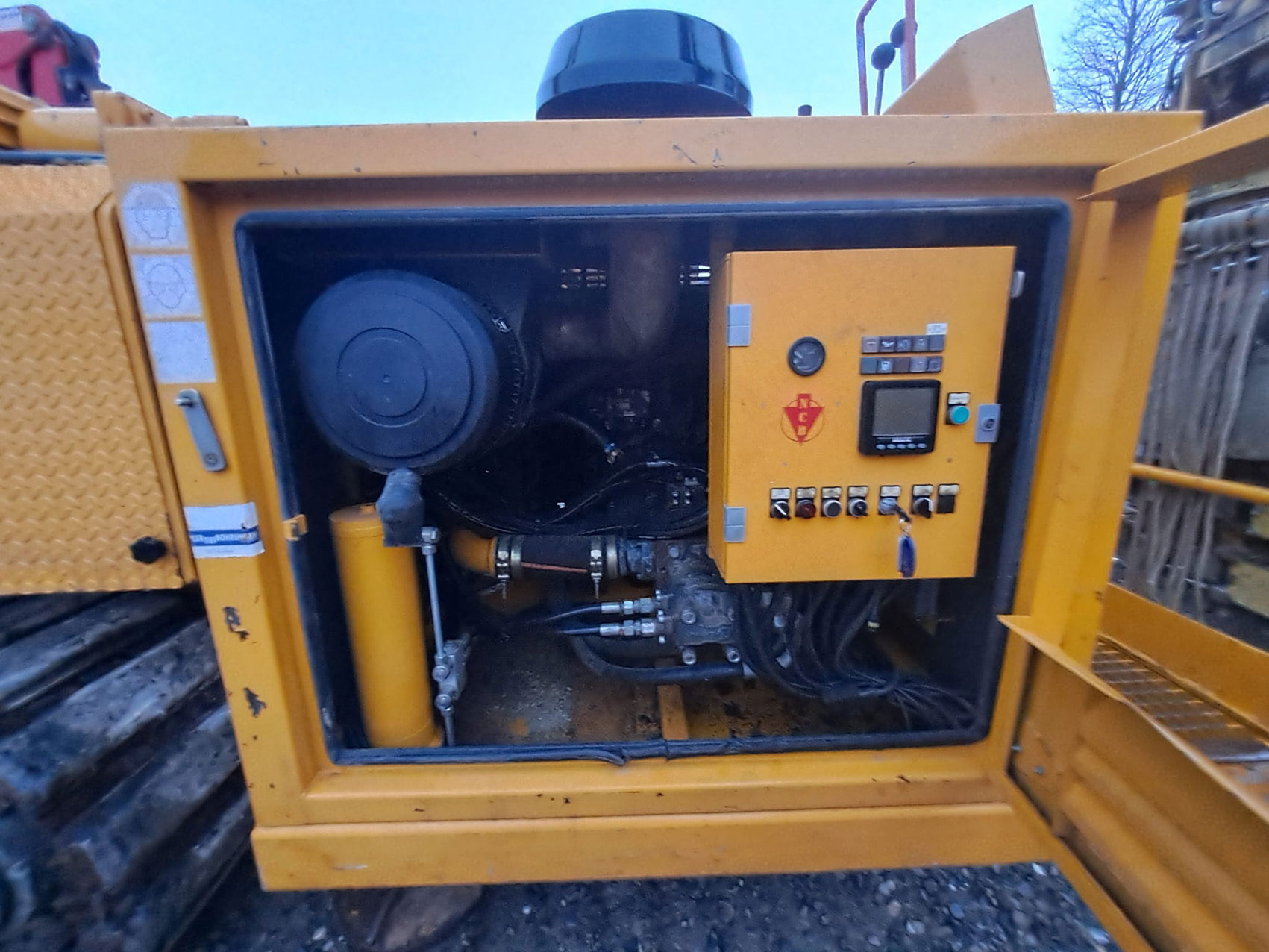

Engine

TCD 2016 L6 2V

Max power output 190kw

Rated output 2300 r.p.m



Hydraulic pumps

1s circuit 80l/min

2nd circuit 55l/min

3rd circuit 55l/min



Hydraulic oil tank capacity 481

Working pressure 250 bar

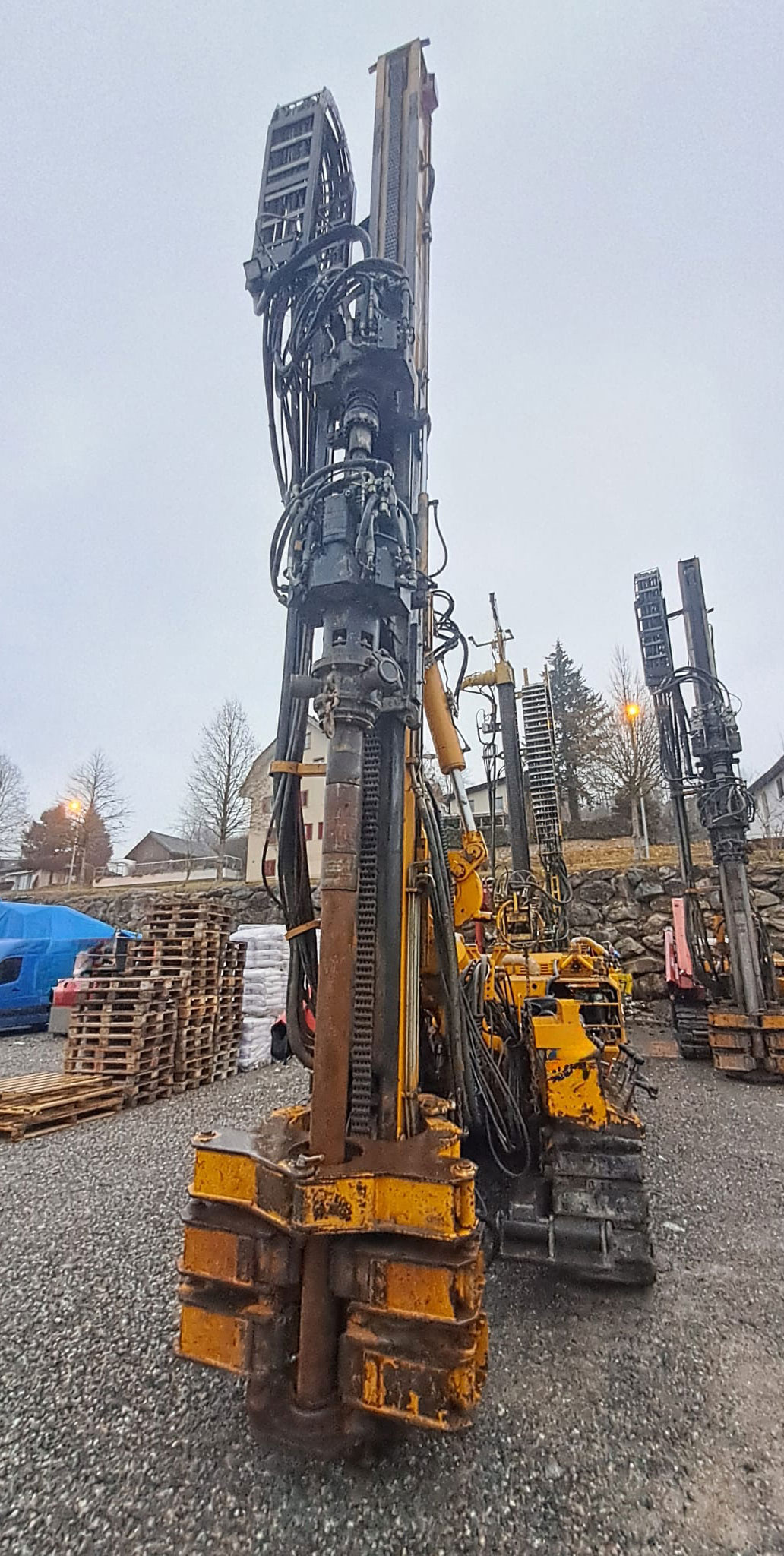

Mast

Mast length: 8,000mm

Pull down cylinder force push/pull 13,000/20,000 kgm

Pull down stroke 4,300mm

Max rod length 4,000mm



20,000kg weight


View all NCB Machines
Manufacturer

NCB
Model

FD1800
Operating hours

11500
Year of Registration

2016
