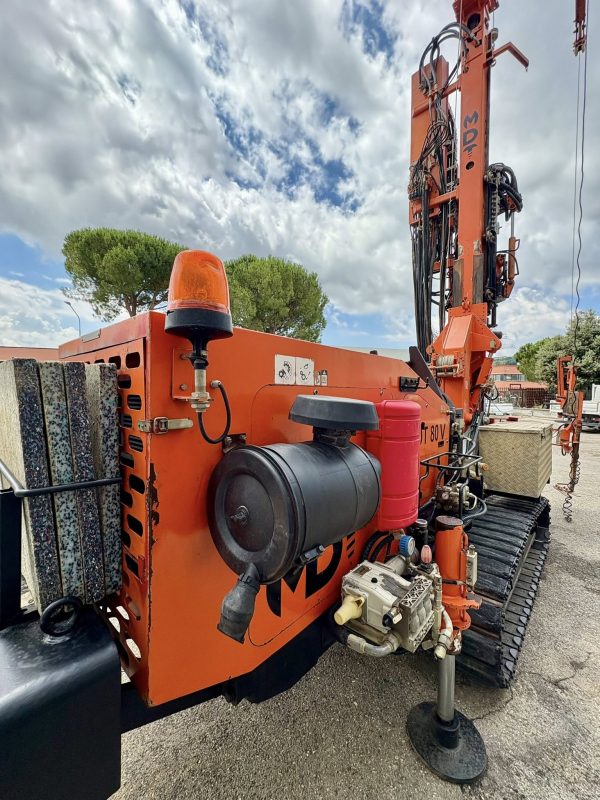

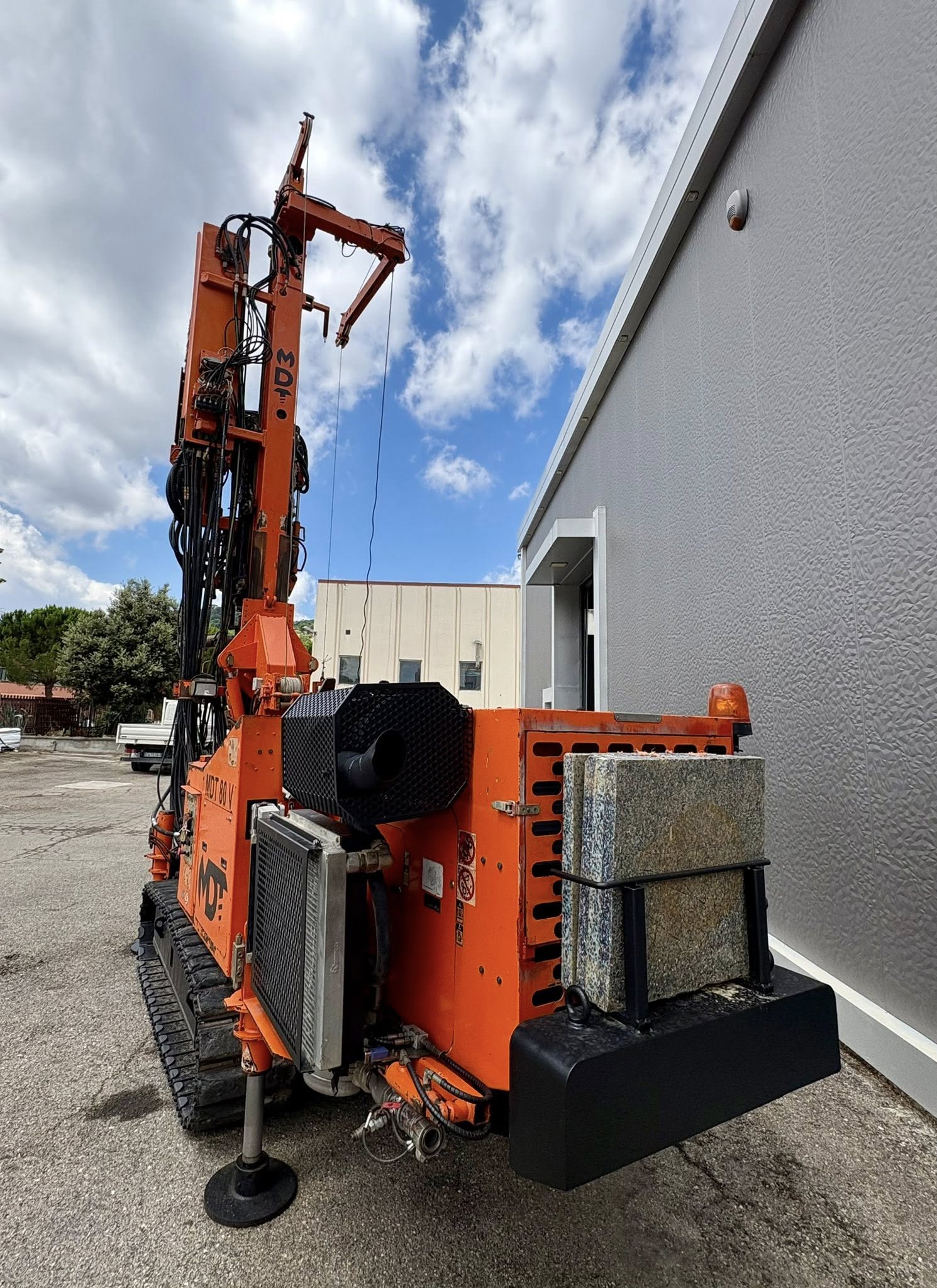

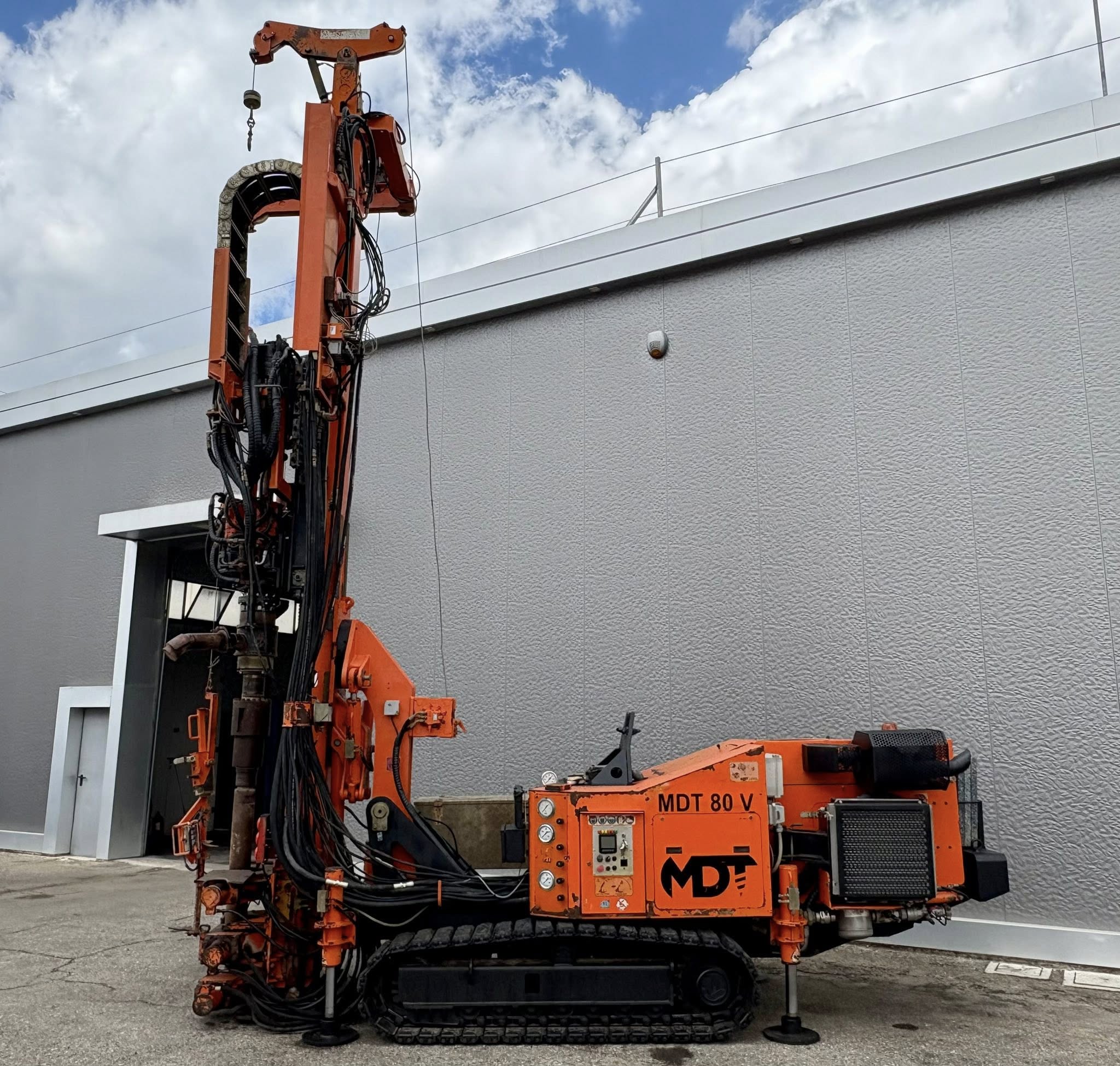

MDT 80V Geotechnical Drill Rig

Description

Used MDT 80V Geotechnical Drill Rig for sale.

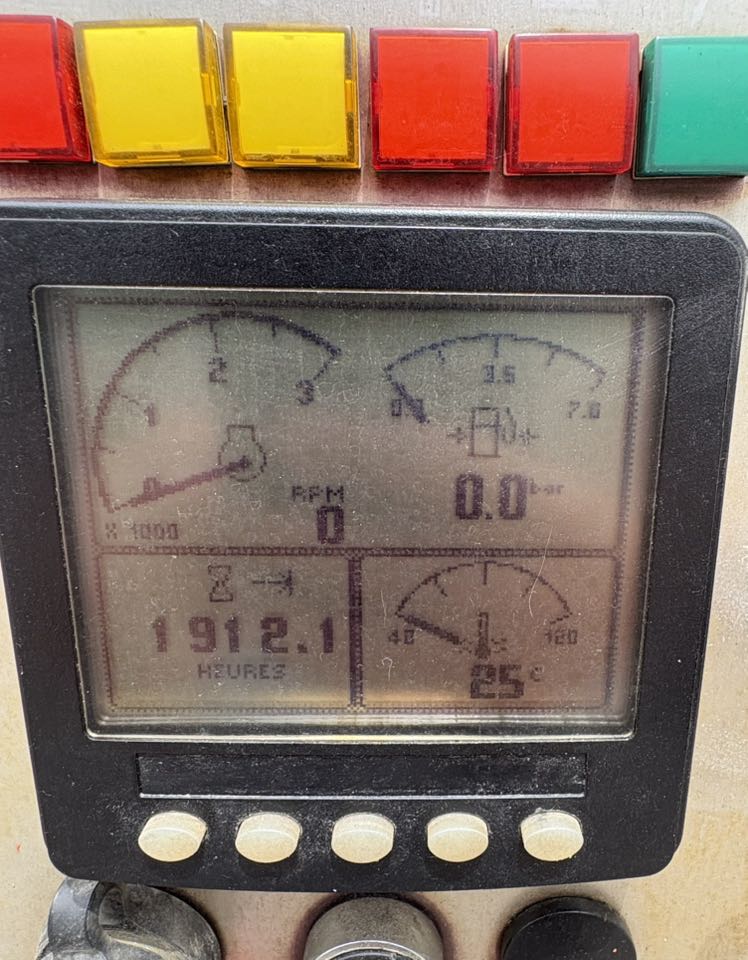

1,913 Hours

Set up for geothermal drilling

Crawler:

Wheel base 1.840mm

Length 2.440mm

Max width 1.840mm

Pad width 400mm

Max speed 1.5kmh

Powerpack:

Diesel engine Deutz TCD 2013 LO4

Engine power max 129 (175) kw (hp)

Engine power rated 119(162) kw (hp)

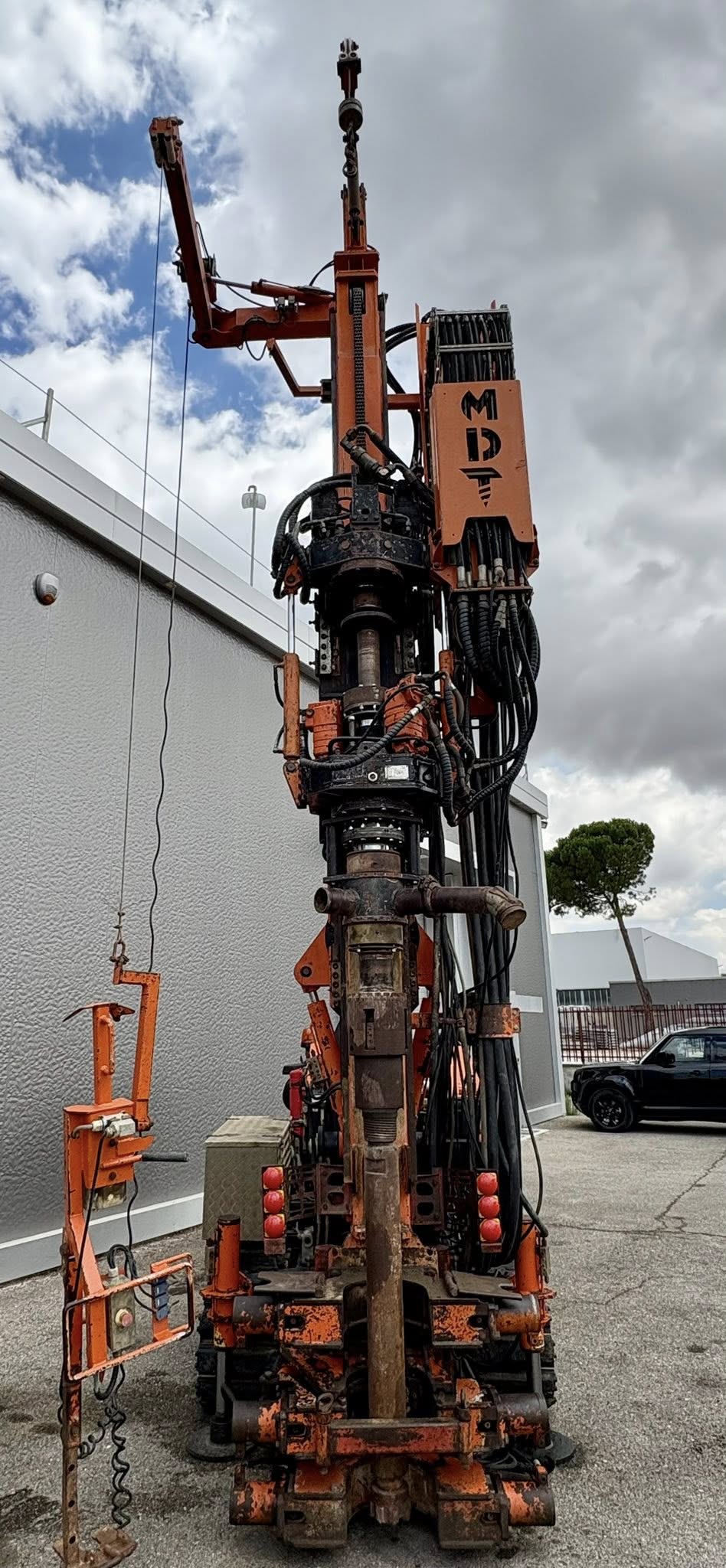

Mast:

Max stroke feed stroke 3.000mm

Total height with winch 7.675mm

Feed force 6.000daN

Pullback force 12,000daN

Rotary trolley travel speed 8.5m/min

Max rotary trolley travel speed 40m/min

Upper rotary head TR15000:

Gears 3

Max torque 15.000Nm

Head passage 98mm

Swivel passage 2in

Down rotary TR32000

Gears 4

Max torque 22.50Nm

Max speed 53rpm

Head passage 120mm

Triple Clamp:

Clamp range 48-325mm

Clamping force 23.000 daN

Break out torque 4.800daNm

11,500kg Weight

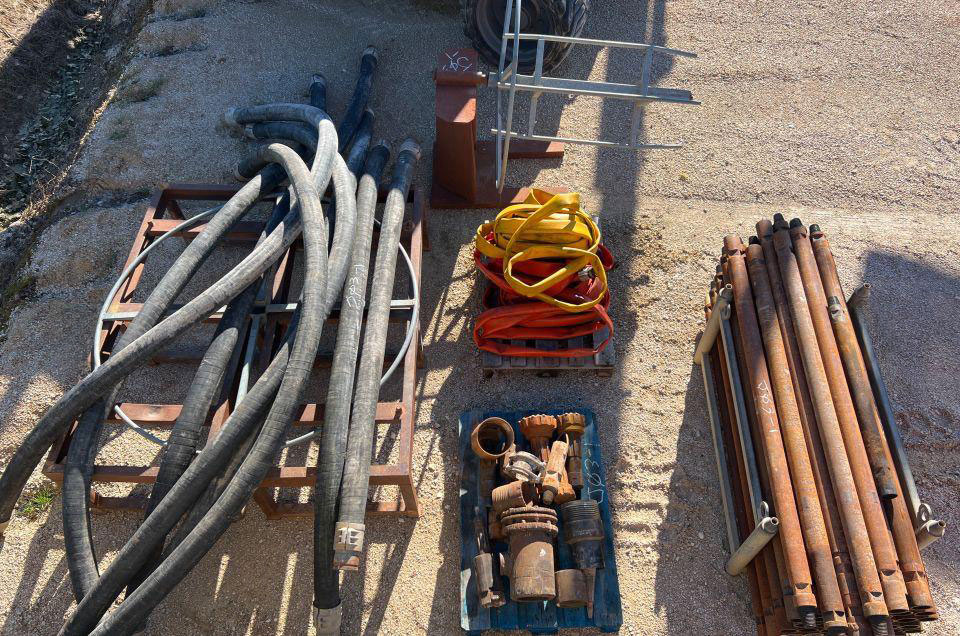

Rods included
