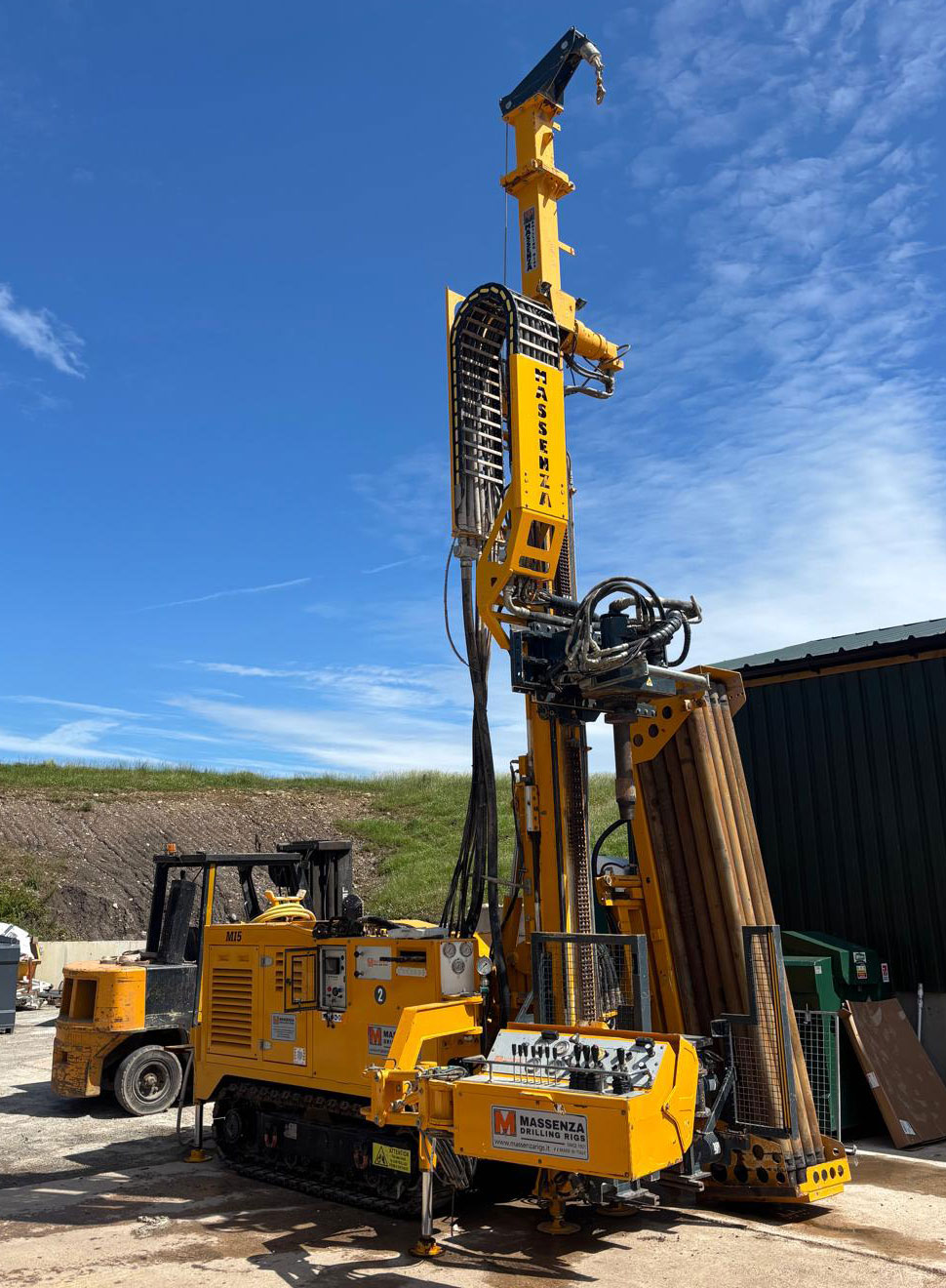

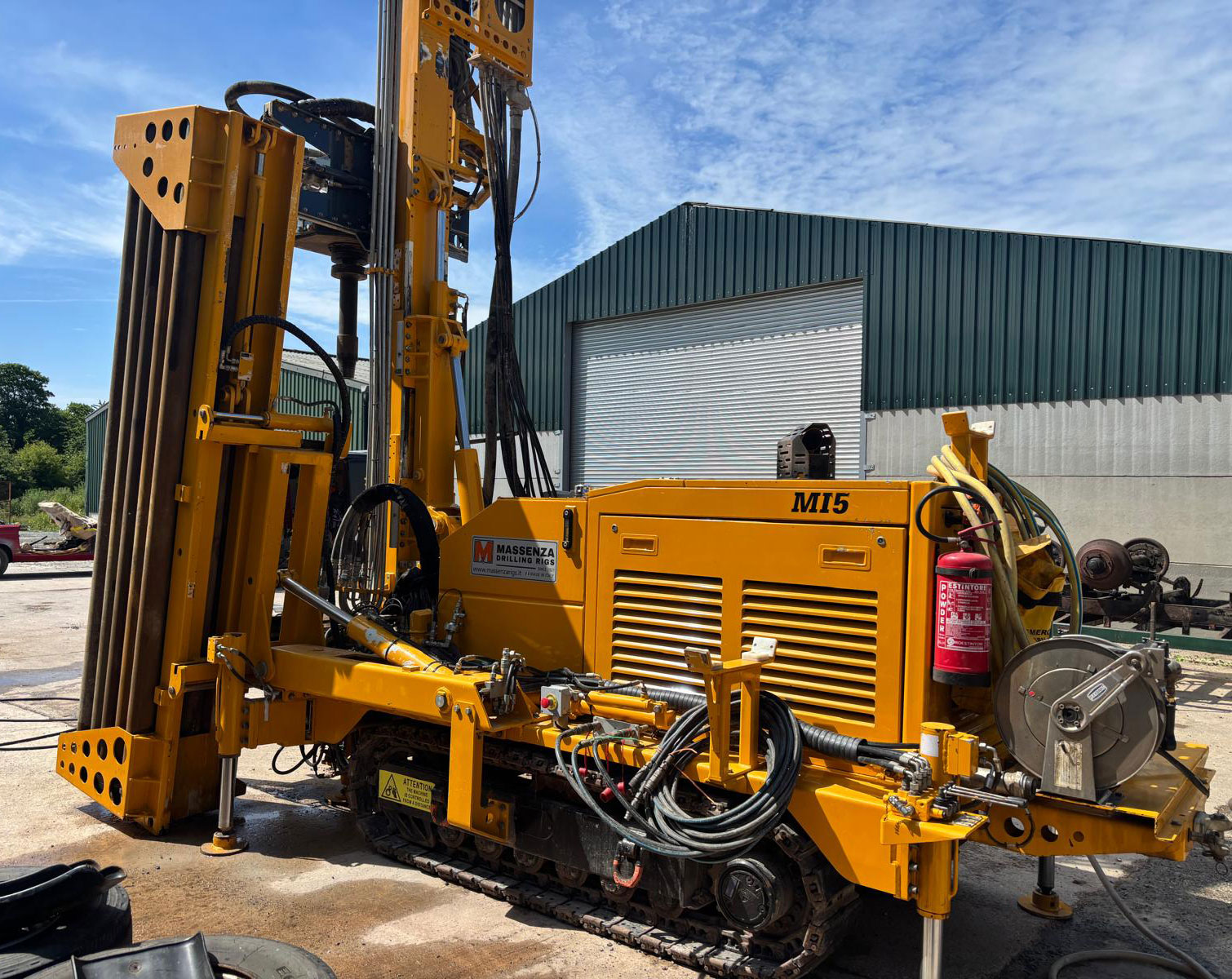

Massenza Mi5 Geotechnical Drilling Rig

Description

Used Massenza Mi5 Geotechnical Drilling Rig for sale.

1,000 Hours

Set up for Rotary drilling (direct circulation with water, mud, air, foam), Down-the-hole hammer, Auger drilling, Core drilling

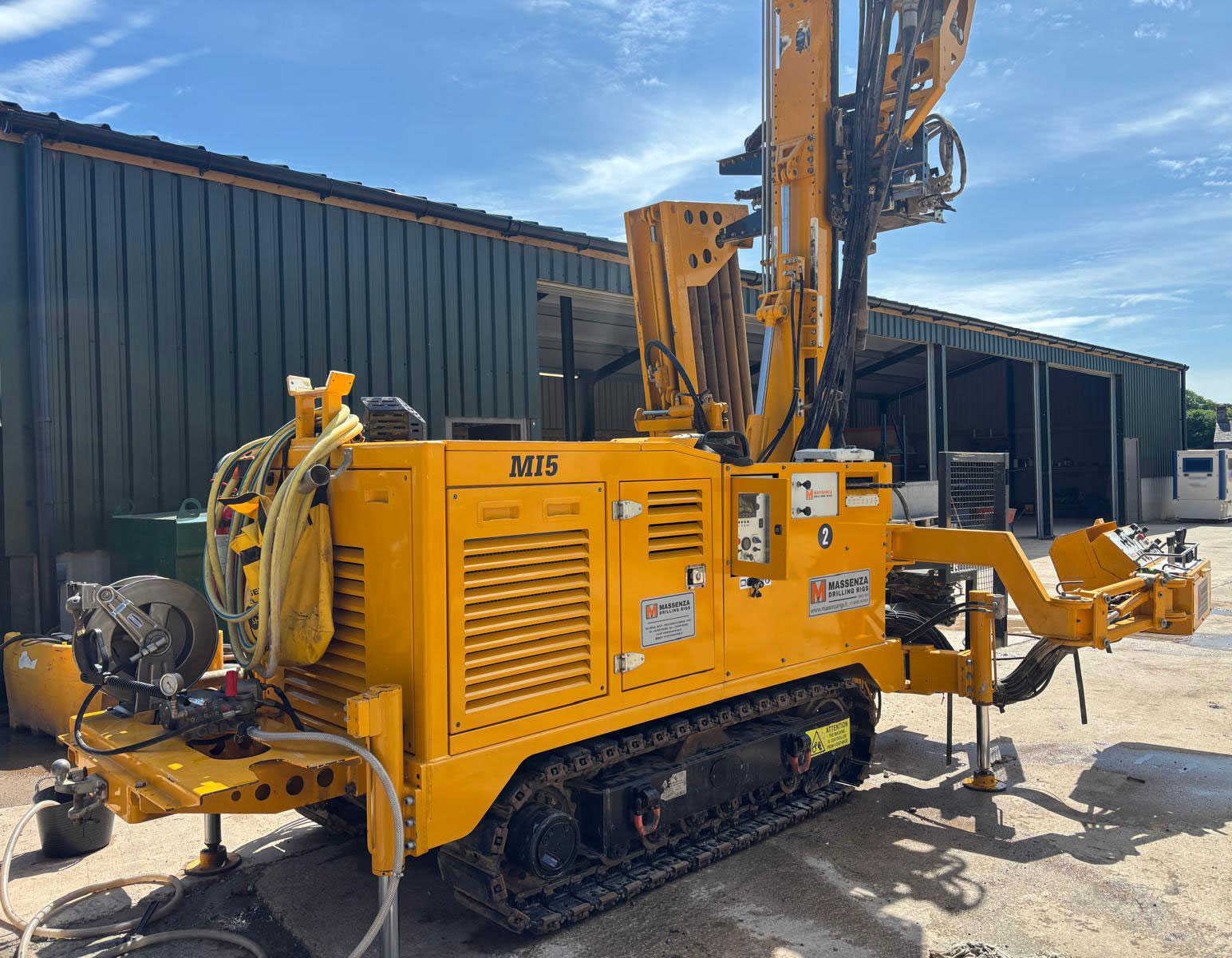

Crawler undercarriage:

Tracked crawler, 300 mm steel tracks

Width 1500 mm

Length 2239 mm

Traction force 6700 daN

Speed 1.5 km/h

Hydraulic circuit: 250 L oil tank with inspection access, vent filter, gauges, air/oil cooler, filters, valves.

Pumps: Axial piston (123 L/min @ 280 bar), double geared (138 L/min @ 240 bar), geared for stabilizers/mast (32 L/min @ 210 bar), geared for clamps/tilt (40 L/min @ 210 bar).

Chrome-plated high-tensile hydraulic cylinders

Engine: Deutz TCD 3.6 L4, 134 hp (100 kW) @ 2300 rpm, Stage V / Tier 4 Final

Pull down system: Chain-driven, 64 kN pull-up/pull-down, 22,935 kg chain strength, 0–35 m/min feed rate.

Service winch: Hydraulic, 30 m cable (Ø 10 mm), 22 kN pull, 20 m/min speed

Double Hydraulic Roughneck: Clamping Ø 50–304.8 mm, passage Ø 370 mm, 177 kN clamping, 47,800 Nm unscrewing torque.

Hydraulic Centralizers: Roller guides, 76–114 mm.

Casing Extractor: 20 ton pull, 300 mm stroke.

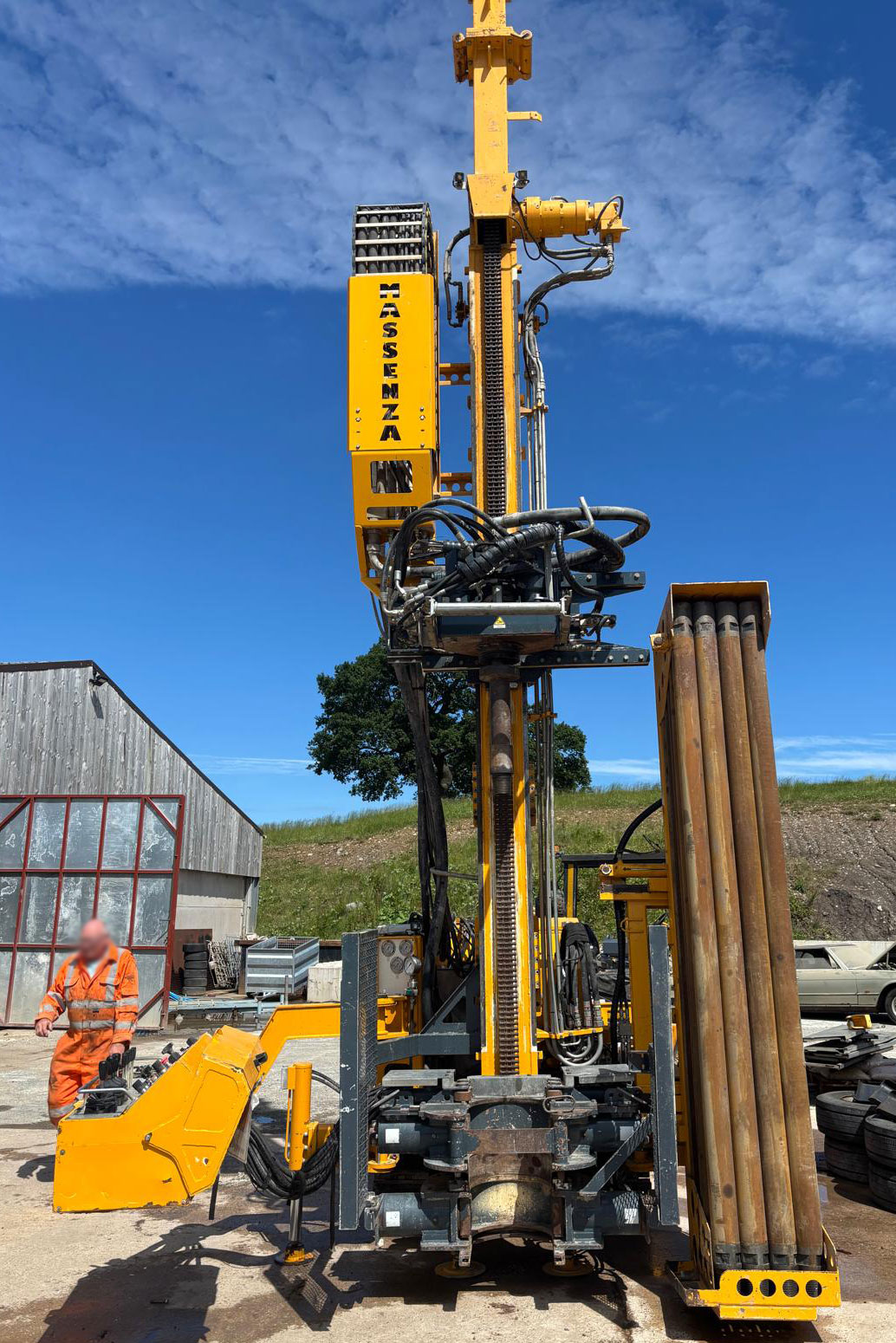

Rotary Head: TM6CL7, 4 torque ranges (10,286 Nm @ 52 rpm to 2,829 Nm @ 156 rpm), dual motor, floating shock absorber, 2 7/8″ API IF drive.

Swivel Head: Direct circulation, 50 mm ID.

Water Pump: Hydraulic triplex, 16 L/min @ 170 bar.

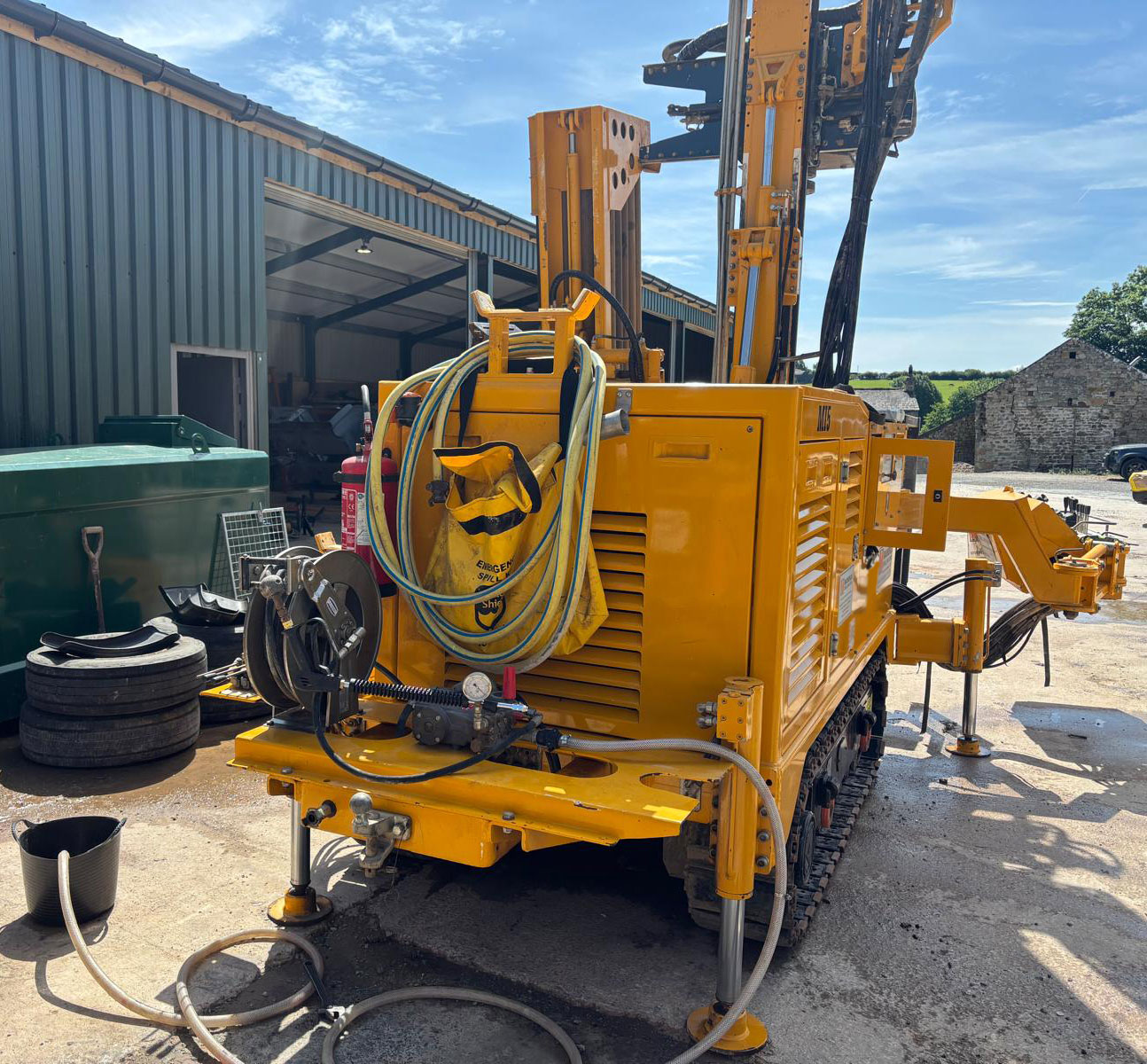

Washing System: 15 m hose + nozzle.

Weight- 6,500kg
