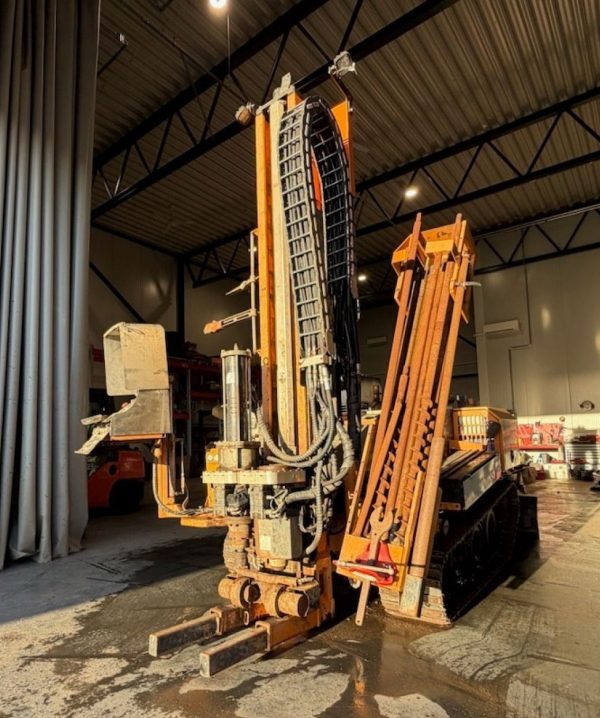

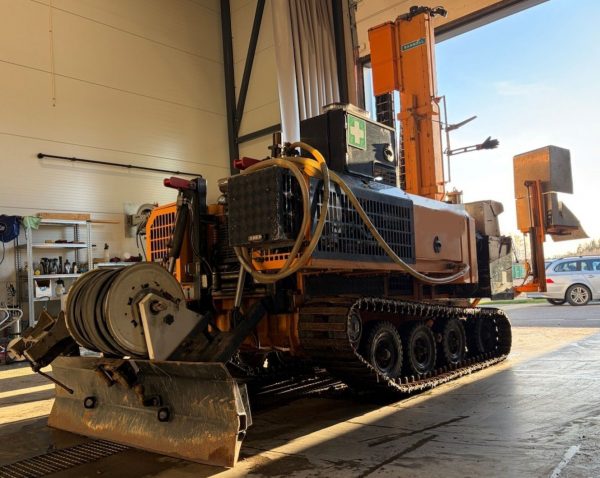

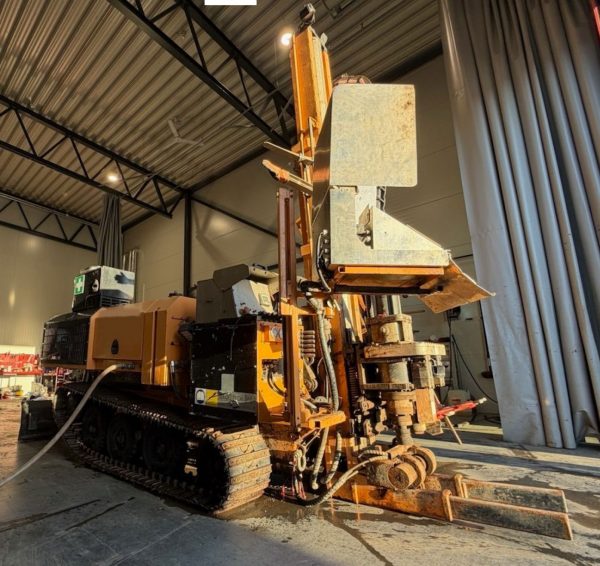

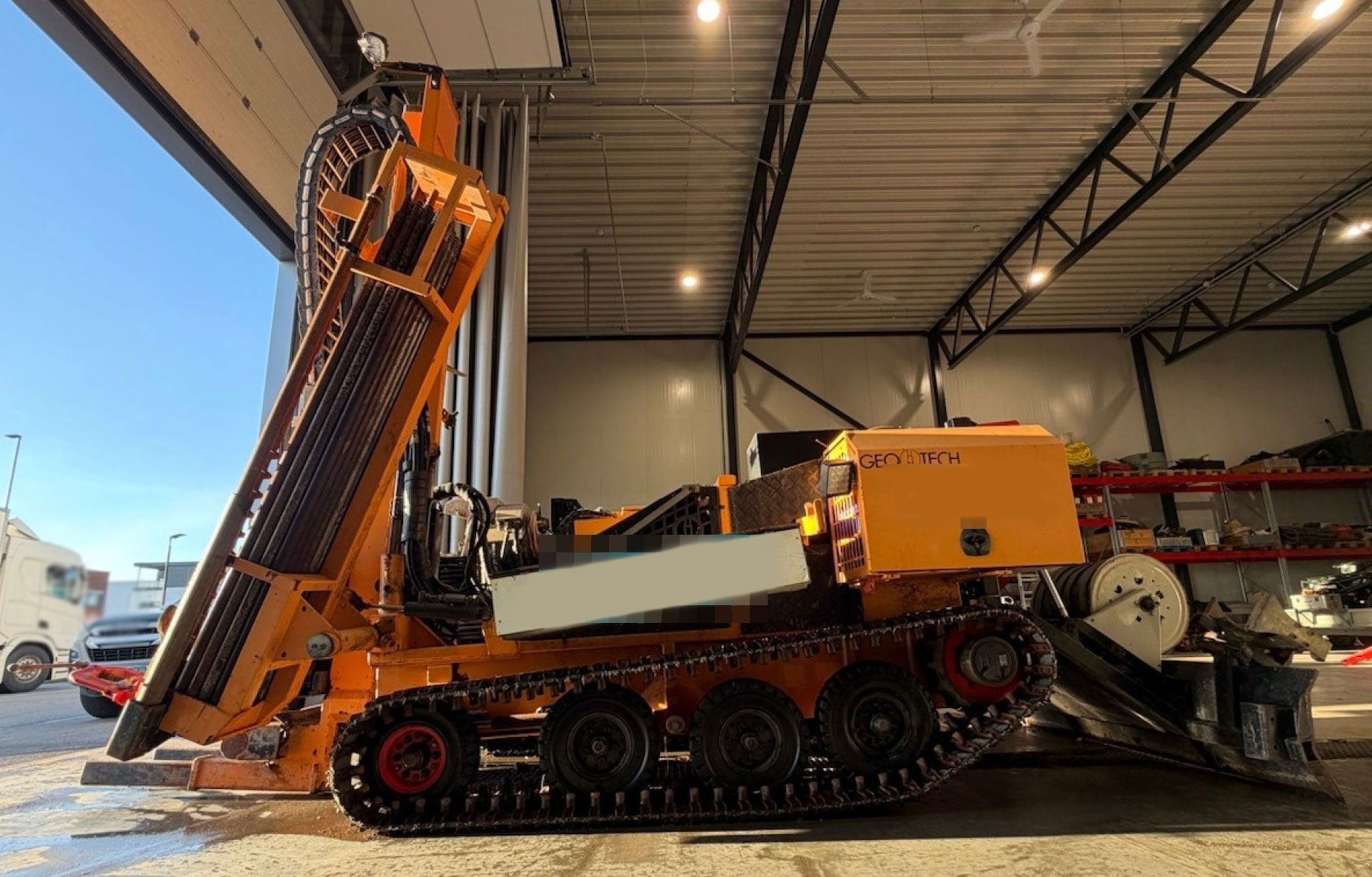

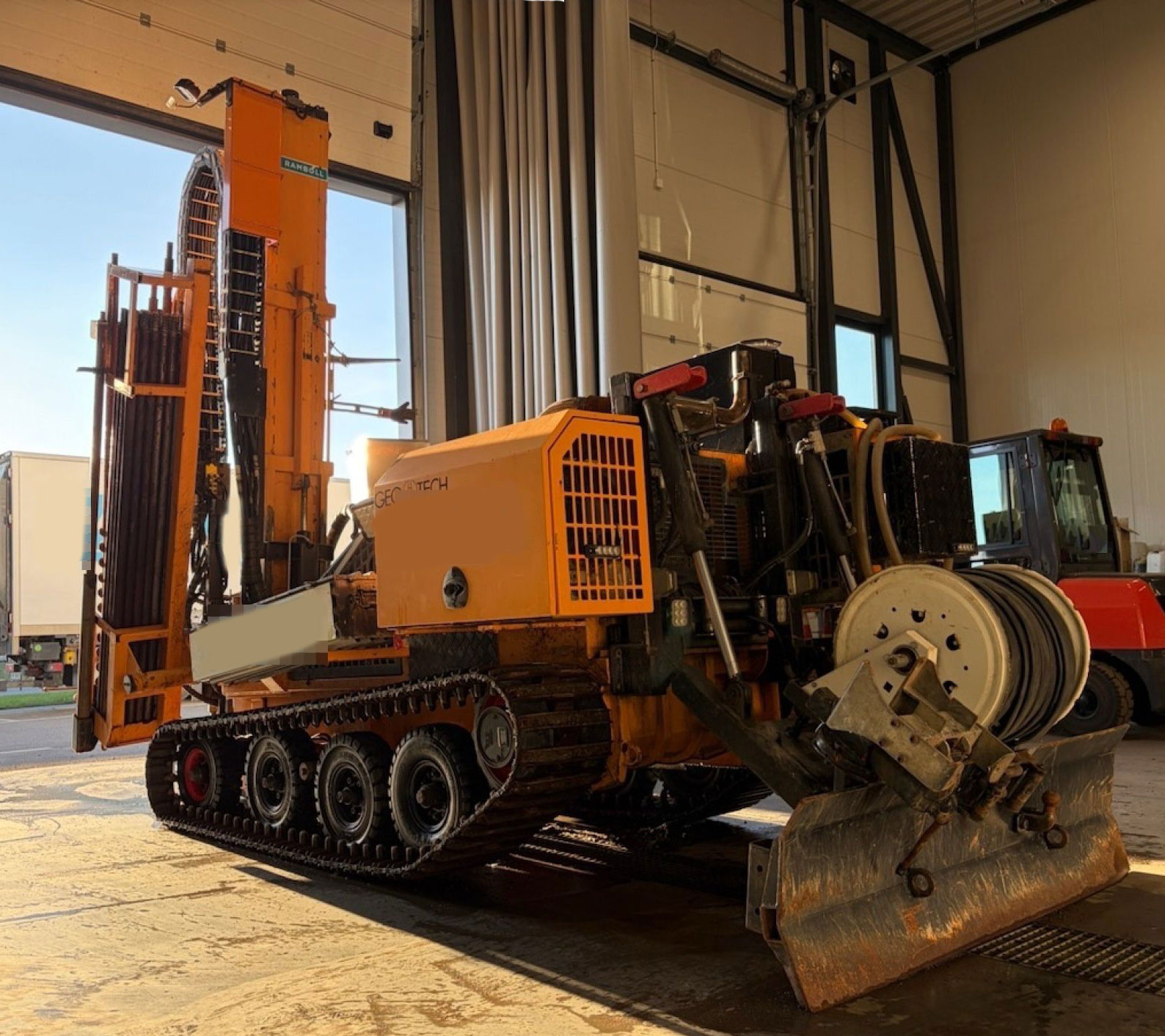

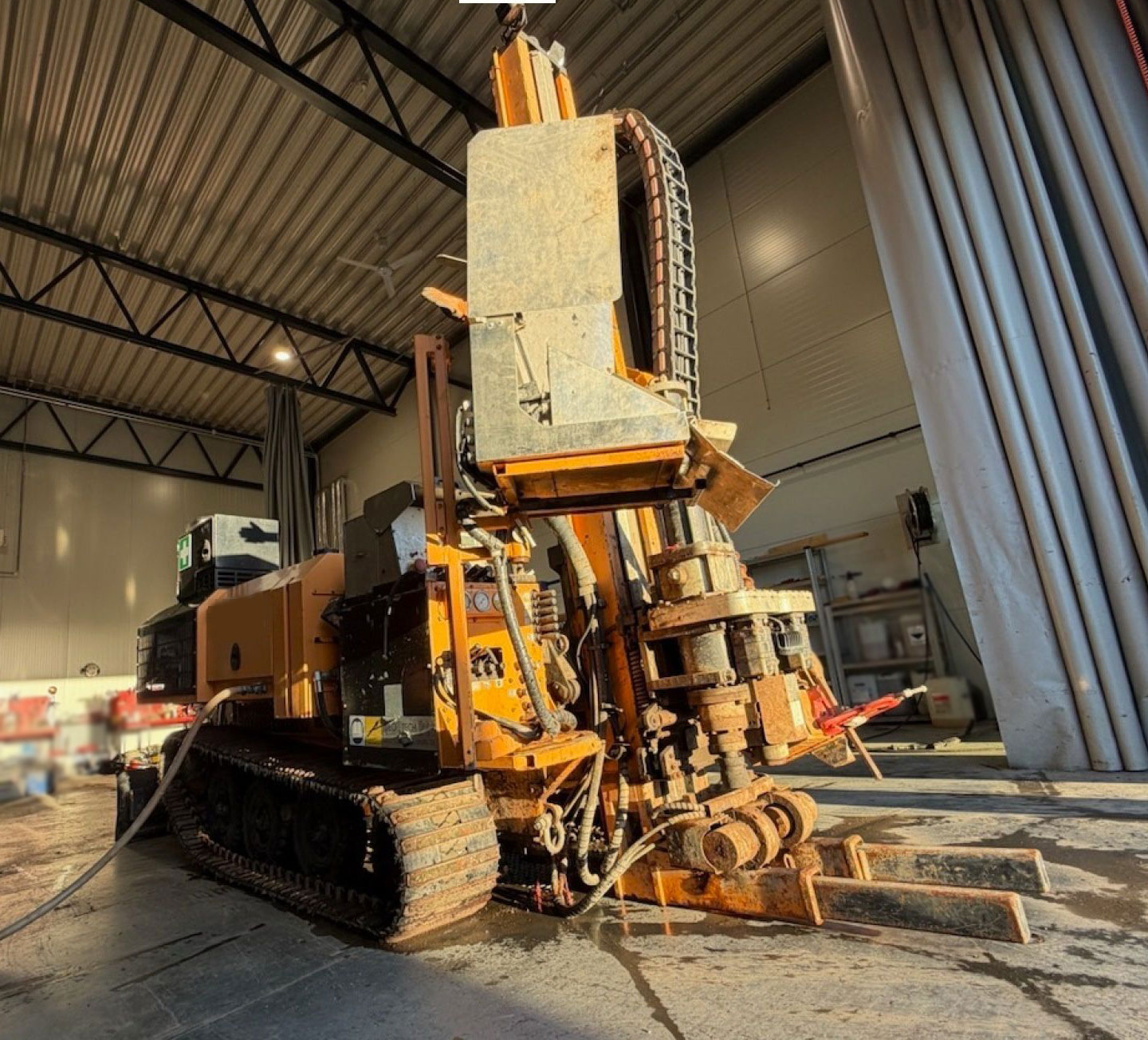

Geotech 605M Geotechnical Drill Rig

Description

Used Geotech 605M Geotechnical Drill Rig for sale.

4,000 Hours

Technical details:

Stroke: 2,450 mm

Max pull-up force: 114 kN

Max pull-down force: 80 kN

Spindle system: Double

Opening in spindle: Ø 85 mm

Torque, spindle: 250 daNm (theoretic)

Rotation speed, spindle: 0 – 80 rpm (theoretic)

Hose reel

Winch

Warning lights

Good undercarriage including tracks and wheels

Compressor

24V system

Remote control

Engine: Perkins

4 cylinder diesel

Hammer: Atlas Copco 670

Dimensions:

Length, mast lowered: 4,730 mm

Length, mast upright: 4,500 mm

Height, mast lowered: 2,200 mm

Height, mast upright: 3,400 mm

Width over belts: 1,780 mm

Width overall: 2,050 mm

Weight: appr. 4,500 kg

Ground pressure: appr. 2,3 N/cm²

Ground clearance: 270 mm
