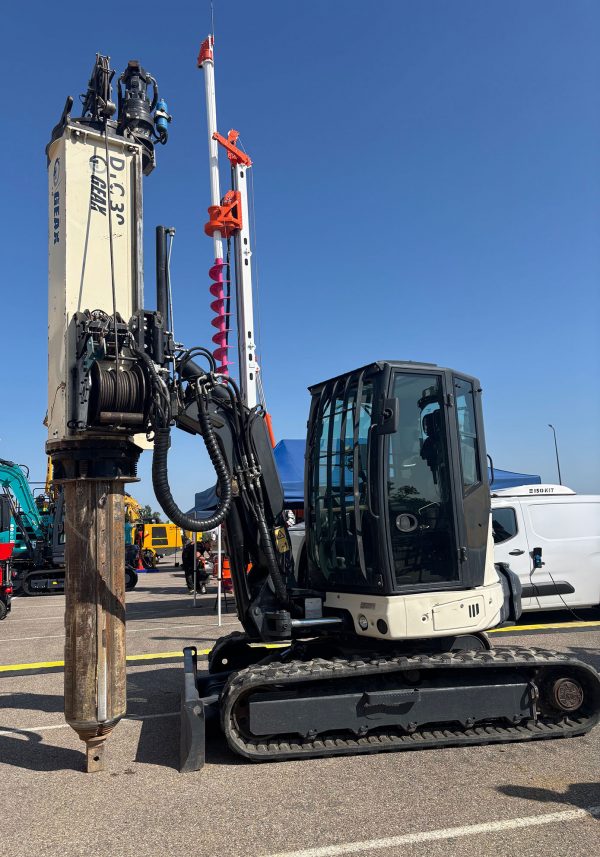

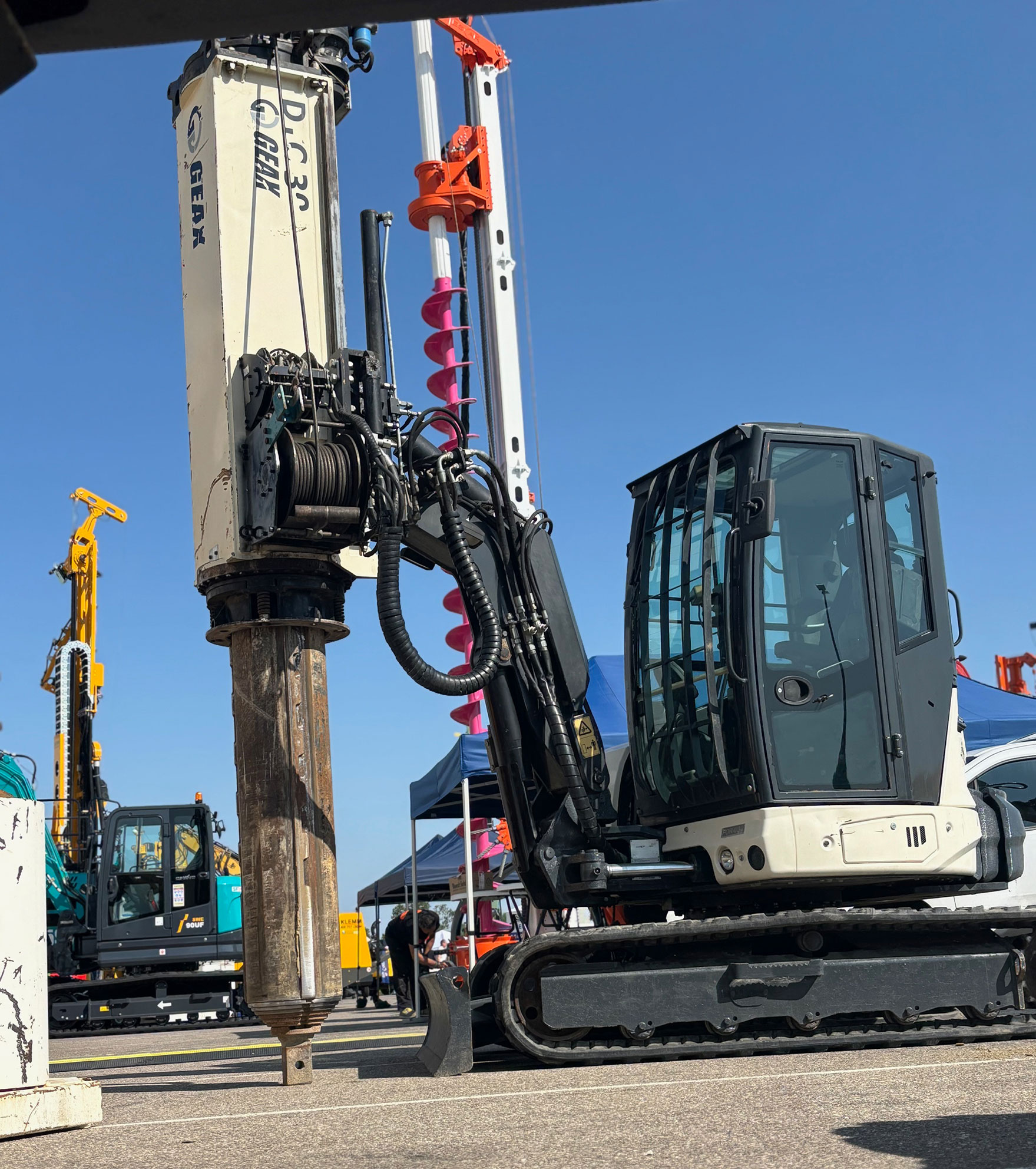

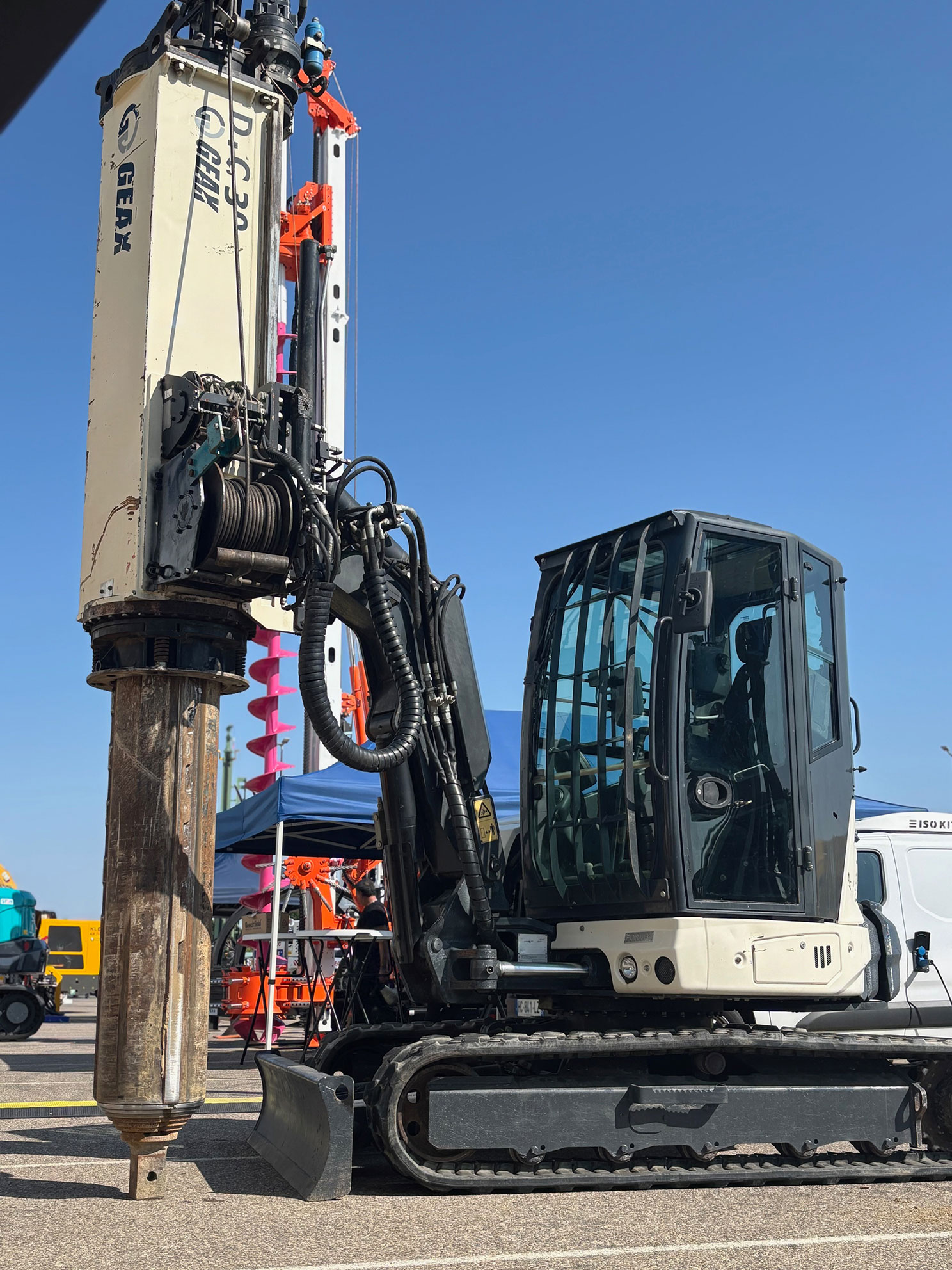

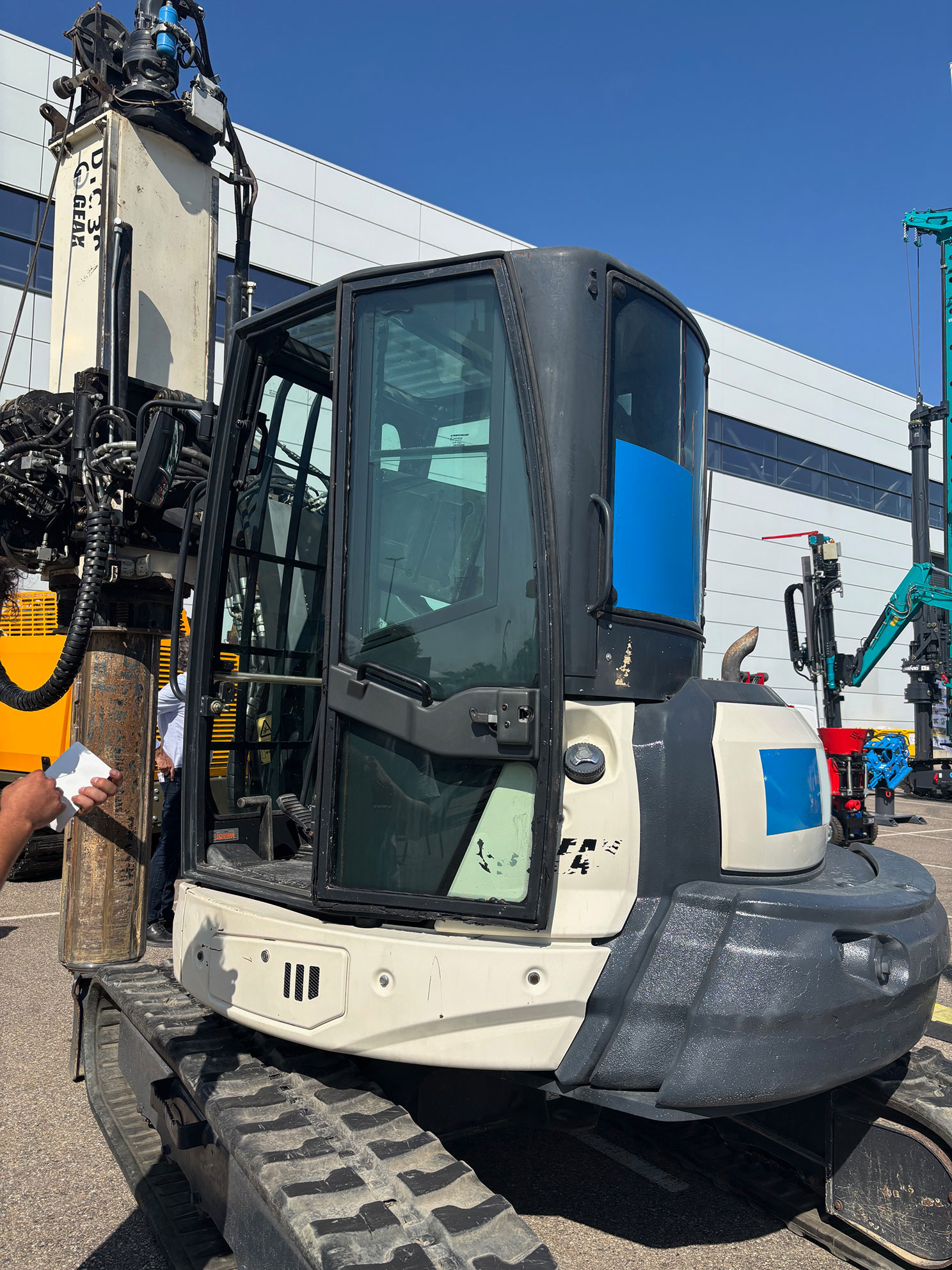

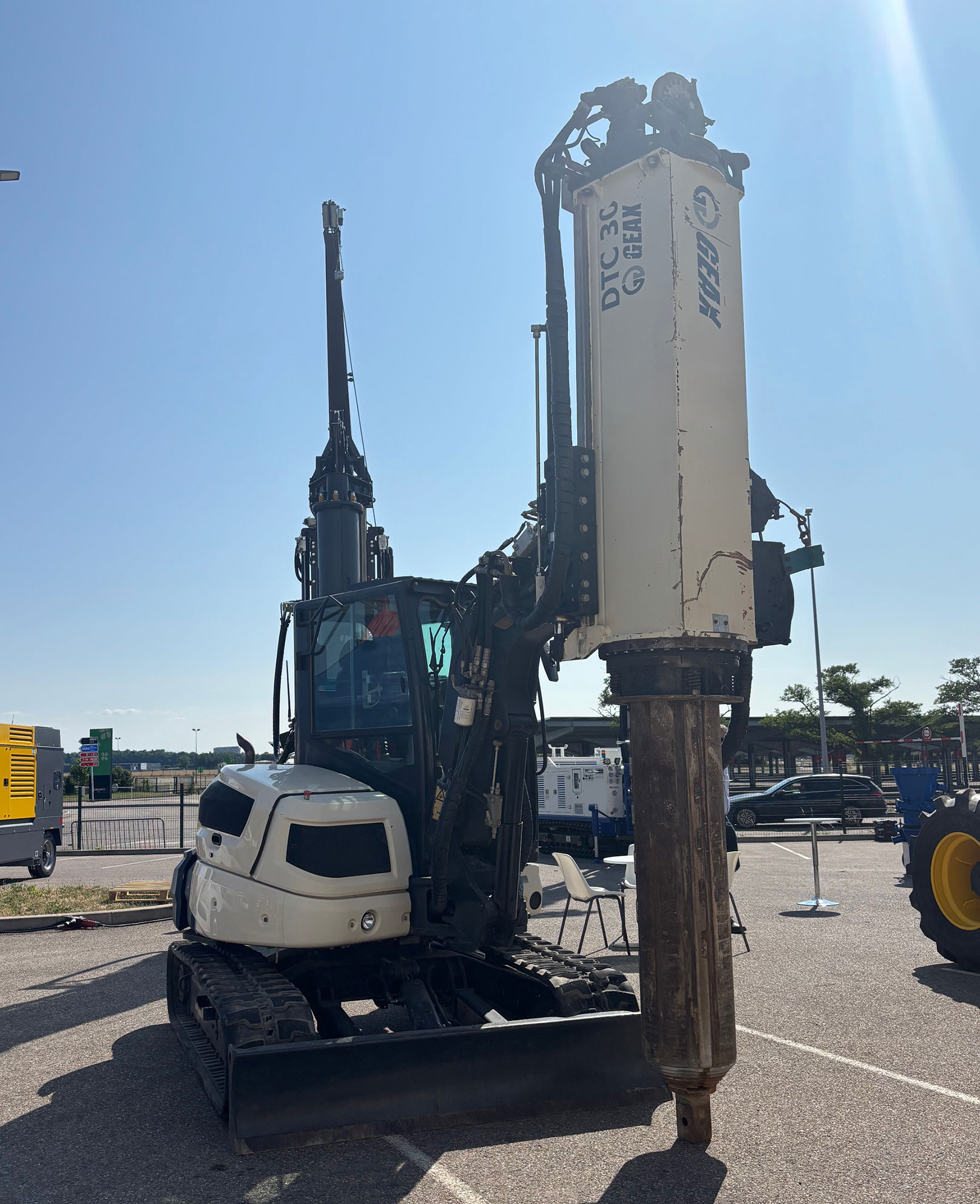

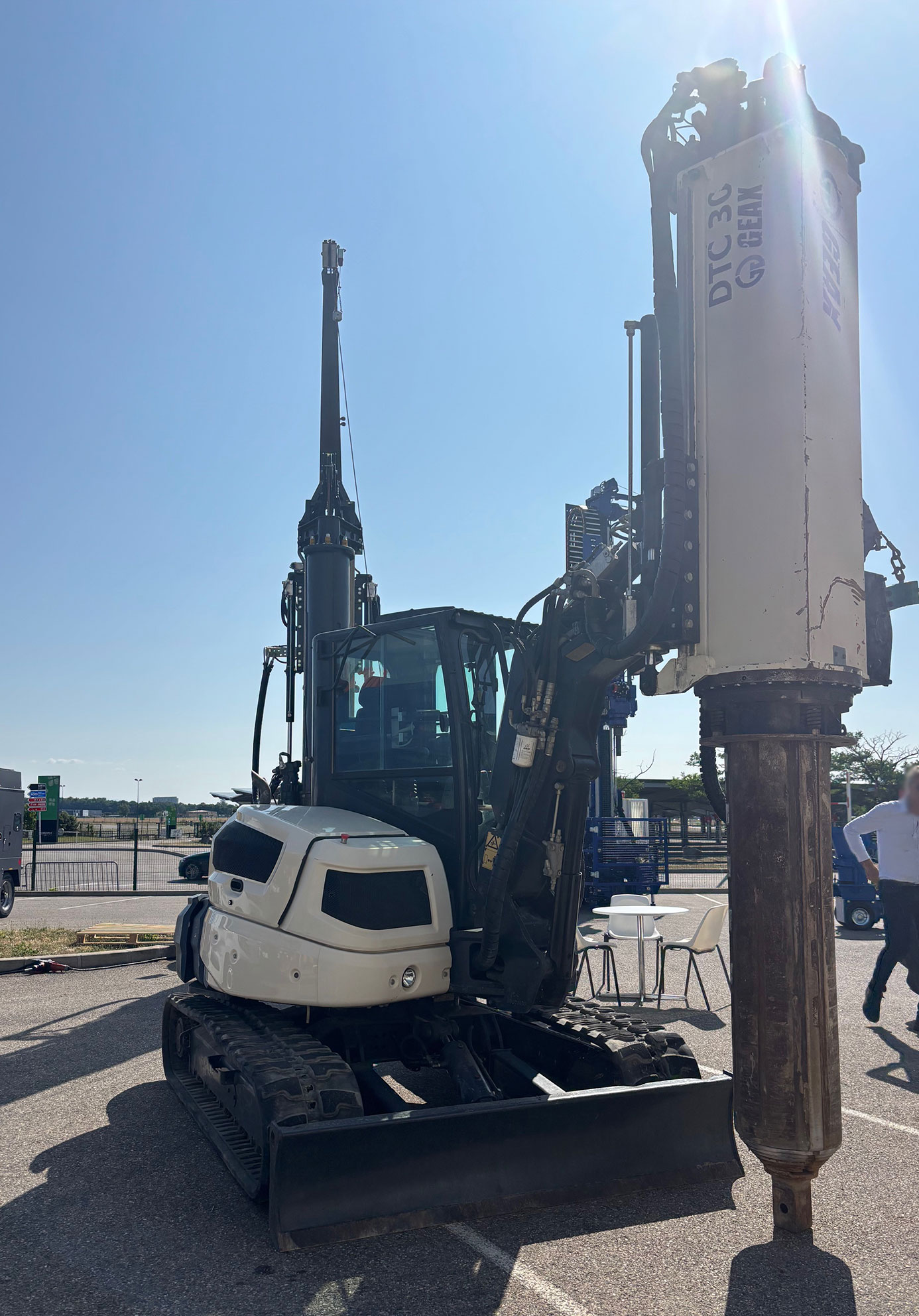

Geax DTC30 Rotary Piling Rig

Description

Used Geax DTC30 Rotary Piling Rig for sale.

2,307 Hours

Base:

Eurocomach 500Zt

Undercarriage length: 2,480mm

Undercarriage width: 1,980mm

Shoe: 400mm

Engine type Kubota v2403-m

Engine power 50hp

Mast:

Min working height without jib 4,000mm

Stroke: 1,200mm

Kelly bar:

Square connection 100mm

Max pile depth 12.5m-15m / 14m Kelly bar

Max pile diameter 800mm

Rotary:

Max nominal torque 2700 daZm

Drilling speed 10-45rpm

Spin of speed 45rpm

Winches:

Main winch line pull 3500 daN

Aux winch line pull 1100 daN

Transport condition:

Length: 5,100mm

Width: 1,980mm

Height: 2,550mm

Weight: 8,800kg
