Fraste PL-G Geotechnical Drill Rig

Description

Used Fraste PL-G Geotechnical Drill Rig for sale.

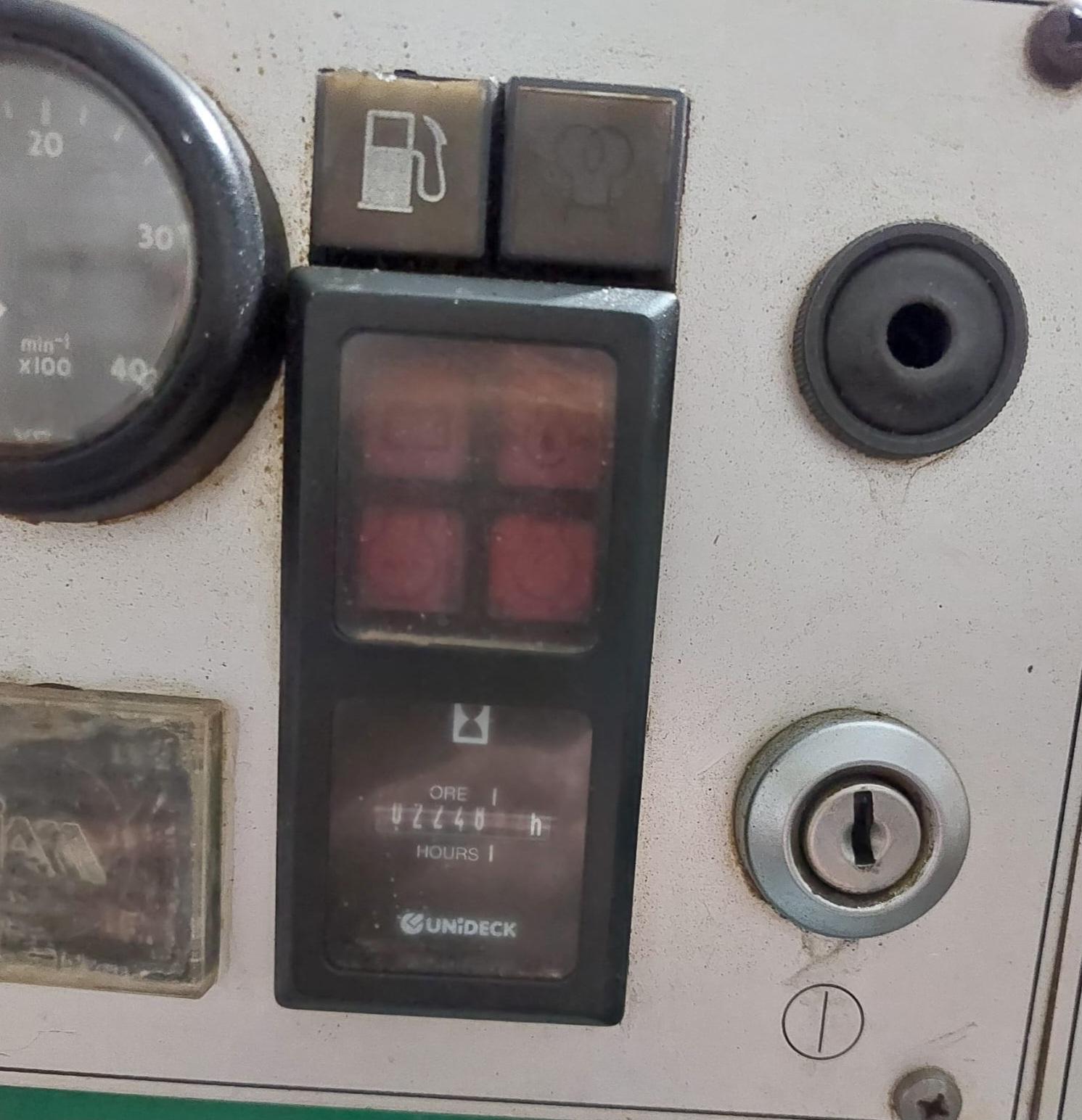

2,200 Hours

Set up for geothermal and waterwell drilling

Engine- Perkins 403c-15 24.5kw (34hp)

Rotary head- 2 speed (220 Kgm/84 rpm – 440 Kgm/45 rpm)

Double clamp: 45-180mm

Stroke: 2,500mm

Pull up: 2,000kg

Pump: Caprari A3/50ª 500 L – 6 bar

Winch: 1000kg

3,700kg weight

Tools included:

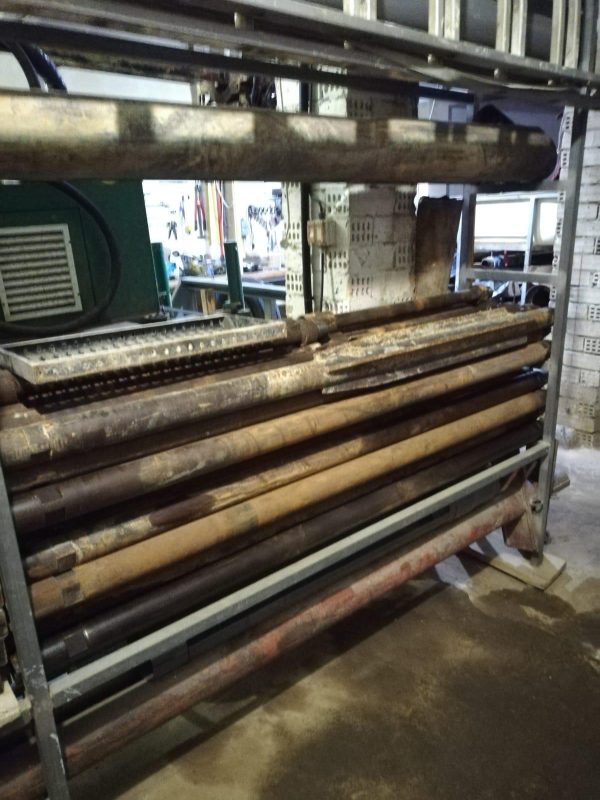

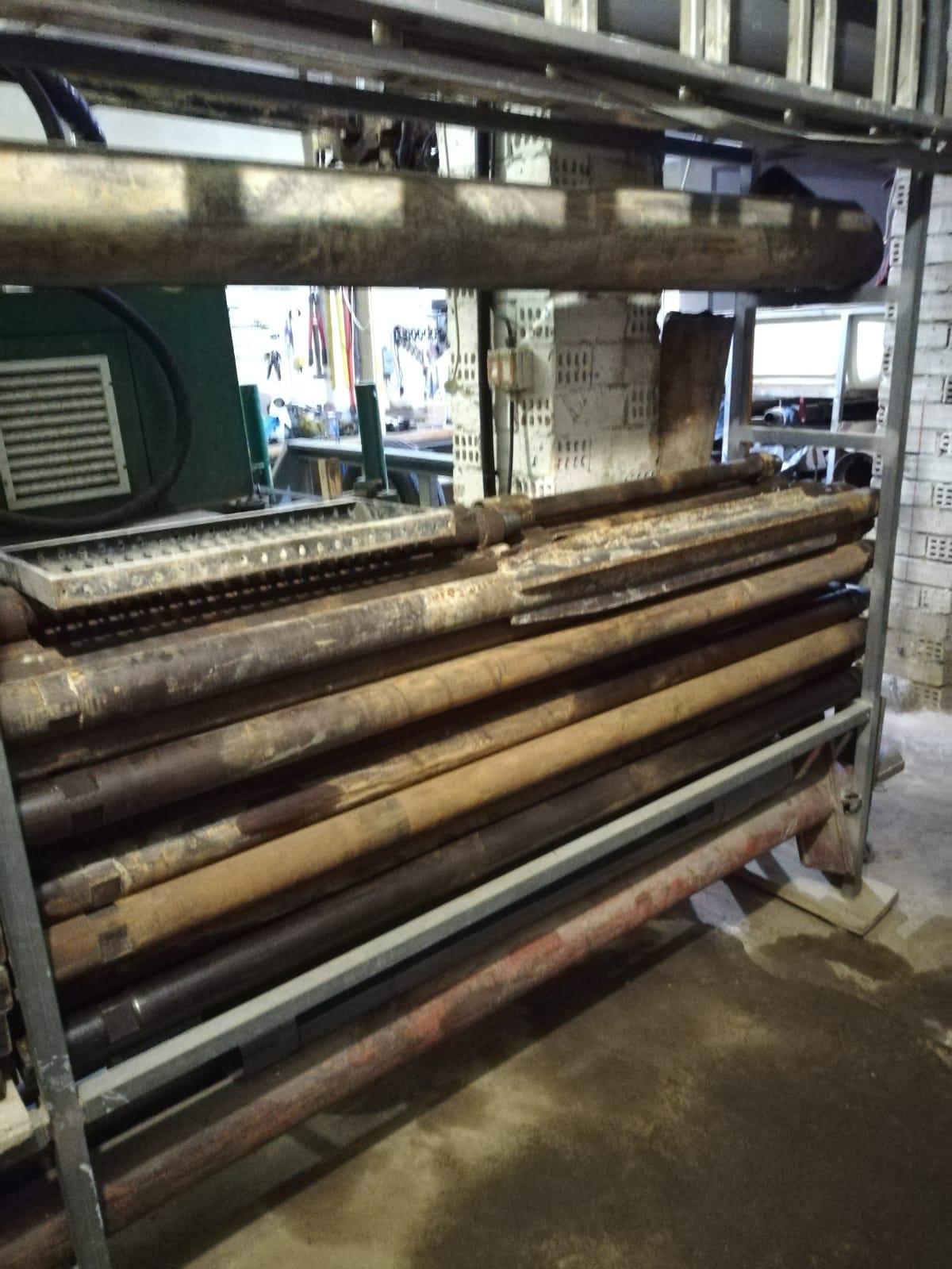

– 50 Iron drill rods, 76mm diameter, 2 meters long

– 12 Meters of 170mm casing pipe, external and internal, approx. 150mm. Male – Female, 1 meter long.

– Tracinatore

– Casing recover

– Dust cover

– Reducers

– Down the hammer shock absorber

– 2 Down the hammer, measurements:

PR-55 Down the hammer, with 125mm and 180mm shafts

PR-35 Down the hammer, with 110mm and 90mm shafts

1 Reducer from 3 1/2‘ IP-Female to 2 1/2’ IP-Male.

Sleeve from 2 1/2‘ IP-Female to 2 1/2’ IP-Female.

Tri-flanger set:

1 unit 170mm, for 160mm pipe, with sleeve reduced from 3 1/2‘ to 2 1/2’ IP.

1 unit 135mm, for 125mm pipe, with sleeve reduced from 2 1/2″ IP.
