Comacchio MC6 Micro Piling Rig

Description

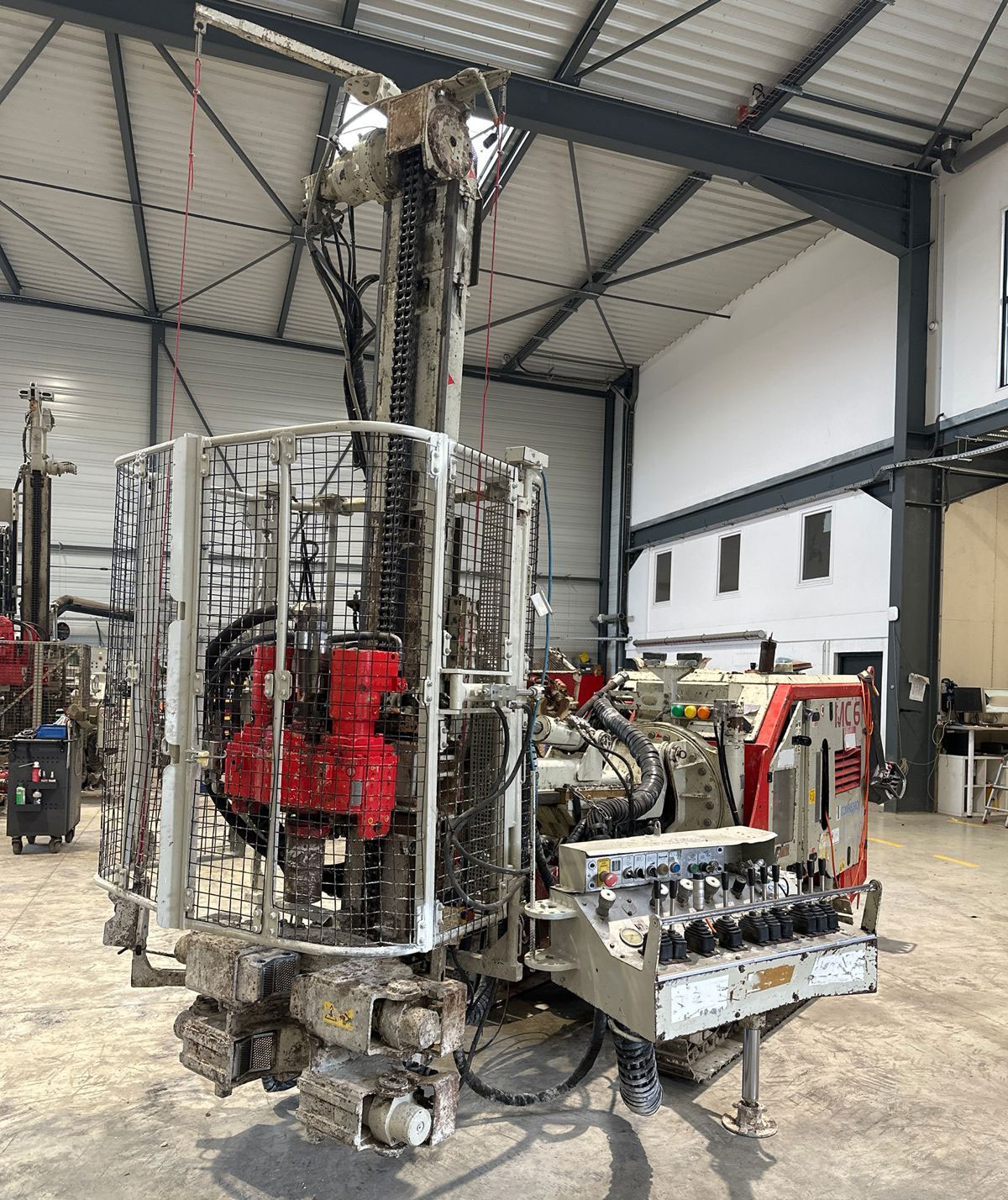

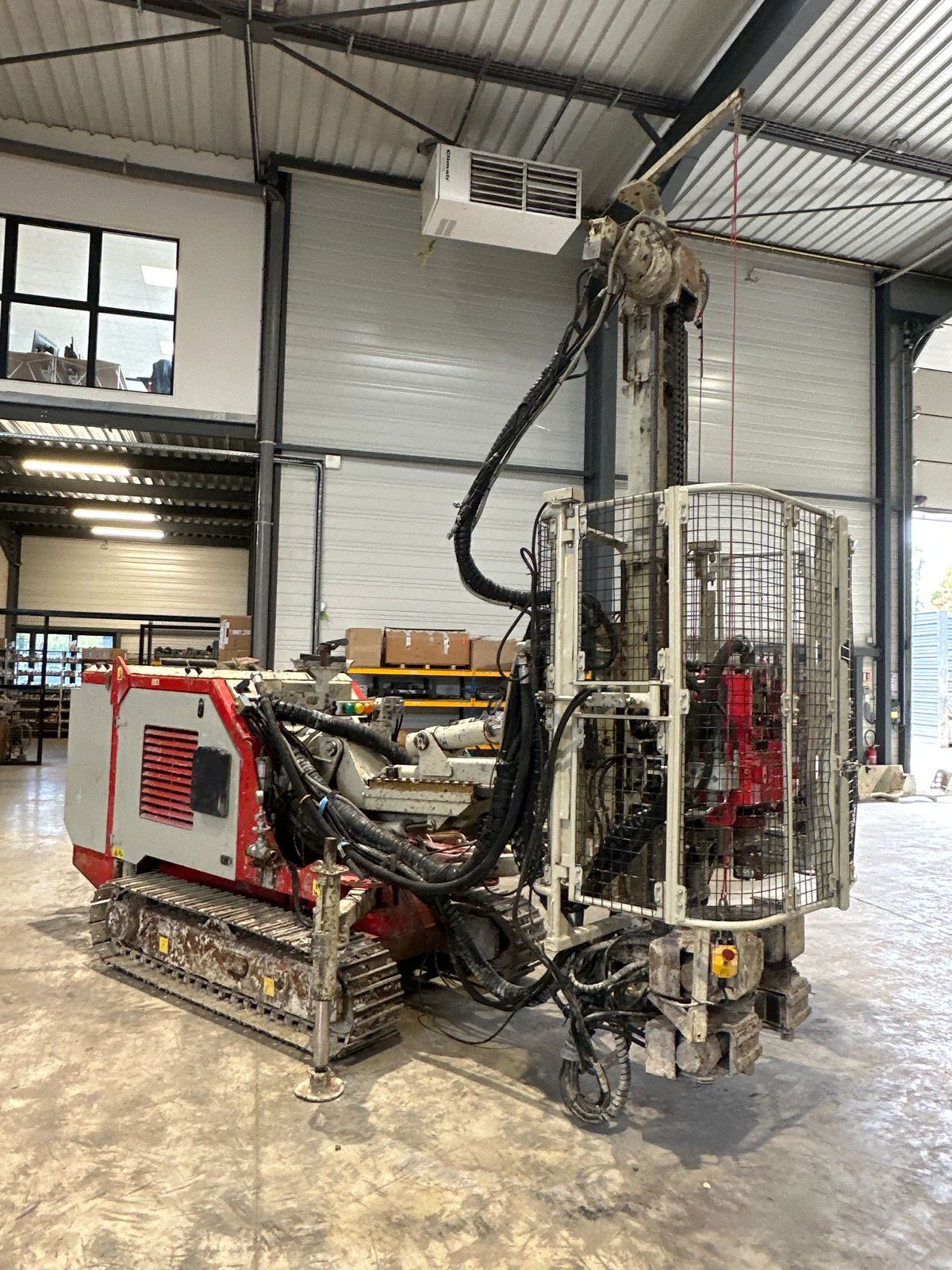

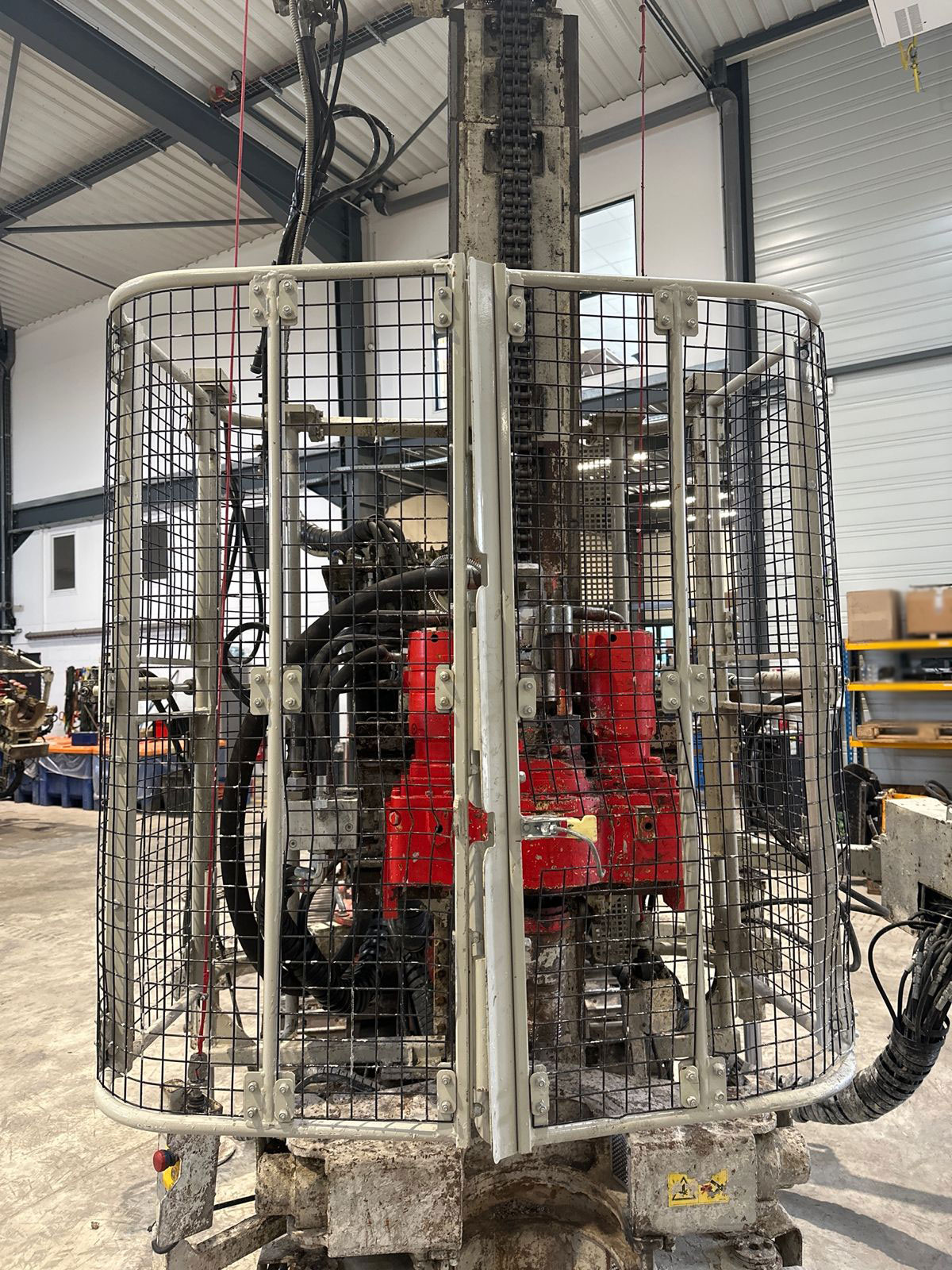

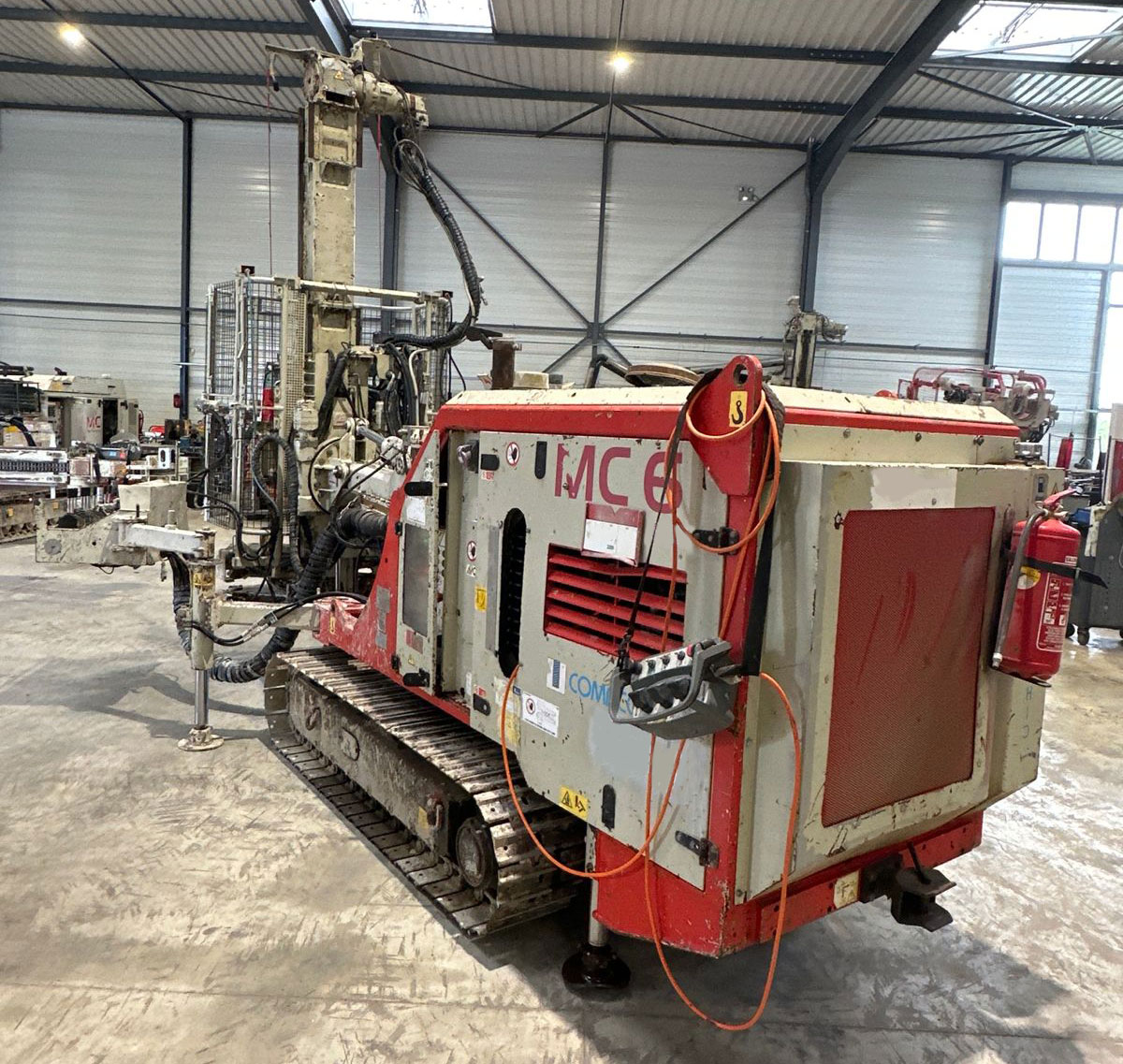

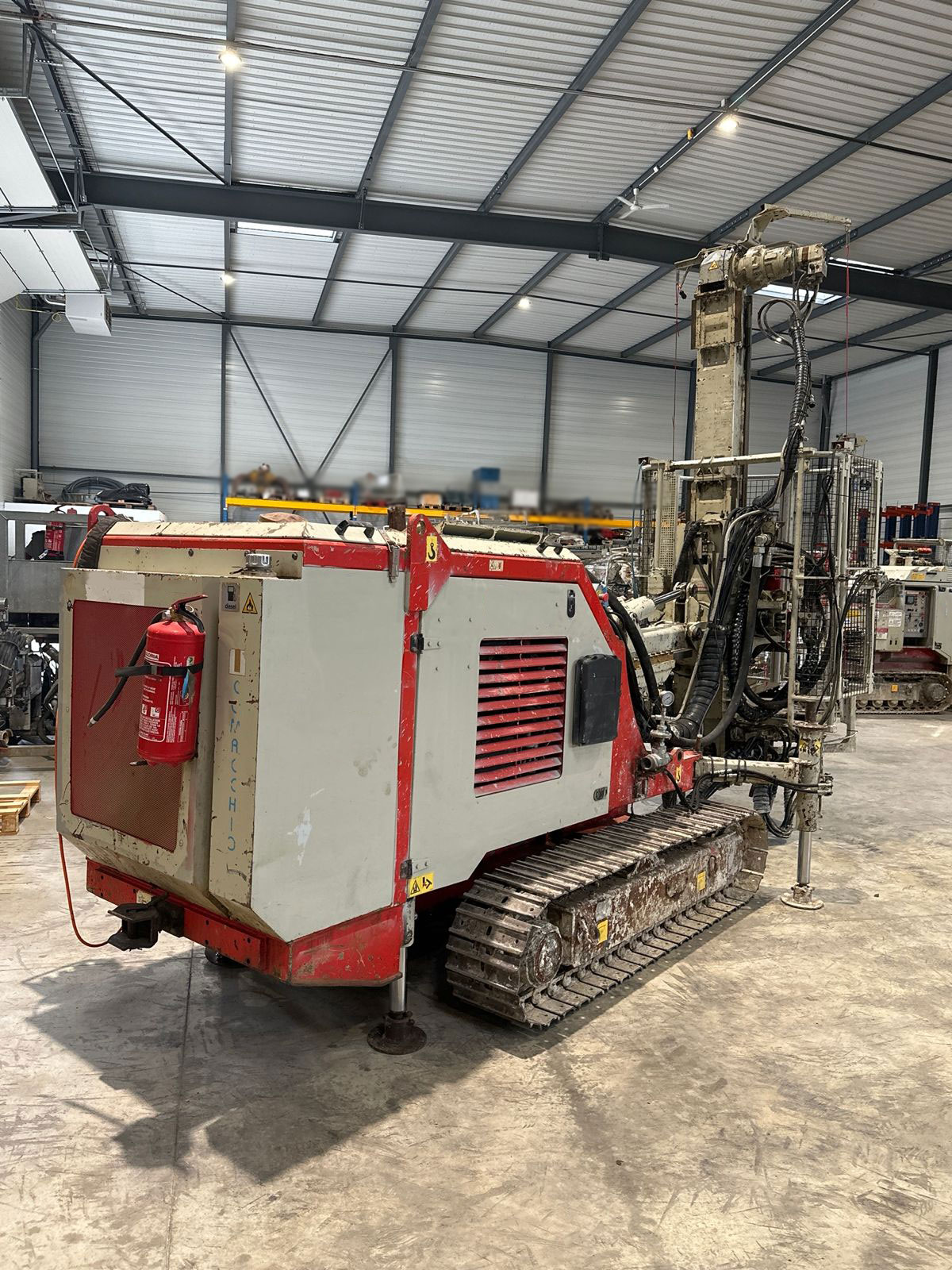

Used Comacchio MC6 Micro Piling Rig for sale.

4,958 Hours

Engine: DEUTZ TCD 3.6 L4 – 85 kW to 2,200 tr/min

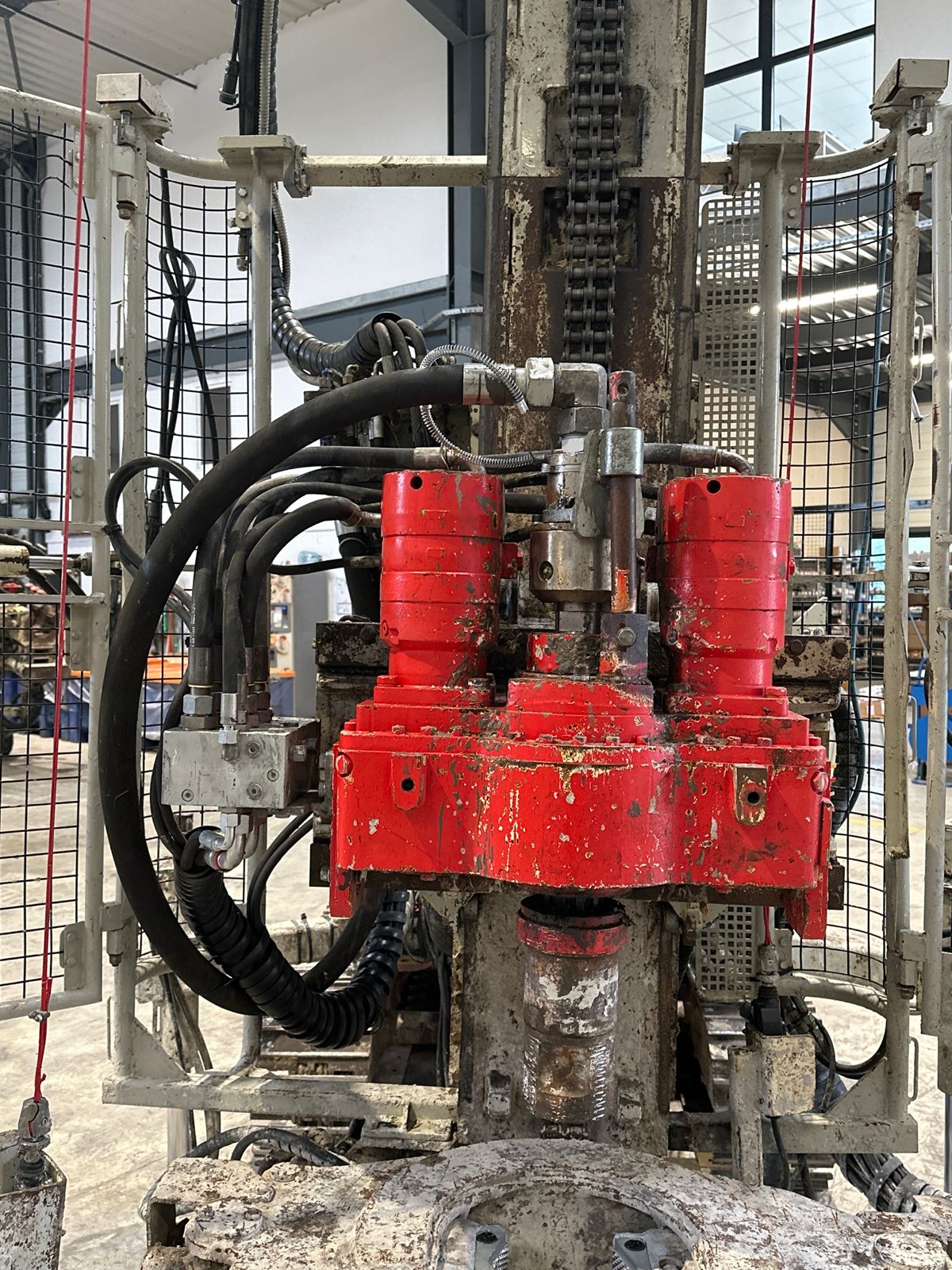

Rotary head R900:

Torque: 300 / 460 / 600 / 920 daNm

Speed: 210 / 140 / 105 / 70 tr/min

Thread: 3’’1/2 BOX

Feed stroke: 900 – 1,200 – 2,100 mm Mast extensions: 300 / 1,200 mm (option

Double clamps: 45 – 320 mm

Dimensions:

Height (without mast extension + winch): 2 300 mm

Height (with mast extension + winch): 3 450 mm – 4 350mm

Transport height: 2 710 mm

Transport length: 4 350 mm

Working length: 4 600 mm

Width: 1 160 – 1 600 mm

Weight: 6,500kg

Winch TN09

1,000kg

DTH. lubricator

Capacity 8 L / Max pressure: 30 bar

Drilling control and driving control

Control console for drilling + Cable remote control for driving
