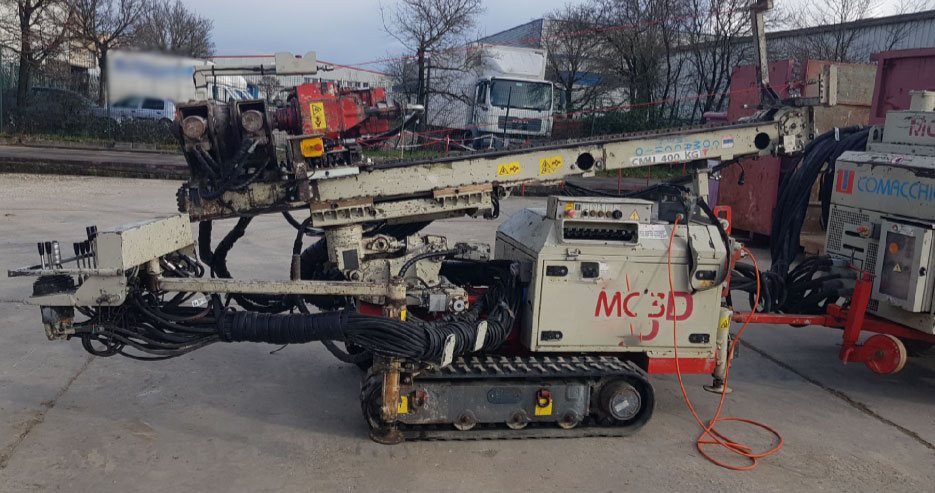

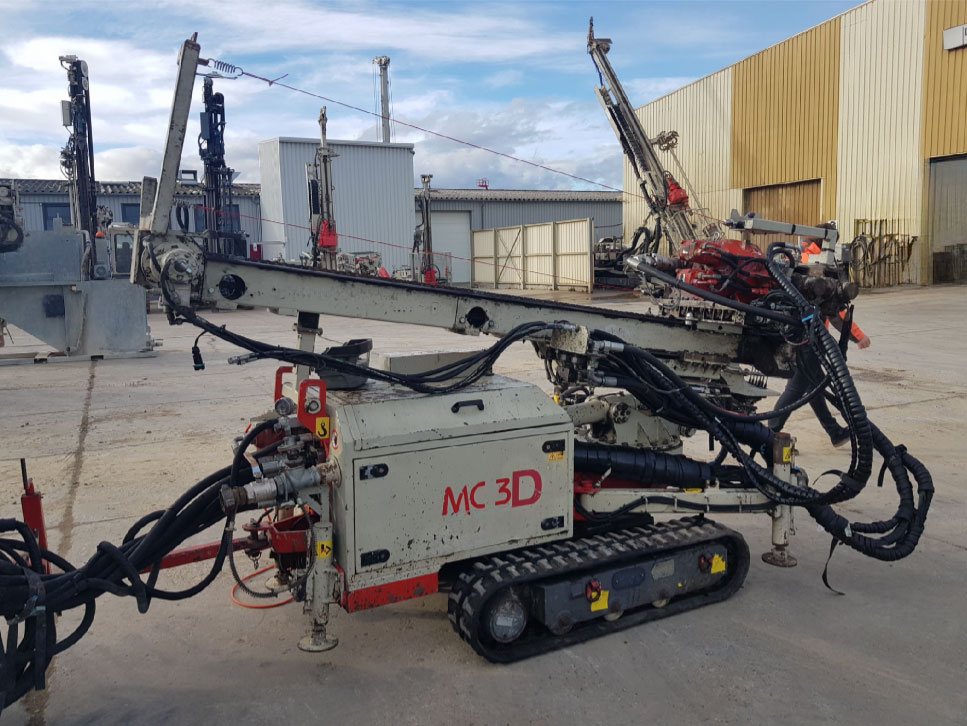

Comacchio MC 3D Micro Piling Rig

Description

Used Comacchio MC 3D Micro Piling Rig for sale.

5,000 Hours

Engine Power :

DEUTZ TD 2011 L04 W Diesel – 55kW, 2,300 rpm

Rotary head R400.3 :

Torque: 310 / 155 / 100 / 50 daNm Speed: 50 / 100 / 160 / 320 rpm

Thread type: 2” 3/8 FE Adapted to set up a drifter

Feed Stroke :

1,200 / 2,200 mm / Mast extension: 1,000 mm / Thrust force: 2,500 daN –

Withdrawal force: 2,500 daN

Double clamps :

45 – 220 mm

Dimensions :

Height (without mast extension + winch): 2,580 mm

Overall height (with extension, without winch): 3,180 / 3,580 mm

Drill rig transport length: 6,510 mm

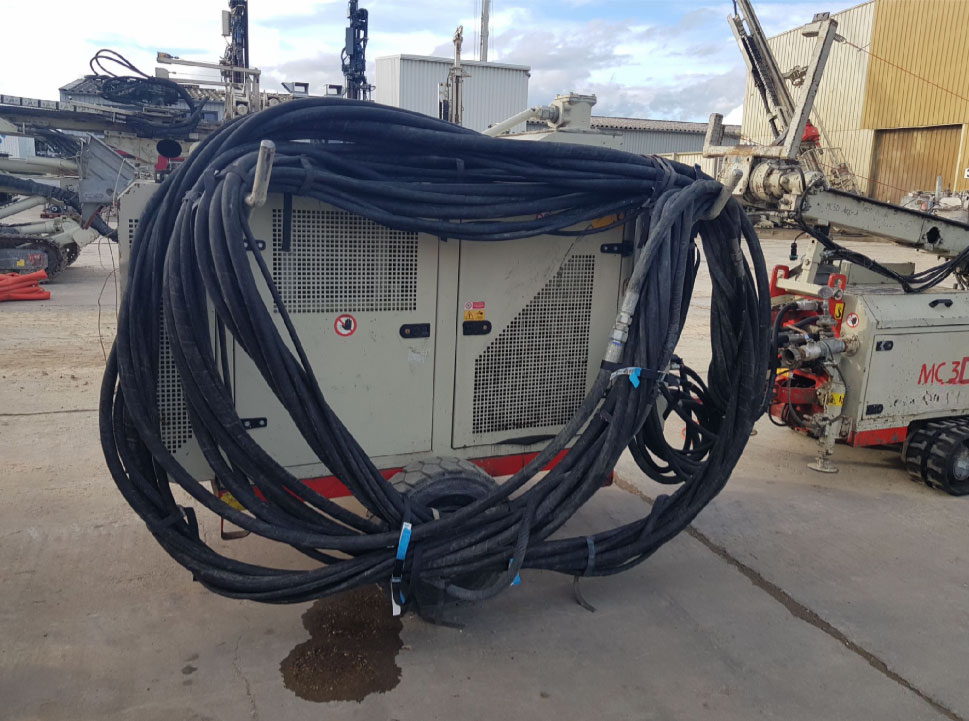

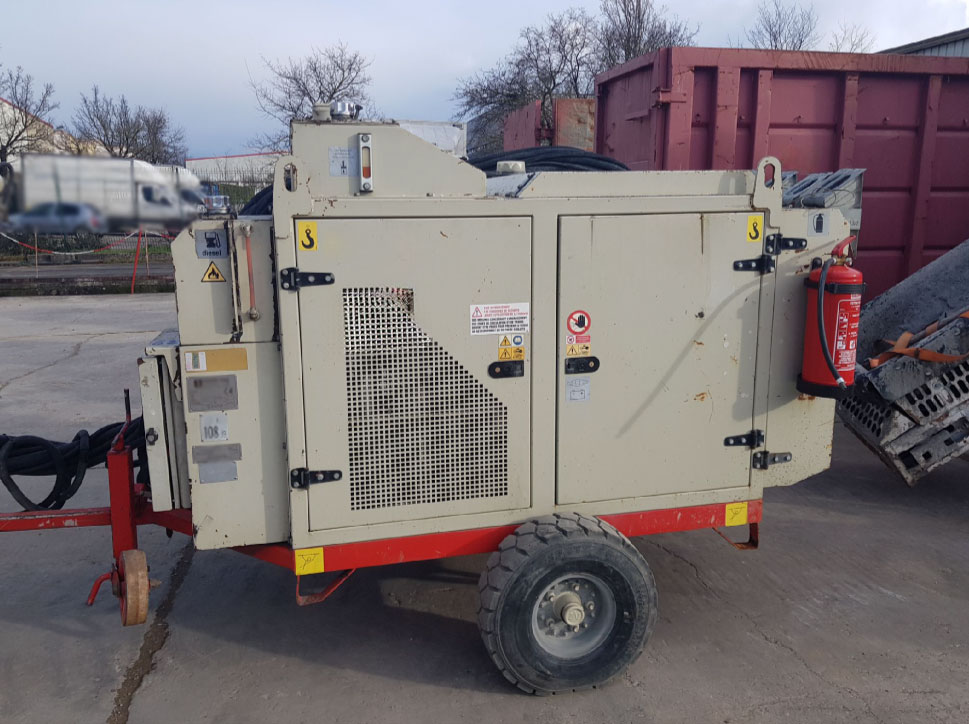

Remote power pack length: 3,000 mm

Drill rig width (without safety cage): 1,000 – 1,150 mm

Remote power pack width: 1,750 mm

Weight: 4.3 tonnes (Drill rig: 2.6 tonnes / Remote power pack: 1.7 tonnes)

Hose length between drill rig and powerpack: 20m

Driving and drilling control : Control console (drilling) + Cable remote control (driving)

D.T.H. lubricator : Capacity: 8.5L / Max pressure: 26 bar
