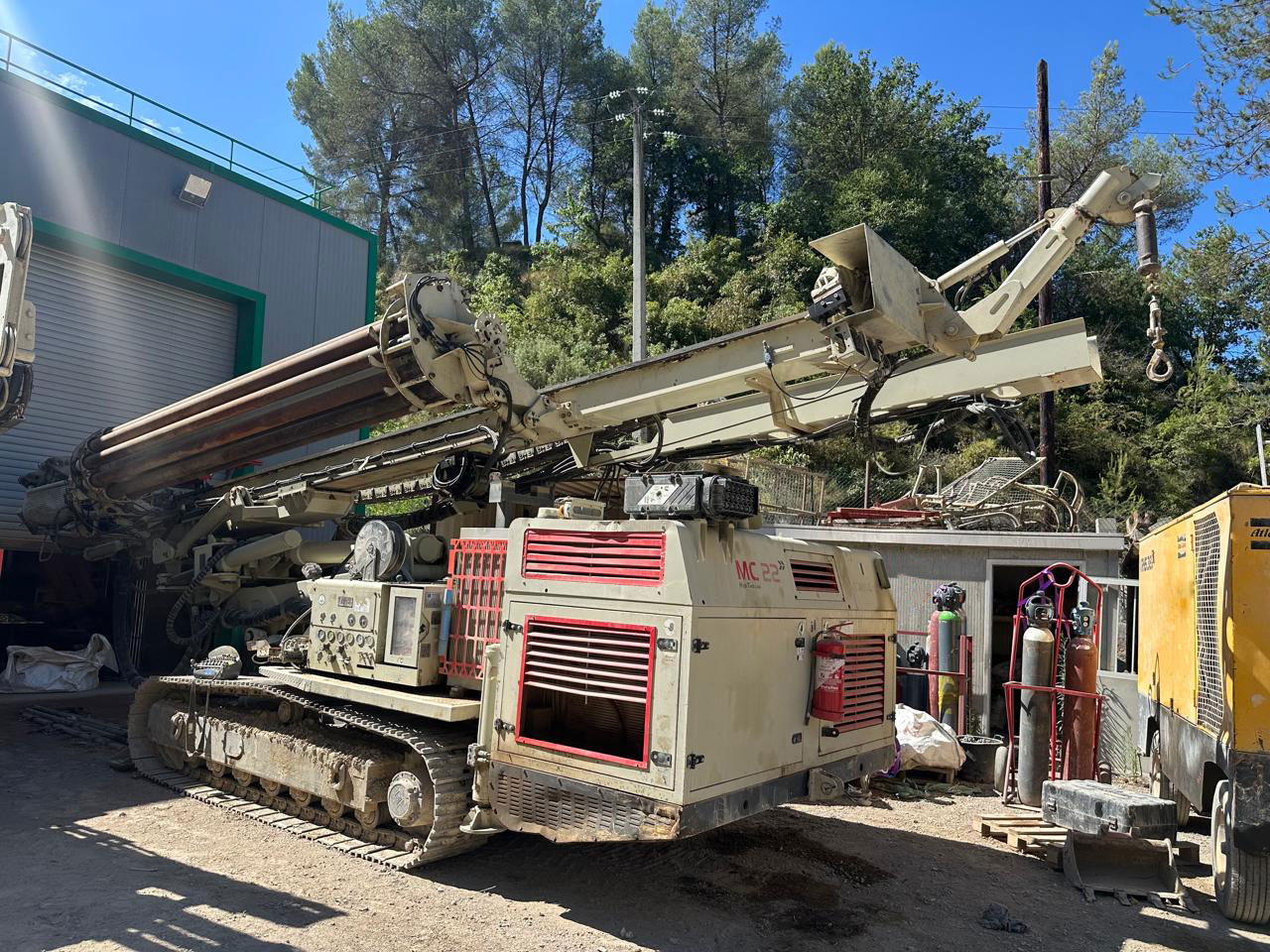

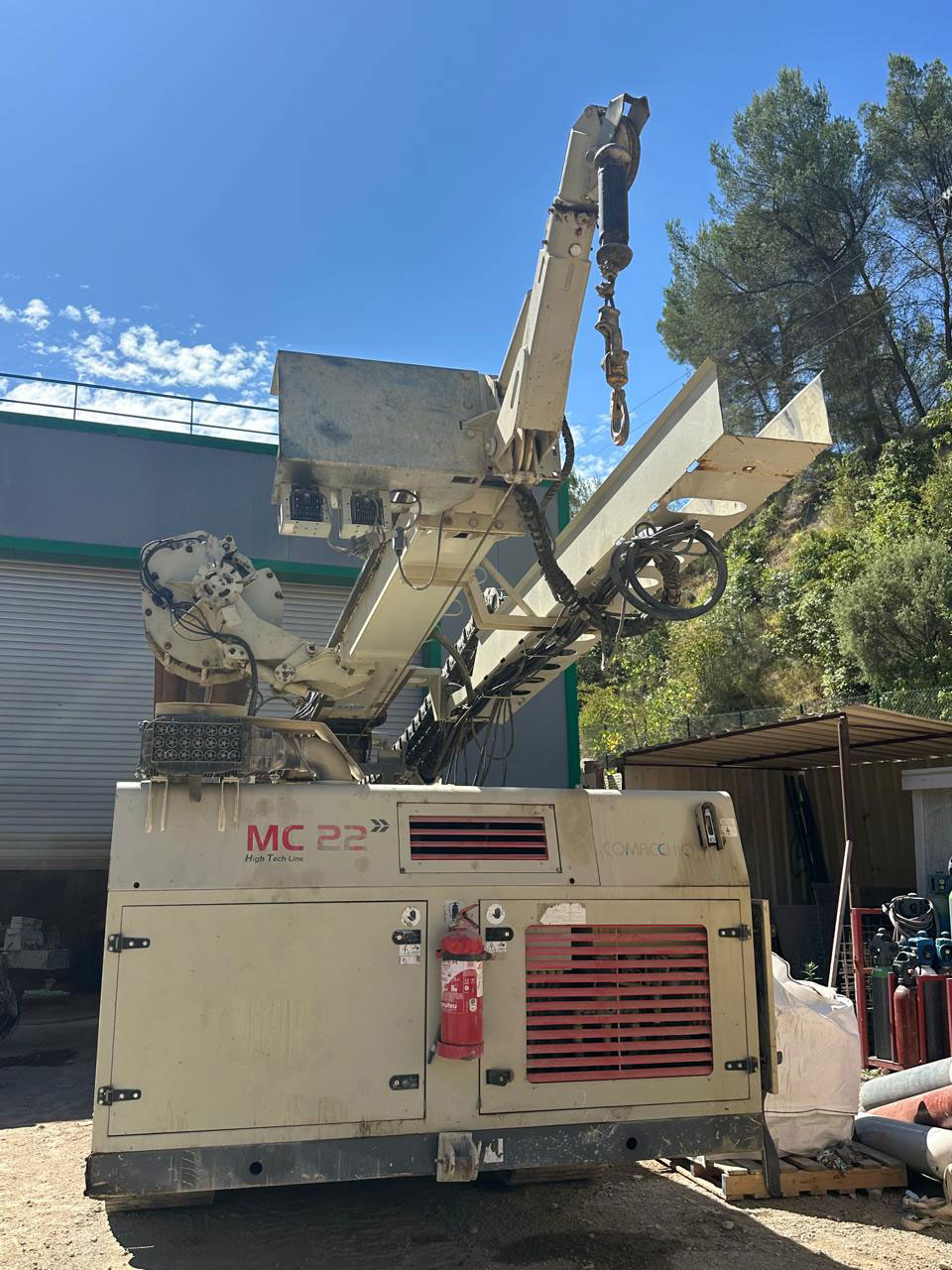

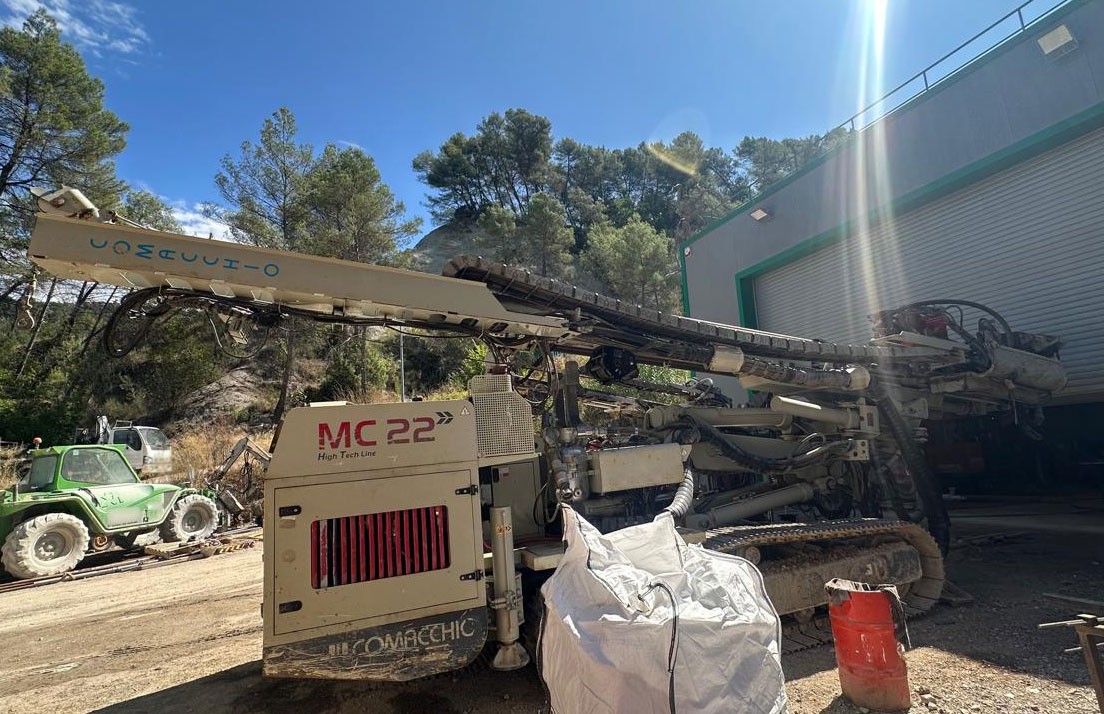

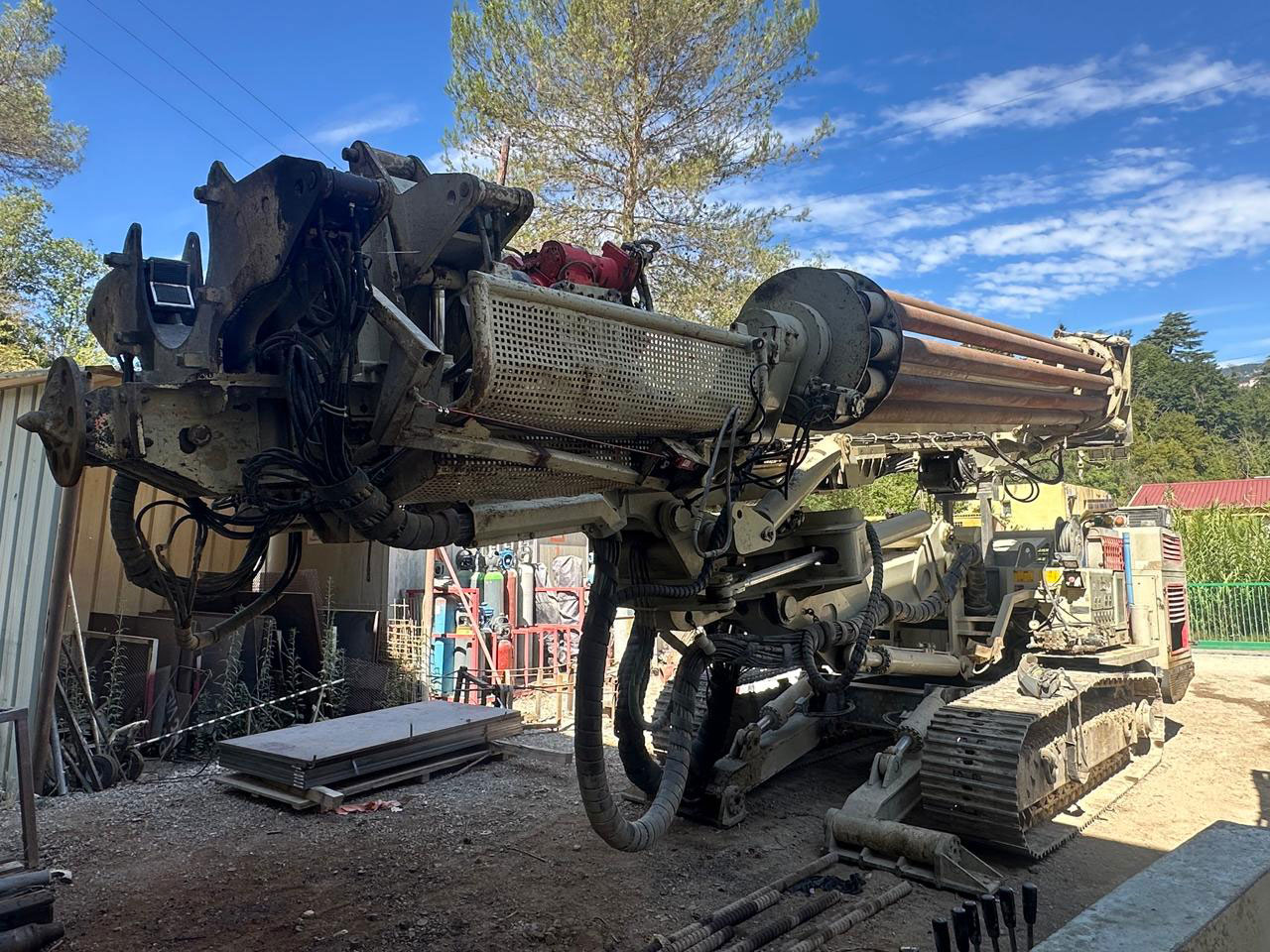

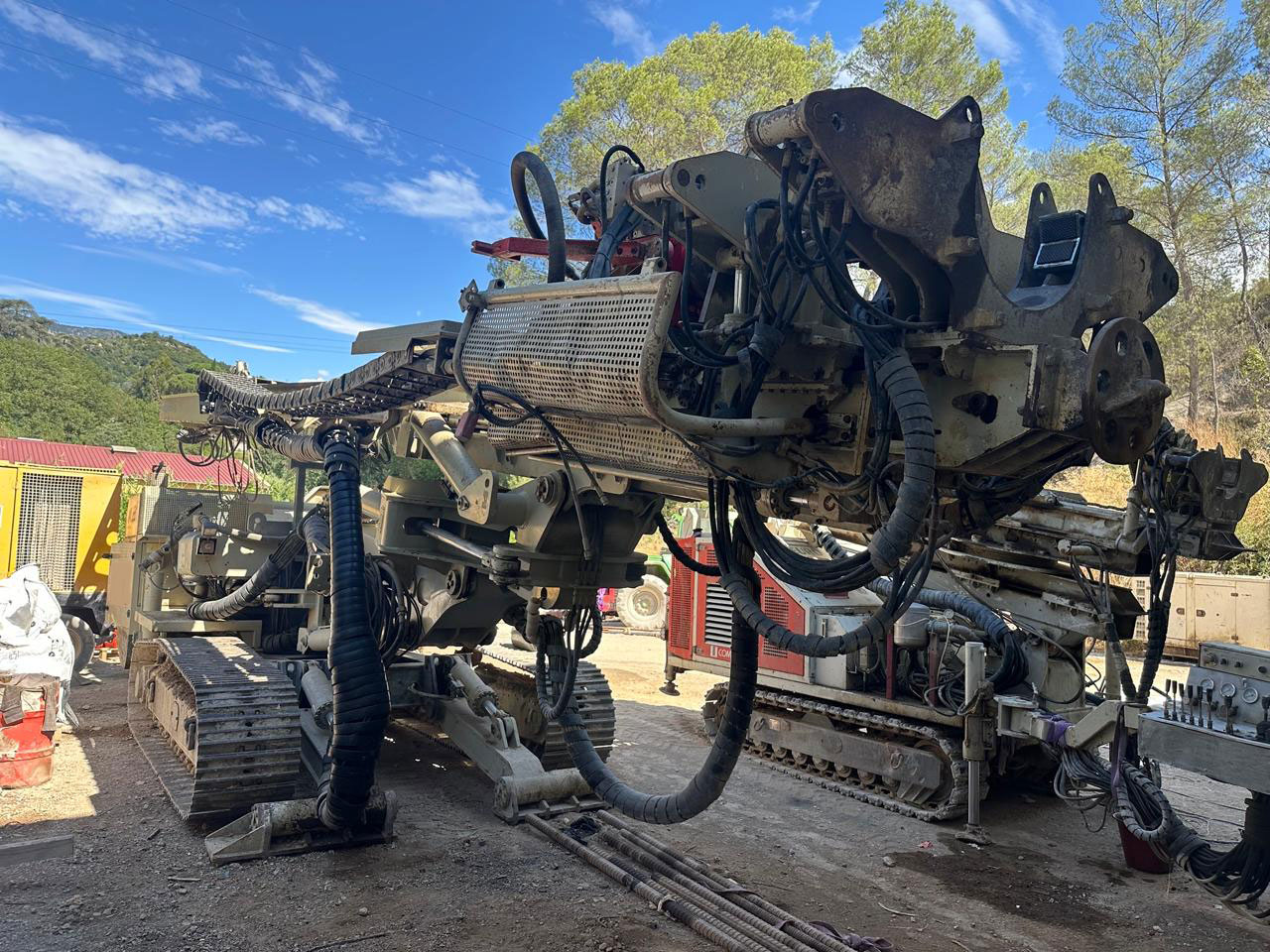

Comacchio MC 22 Micro Piling Rig

Description

Used Comacchio MC 22 Micro Piling Rig for sale.

5,900 Hours

Weight and dimensions:

Weight: 24,000 kg

Length (transport): 13,940 mm

Width (transport) : 2,500 mm

Height (transport) : 3,125 mm

Rotary head:

Model: R3200 – Comacchio

4 speed

Max. torque: 3,000 daNm

Speed: 120 rpm

Engine:

Model: Cummins QSB 6.7 – Tier 4i

Power: 168 kW

Mast

Length: 9,550 / 12,550 mm (with 3,000 mm extension)

Feed: 7,200 / 10,200 mm (with 3,000 mm extension)

Rod changer:

Capacity: 10 rods

Rod length: 4,500 mm

Rod diameter: 76 – 114 mm

Inserts for 89 – 114 mm included

(no rods included)

Water/foam pump

Model: GC 30

Flow rate: 20 L/min

Pressure: 150 bar

Other equipment

2,000 kg hydraulic winch

Clamping diameter: 45 – 520 mm

Line greaser

Remote control
