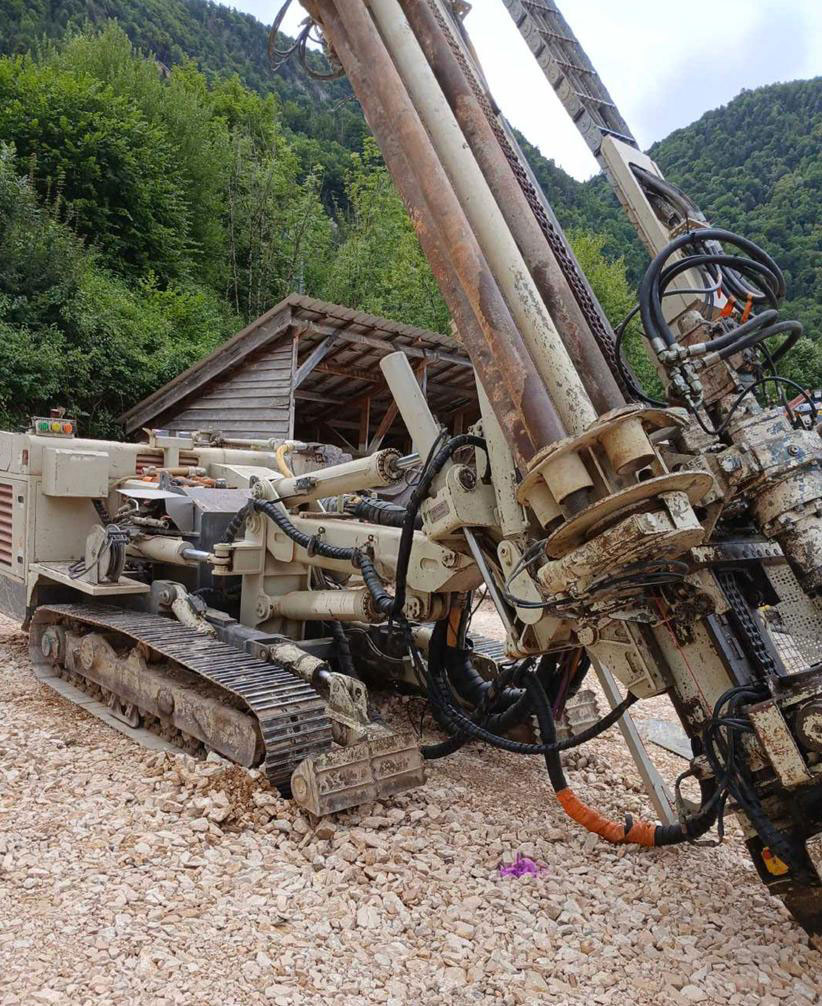

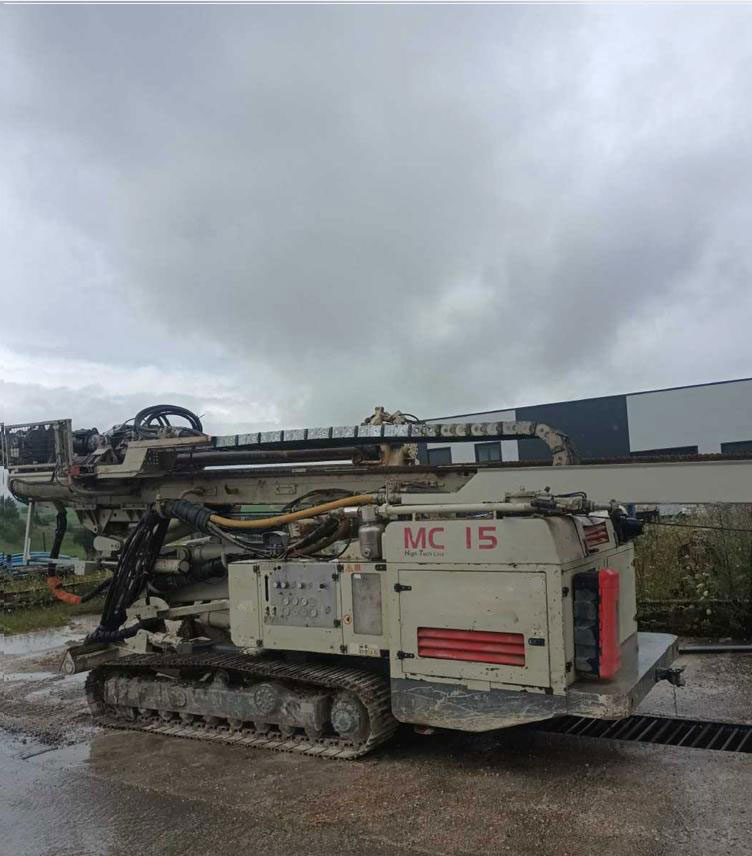

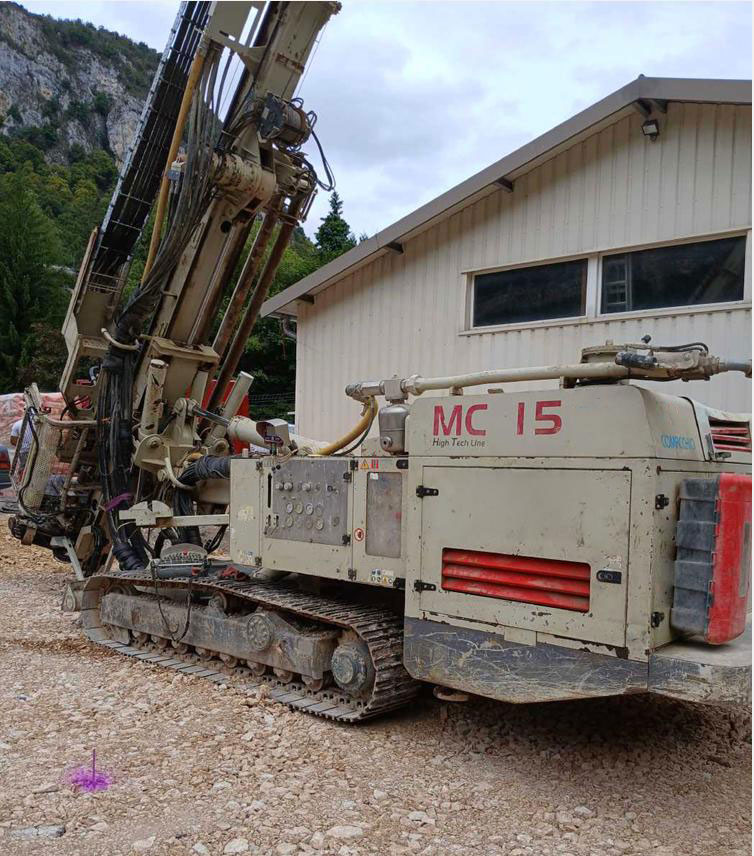

Comacchio MC 15 Micro Piling Rig

Description

Used Comacchio MC 15 Micro Piling Rig for sale.

5,700 Hours

Weight and dimensions

Weight: 15,000 kg

Length (transport): 10,300 mm

Width (transport): 2,300 mm

Height (transport): 3,000 mm

Rotary head

Model: R1700 M – Comacchio

6 speed

Max. torque: 1,700 daNm

Speed: 260 rpm

Flow rate: 180 L/min

Pressure: 300 bar

Weight: 563 kg

Engine

Model: Cummins QSB4.5 – Tier 4

Max power: 173 HP (129 kW)

Mast

Length: 6,000 / 9,000 mm (with 3,000 mm extension)

Feed: 4,000 / 7,000 mm (with 3,000 mm extension)

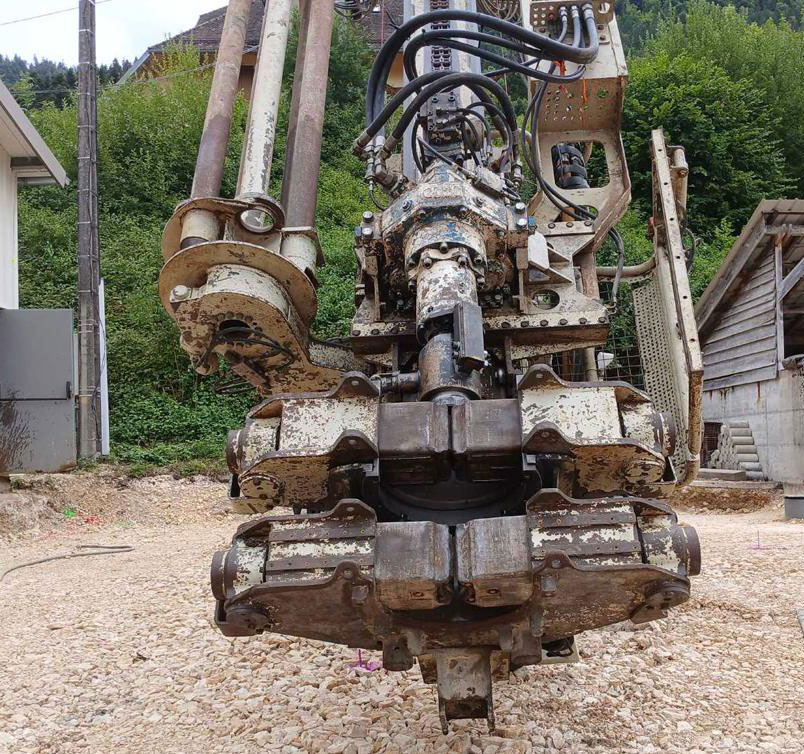

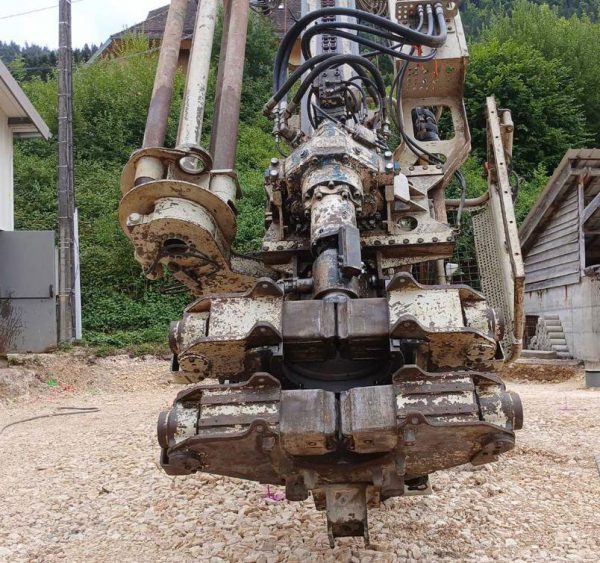

Rod changer

Capacity: 6 rods

Rod length: 3,000 mm

Rod diameter: 76 – 114 mm

Inserts for 89 – 114 mm included

(no rods included)

Water/foam pump

Model: GC30

Flow rate: 20 L/min

Pressure: 150 bar

Other equipment

Oscillating crawler

2,000 kg hydraulic winch

Hydraulic double clamps: 45 – 425 mm

Line greaser

Remote control
