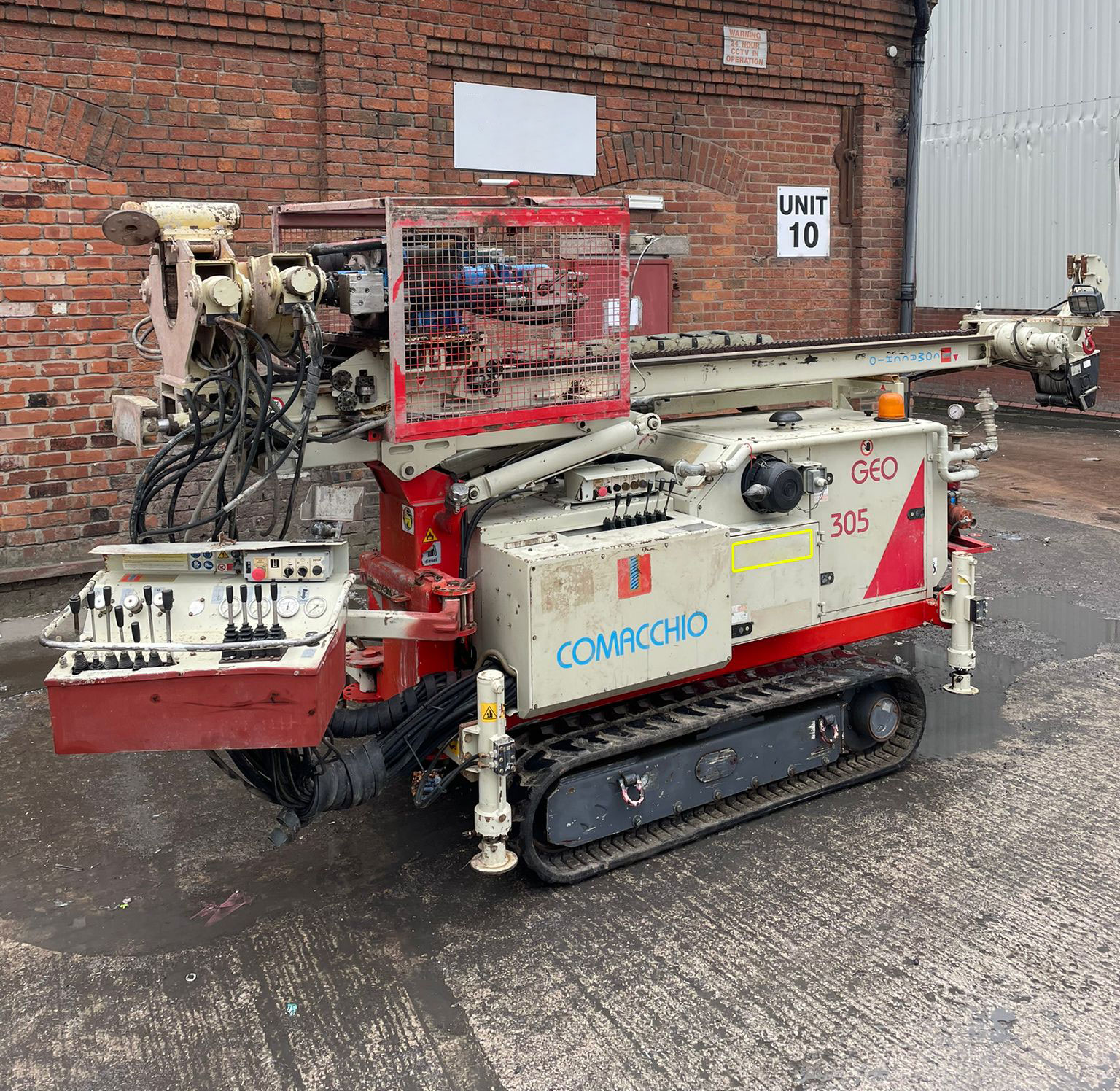

Comacchio GEO 305 Geotechnical Drill Rig

Description

Used Comacchio GEO 305 Geotechnical Drill Rig for sale.

4,400 Hours

Dynamic sampling hammer

Deutz engine 75hp

Blow energy: 250 Nm

Frequency: 2 500 blows/min

Thread type : H64 PIN Right – R38 BOX

Feed Stroke 2,800 mm

Double clamps- 45 – 220 mm Clamping force : 13 000 daN / Breakout torque: 1 000 daNm

Dimensions-

Working height (without winch): 4,322 mm

Working height (with winch): 5,180 mm

Transport height: 2,530 mm

Transport length: 5,180 mm

Working length: 4,080 mm

Width: 1,440 mm

Weight: 4,450kg
