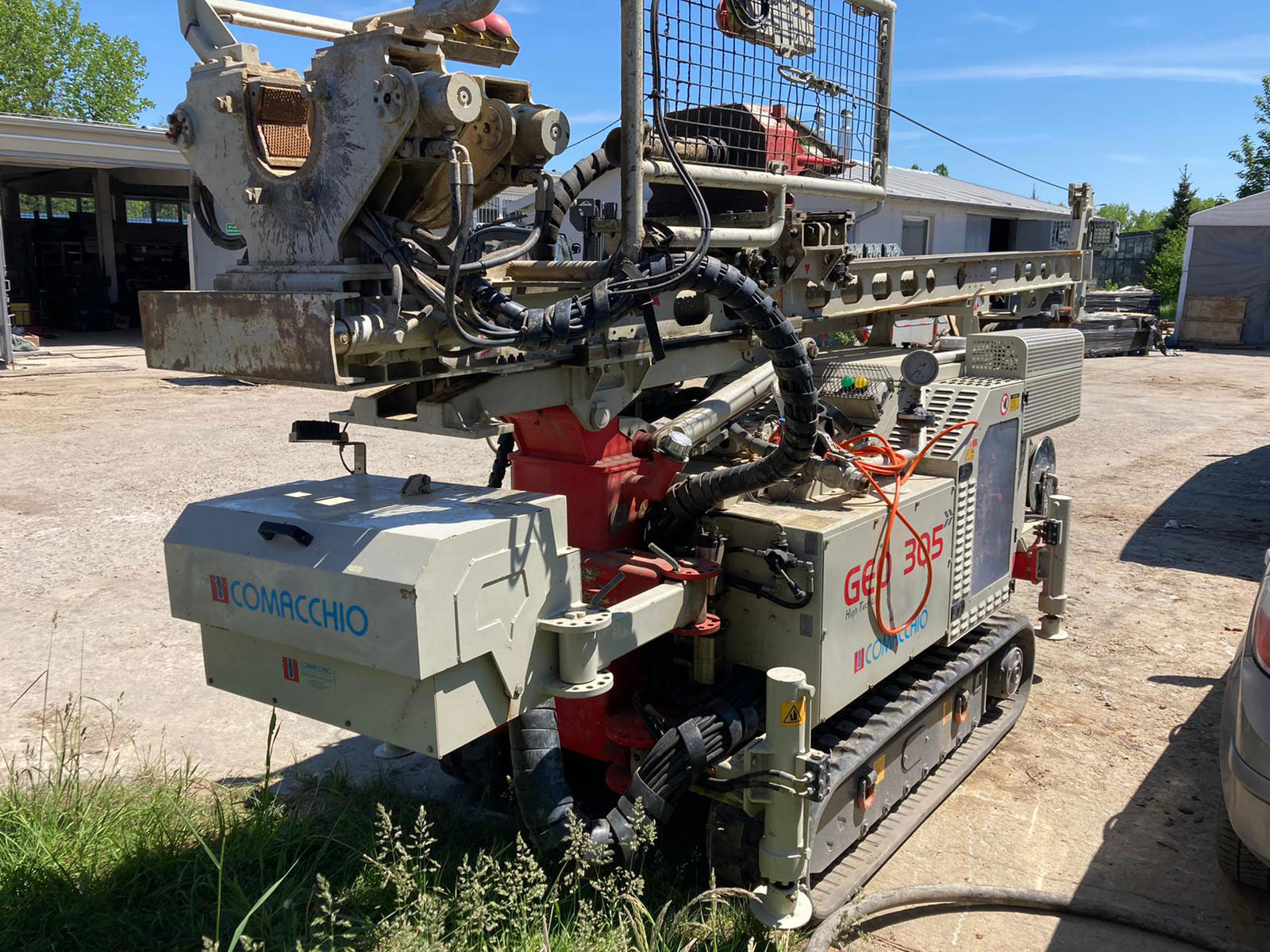

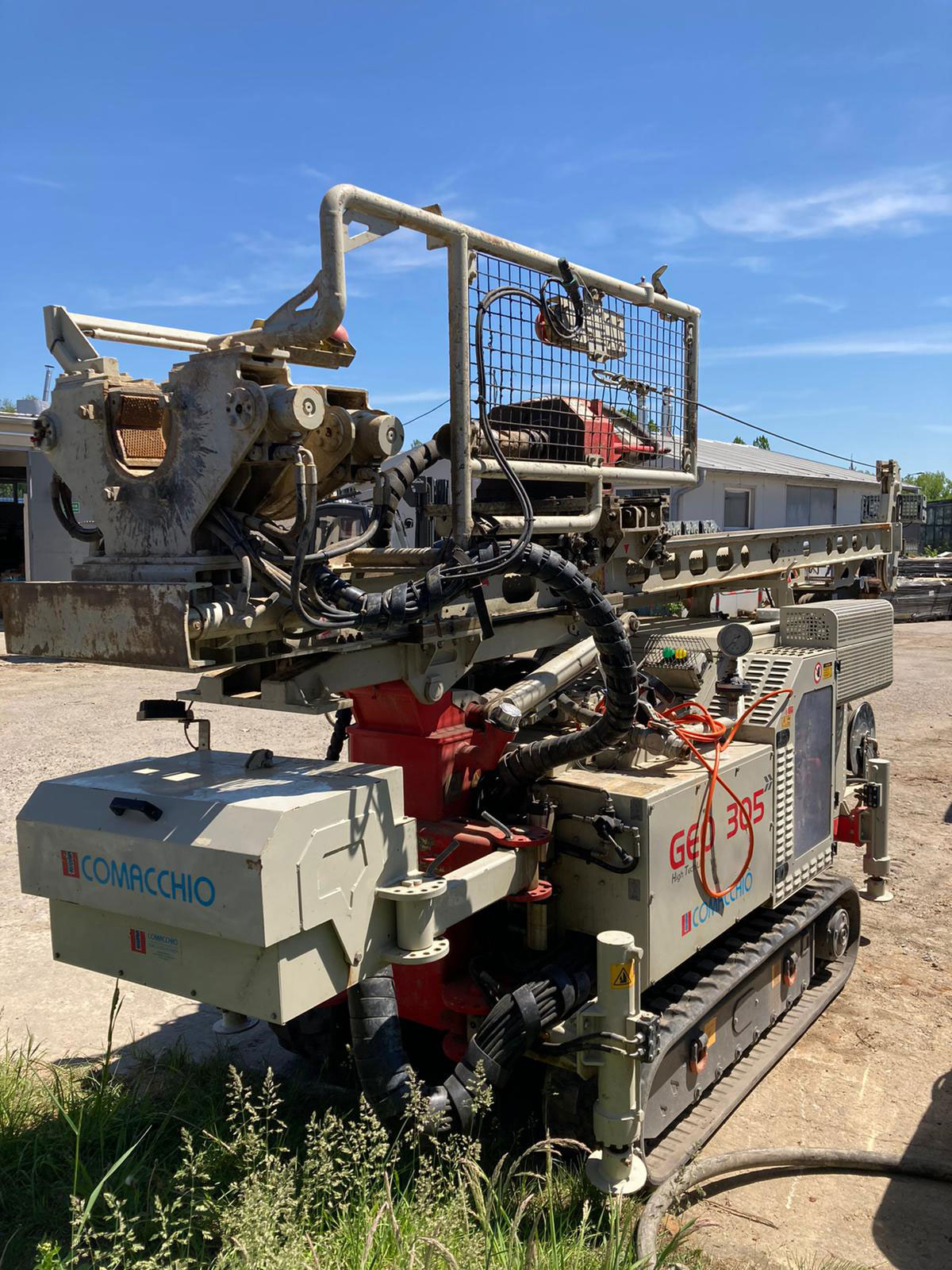

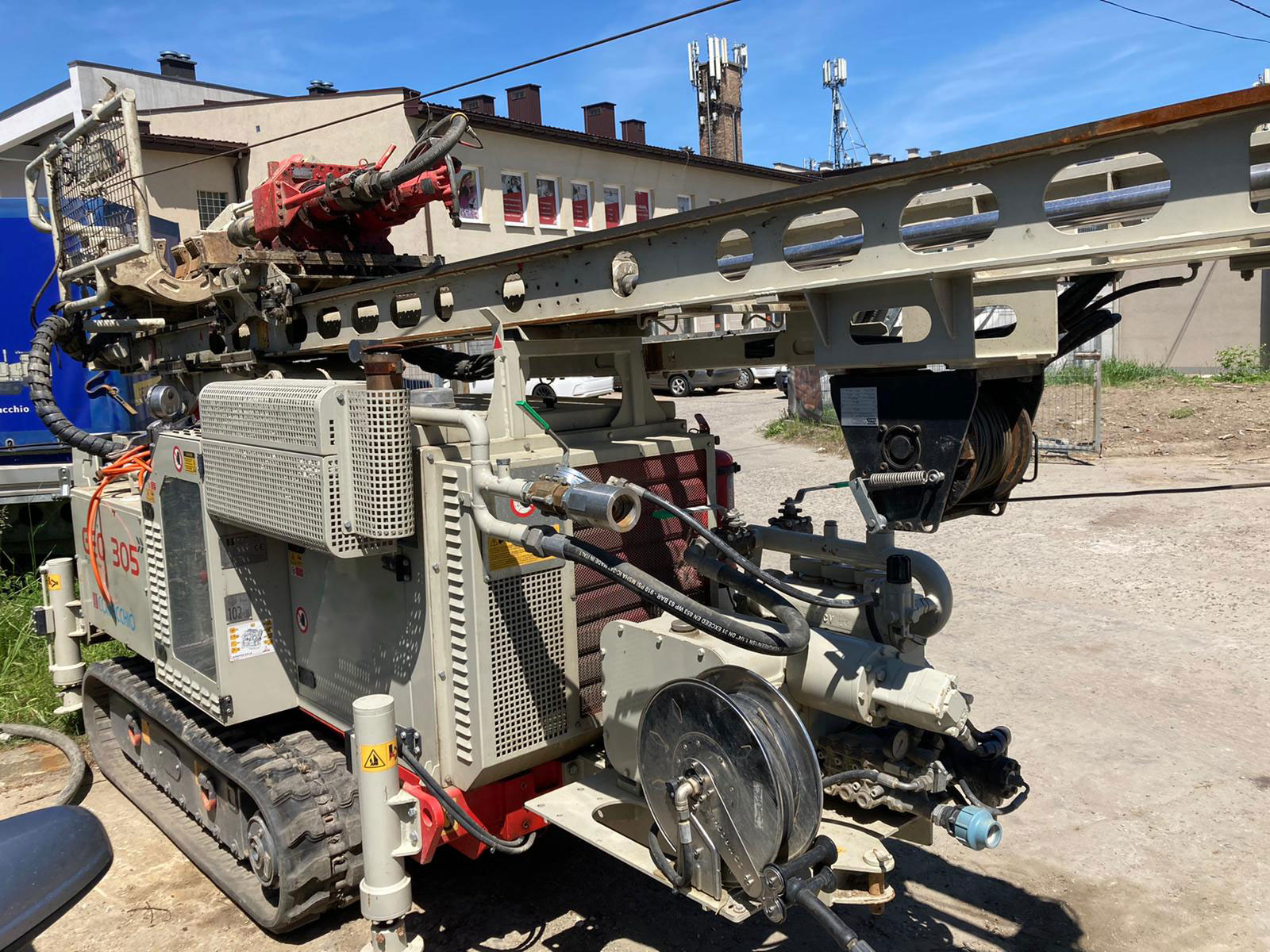

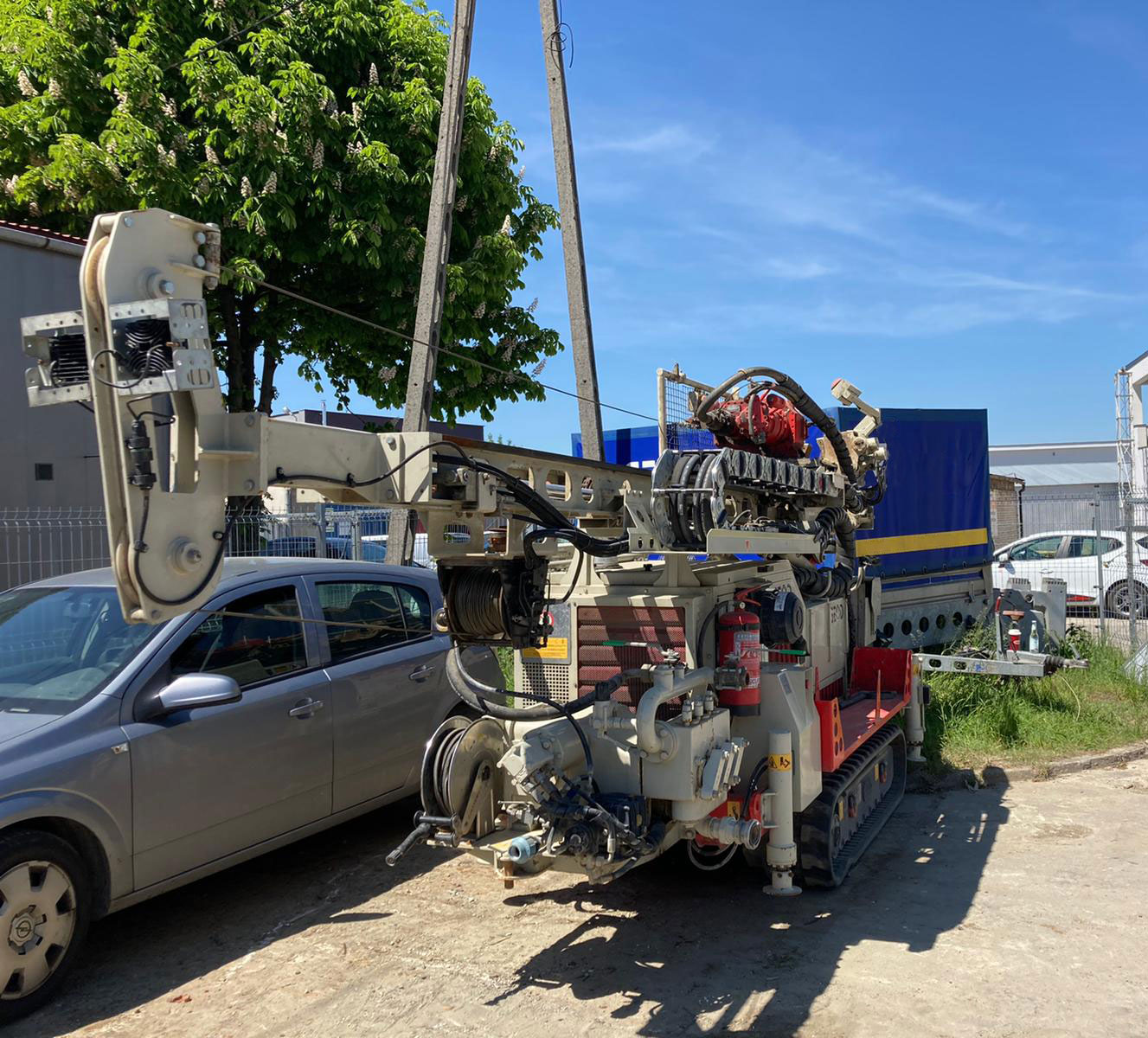

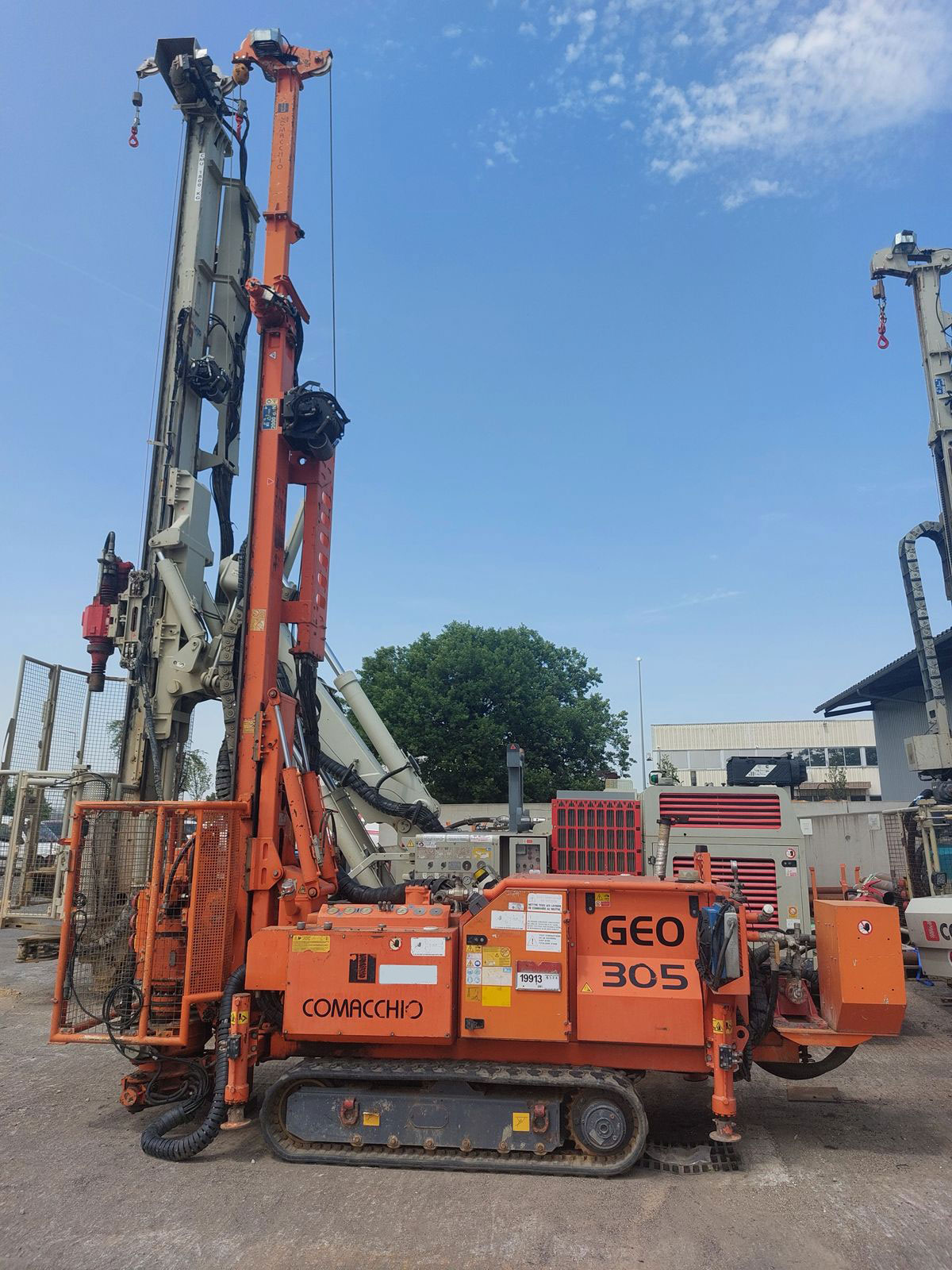

Comacchio GEO 305 Geotechnical Drill Rig

Description

Used Comacchio GEO 305 Geotechnical Drill Rig for sale.

4,284 Hours

Engine: DEUTZ TD 2011L04 – 55 kW at 2 300 rpm

CT 110.1 – E20 Head

Torque: 630 / 350 / 185 / 115 / 240 / 130 / 70 / 45 daNm Speed: 38 / 70 / 130 / 205 / 100 / 180 340 540 rpm

Blow energy: 320 Nm Frequency: 2 500 blows/min

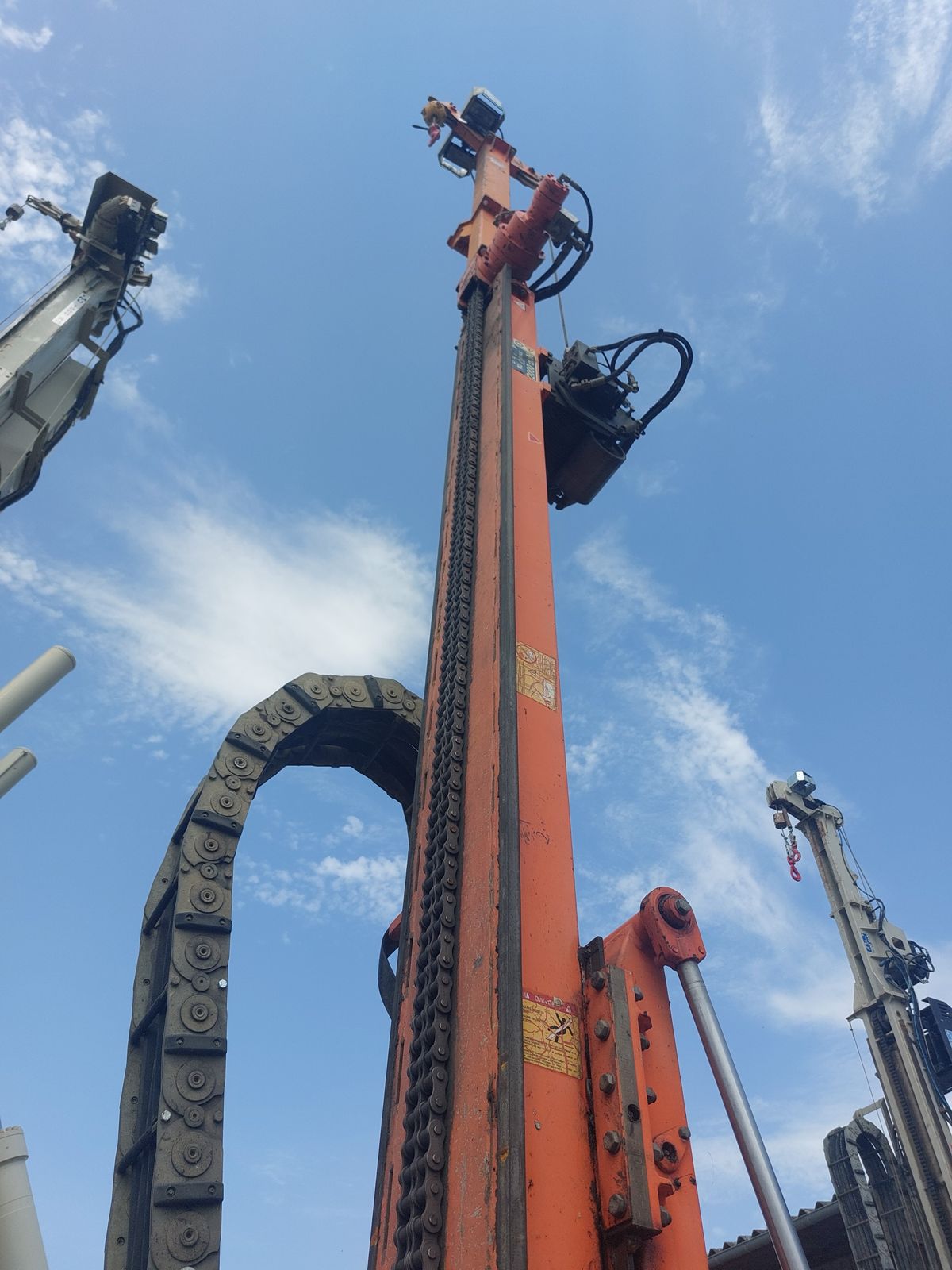

Feed Stroke- 3650mm

Double clamps- 32 – 220 mm

Clamping force : 13 000 daN / Breakout torque: 1 000 daNm

Dimensions:

Working height (without winch): 5,190 mm

Working height (with winch): 7,460mm

Transport height: 2,530 mm

Transport length: 5,870 mm /

Working length: 4,490 mm Width: 1,400 mm / Weight: 4.7 tonnes

Drilling and driving:

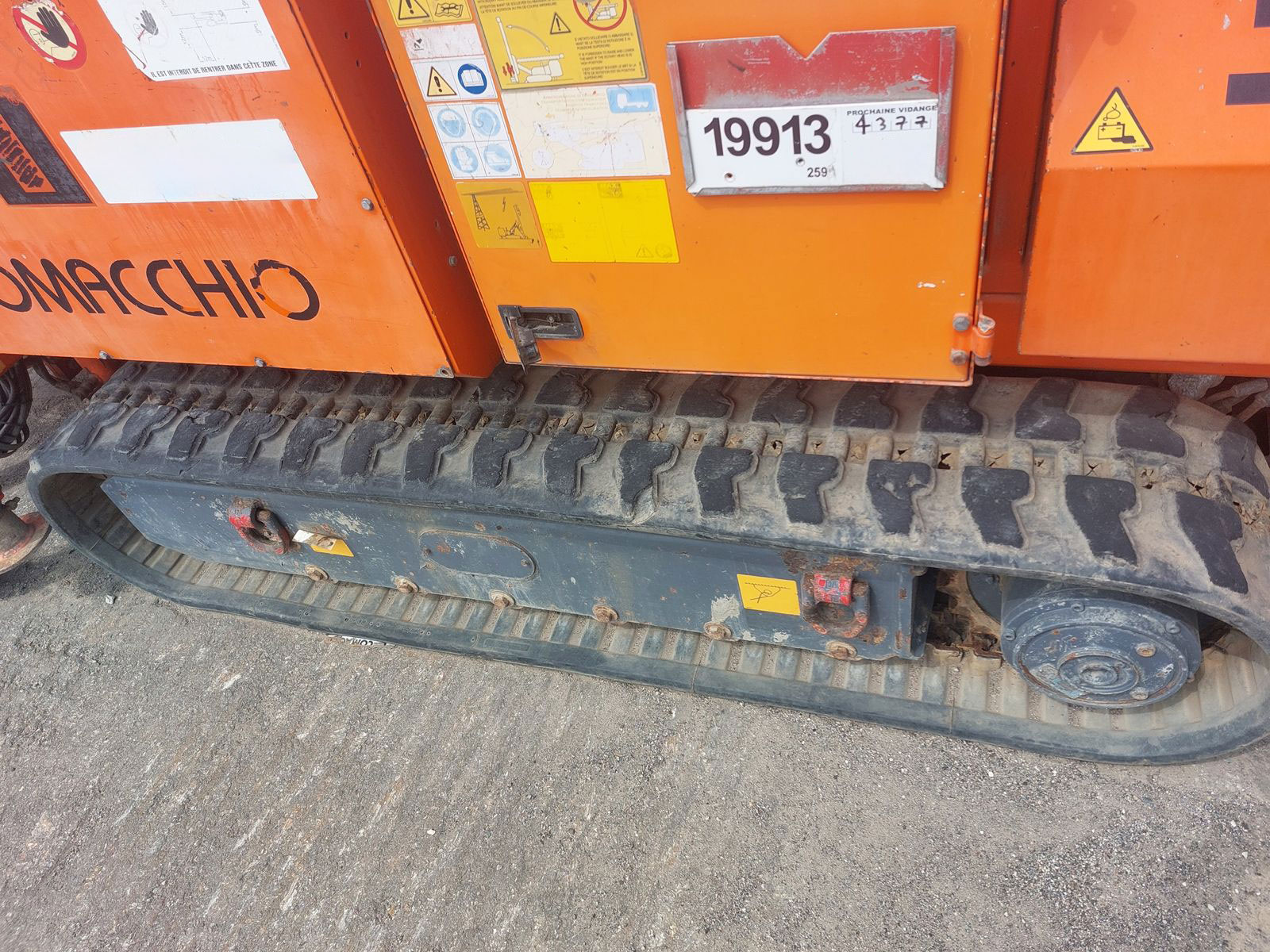

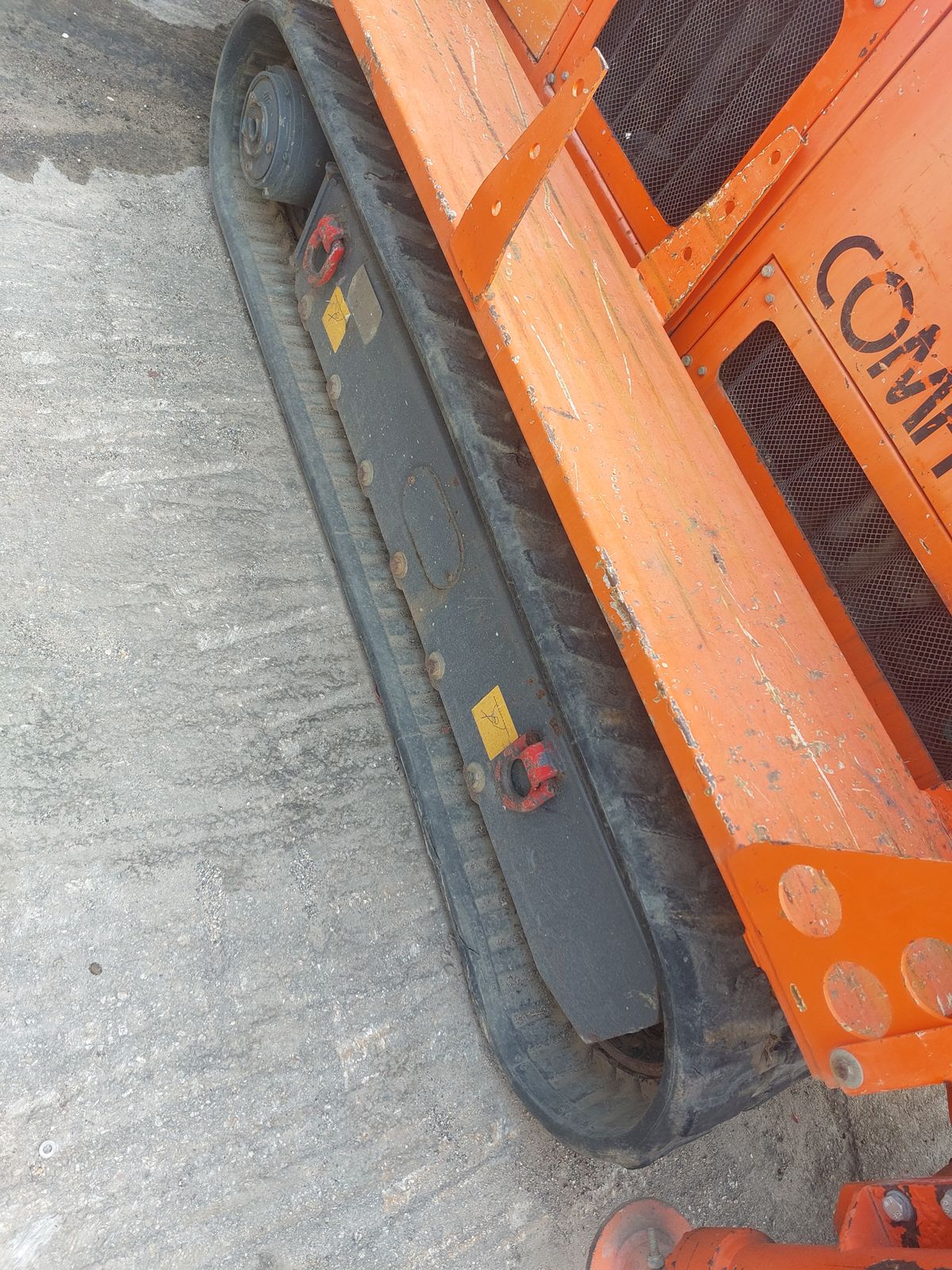

Remote control with cable / Rubber crawler tracks

Winch TN 18 / TN 18-CO

Triplex pump – CTD 160 160L/min – 20 bar
