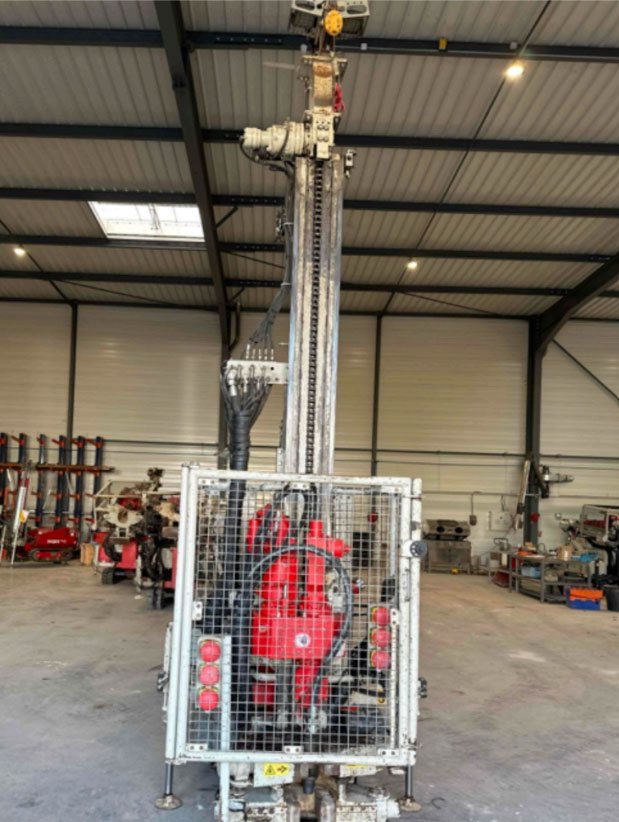

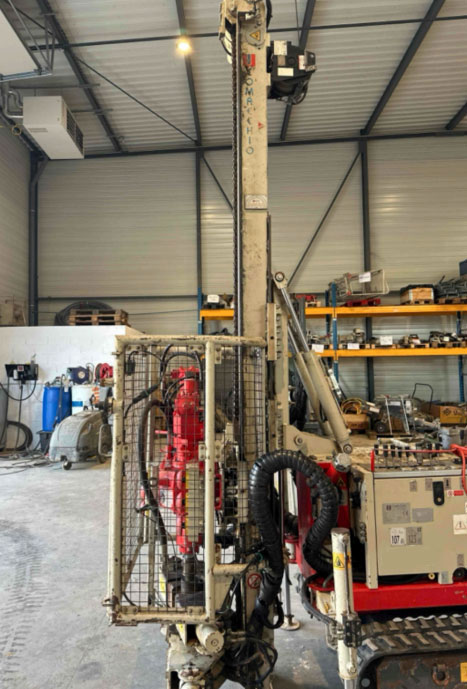

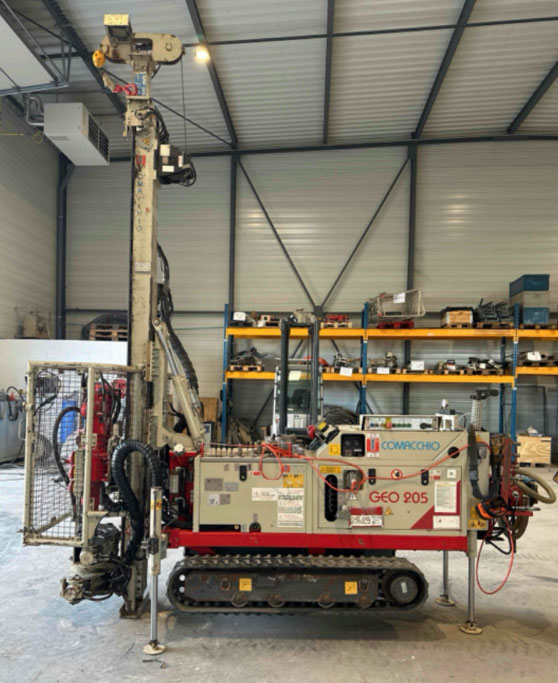

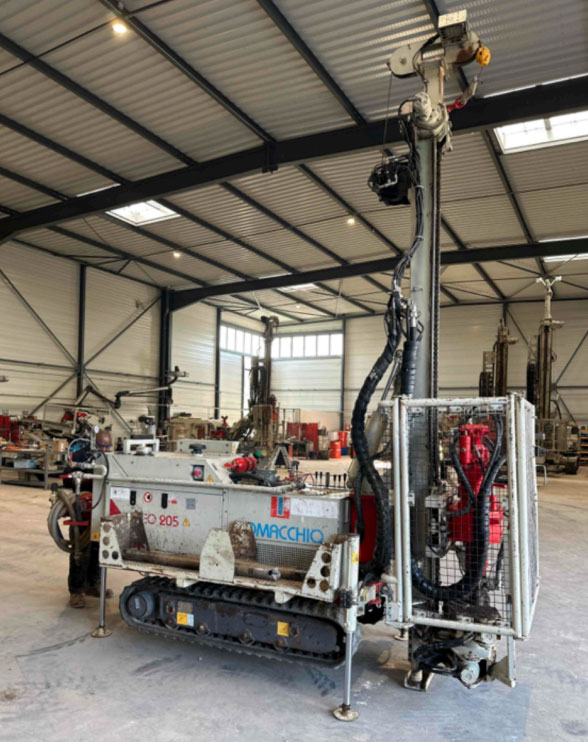

Comacchio GEO 205 Geotechnical Drill Rig

Description

Used Comacchio GEO 205 Geotechnical Drill Rig for sale.

3,000 Hours

Engine: Diesel KUBOTA V 1505T – 31 kW at 3,000 rpm

Head R 350 – EC10Torque: 345 / 100 / 110 / 35 daNm

Speed: 55 / 190 / 175 / 580 rpm Frequency: 3,000 blows/min

Useful stroke: 2,430 mm

Double jaws

45 – 220 mm

Clamping force: 13,000 daN

Unscrewing torque: 1,000 daNm

Dimensions:

Height out of hole (without winch): 3,800 mm

Height out of hole (with winch): 4,300 mm

Travel height: 2,170 mm

Transport length: 4,300 mm

Width: 1,480 mm

Weight: 2,650 kgs

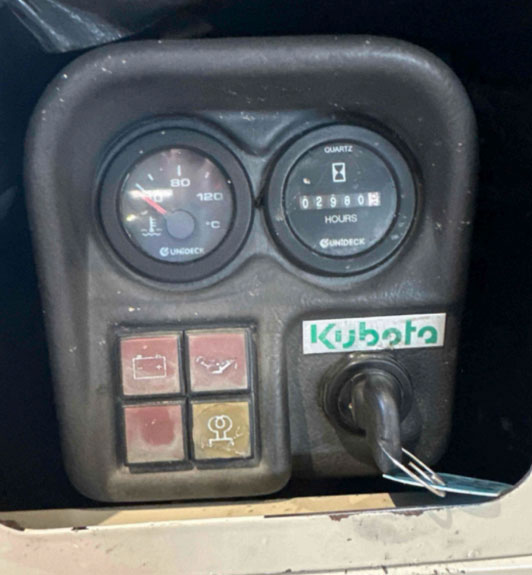

Controls: Control panel on the drill rig

Winch: TN 04 – 500 kg

Pump: Triplex gamma pump – 80 L/min
