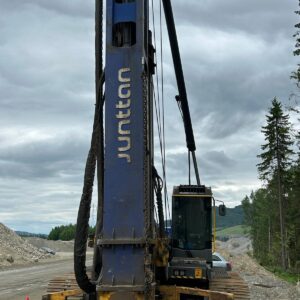

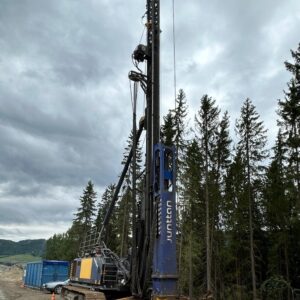

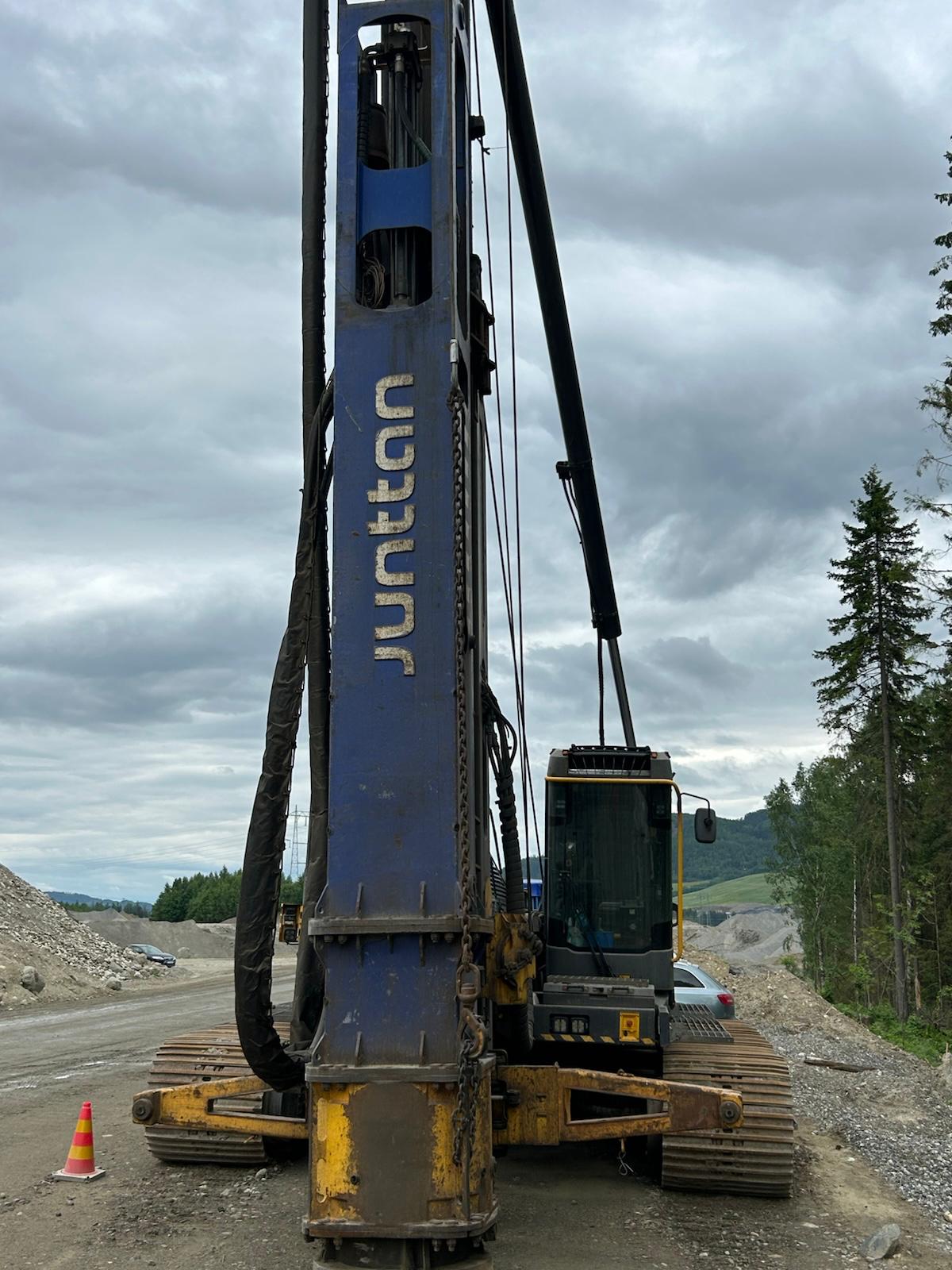

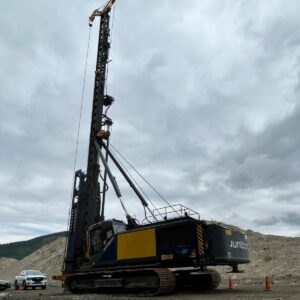

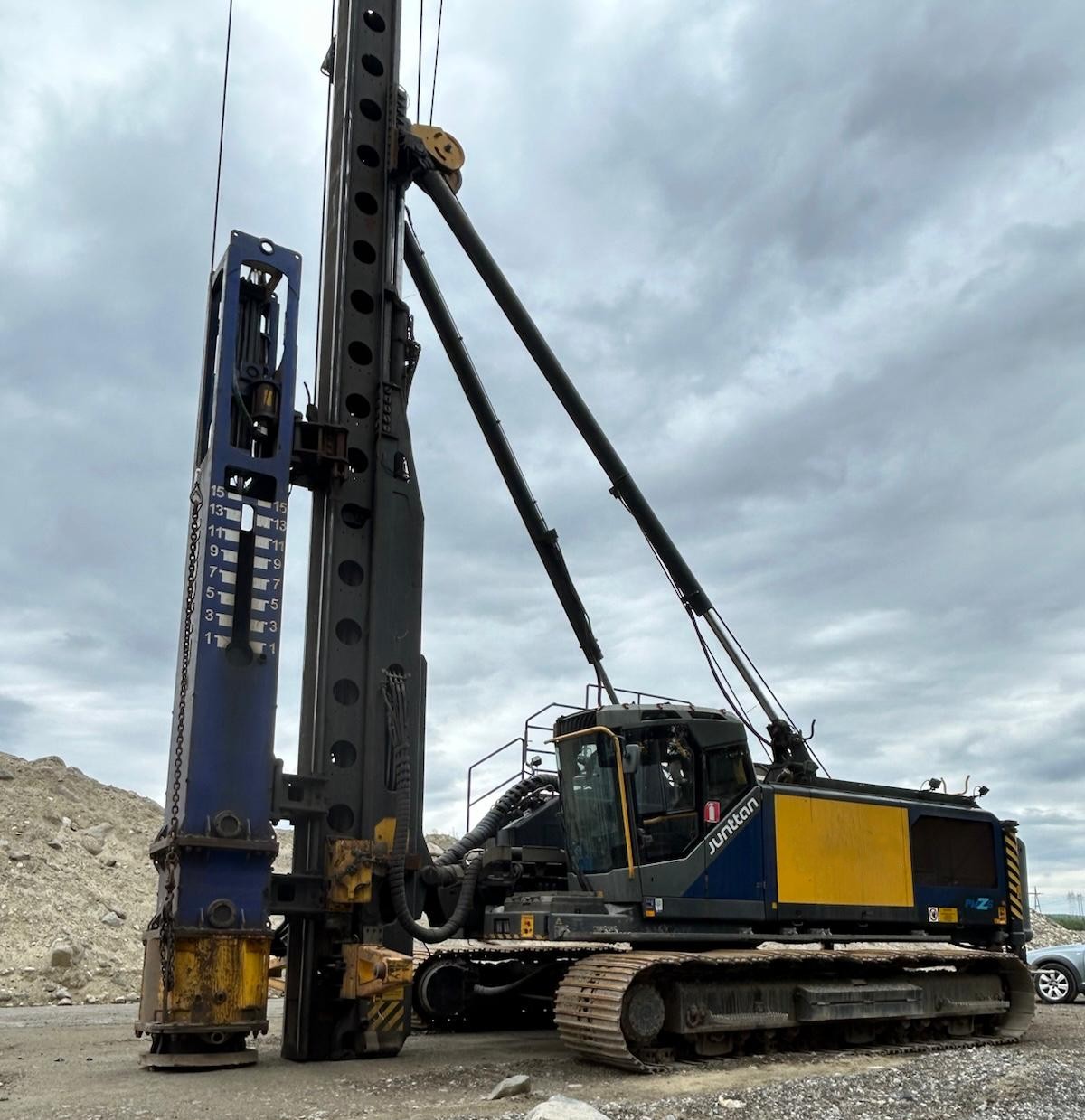

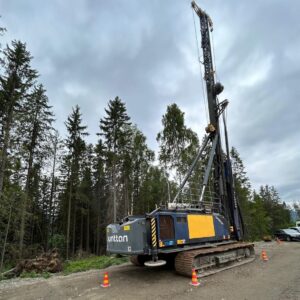

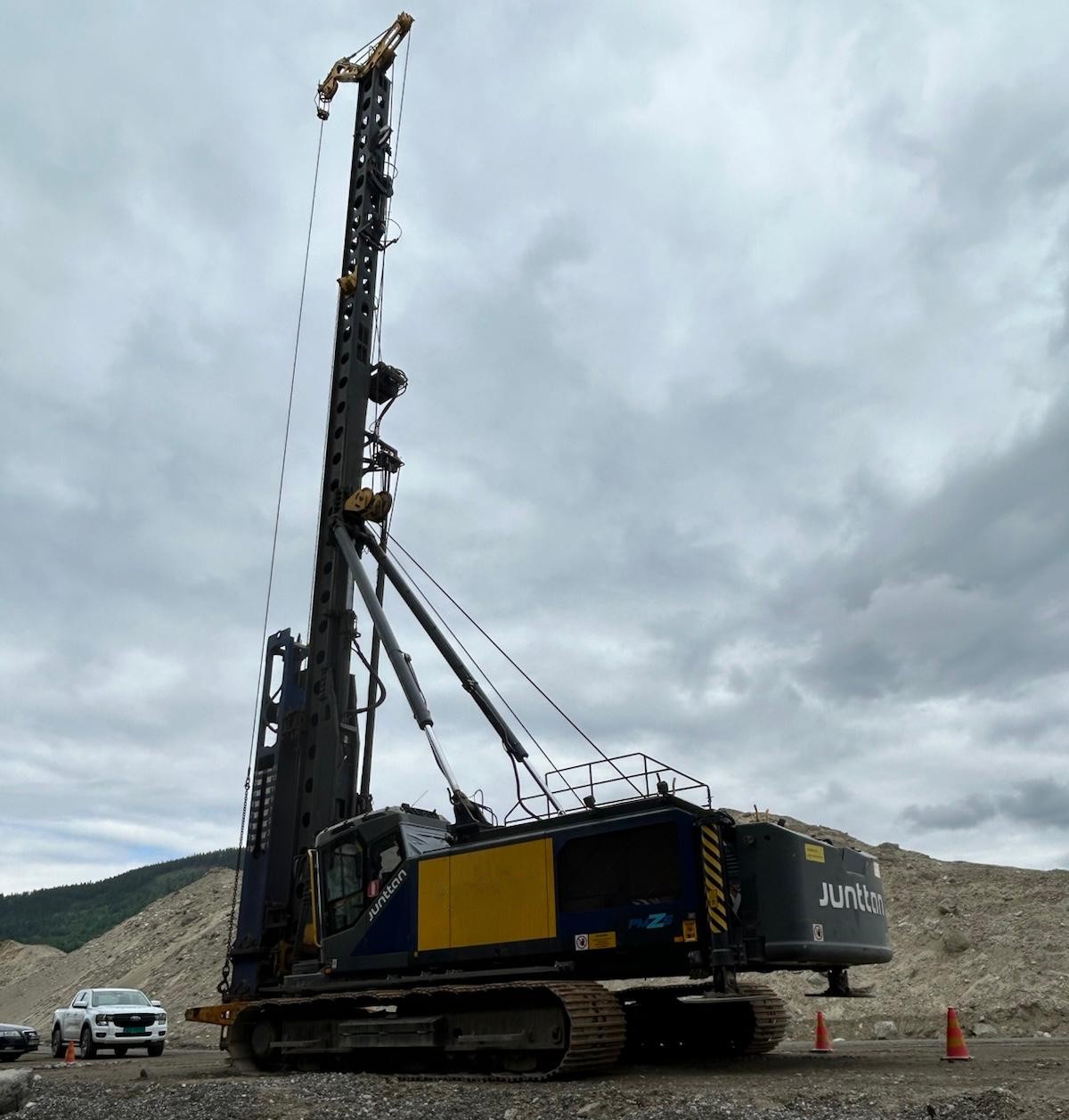

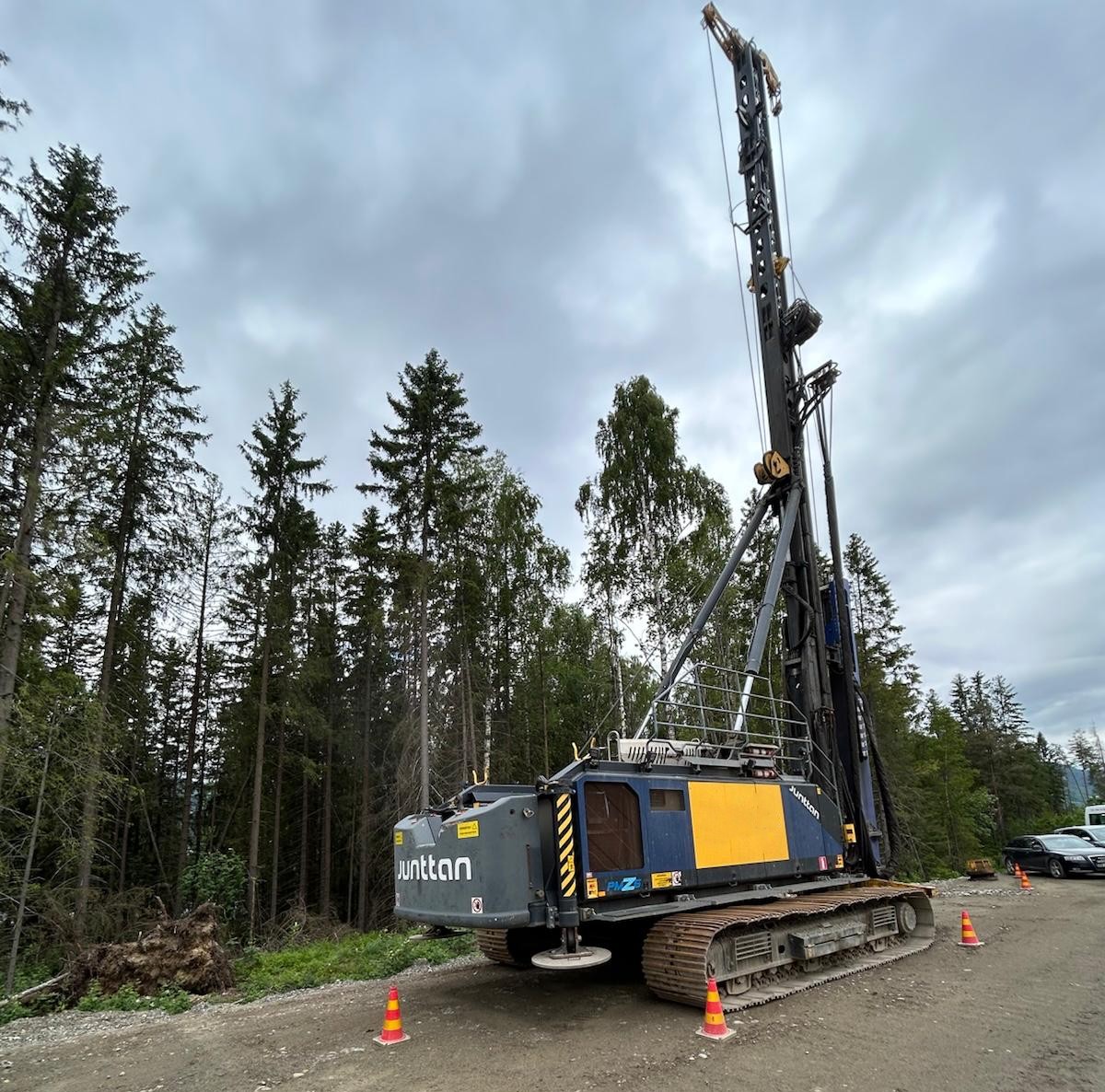

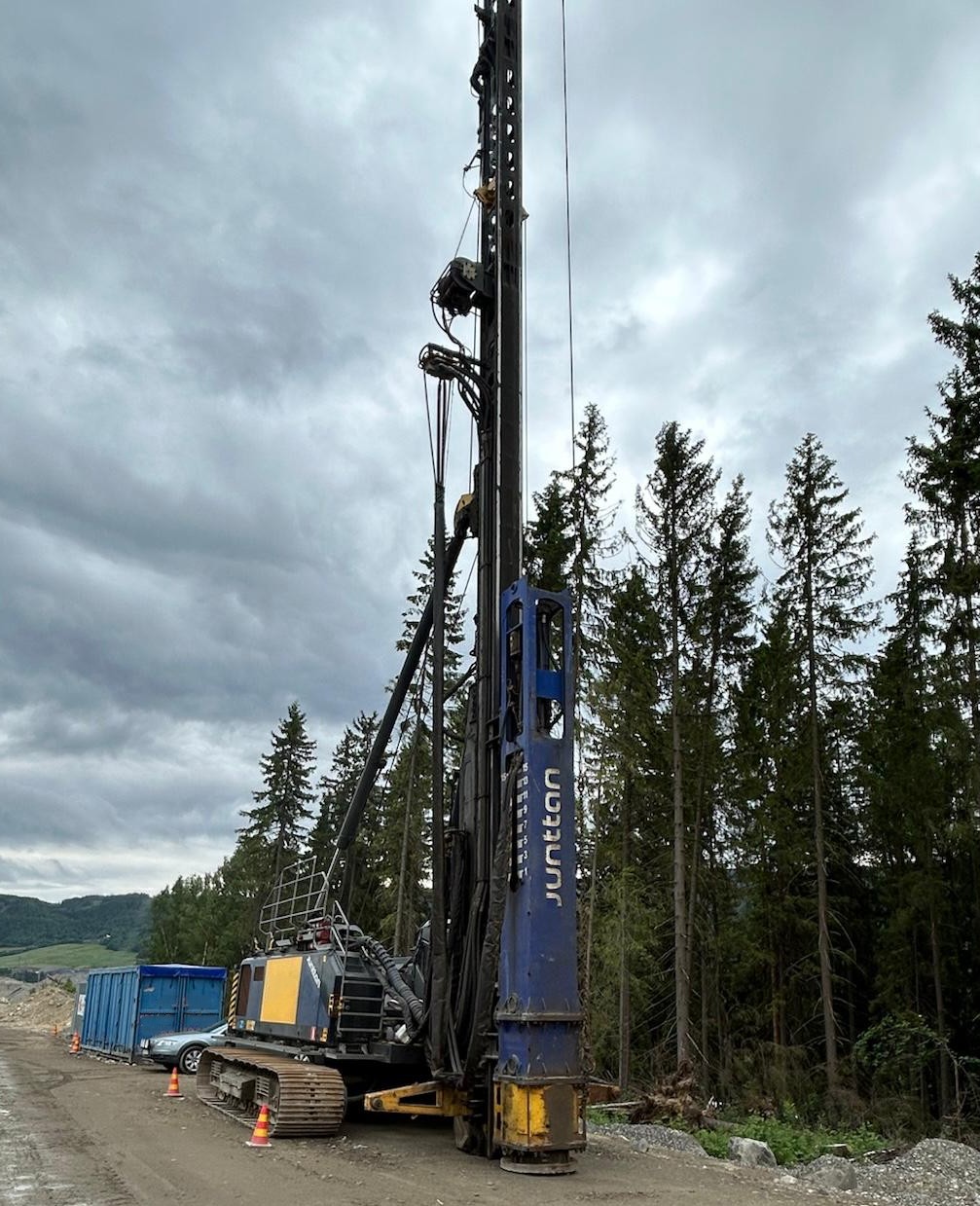

Junttan PMZ6 Hammer Piling Rig

Used Junttan PMZ6 Hammer Piling Rig for sale.

6,308 Hours

Hammer Type: HHK5/7/9S

Basic Features:

Nominal Operational Weight: 86,000 kg (190,000 lb)

Maximum Leader Capacity: 20,000 kg (44,000 lb)

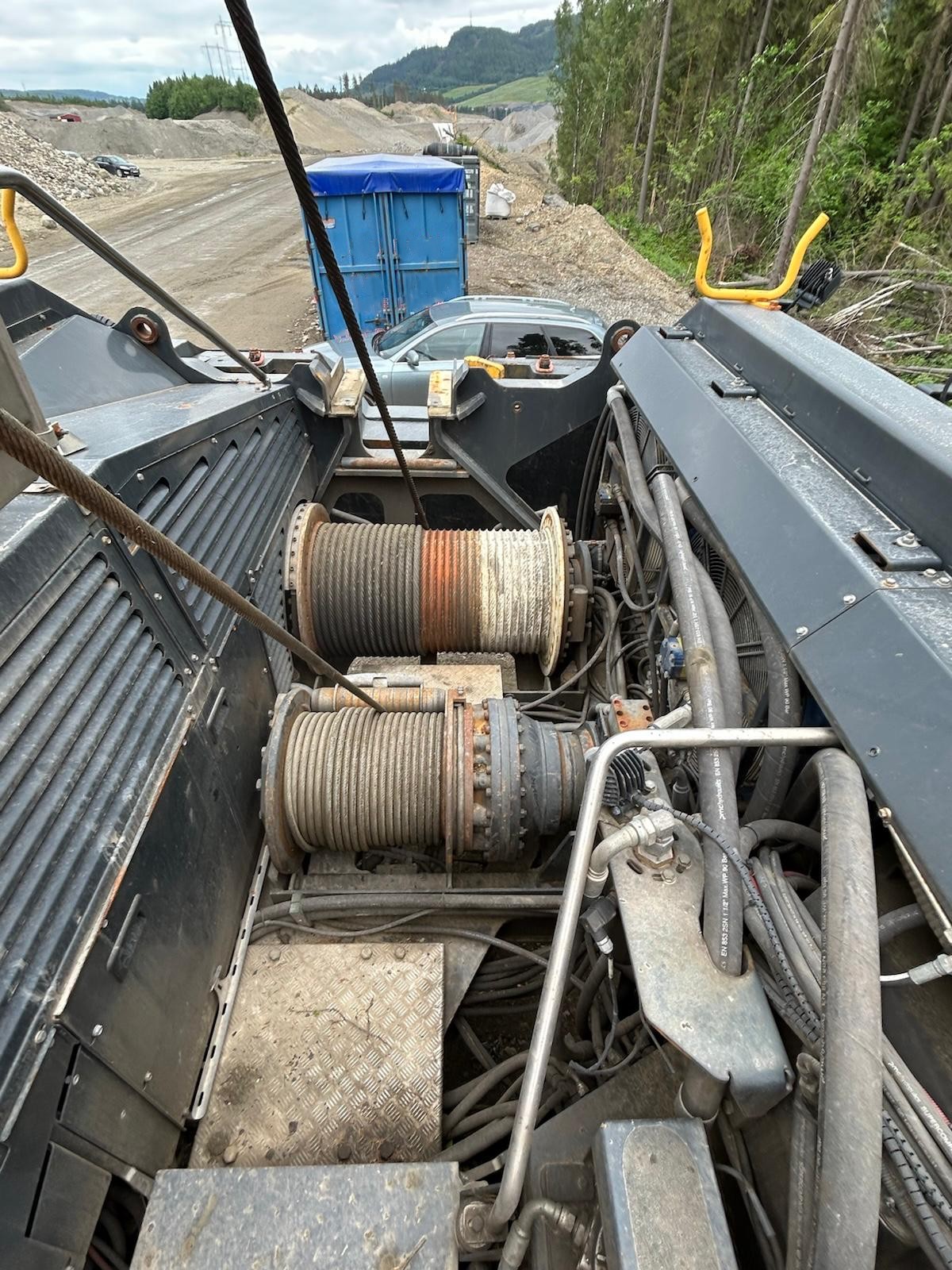

Winch Capacity (Pile): 12,000 kg (26,500 lb)

Winch Capacity (Hammer): 20,000 kg (44,000 lb)

Maximum Pile Length: 26 m (85 ft)

Uppercarriage:

Engine Type: QSB 6.7 Stage V (EU Stage V / US EPA Tier 5 equivalent)

Engine Power: 231 kW (310 hp)

Fuel Tank Capacity: 850 litres (225 gal)

Hydraulic System Max Flow: 2×280 + 120 lpm @ 2,000 rpm (2×74 + 32 gpm)

Hydraulic System Max Pressure: 350 bar (5,075 psi)

Cooling System: 2x HPA52 coolers

Oil Tank Capacity: 750 litres (196 gal)

Control System: Junttan Z control system

Slew Drive: 1,380 mm double row slewing ring

Counterweight: Extendable 5,700 kg + 4,500 kg (12,566 lb + 9,900 lb)

Leader & Movements:

Type: Telescopic PMz6

Telescope Movement: 4,000 mm (158 in)

Foot Movement (Up/Down): 1,000 mm / 500 mm (40 in / 20 in)

Horizontal Movement: 1,500 mm (59 in)

Inclinations: 1:3 capability in all directions (even to the sides), verified with an included electronic inclinometer

Undercarriage:

Type: JH57160 (p. 3)

Crawler Length: 5,700 mm (225 in) (p. 3)

Width (with 900 mm shoes): Minimum 3,200 mm (126 in) to Maximum 4,700 mm (185 in)

Track Shoe Options (Width): 800 mm / 900 mm / 1,000 mm (31.5 in / 35.5 in / 39.5 in)

Track Shoe Surface & Edges: Available in 3-edge, flat edges, or flat configurations with normal, chamfer, or bended edge types
