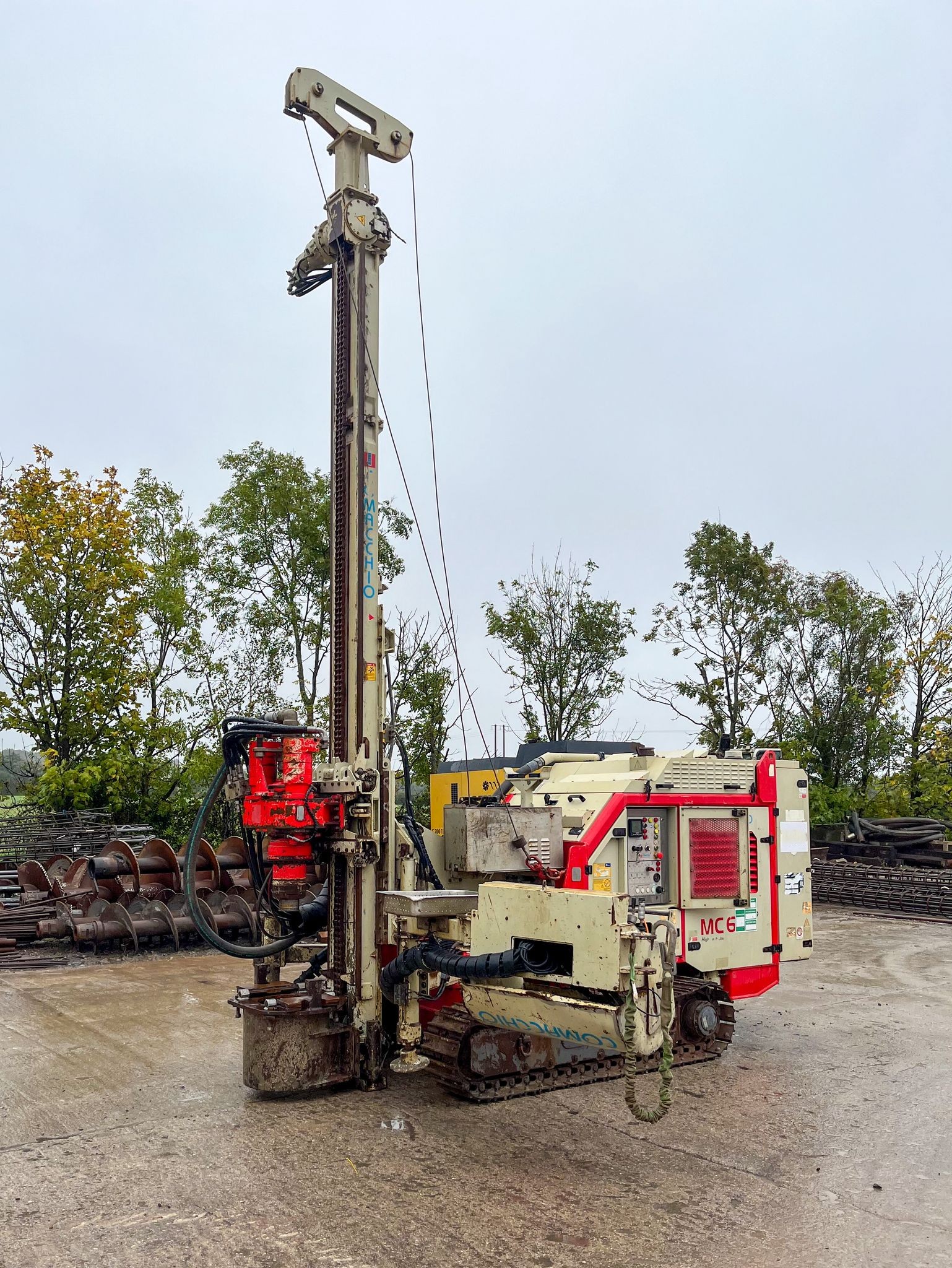

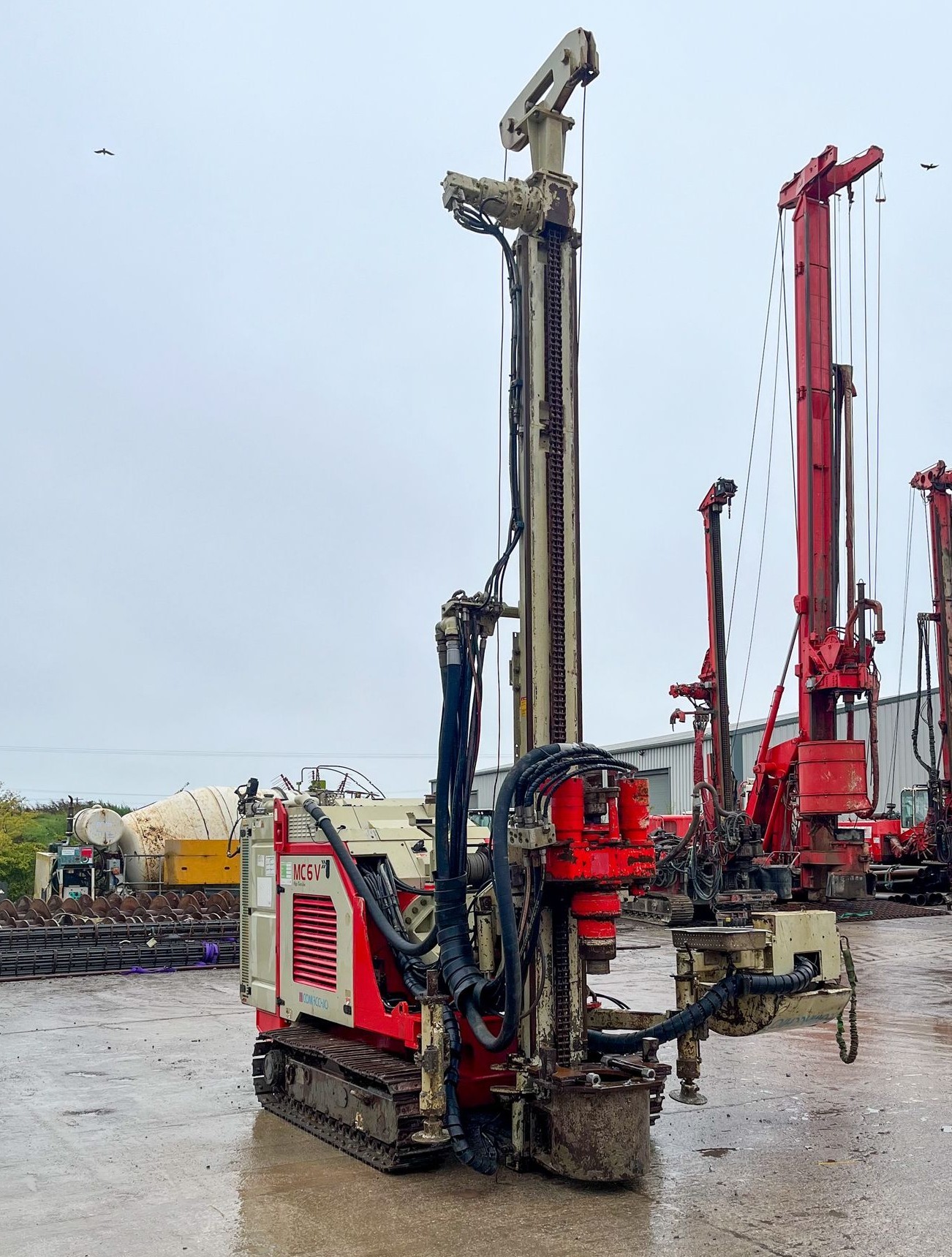

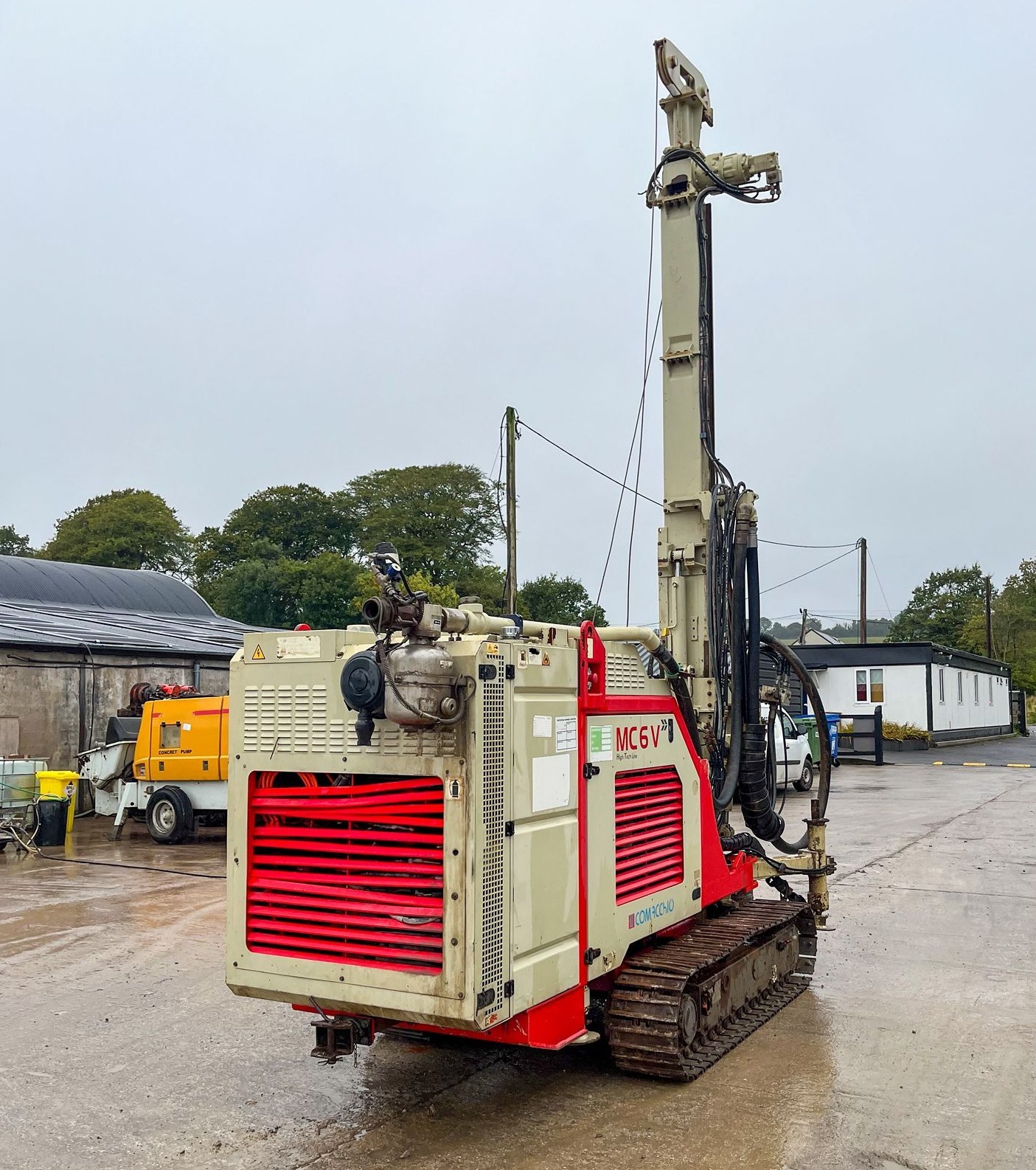

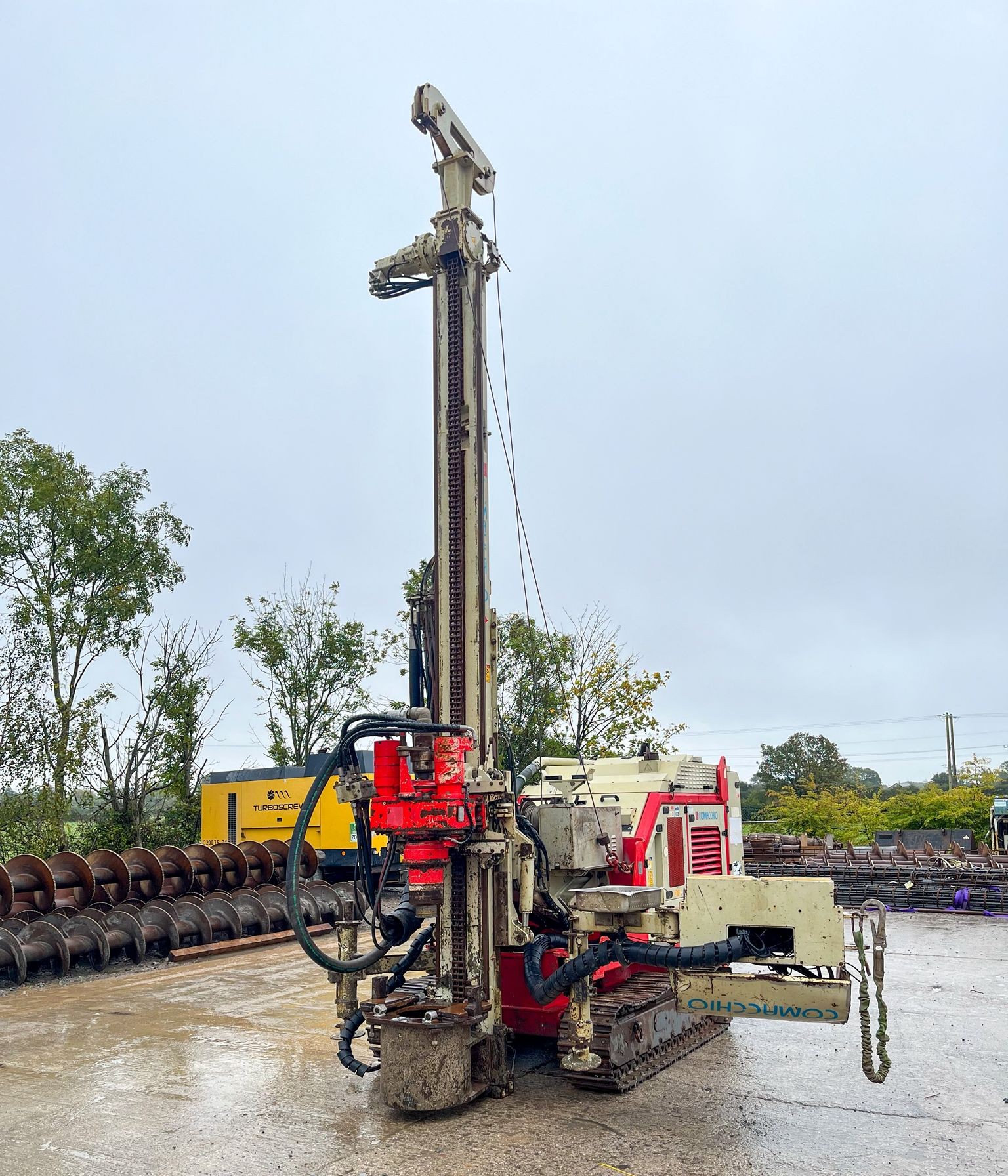

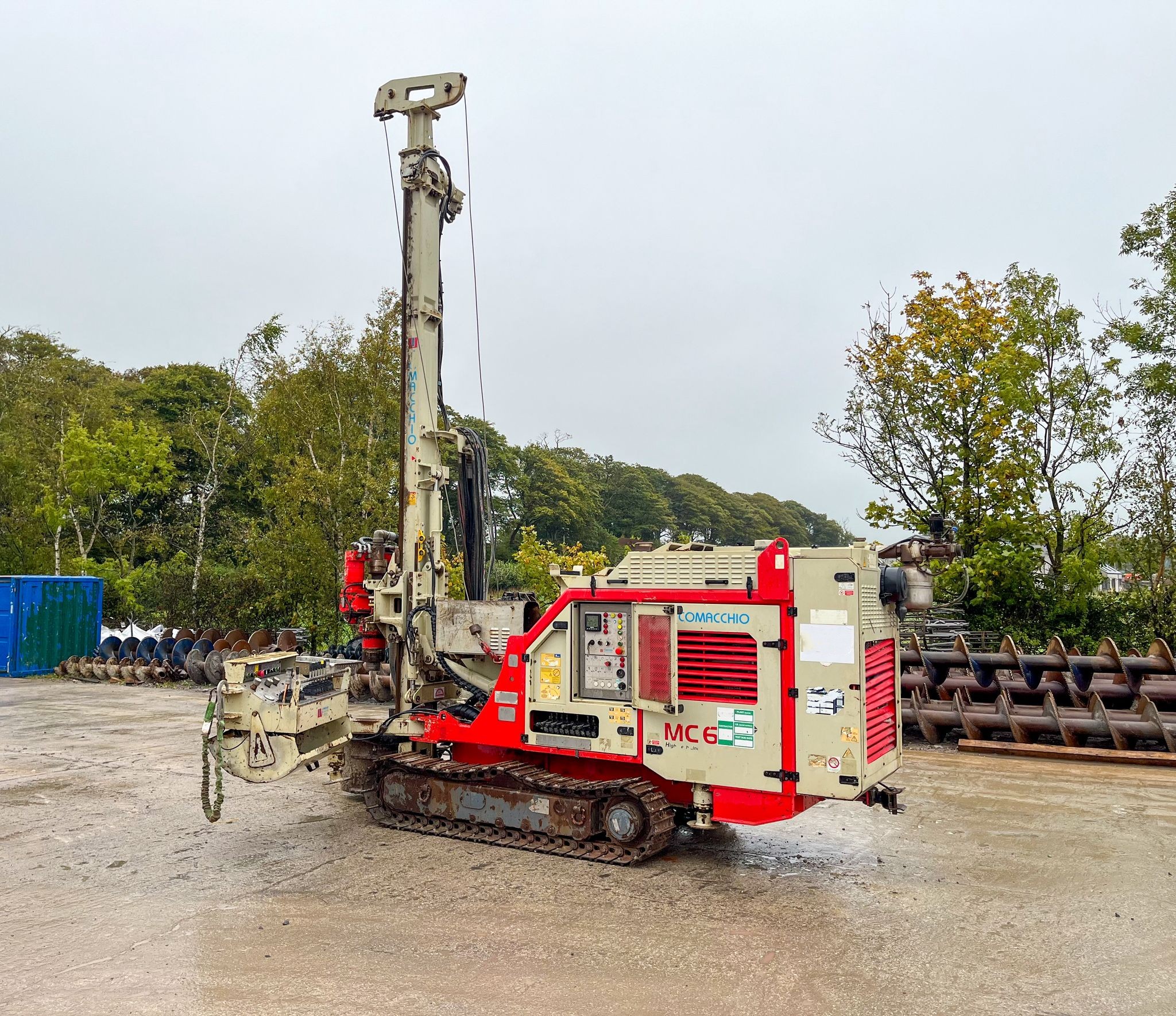

Comacchio MC6V Micro Piling Rig

Used Comacchio MC6V Micro Piling Rig for sale.

1,900 Hours

Rotary head:

Manufacturer: Comacchio

Model:* R1600

Motor:* 677 HP30

Weight:* 390 kg

Torque:* 1550 / 775 daNm

Speed:* 40 / 80 rpm

Thread:* 3½” API (female)

Max pressure:* 280 bar

Oil flow:* 150 L/min

Technical specs:

Weight: 6,800 kg

Push force: 5,000 daN (~5 tons force)

Pull force: 5,000 daN

Hydraulic system:

Engine: Deutz TCD 3.6 L4 diesel

Power: 100 kW @ 2200 rpm (~134 hp)

Electrical system:* 24V

Max hydraulic pressure:* 310 bar

Hydraulic oil tank: 290 litres

Fuel tank 118 litres

Clamp / Breakout:

Min grip diameter: 45 mm

Max grip diameter: 325 mm

Clamping force: 18,000 daN

Unscrewing torque: 2500 daNm
