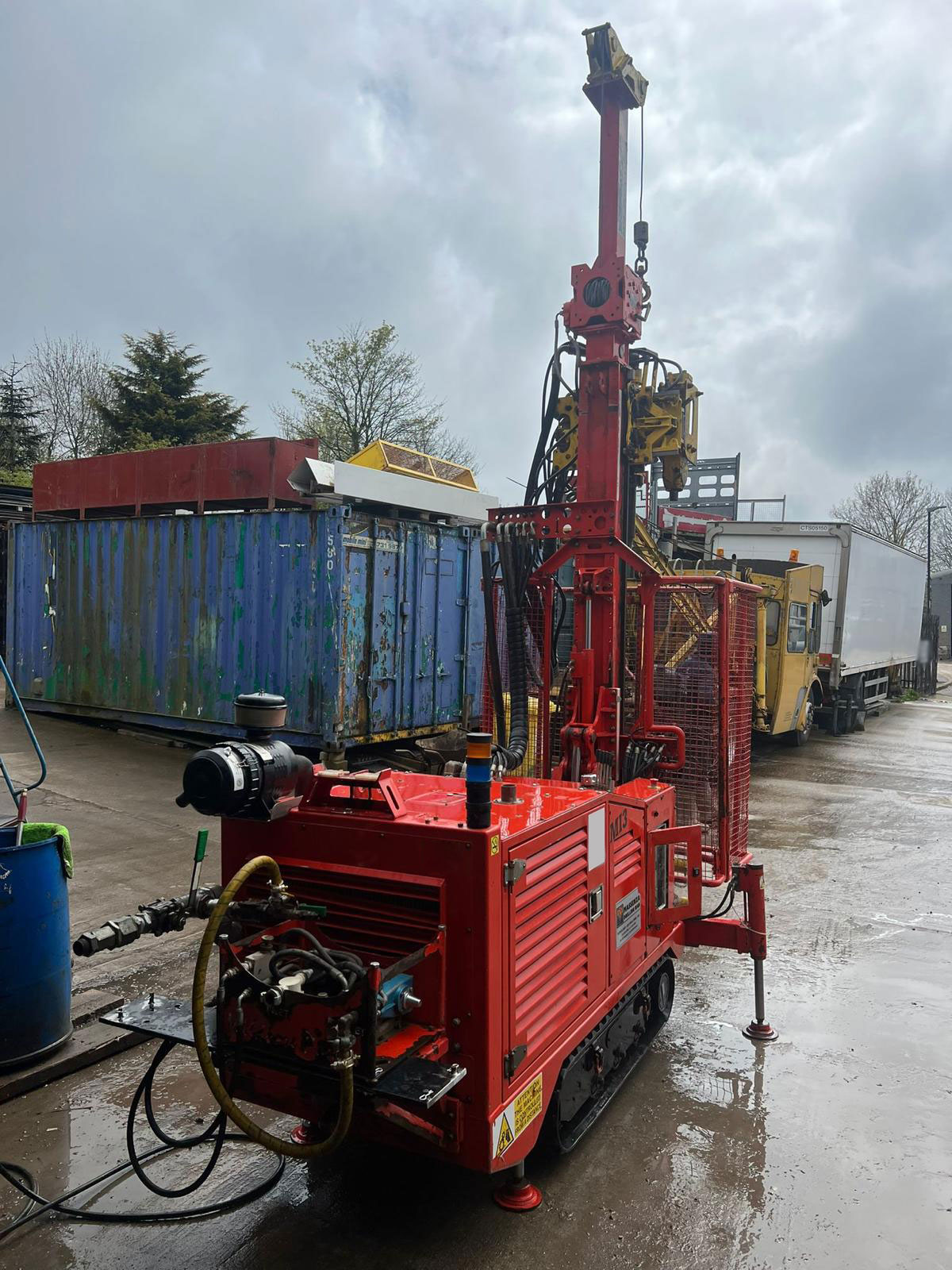

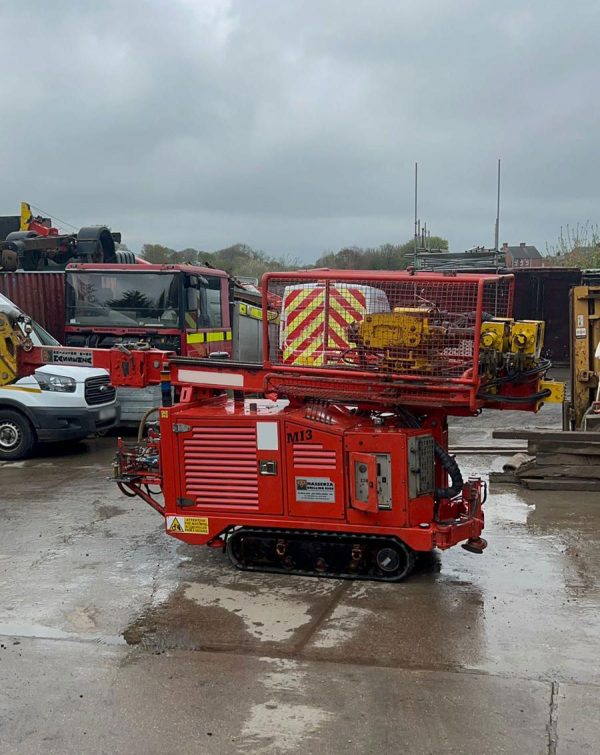

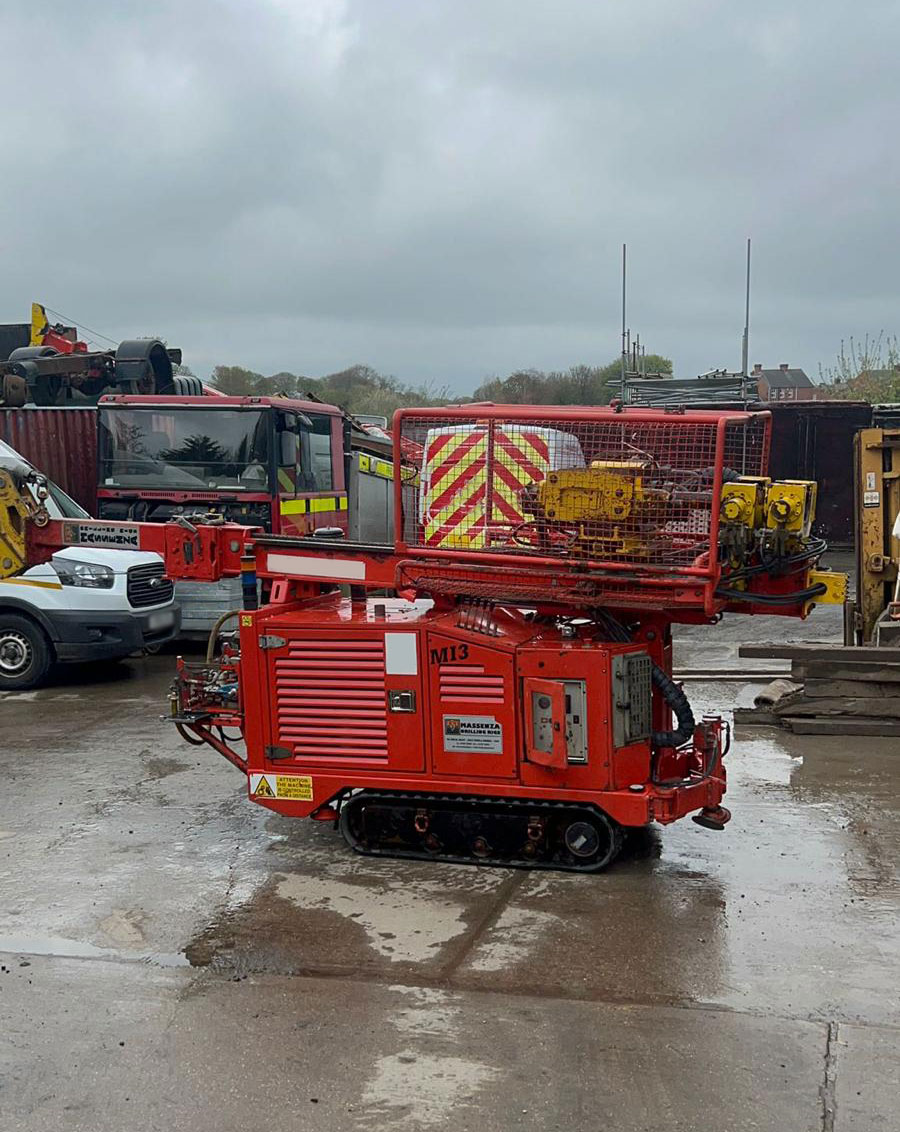

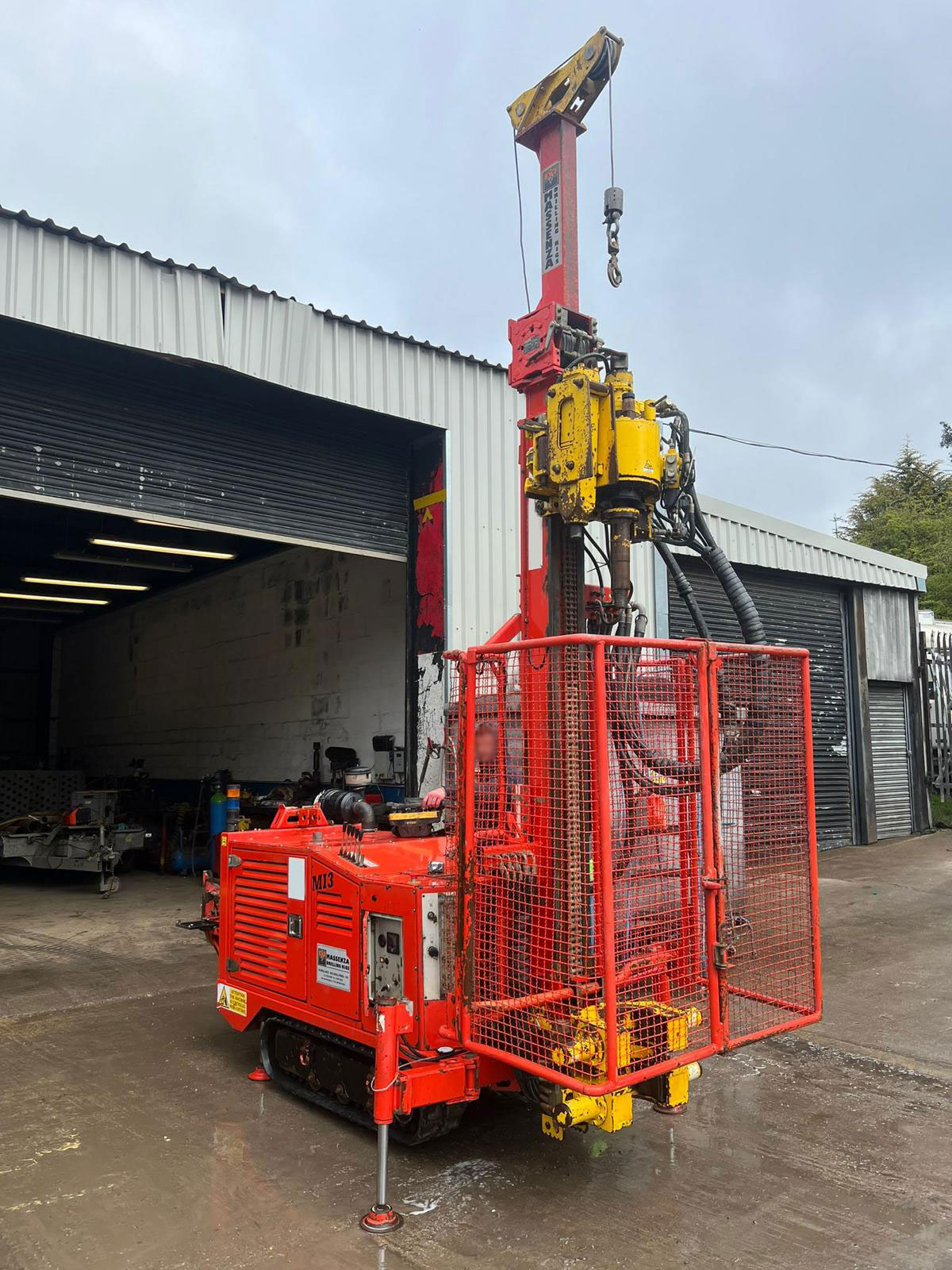

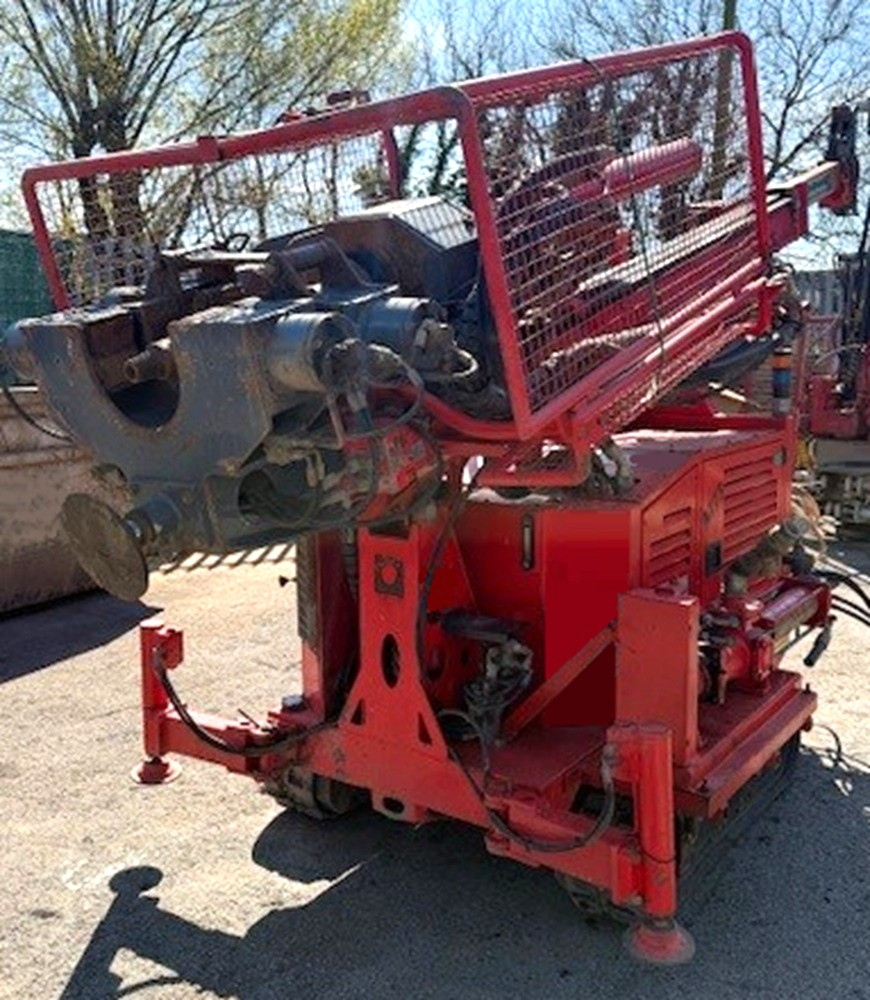

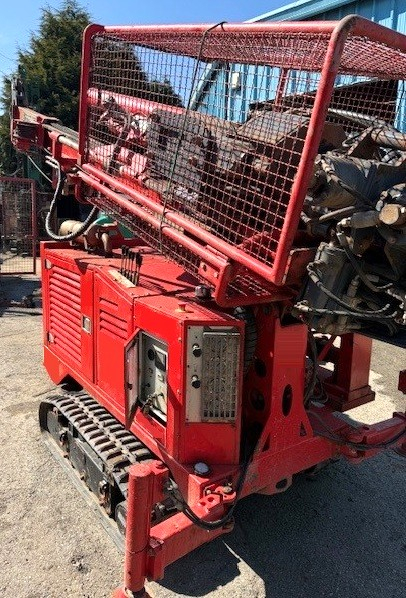

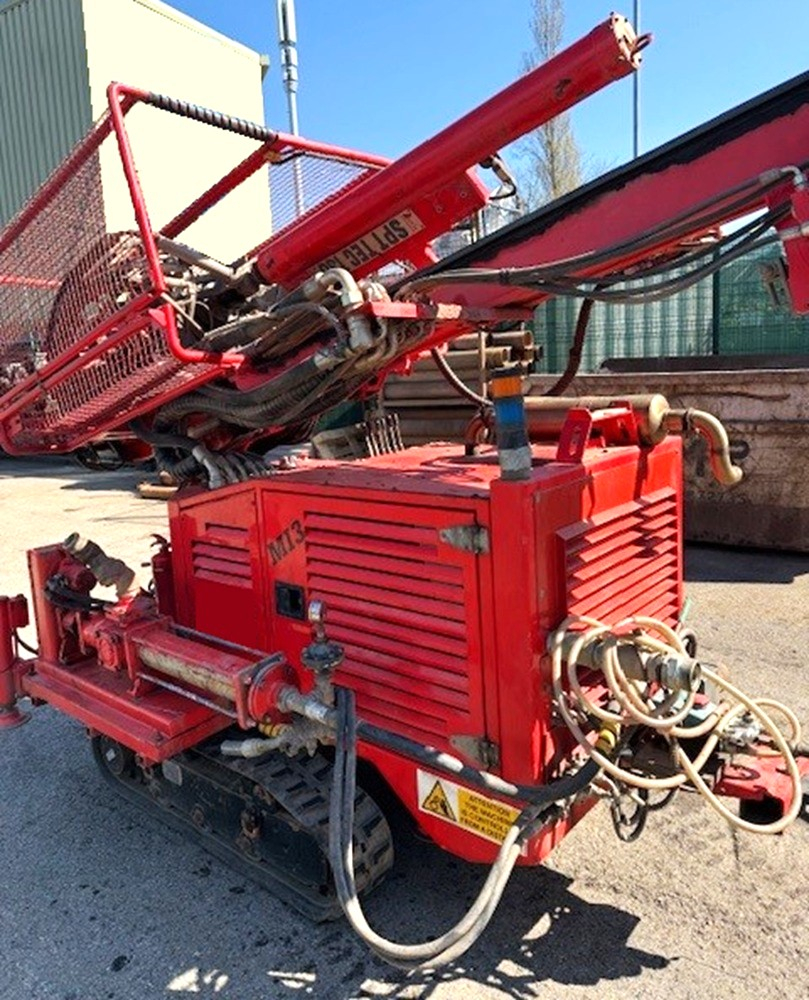

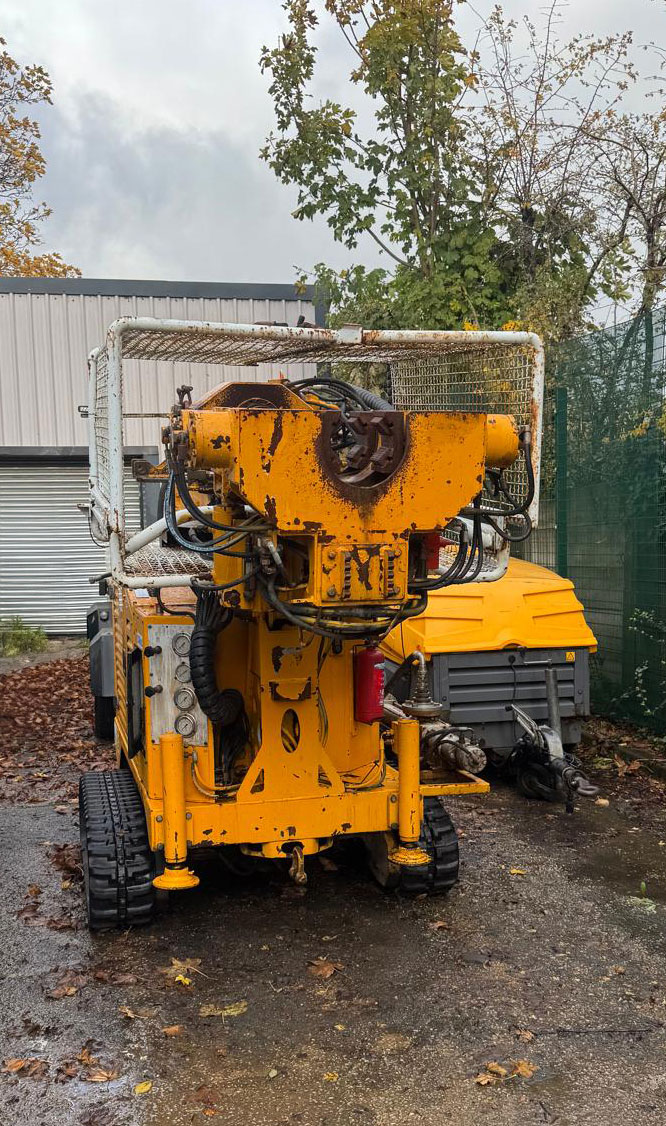

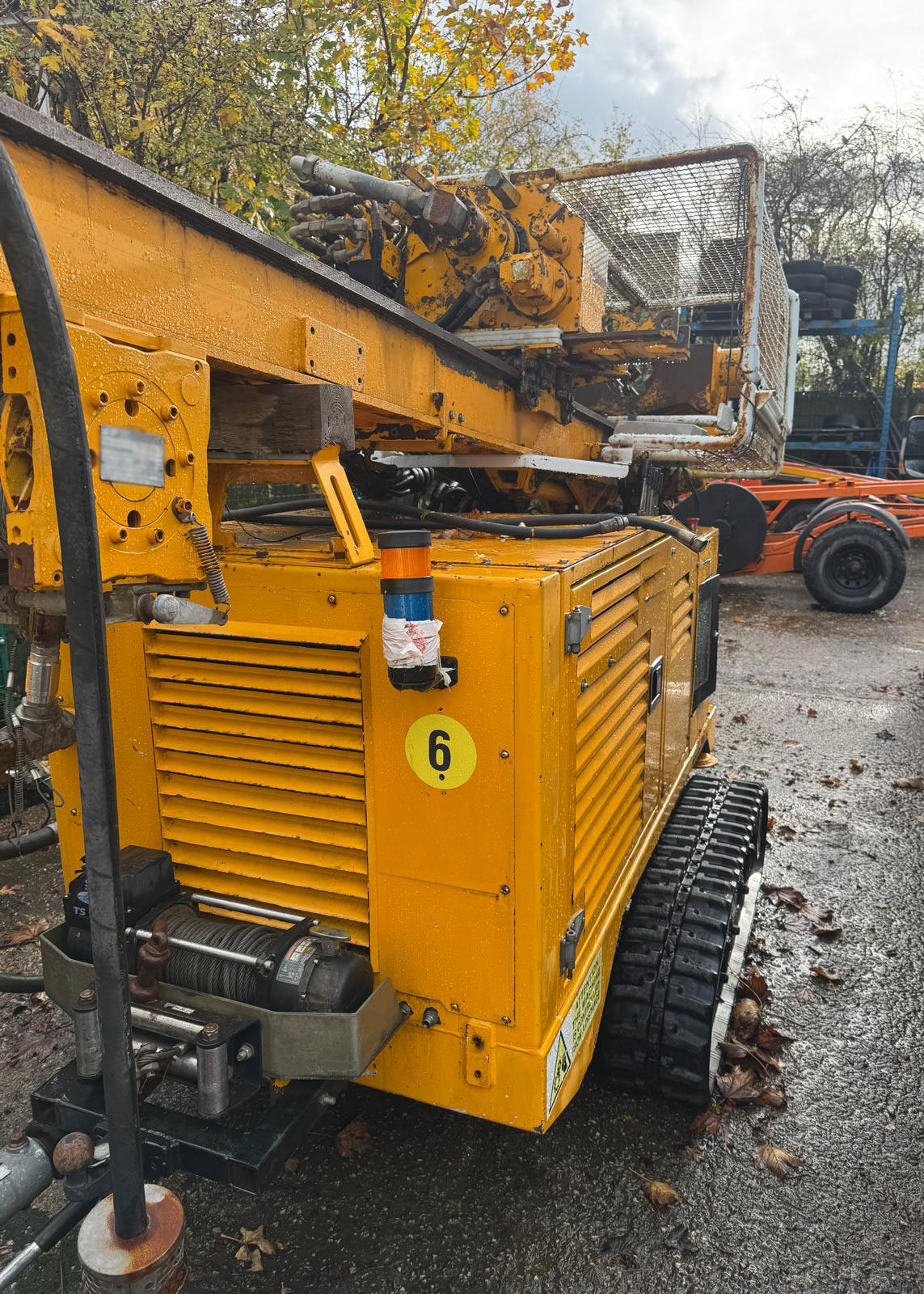

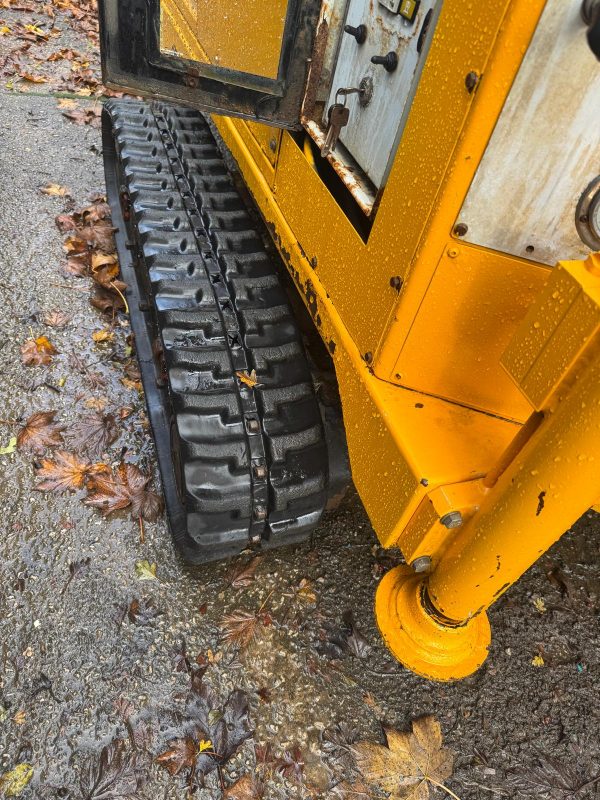

Massenza MI3 Geotechnical Drill Rig

Description

Used Massenza MI3 Geotechnical Drill Rig for sale.

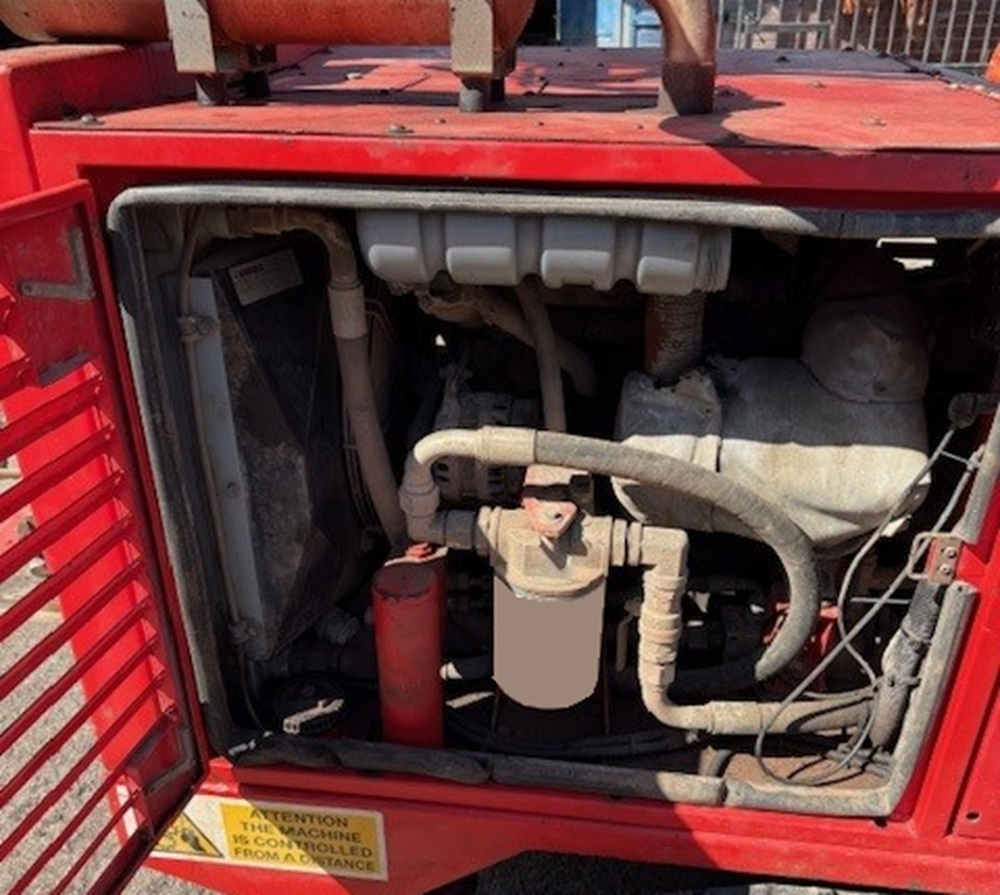

11 Hours on new engine

Double clamps:

Max passage diameter 225mm

Max clamping diameter 205mm

Min clamping diameter 50mm

Hydrualic circuit:

Main curcuit max calibration 280 bar

Main circuit operation max pressure 185bar

TM3C1 Operated by two hydraulic motors

1st gear 4200Nm at 80rpm

2nd gear 2100Nm at 160rpm

3rd gear 1680Nm at 200rpm

4th gear 840Nm at 200rpm

Hydraulic hammer

Enegery for stroke 160J

Max number of stroke 1150/min

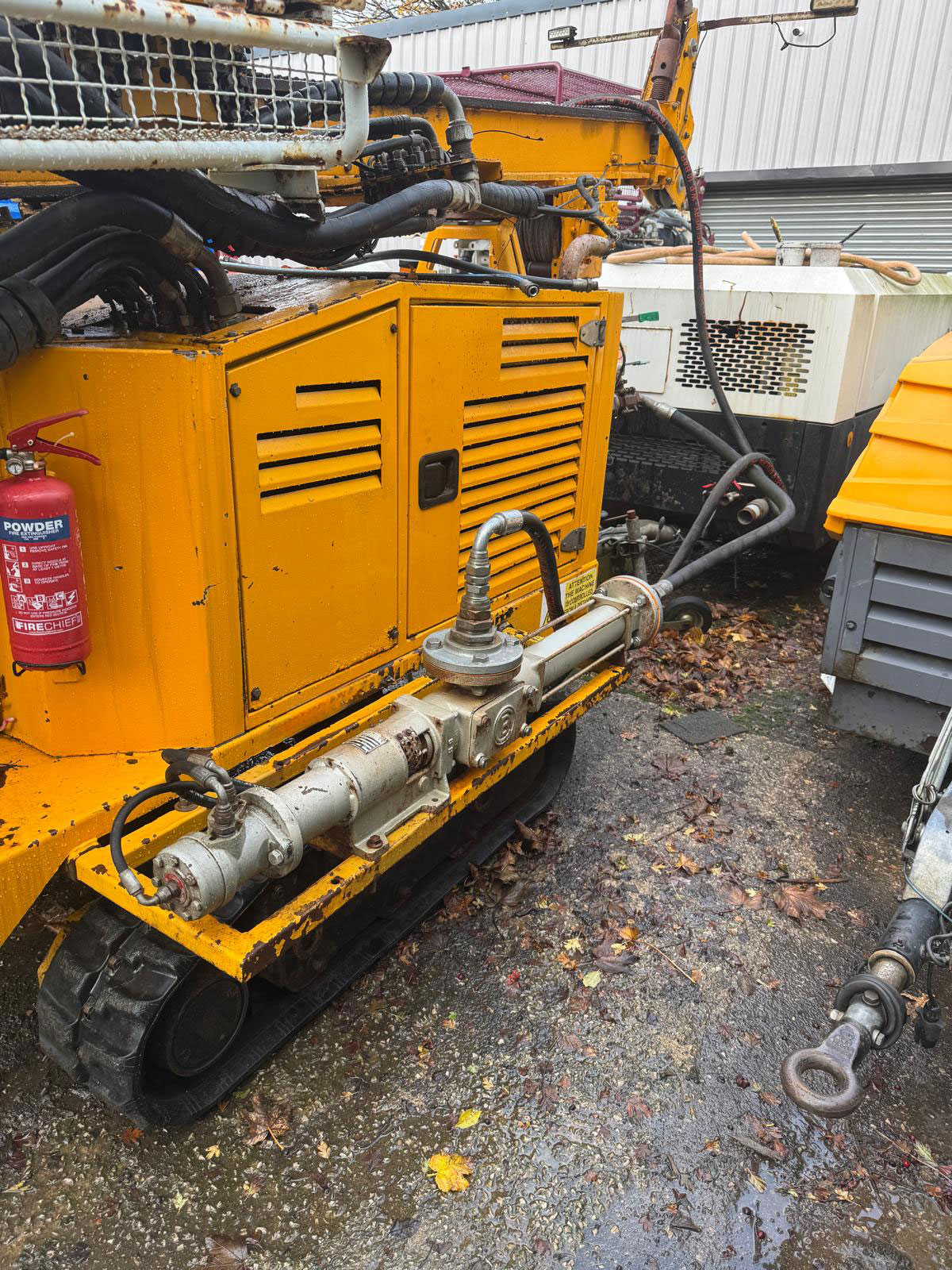

Water pump:

Capacity 145 l/min

Pressure 20 bar

Electrical circuit:

Low voltage 12 v c/c

SPT

Stroke 75cm

frequency 30 blows/min

Weight 205kg

3600kg weight
