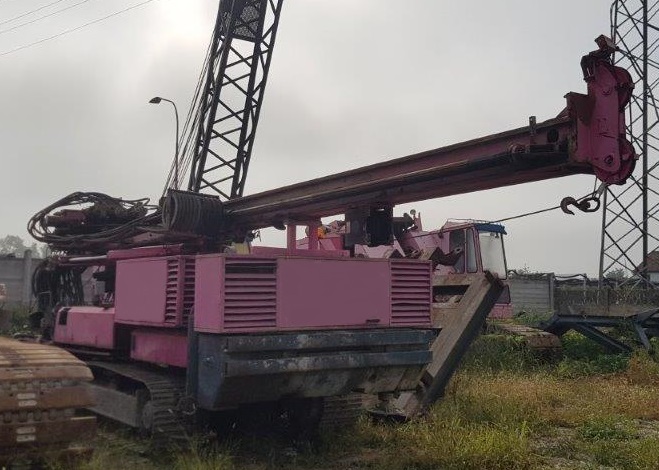

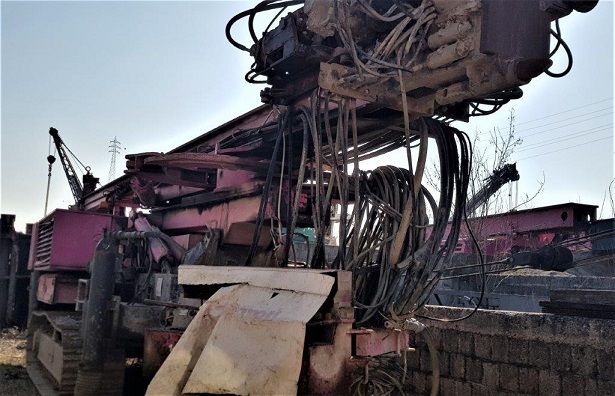

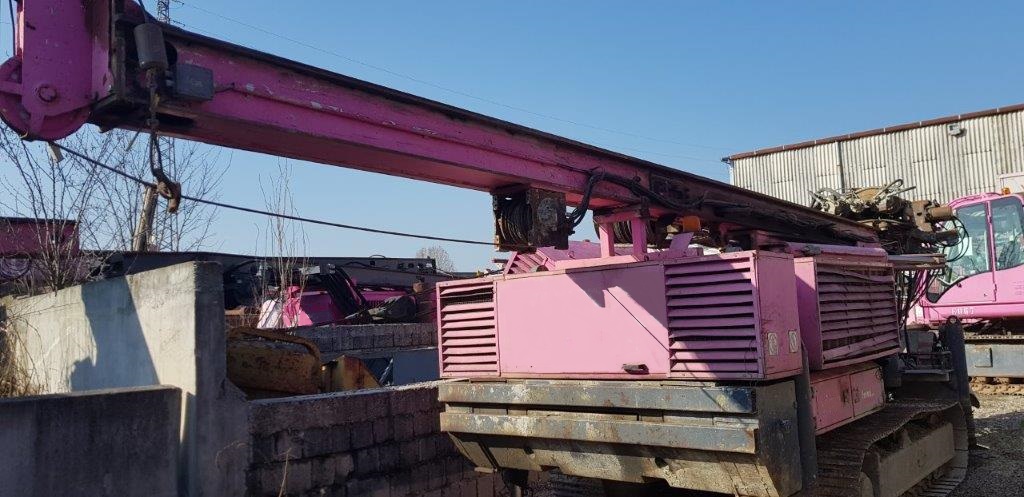

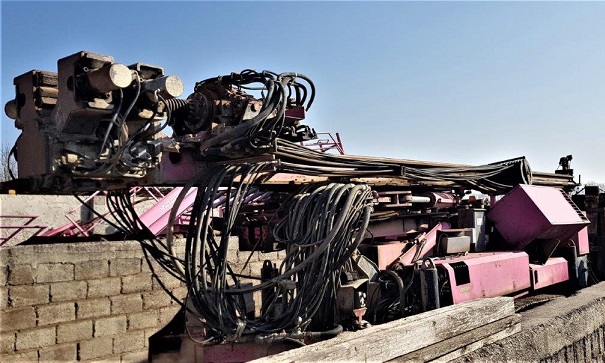

Casagrande C8 Micro Piling Rig

Used Casagrande C8 Micro Piling Rig for sale.

4,988 Hours

Crawler mounted.

CE certified

Dimensions and weight in working conditions:

• Length: 11,140 mm

• Height: 3,260 mm

• Width: 2,320 mm

• Total mass: 21,600 kg

Diesel engine: Deutz BF6L913 106 kW

Feed travel fitted for 8 mt long drill rods.

Extraction force (220 bar): 8 000 kg

Feed Force (220 bar): 4,000 kg

Rotary head: The machine is sold without a rotary head or hydraulic hammer

Double clamp

Clear water pump/foam pump: 40 lT/1′, pressure 50 bar

Hydraulic winch with max pull line: 2000 kg @ 1st layer
