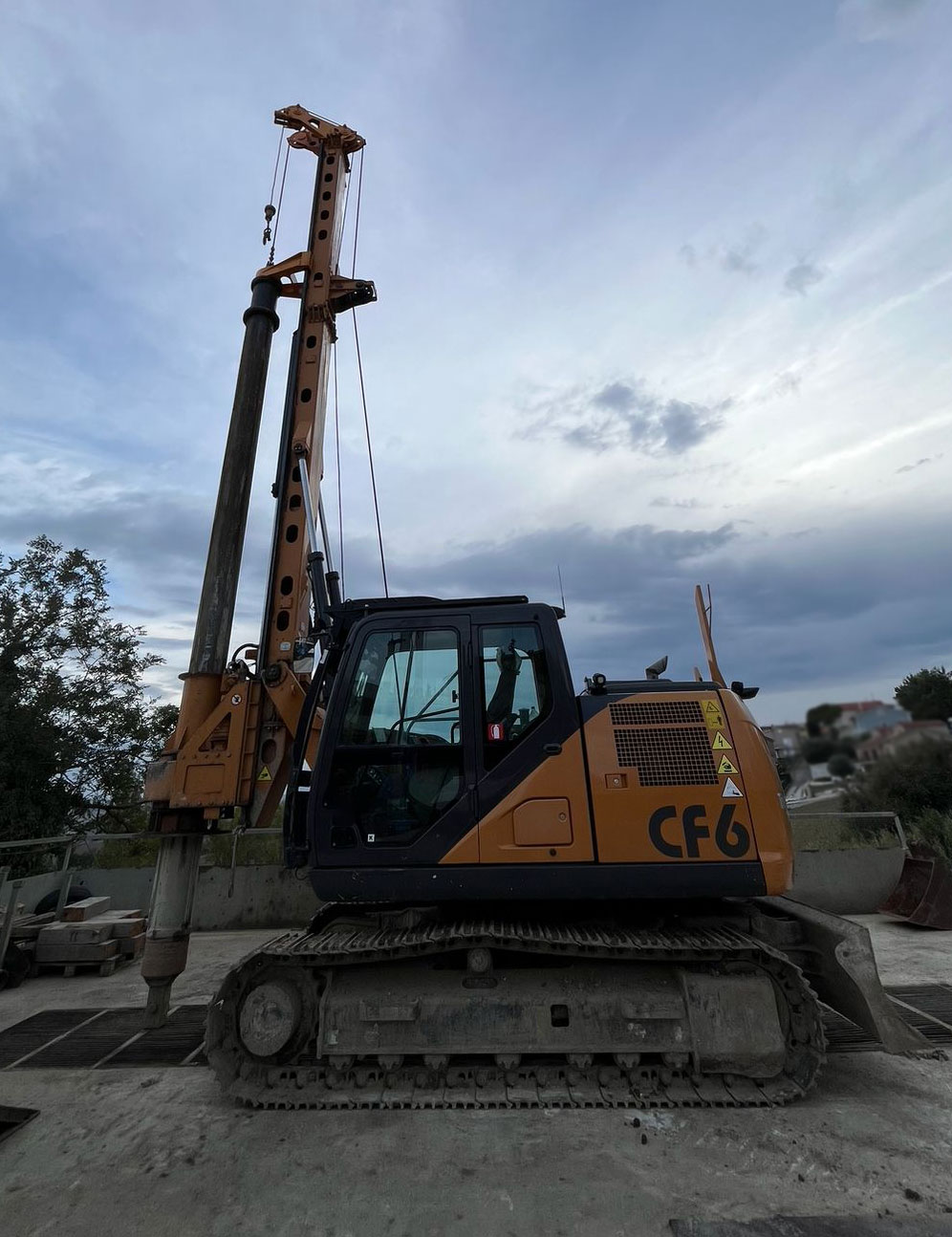

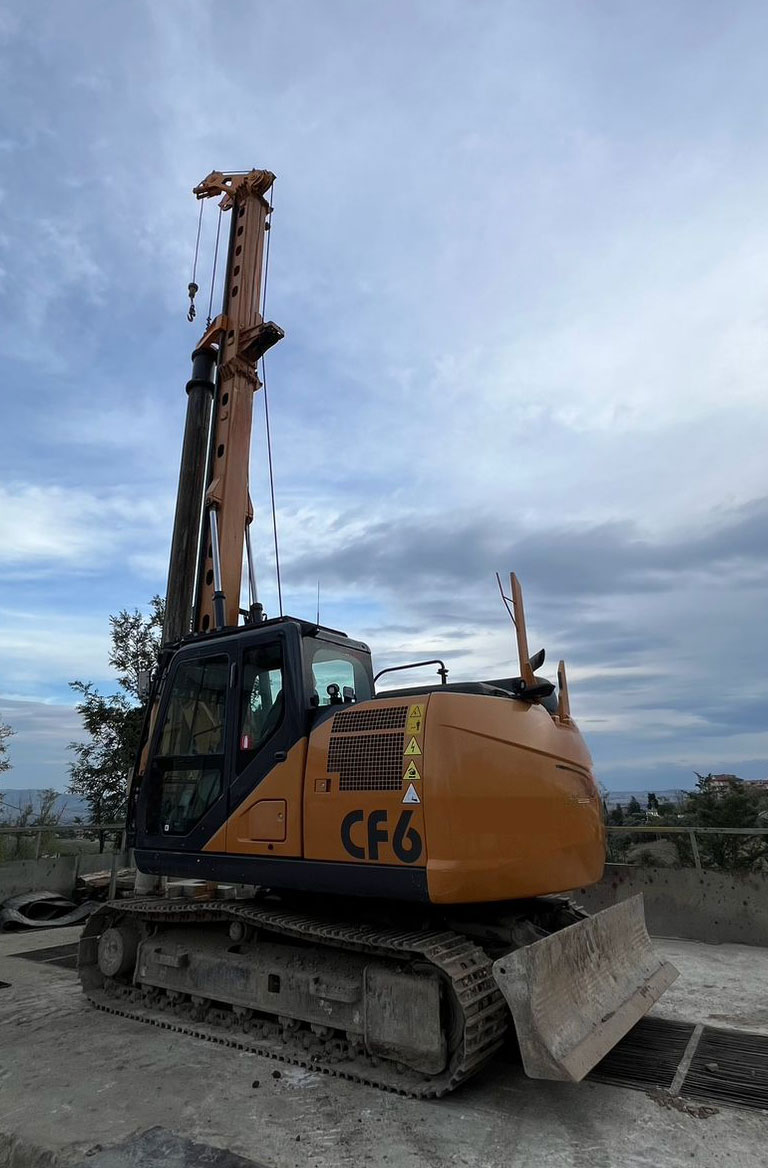

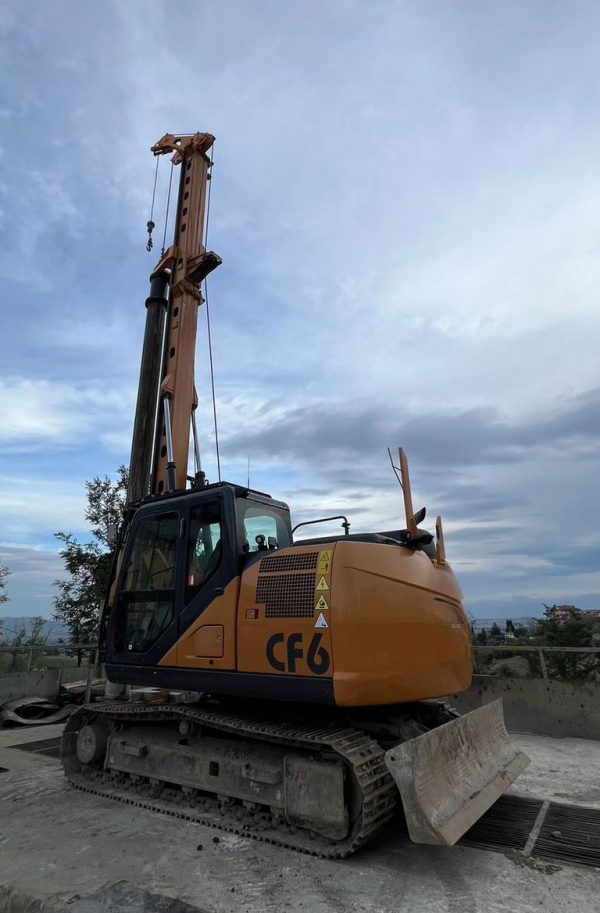

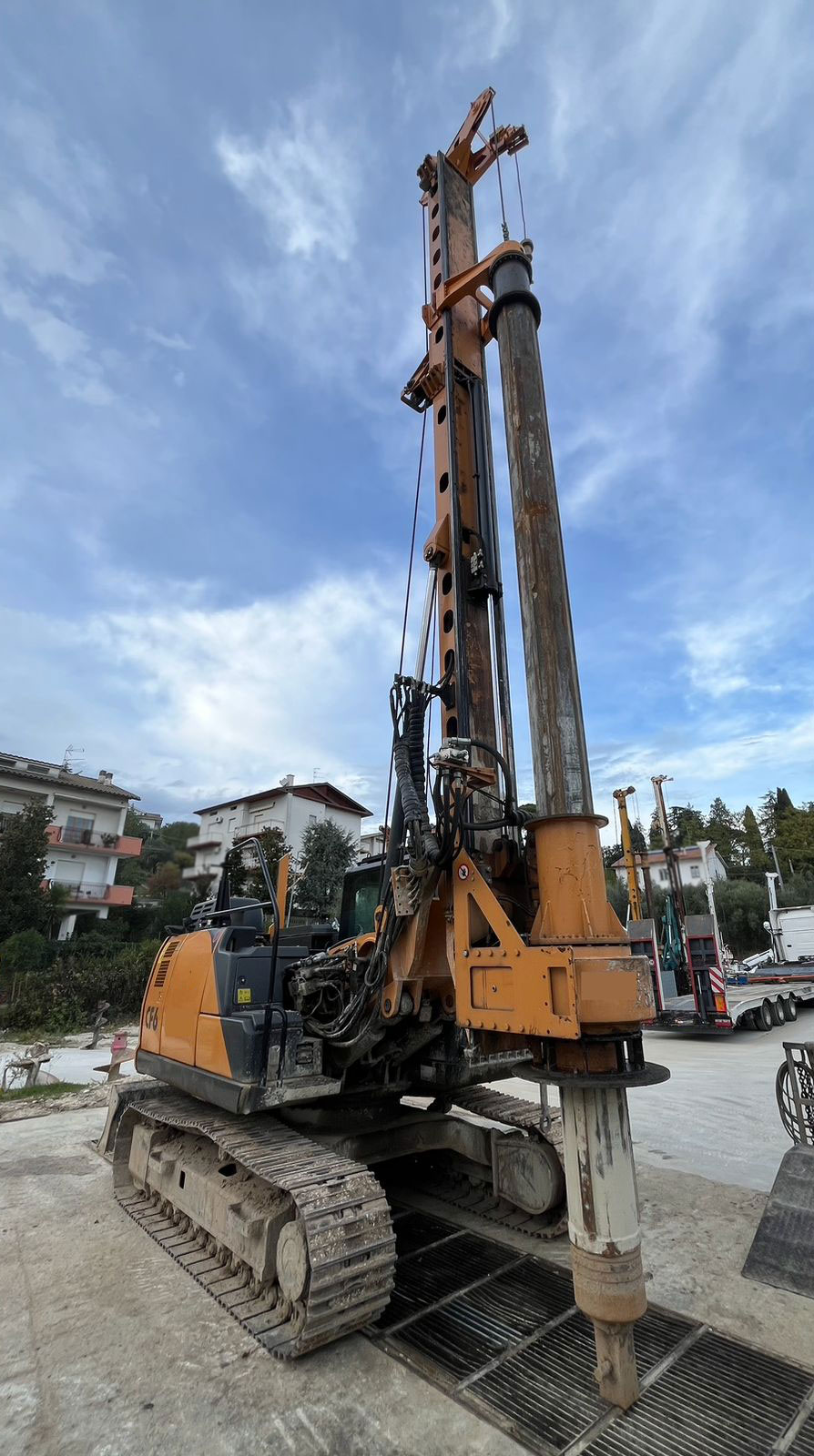

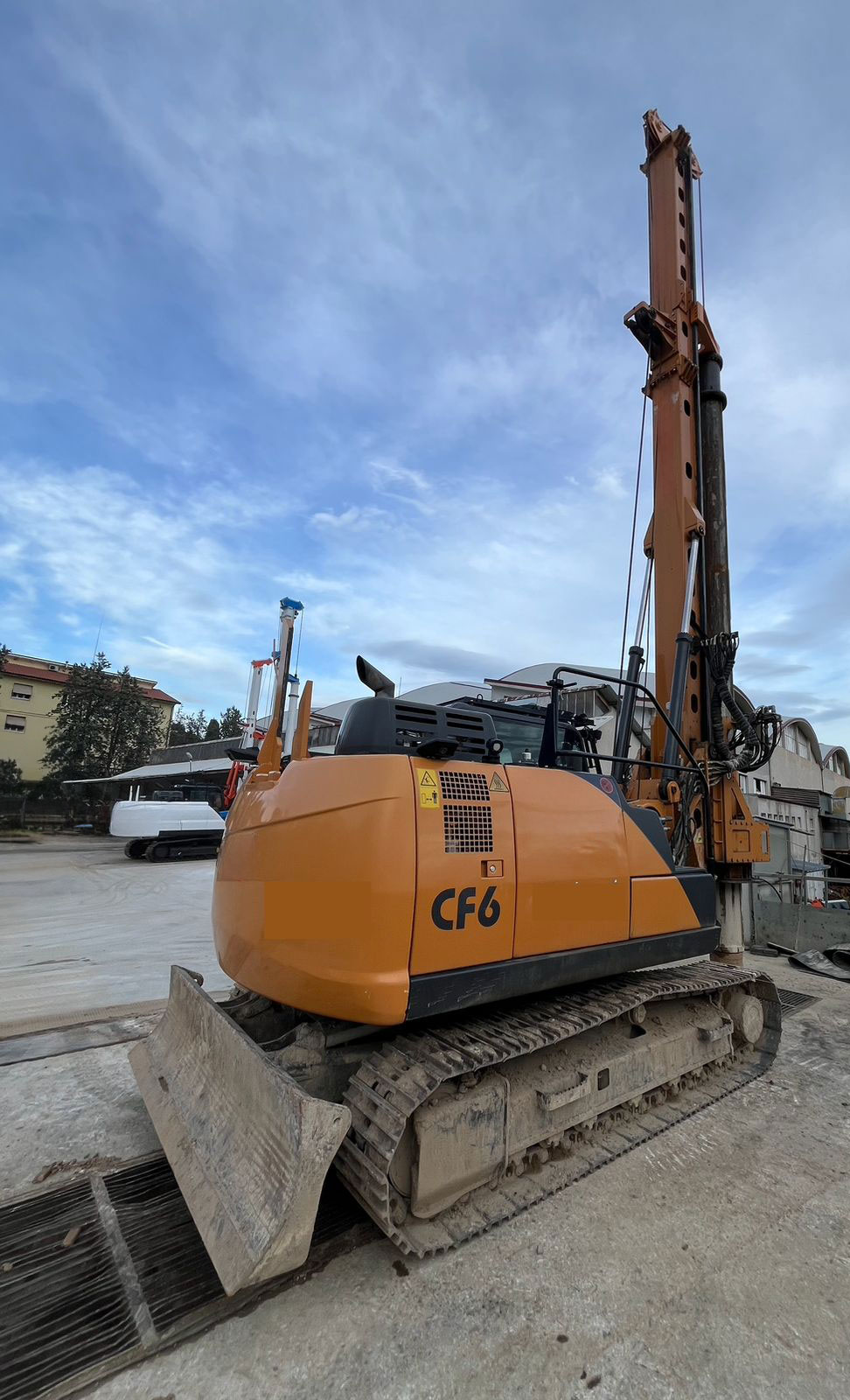

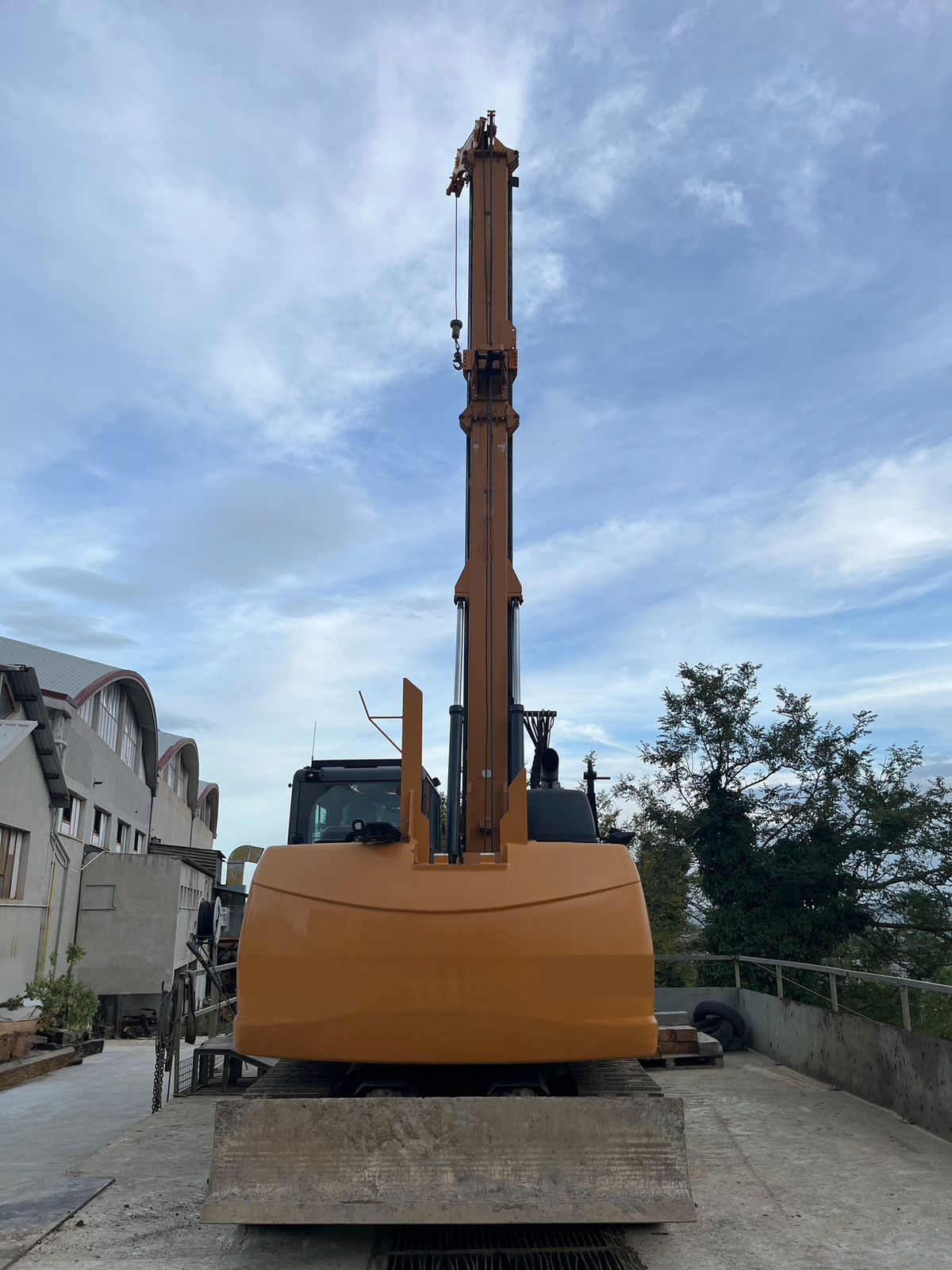

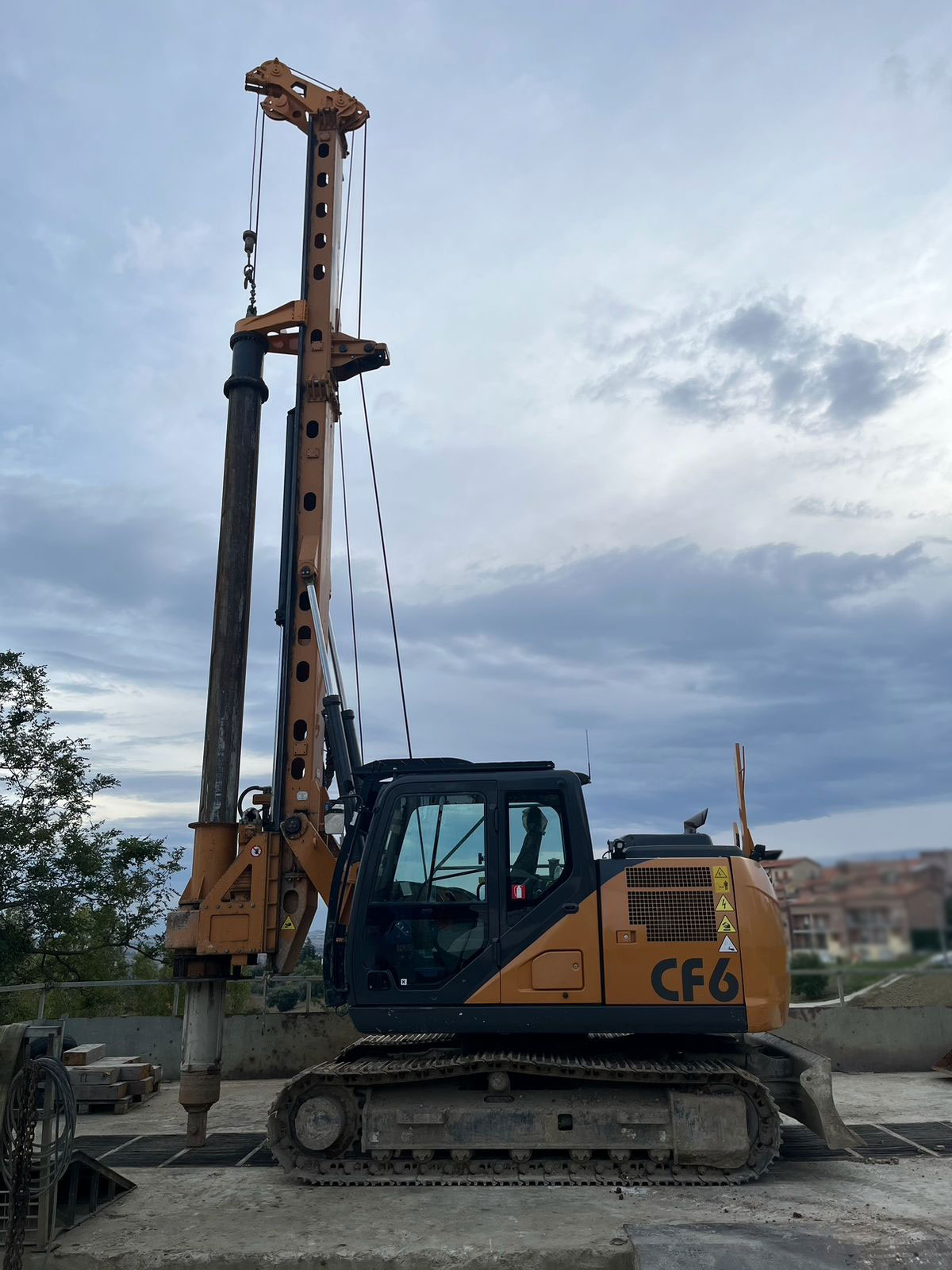

Tescar CF6 Rotary Piling Rig

Name: Tescar CF6 Rotary Piling Rig
SKU: 9308
Price: 250000 EUR
Availability: InStock

Ref: 9308

€250,000 EUR

Make an Enquiry

Year: 2020

Description

Used Tescar CF6 Rotary Piling Rig for sale.

3000 Hours

Tier 4F engine- isuzu

31m locking kelly bar

Mounted CX130D

Hydraulic system

Auxilary pump flow rate 54l/mi

Working hydraulic pressure 300bar

Max hydraulic pressure 340bar

Undercarrige

Overall tracks width 2490mm

Overall track length 2861mm

Width of triple grouser track shoes 500mm

Travel speed 5.6km/h

Traction force 116kN

Hydraulic rotary head

Max nominal torque 60kNm

Max drilling speed 30rpm

Main winch

Line pull on 1st layer 35kN

Max line pull speed 25m/min

Rope diameter 20mm

21,5000kg weight

View all Tescar Machines

Manufacturer	Tescar
Model	CF6
Operating hours	3000
Year of Registration	2020
Category	Piling, Rotary Piling Rig
