Sandvik MT520 Underground Excavator

Ref: 4344

$2,100,000 USD

Year: 2016

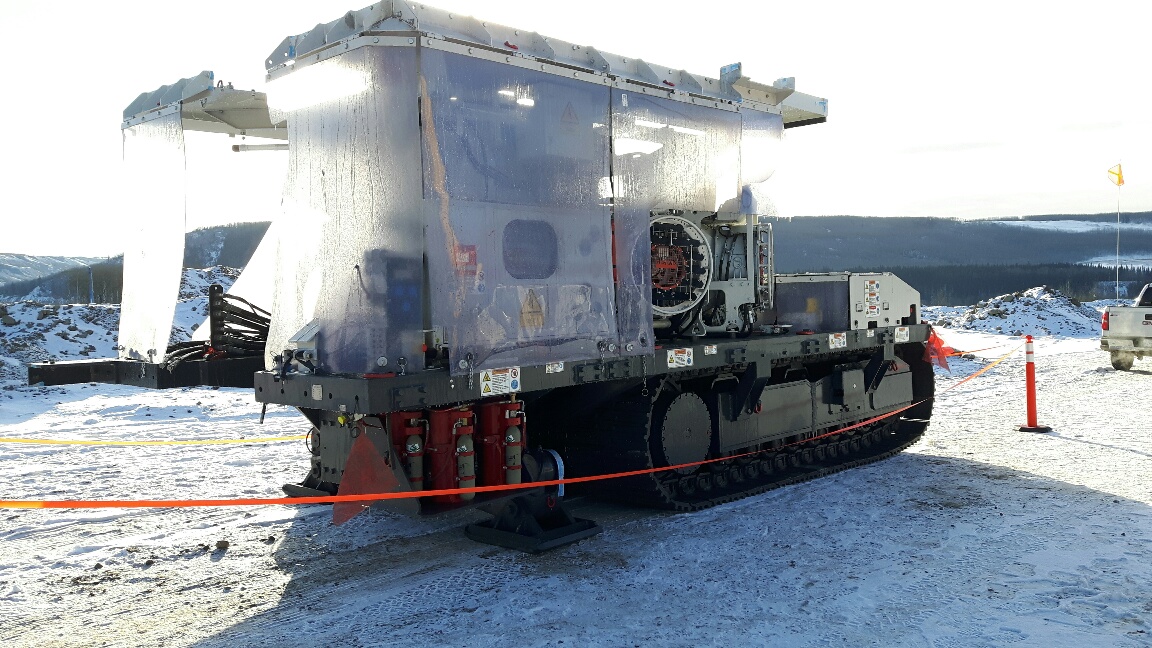

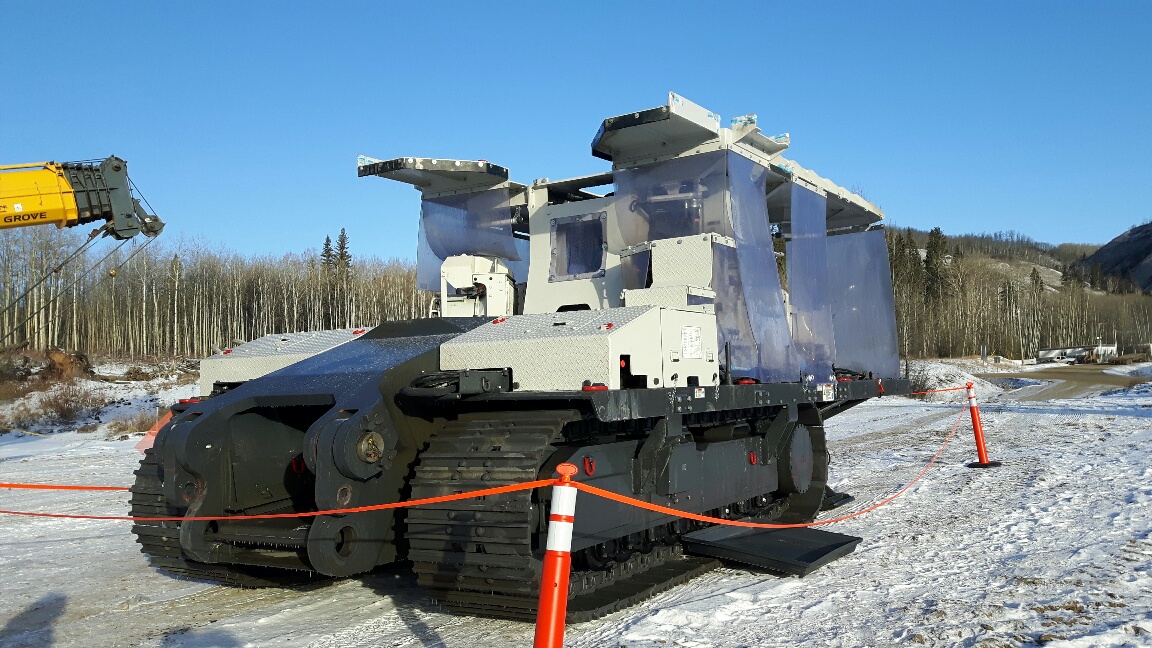

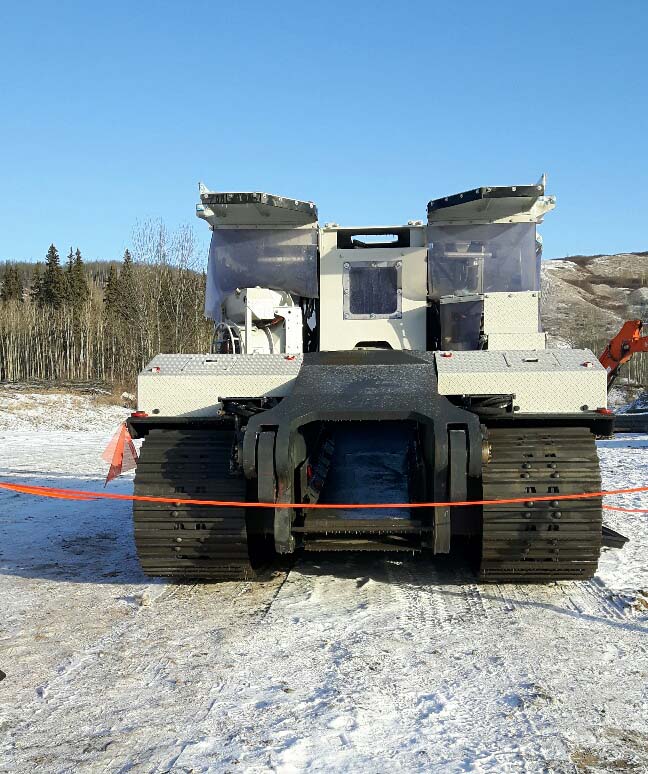

Sandvik MT520 Underground Excavator
Sandvik MT520 Underground ExcavatorSandvik MT520 Underground ExcavatorSandvik MT520 Underground Excavator


Used Sandvik MT520 Underground Excavator for sale.

Hydraulic hours – 1,564

Cutting motor hours – 1,048

Roadheader guidance system

Cable reel

High pressure water spray system

Closed operator cabin air condition

Slewing belt conveyor

Soft start 150Kw

Fire suppression system

Closed circuit cooling system

Total Weight (+/-5): 120 Tons

Machine Ground Pressure: 0.22 MPa

Overall Length: ~ 20m

Height: 5.1m

Loading Table Width: 4.56m

Cutter Boom Telescope: 1200mm

Cutting Height, Max: 7.1m

Cutting Width, Max: 10.3m

Undercut – Extended Telescope: 750mm

Cutter – Retracted Telescope: 115mm

Cutting Speed, 50 Hz: 1.5m/sec

Cutter Head Speed: 2.68m/sec

Navigable Gradient, Incline/Decline: ±18°

Capacity of Conveyor, Max: 350m³/h

Electric Supply Voltage: 1000/1140 Volts

Cutter Motor: 315kW

Tramming Speed: 0-20m/min

Total Installed Power: 537kW
