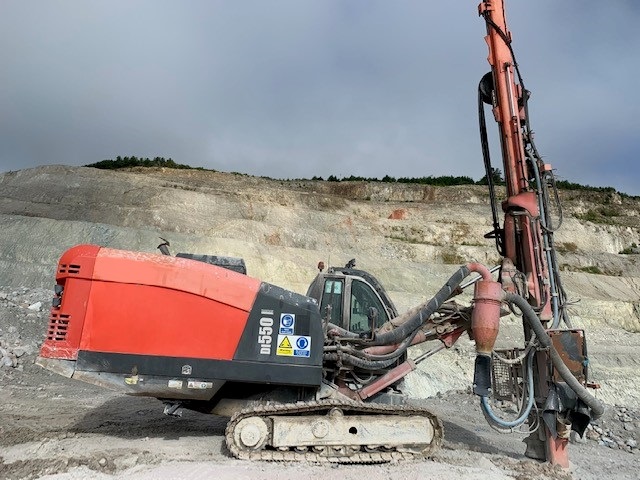

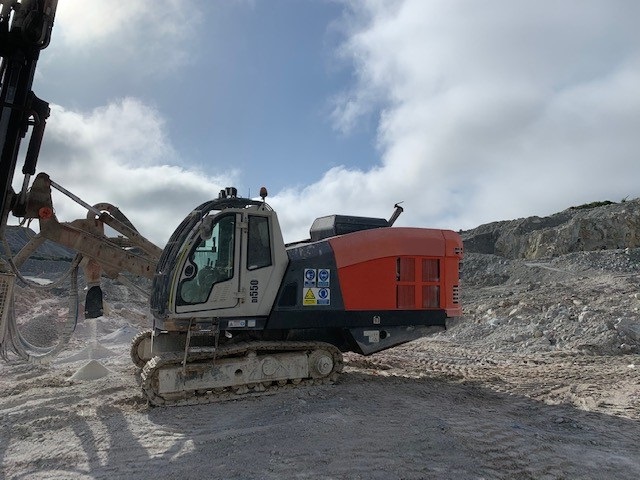

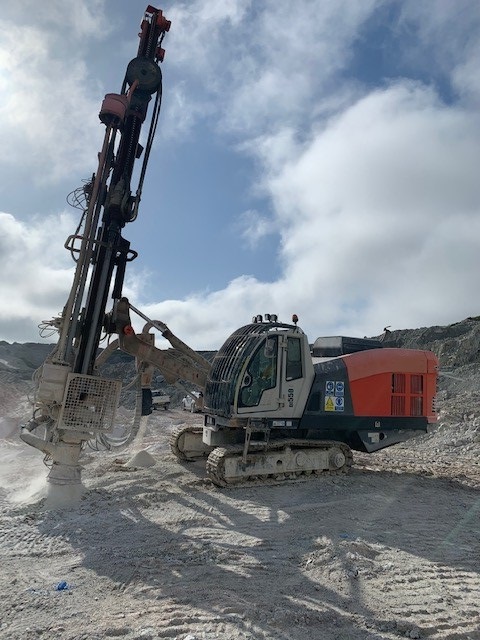

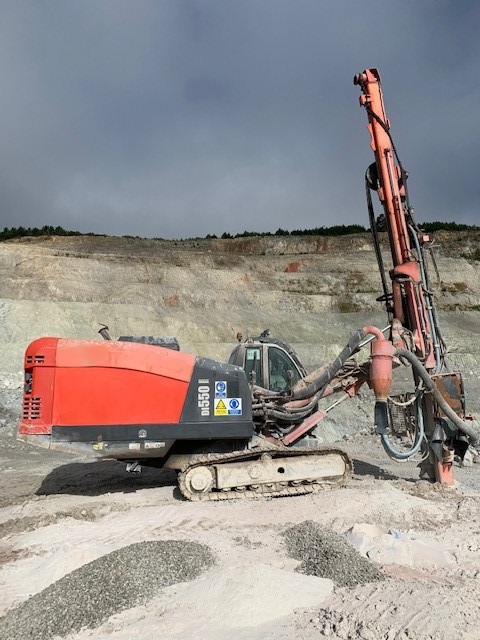

Sandvik DI550 Rock Drill

Description

Used Sandvik DI550 Rock Drill for sale.

Engine Hours: 11,768

Impact Hours: 5,015

Oscillating Crawler base (+/-10 degrees)

Triple grouse plates

Water cooled diesel (CAT C13, 328 kW/1800rpm)

Fuel tank (930 litres), led-lighting at refuelling area

Hydraulic system with pumps and tank (350 litres)

Double stage screw compressor 24 bar, 24,4 m³/min air volume

Drilling automatic with anti-jamming feature

Automatic fuel saving systems for drilling and tramming

Ambient dependent condensate control system

FOPS and ROPS certified operator’s cabin with joy-stick controls

Heating in cabin

Tool box for small items under operator’s seat

Led-lighting in cabin

SLU lubricating device for flushing head, drill pipes and DTH hammer

Chain feed

Drill pipe carousel to store up to 7+1 drill pipes 102 mm, 5000 mm in length

Rotary head with integrated shock absorber

Hose reel, drum type

Drill pipe centralizer and hydraulic uncoupling device

Bit basket

Fixed boom

Hydraulic driven dust collector system and cyclone pre-separator

Suction hood hydraulic up and down movable

Stone protection grill over top screen and front window

7 working lights in the front, 4 working lights in the back

Hand fire extinguisher

Flashing beacon

Air conditioning

Radio

Reversing camera

CE Marked

Operating Weight: 23,000 kg
