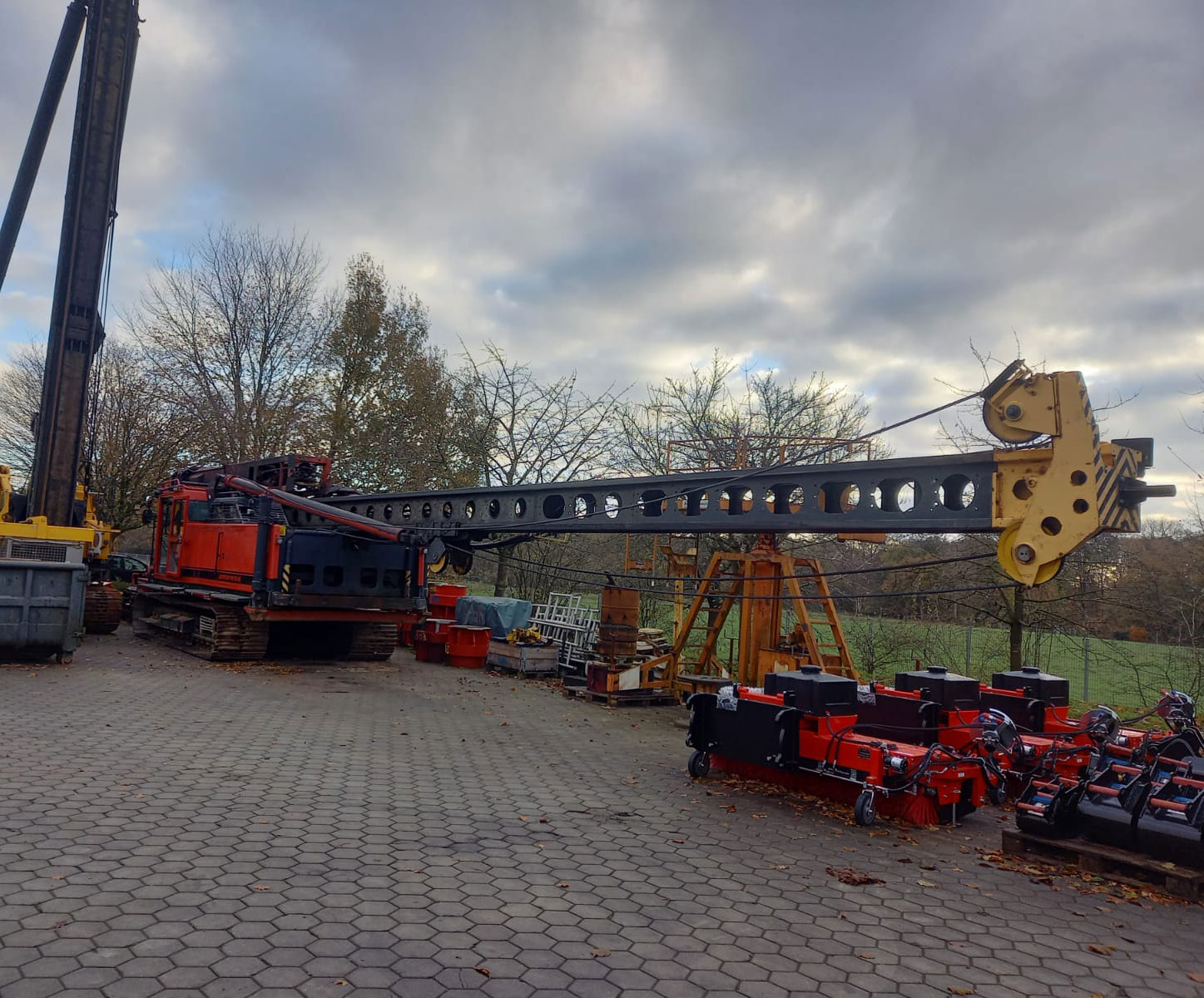

Junttan PM-25H Hammer Piling Rig

Description

Used Junttan PM-25H Hammer Piling Rig for sale.

11,100 Hours

HHK 5/7/9A hammer

Cummins QSM 9l Tier 3

EPA Certified

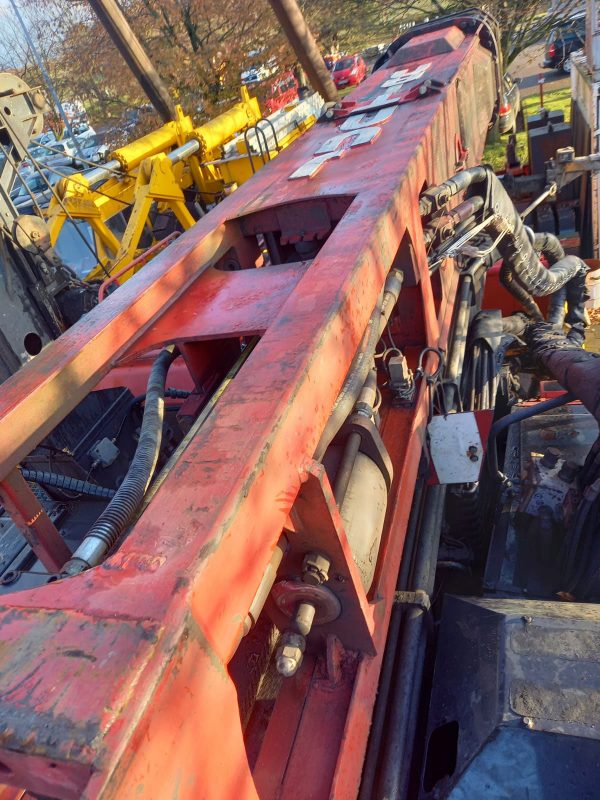

Leader length 13,8 + 4,8 + 4,2 + 1,8m

Side cathead

Hydraulic pile arms

Horizontal movement 1500mm. •capacity 20 000kg.

Telescope movement 4m

Inclinations according to separate capacity table

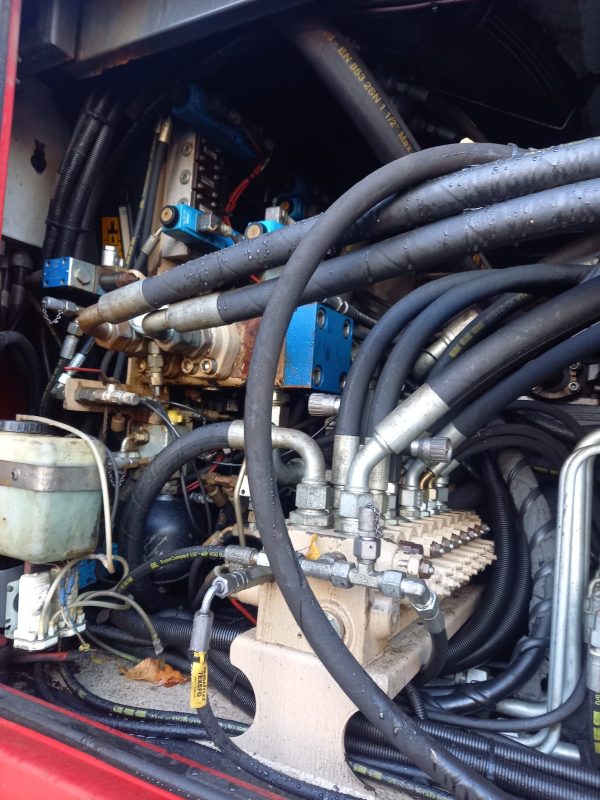

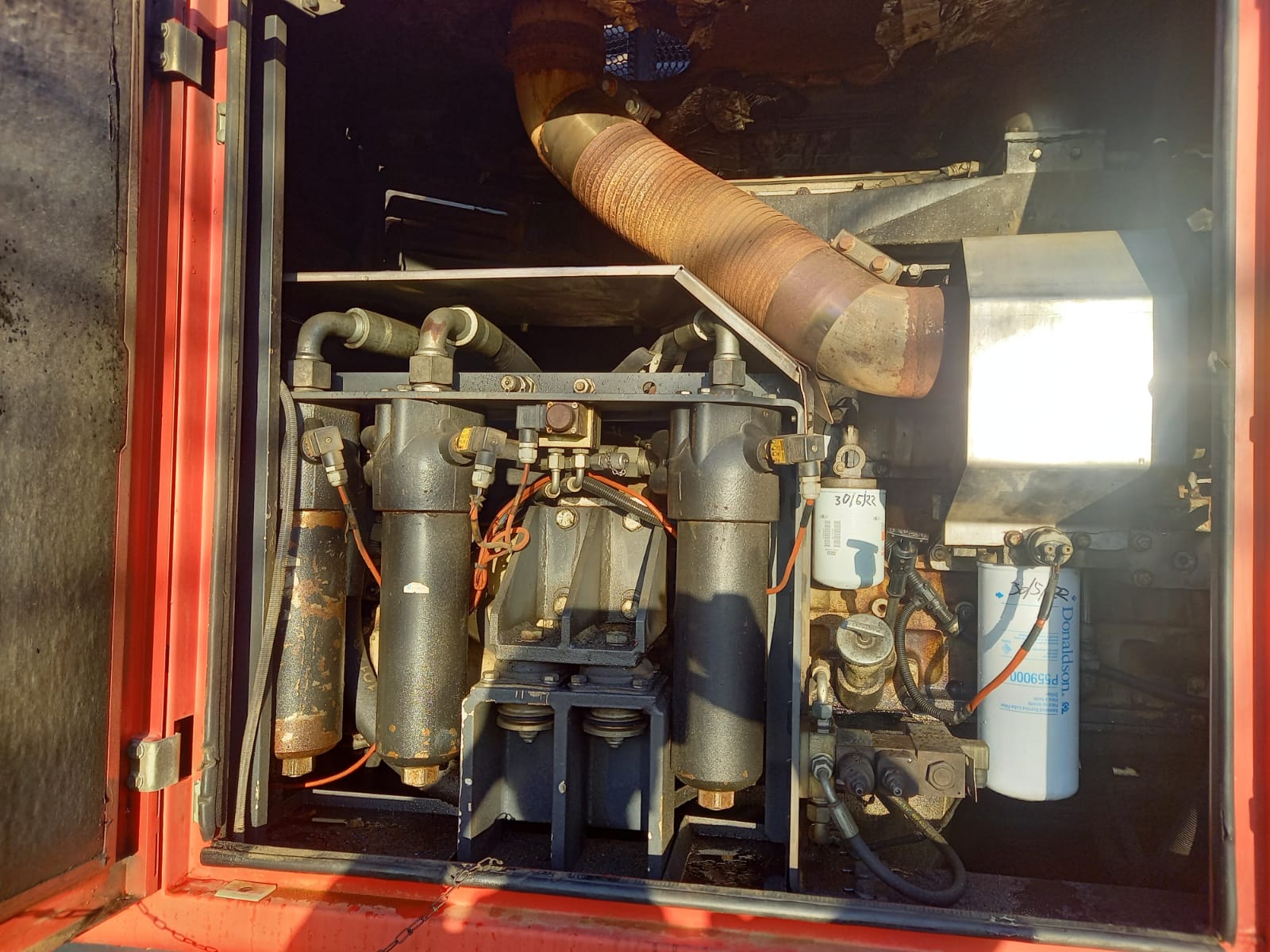

Hydraulics

Max. oil flow 2 x 160L + 90 L / min @ 2 200rpm

Hydraulic tank capacity 670 L.

Fuel tank capacity 420 L.

Max. working pressure 320 bar.

Neste VG 46 mineral hydraulic oils

Rear legs 2 pcs

Counterweight 8 000 kg.

Hydraulically movable 1500m

Hydraulic hammer HHK 5/7/9A

Stroke 1200mm max

40 – 100 blows per min

Ram block 5 000 + 2 000 + 2 000kg.

Drive cap housing ¤ 880mm with ¤ 600mm cushion

1 drive cap for 400x400mm square concrete pile
