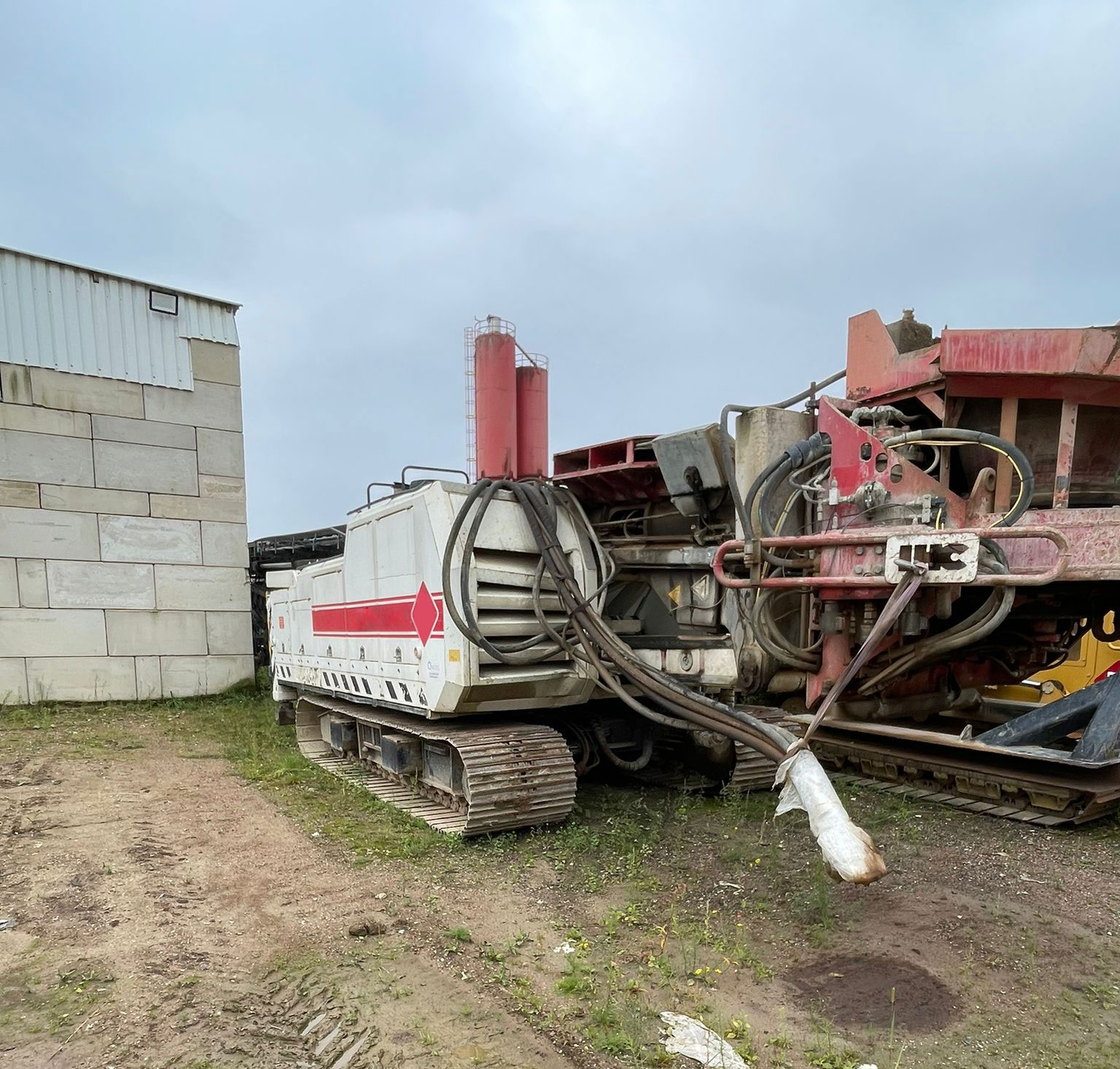

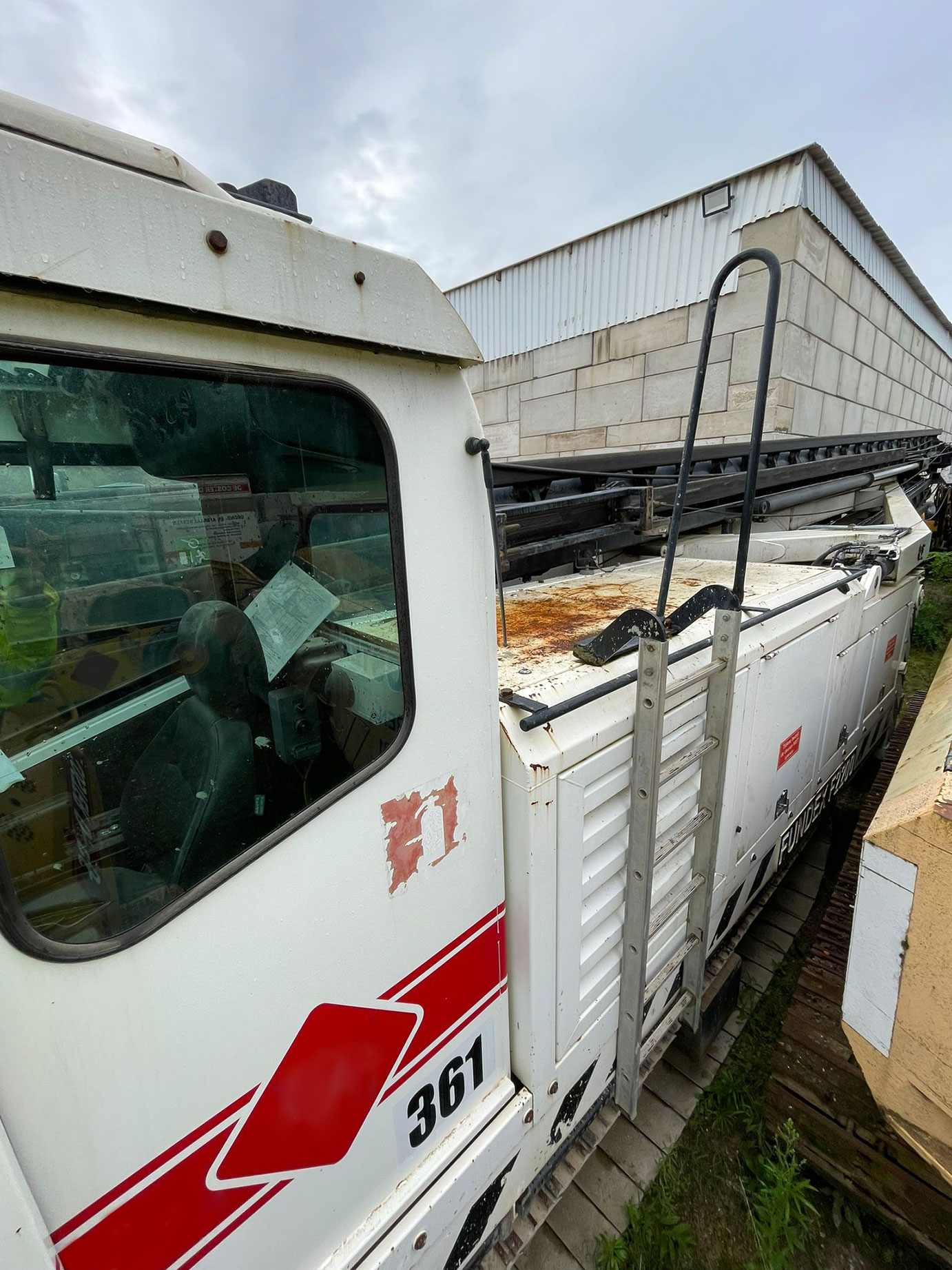

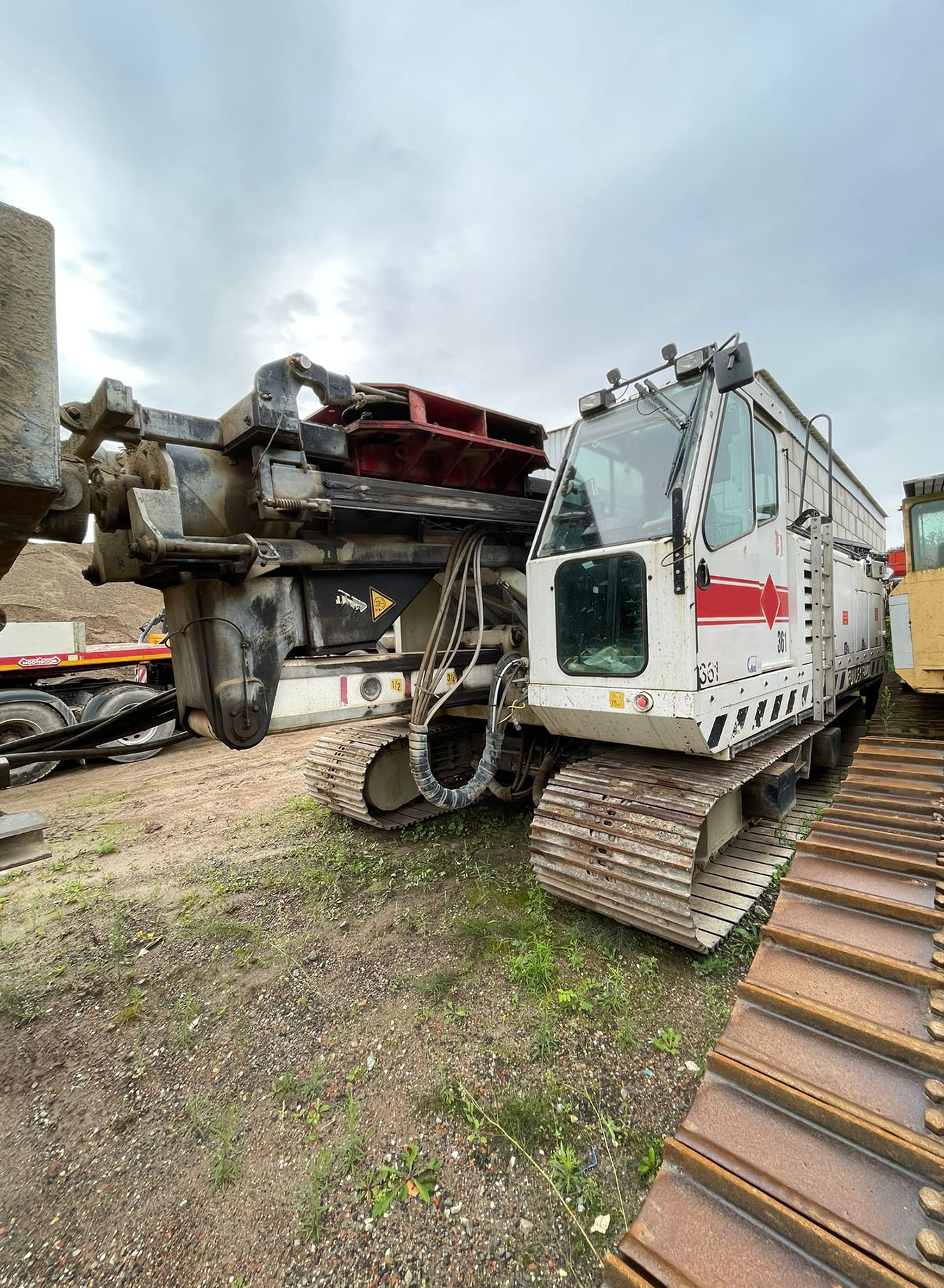

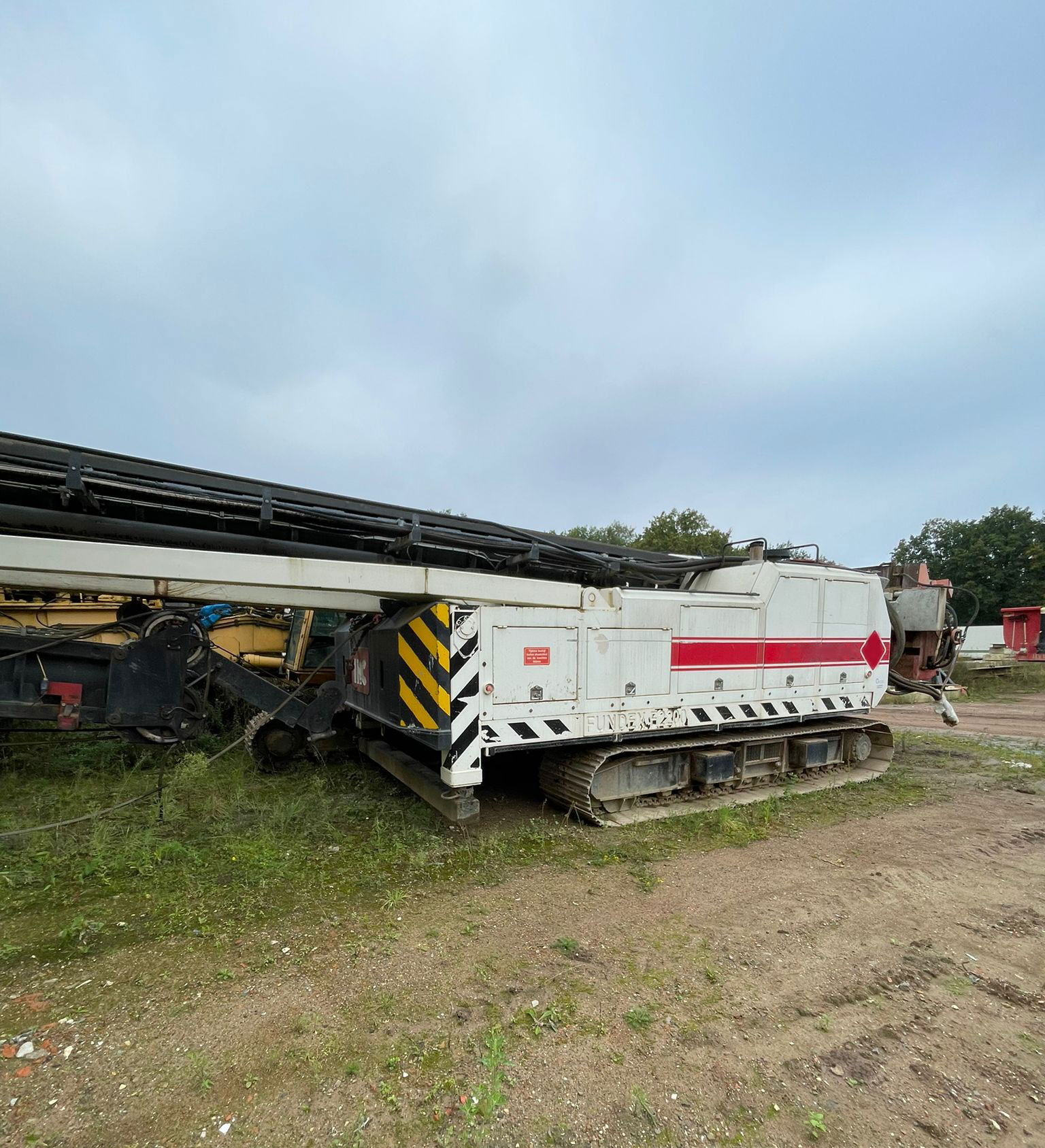

IHC Fundex F2200 Rotary Piling Rig

Description

Used IHC Fundex F2200 Rotary Piling Rig for sale.

5,684 Hours

Engine DEUTZ

6 Cylinder turbo diesel engine

Stage III TCD2015V06

330 kW/449 HP Tier IIII

Hydraulic pump Rexroth

Open hydraulic system

Hydraulic winches- 1 x 12,5 ton (1x for Pull Up sheaved 4 times)

1 x 10 ton (1x for Pull Down or pile lift)

1 x 3 ton (1x for auxiliary purpose)

1 x 0,9 ton (1x optonal for man-lift functon)

Horizontal stroke -The horizontal stroke of the leader is 1.750 mm.

Pilling force-Max. pull up force over the leader is 60 tons with the optional 15 tons winch

The standard pull up capacity is 50 tons
