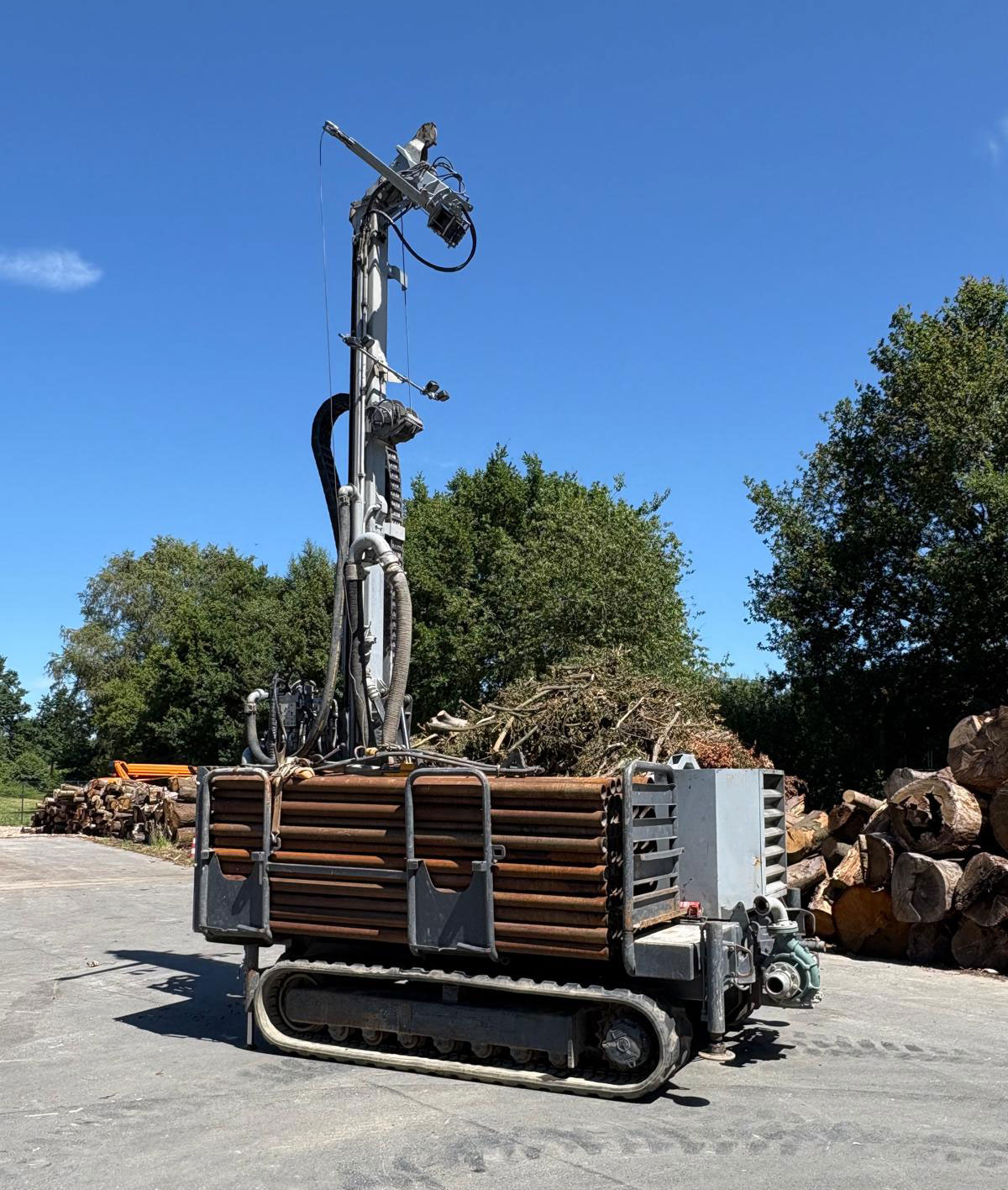

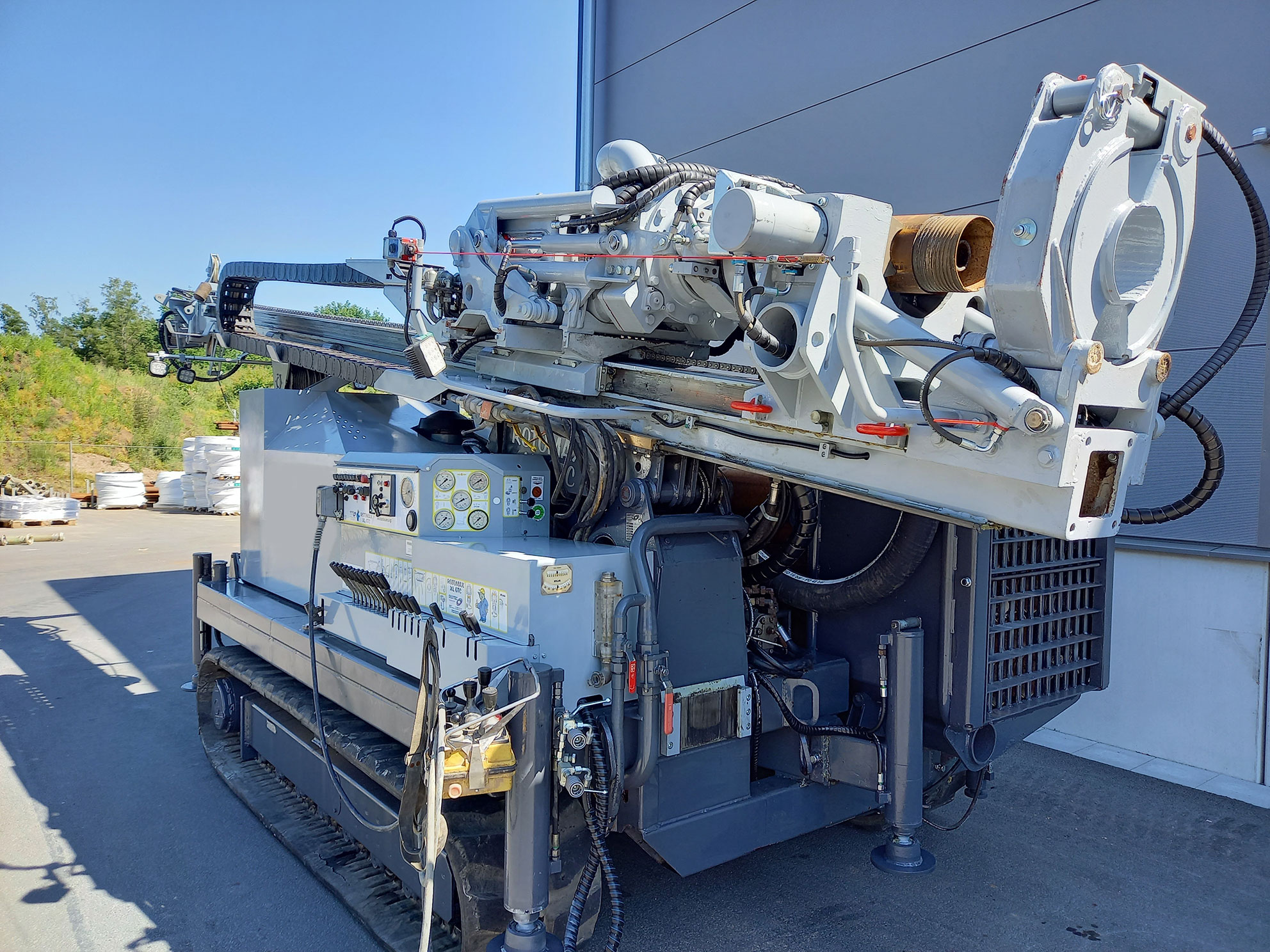

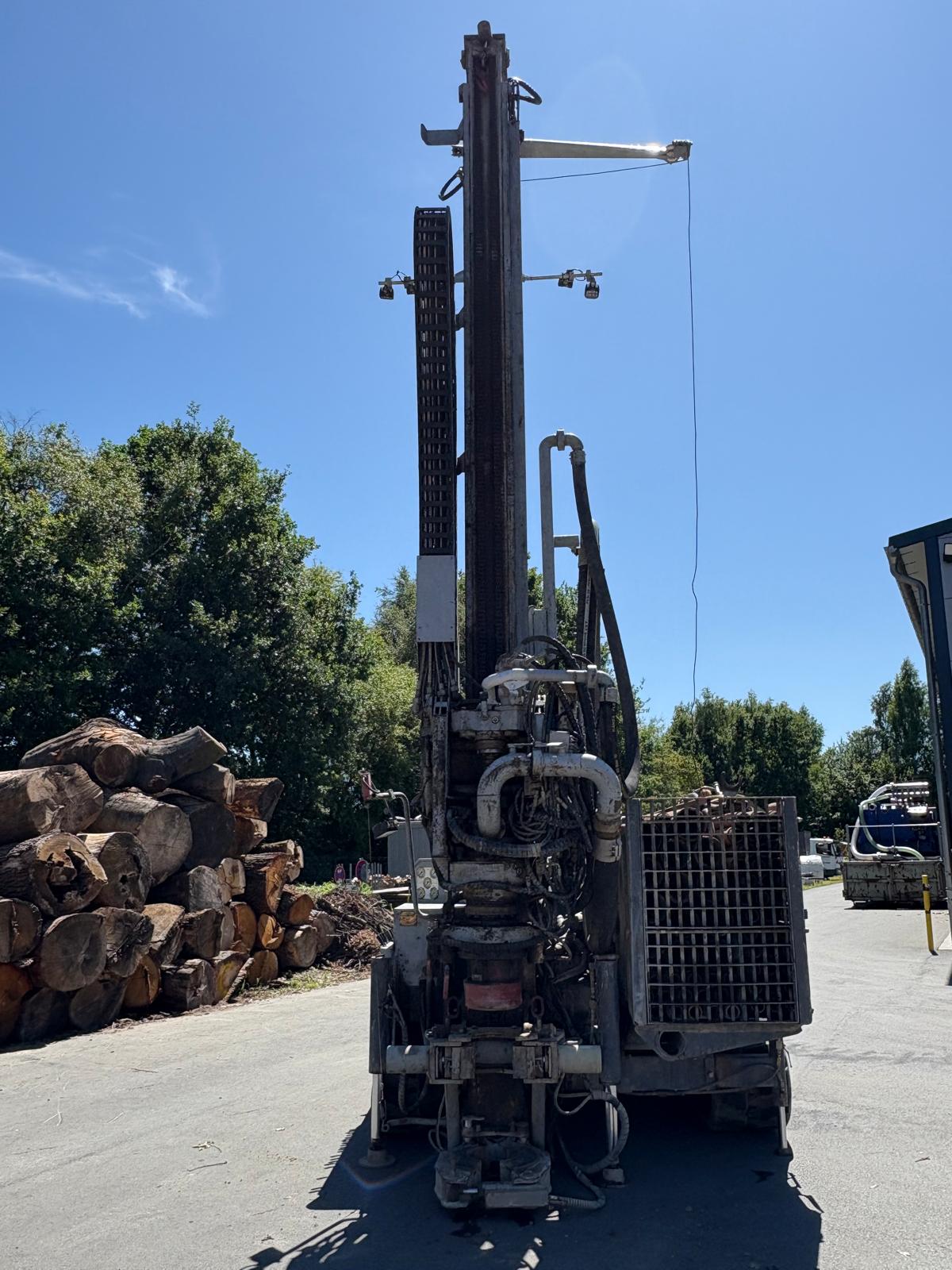

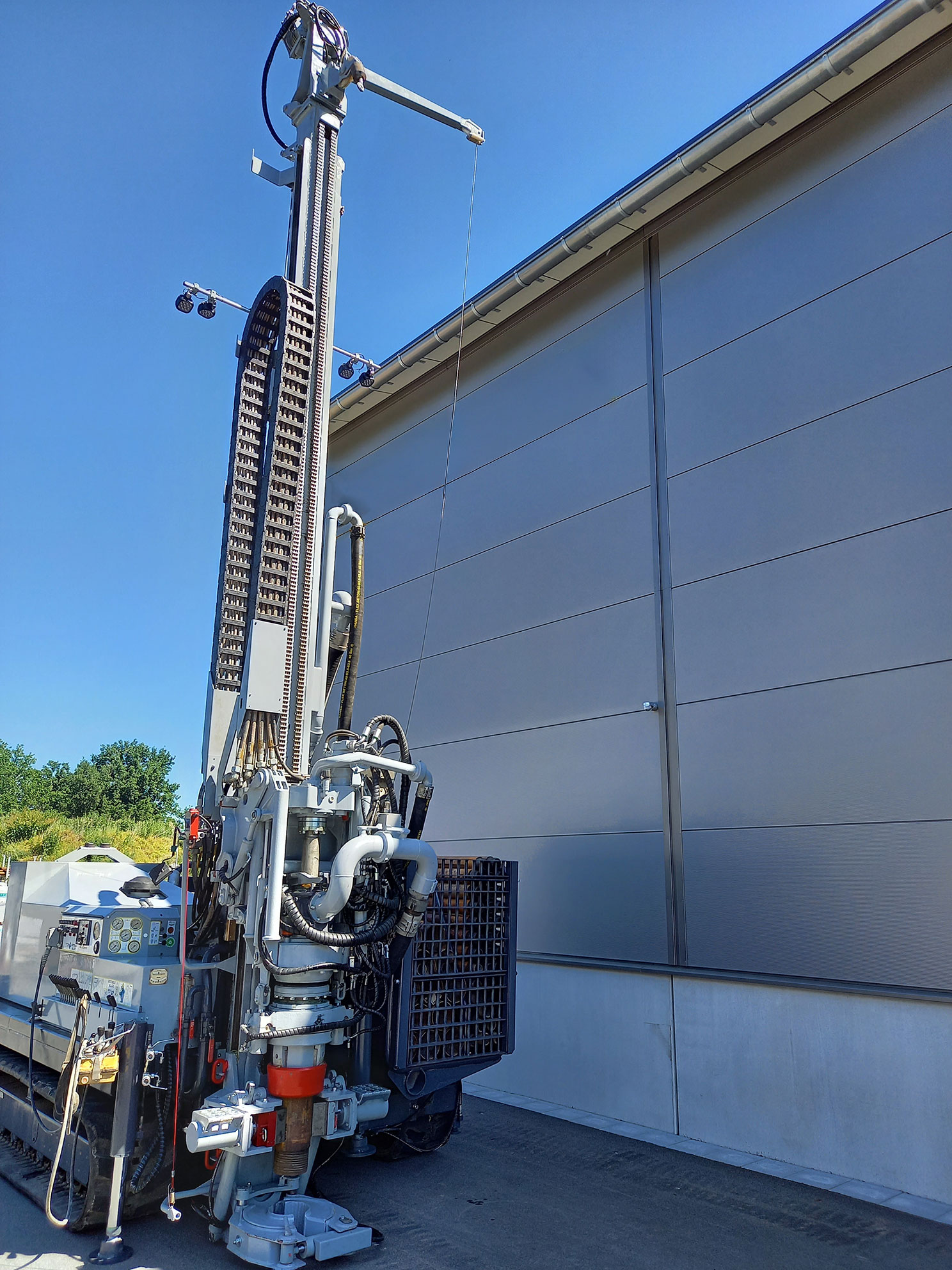

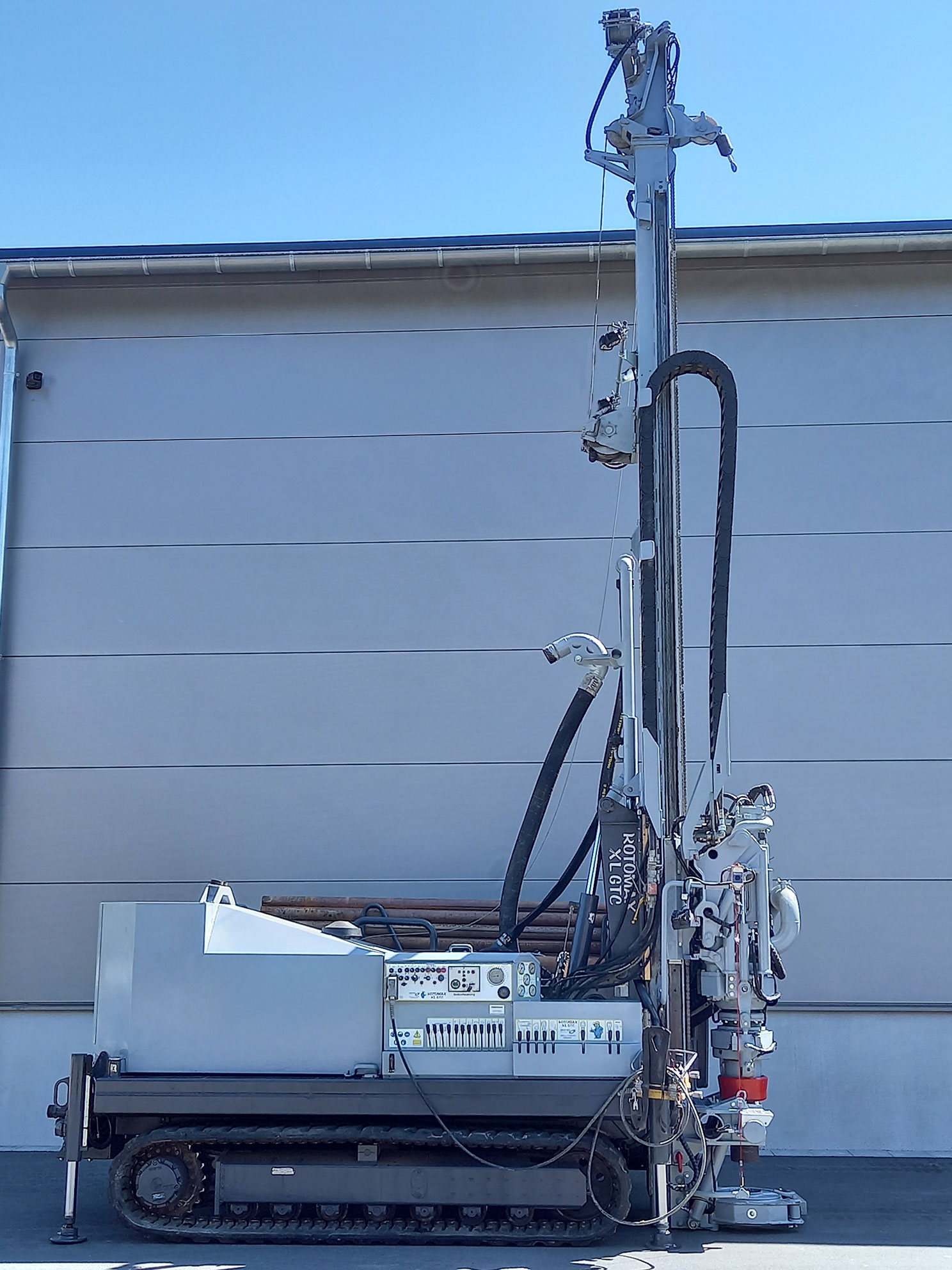

Geotec Rotomax XLGLC Geotechnical Drill Rig

Description

Used Geotec Rotomax XLGLC Geotechnical Drill Rig for sale.

18,800 Hours

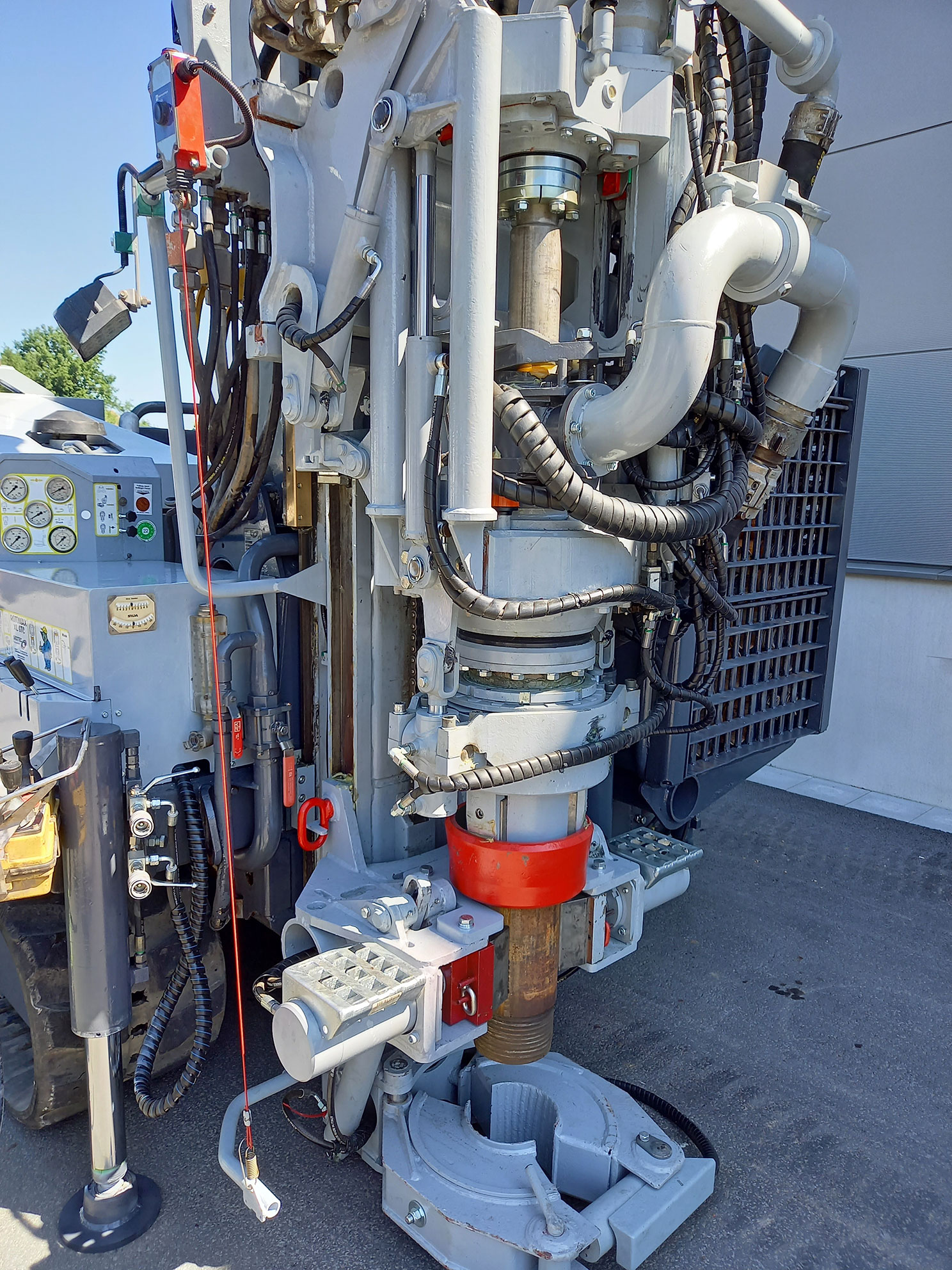

Double rotary head- refurbished

Gearbox Outer Rod Drive-Flushing Passage: Ø46 mm

1st Gear: n = 0.21 rpm⁻¹, Md = 46 kNm

2nd Gear: n = 0.32 rpm⁻¹, Md = 21.2 kNm

3rd Gear: n = 0.44 rpm⁻¹, Md = 15.7 kNm

4th Gear: n = 0.55 rpm⁻¹, Md = 13.1 kNm

5th Gear: n = 0.60 rpm⁻¹, Md = 8.8 kNm

Clamping Head

Clamping Diameter: 178 mm

Max. Breaking and Clamping Torque: Md = 26 kNm

Feed System:

Feed Stroke: 0–520 mm

Feed Force: 120 kN

Mast Bearing Block

Mast Telescoping:

Stroke (Telescopic travel): 750 mm

Pull Force: 70 kN

Pressure Force: 70 kN

Complete Drill Mast

Pull-Down Cylinder System:

Stroke: 4290 mm

Pull Force: 137 kN

Pressure Force: 70 kN

Electrical System

Main Control Functions:

All major control functions are remote-controlled (via cable remote).

Control Pressure: 250 bar

13,000kg weight
