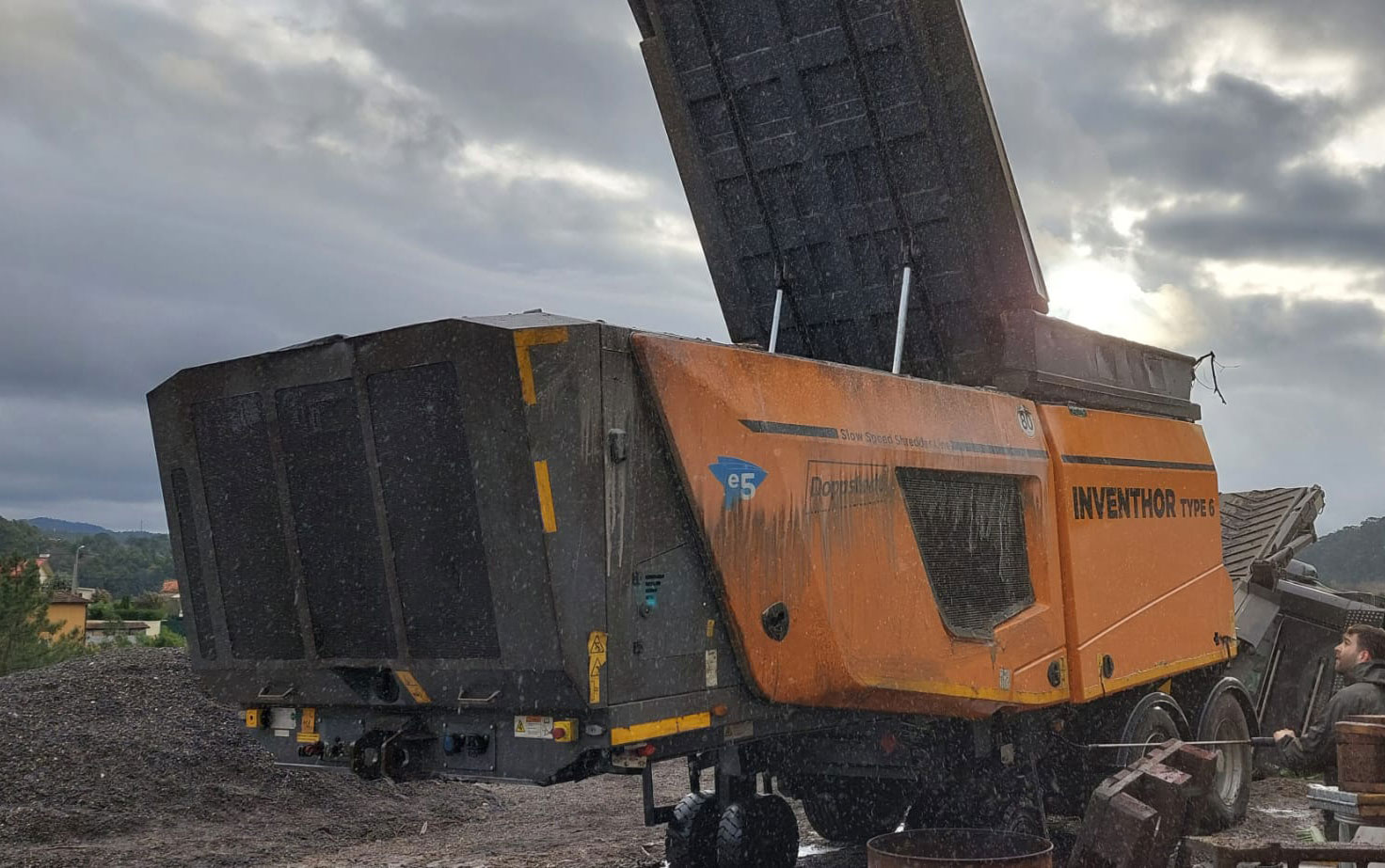

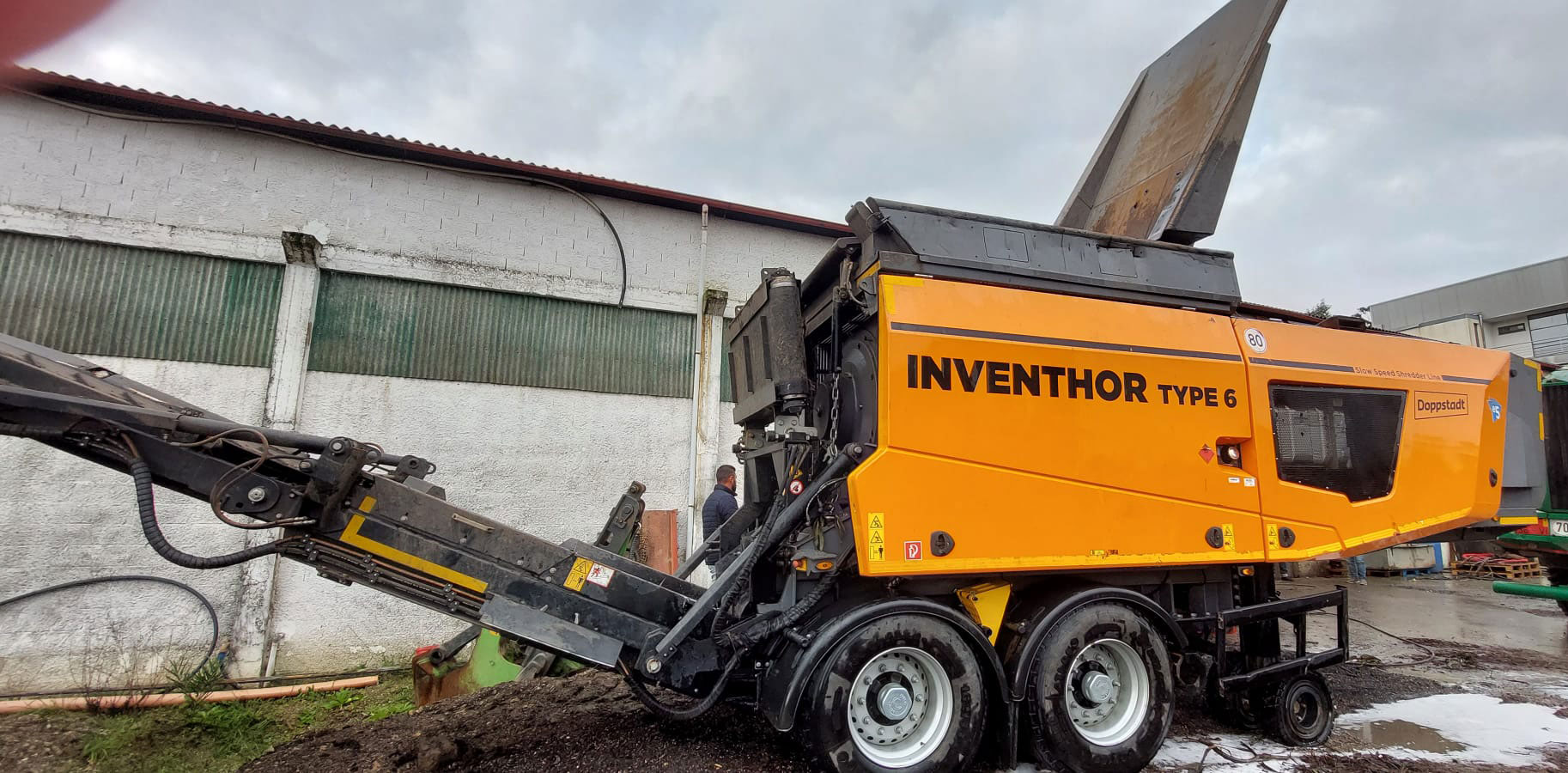

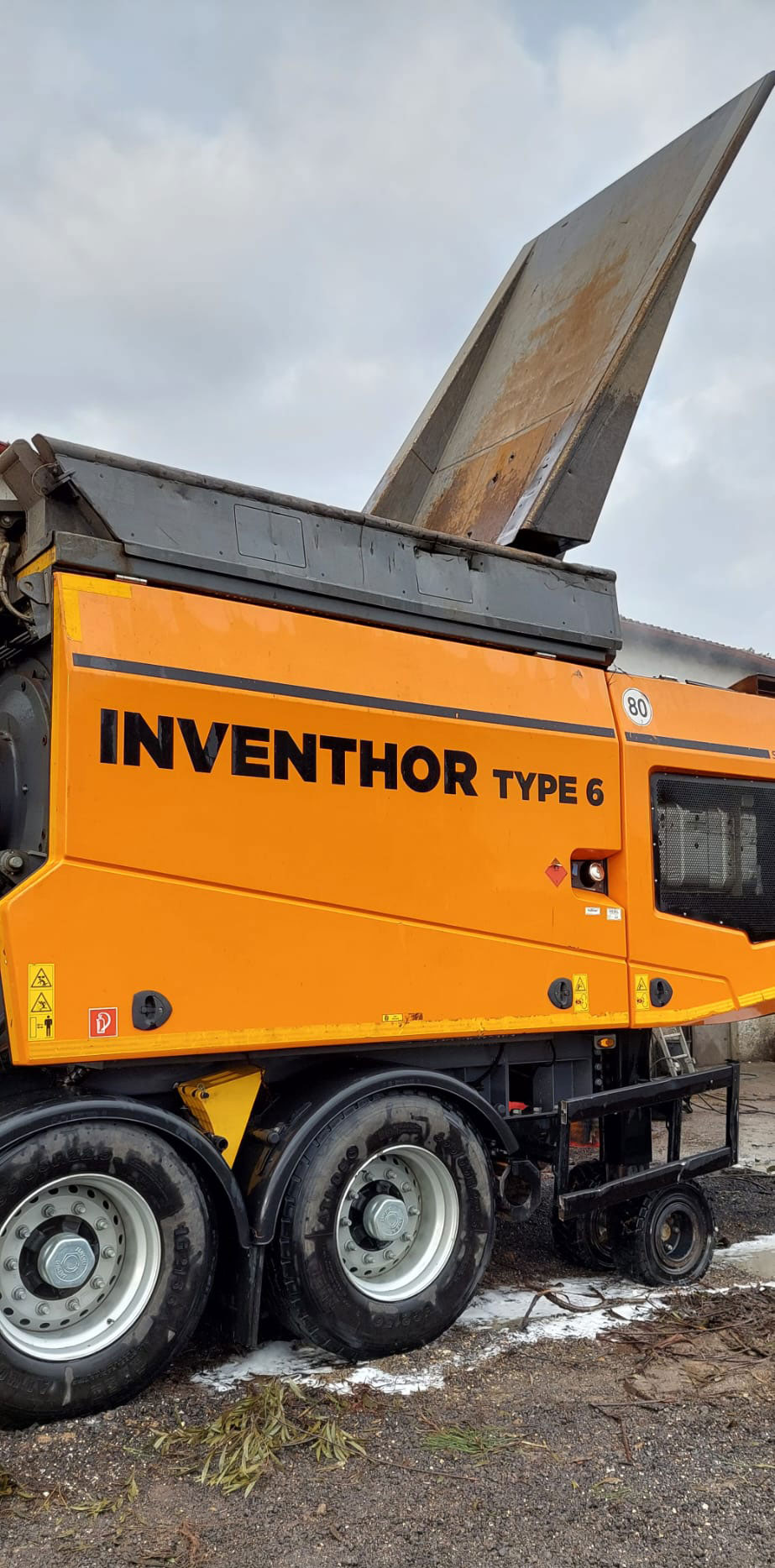

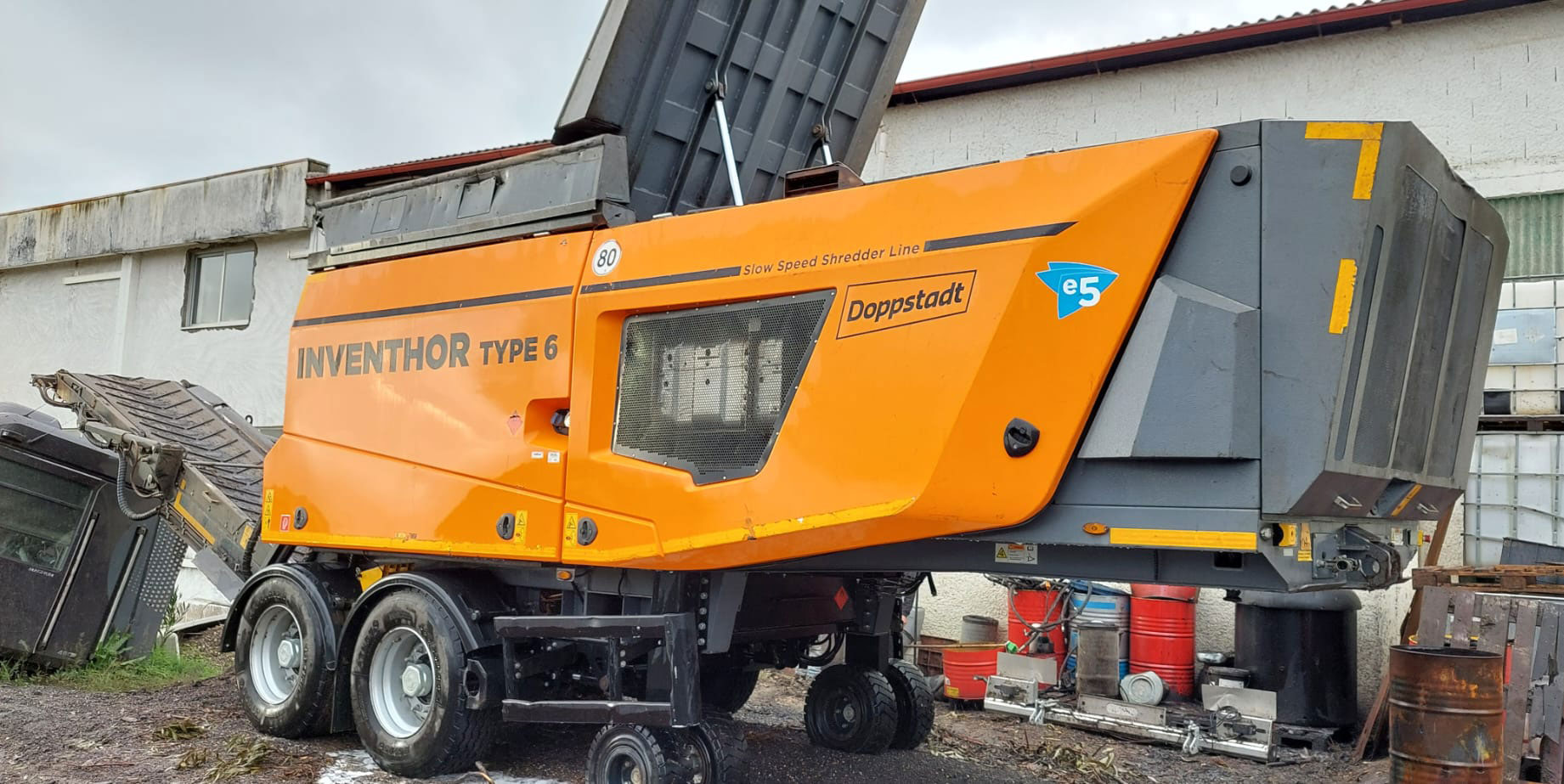

Doppstadt Inventhor Type 6 Slow Speed Shredder

Ref: 5911
Year: 2021
Doppstadt Inventhor Type 6 Slow Speed Shredder
Doppstadt Inventhor Type 6 Slow Speed ShredderDoppstadt Inventhor Type 6 Slow Speed ShredderDoppstadt Inventhor Type 6 Slow Speed ShredderDoppstadt Inventhor Type 6 Slow Speed ShredderDoppstadt Inventhor Type 6 Slow Speed ShredderDoppstadt Inventhor Type 6 Slow Speed Shredder

Description

Used Doppstadt Inventhor Type 6 Slow Speed Shredder for sale.

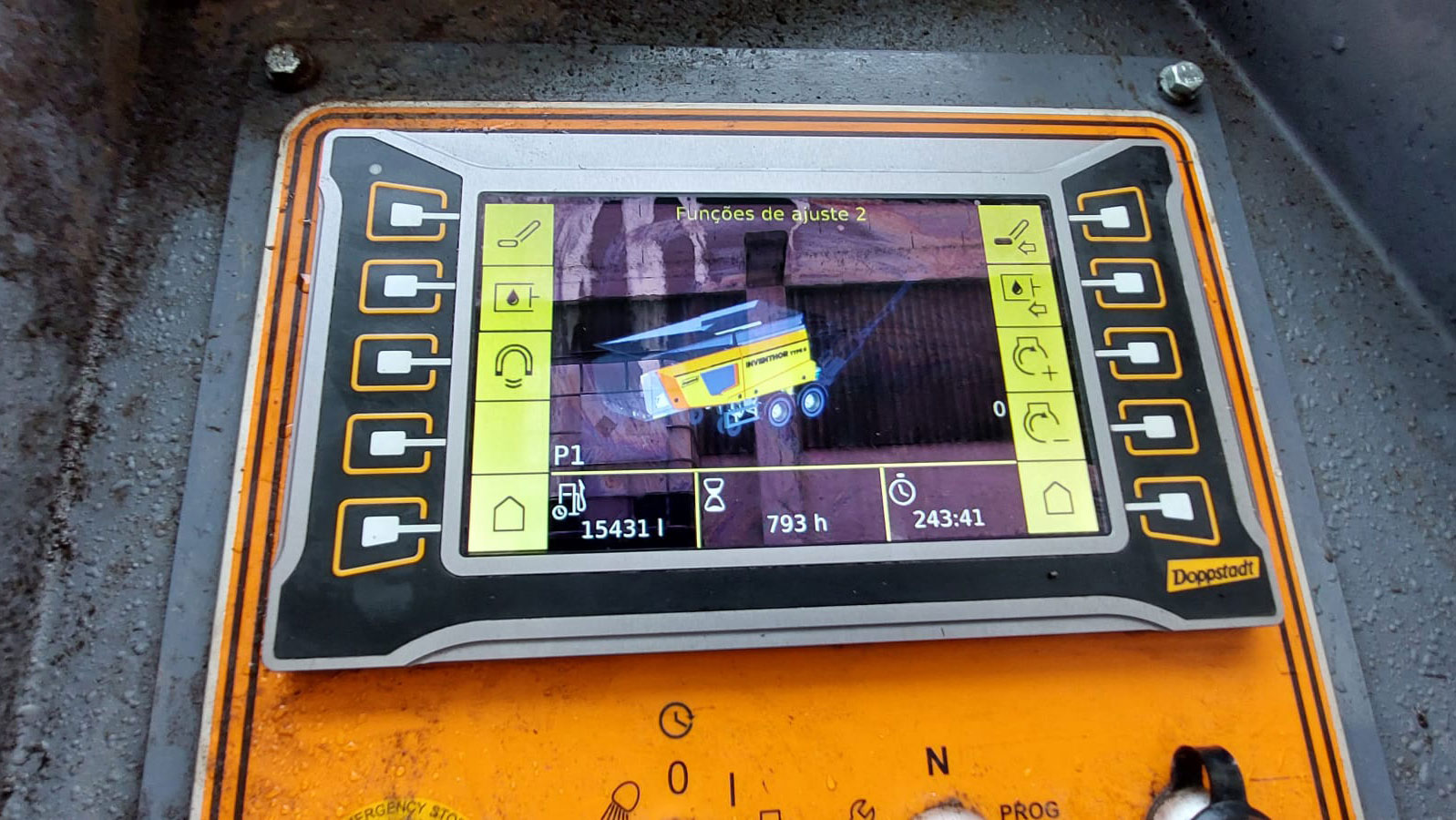

793 hours

Euro Stage V/EPA Tier 4 final

Standard Equipment Inventhor 6:

  • Load sensing System
  • 500 l Fuel Tank
  • Longitudinal Conveyor belt: length 2900 mm x width 800 mm
  • Central lubrication
  • 24V electric control
  • Additional electric pump for the Following functions at engine standstill: “lift/lower/fold rear conveyor, open/close comb gate, open/close comb, lift/lower retractable hopper”
  • Remote control complete
  • Large GRP side doors for maintenance
  • Maintenance- friendly engine compartment
  • LED – Lighting kit: Engine compartment and rear
  • Hydraulically reversible fan wheel
  • Loading protection on three sides
  • Retractable hopper
  • Fire extinguisher
  • Maintenance ladder
  • Tool box
  • Audible starting signal
  • Doppstadt telematic system
  • Paint RAL2011 Deep orange

Powertrain:

  • MTU Diesel engine 6R1000, 260 kW @ 1700 RPM; EUROMOT V
  • Roller Driven by planetary gear 260 kW – Vario

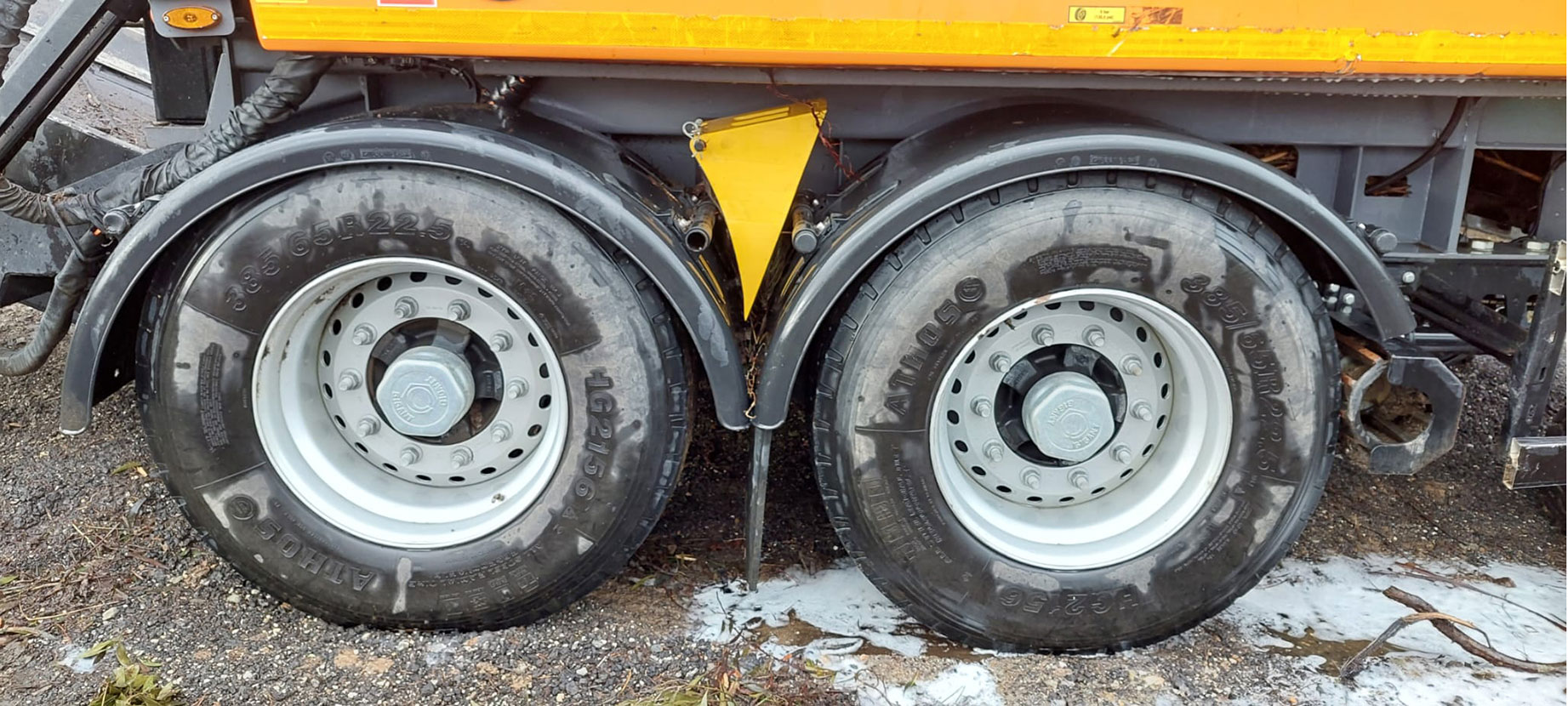

2 axle semitrailer unit:

  • Semi-trailer chassis with 2 axles, 80 km/h road registration
  • Brakes incl. ABS and lighting according to EC Standard
  • Tyres 385/65 R22,5
  • Gross vehicle weight 27.000 kg
  • Axles with level adjustment
  • Hydraulic support adjustment fenders with splashguards
  • Underride protection / light bar Europoint III

Shredding System size “L – C3”, complete (Variomat- System L 600/3 – 20 teeth)

Limiter Size “L” – 14 teeth

Additional hydraulic connection 35 l/min to 80 l/min

Hopper extension three sided H = 350 mm

Rear Conveyor 4,9 m X 1,1m large hydraulically foldable with antimagnetic centre section

Overband magnet – Neodym

Central lubrication

Hydraulically self-propelled

Overall weight 25,000kg

PRICE: POA




View all Doppstadt Machines
Manufacturer

Doppstadt

Model

Inventhor Type 6

Operating hours

793

Year of Registration

2021

Category

Recycling
