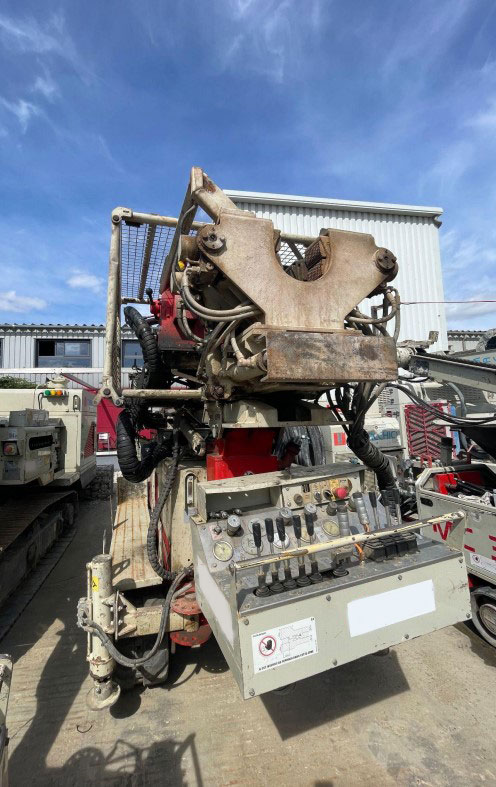

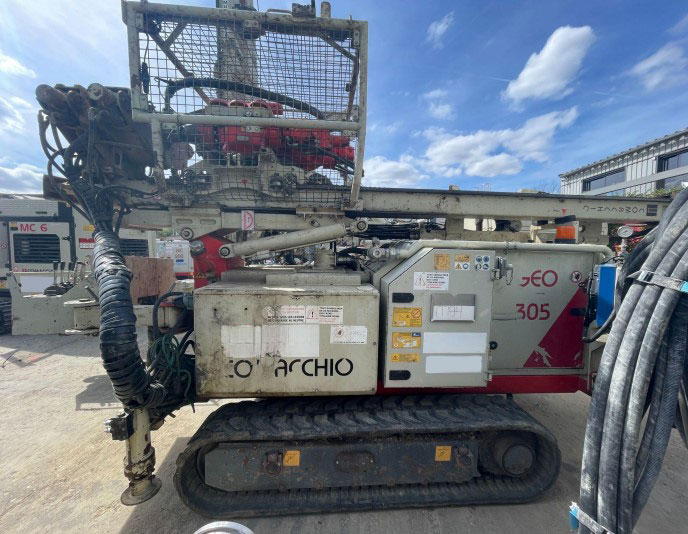

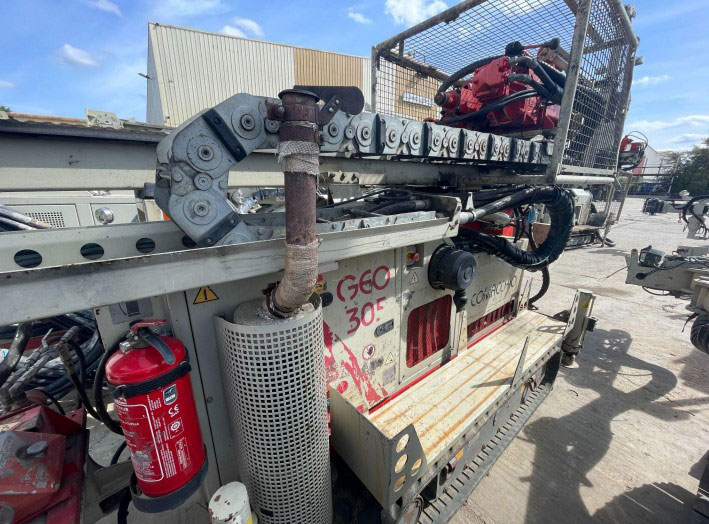

Comacchio GEO 305 Geotechnical Drill Rig

Description

Used Comacchio GEO 305 Geotechnical Drill Rig for sale.

4,400 Hours

Engine-DEUTZ TD 2011L04 – 55 kW at 3 000 rpm

CT 110.1 – E20 Head

Torque: 630 / 350 / 185 / 115 / 240 / 130 / 70 / 45 daNm

Speed: 38 / 70 / 130 / 205 / 100 / 180 340 540 rpm

Blow energy: 250 Nm

Frequency: 2 500 blows/min

Thread type : H64 PIN Right – R38 BOX

2,800mm feed stroke

Double clamps

45 – 220 mm Clamping force : 13 000 daN / Breakout torque: 1 000 daNm

Working height: 5,180 mm /

Transport height: 2,500 mm Transport length: 5,180 mm / Working length: 4,080 mm

Width: 1,450 mm / Weight: 4.45 tonnes

Triplex pump CTD 130 130L/min – 20 bar
