Beretta T24 Micro Piling Rig

Description

Used Beretta T24 Micro Piling Rig for sale.

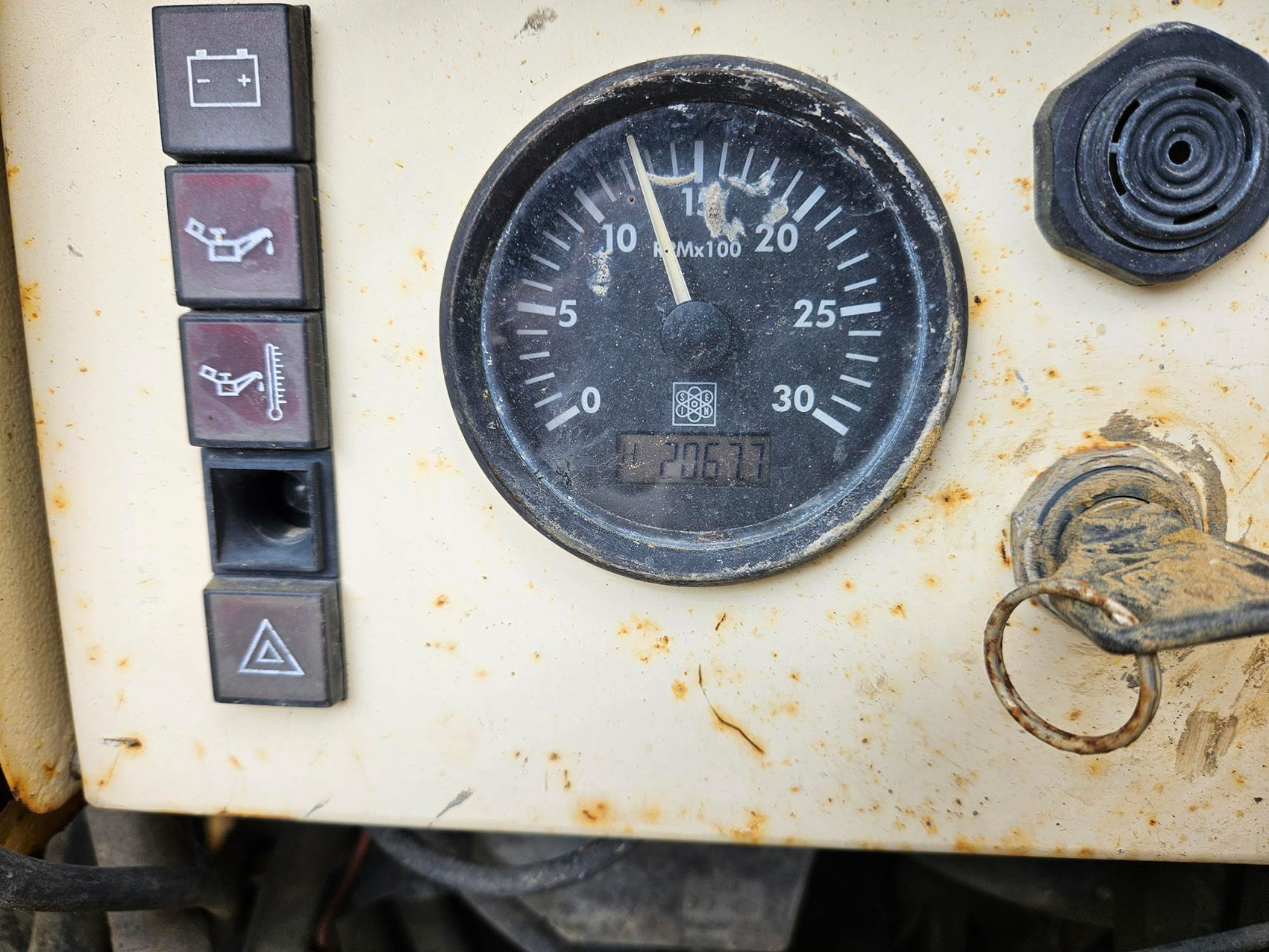

2,067 Hours

Racked wagon speed: 0-3km/h

Variable carriage opening: 700-1000mm

Sled length slide: 2465-2965 mm

Rotation head carriage travel: 1760-2260mm

Gearmotor maximum push-pull 20.0KN

Standard rotation head: n. marches 2

1st gear – max 32.0KNm

1st gear – max 0 – 67rpm

2nd gear – max 16.0KNm

2nd gear – max 0 – 134rpm

Side shift stroke 300mm

Winch rope diameter: 6mm

Winch rope capacity: 30m

Winch max pull: 4.0KN
